Page 225 of 292

09 Maintenance and servicing
Replacing bulbs09
* Option/accessory, for more information, see Introduction.225
6. Lift out the headlight housing and place it
on a soft surface to avoid scratching the
lens.
CAUTION
When disconnecting the connector, pull on
the connector itself and not on the wiring.
After the defective bulb has been replaced,
reinsert the housing in the reverse order. Check
that the retaining pin is correctly inserted.
WARNING
Active Bending Lights* – due to the high
voltage used by these headlights, these
bulbs should only be replaced by a trained
and qualified Volvo service technician.
Low beam bulb
G019131
Cover with retaining clamps
1. Open the hood and remove the headlight
housing (see page 224 for instructions).
2. Release the retaining clamps on the cover
and remove it.
3. Release the bulb's retaining spring holding
the bulb in place by pressing it inward and
downward.
4. Pull out the bulb.
G019133
Low beam bulb
Installing a new bulb1. Insert the new bulb. It can only be installed
in one position.
2. Press the retaining spring inward and
upward and slightly to the right until it
snaps into place.
3. Press the wiring connector onto the bulb.
4. Put the plastic cover in place.
5. Press the retaining clamps back into place.
6. Reinstall the headlight housing (see
page 224).
Page 226 of 292

09 Maintenance and servicing
Replacing bulbs 09
226* Option/accessory, for more information, see Introduction.
High beam bulb (halogen)
G019136
Halogen high beam bulb
1. Open the hood.
2. Remove the headlight housing (see
page 224).
3. Remove the cover on the upper side of the
headlight housing by turning it counter-
clockwise.
NOTE
The halogen high beam bulb has a different
socket on vehicles equipped with the
optional Active Bending Lights. On these
models, pull the bulb straight out.
WARNING
Active Bending Lights* – due to the high
voltage used by these headlights, the Active
Bending Light bulbs should only be
replaced by a trained and qualified Volvo
service technician.
4. Driver's side headlight: Turn the bulb
holder counterclockwise.
Passenger's side headlight: Turn the bulb
holder clockwise.
5. Pull out the bulb holder and replace the
bulb.
6. Reinstall the bulb holder. It can only be
installed in one position.
7. Reinstall the cover on the upper side of the
headlight housing by turning it clockwise.
8. Reinstall the headlight housing (see
page 224).
Parking light bulb
G019145
1. Open the hood.
2. Remove the headlight housing, see
page 224.
3. Remove the cover on the upper side of the
headlight housing by turning it counter-
clockwise.
4. Pull out the bulb holder.
5. Replace the bulb.
6. Press the bulb holder back into position. It
will click into place.
7. Reinstall the cover on the upper side of the
headlight housing by turning it clockwise.
Page 227 of 292

09 Maintenance and servicing
Replacing bulbs09
* Option/accessory, for more information, see Introduction.227
8. Reinstall the headlight housing.
NOTE
Vehicles equipped with the optional Active
Bending Lights (headlights) have LED park-
ing lights that cannot be replaced.
Turn signal
G019150
1. Open the hood.
2. Remove the headlight housing, see
page 224.
3. Turn the bulb holder counterclockwise and
remove it.4. Remove the bulb from the holder by press-
ing it in and twisting it counterclockwise.
5. Insert a new bulb and reinstall the bulb
holder in the headlight housing.
6. Reinstall the headlight housing.
Side marker light
G018050
1. Open the hood.
2. Remove the headlight housing, see
page 224.
3. Turn the bulb holder counterclockwise,
pull it out, and replace the bulb.
4. Reinstall the bulb holder. It can only be
installed in one position.5. Reinstall the headlight housing.
Front fog lights*
G019605
1. Switch off all lights and turn the key to
position 0.
2. Remove the panel around the fog light
housing by inserting a screw driver as
shown in the illustration and pressing the
panel outward to release the retaining clip.
3. Grasp the edge of the panel and pull it
straight out.
4. Unscrew the screw in the fog light housing
and remove it.
Page 228 of 292

09 Maintenance and servicing
Replacing bulbs 09
228
5. Turn the bulb counterclockwise and
remove it.
6. Insert a new bulb by turning it clockwise
(the profile on the bulb holder will corre-
spond with the profile in the base of the
bulb).
7.
Reinsert the bulb holder. The mark TOP
should be upward.
Removing the taillight bulb holder
G019166
All bulbs in the taillight cluster can be replaced
from the cargo area. To access the bulb hold-
ers:
1. Switch off all lights and turn the key to
position 0.
2. Remove the covers (A or B) in the left/right
panels to access the bulb holders.
3. Disconnect the wiring connector from the
affected bulb holder.
4. Press the catches together and pull out the
bulb holder.
5. Replace the defective bulb.
6. Press the wiring connector back into posi-
tion.
7. Press the bulb holder into place and rein-
stall the cover.Location of taillight bulbs
G018058
Location of taillight bulbs
Brake light (LED)1
Taillight
Parking light
Turn signal
1The wiring to the LED brake lights is permanently connected to the bulb holder. It should not be removed.
Page 229 of 292
09 Maintenance and servicing
Replacing bulbs09
229
Back-up light
Fog light
NOTE
If the message indicating a burned out bulb
remains in the information display after the
bulb has been replaced, consult a trained
and qualified Volvo service technician.
High-level brake lightThese bulbs should only be replaced by a
trained and qualified Volvo service technician.
License plate lighting
G014849
1. Switch off all lights and turn the key to
position 0.
2. Remove the screws with a screw driver.
3. Detach the lens (bulb housing) carefully.
4. Replace the defective bulb.
5. Reinstall the entire bulb housing and screw
it into place.
Footwell lighting
G020795
The footwell lighting is located under the dash-
board on the driver's and passenger's sides.
To replace a bulb:
1. Insert a screwdriver under the edge of the
lens. Turn the screwdriver gently to detach
the lens.
2. Remove the defective bulb.
3. Install a new bulb.
4. Press the lens back into place.

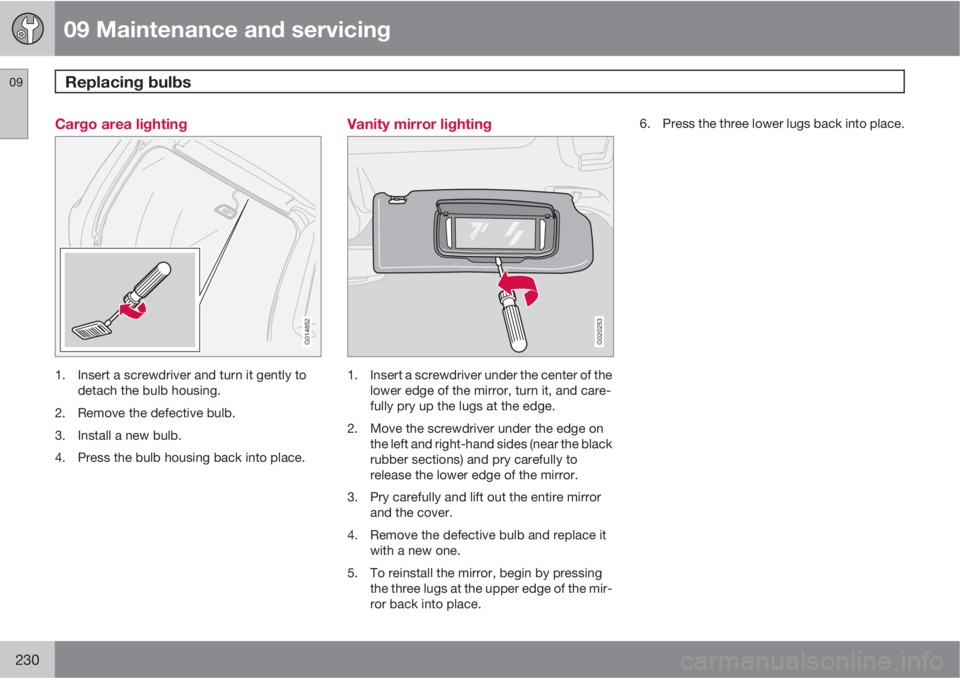

Page 230 of 292
09 Maintenance and servicing
Replacing bulbs 09
230
Cargo area lighting
G014852
1. Insert a screwdriver and turn it gently to
detach the bulb housing.
2. Remove the defective bulb.
3. Install a new bulb.
4. Press the bulb housing back into place.
Vanity mirror lighting
G020253
1. Insert a screwdriver under the center of the
lower edge of the mirror, turn it, and care-
fully pry up the lugs at the edge.
2. Move the screwdriver under the edge on
the left and right-hand sides (near the black
rubber sections) and pry carefully to
release the lower edge of the mirror.
3. Pry carefully and lift out the entire mirror
and the cover.
4. Remove the defective bulb and replace it
with a new one.
5. To reinstall the mirror, begin by pressing
the three lugs at the upper edge of the mir-
ror back into place.6. Press the three lower lugs back into place.
Page 231 of 292
09 Maintenance and servicing
Fuses09
231 Replacing fuses
There are relay/fuse boxes located in the
engine compartment and the passenger com-
partment.
If an electrical component fails to function, this
may be due to a blown fuse. The easiest way
to see if a fuse is blown is to remove it.
To do so:
1. Pull the fuse straight out. If a fuse is difficult
to remove, special fuse removal tools are
located on the inside of the fuse box cov-
ers.
2. From the side, examine the curved metal
wire in the fuse to see if it is intact.
3. If the wire is broken, insert a new fuse of
the same color and amperage (written on
the fuse).
If fuses burn out repeatedly, have the electrical
system inspected by a trained and qualified
Volvo service technician.
WARNING
Never use metal objects or fuses with higher
amperage than those stated on the follow-
ing pages. Doing so could seriously damage
or overload the vehicle's electrical system.
Page 232 of 292
09 Maintenance and servicing
Fuses 09
232
Fuse box in the engine compartment
G007446
The fuse box in the engine compartment has
positions for 36 fuses.
•Fuses 1–18 are relays/circuit breakers and
should only be removed or replaced by an
authorized Volvo service technician.
•Fuses 19–36 may be changed at any time
when necessary.
Several extra fuses and a fuse removal tool to
assist in removing/replacing fuses can be
found on the underside of the fuse box cover
in the engine compartment.
