09 Maintenance and servicing
Fuses09

233
Fuses in the engine compartment
G020250
1.Coolant fan (radiator)50A
2.Power steering80A
3.Feed to passenger com-
partment fuse box60A
4.Feed to passenger com-
partment fuse box60A
5.Element, climate unit80A
6.Not in use
7.ABS pump30A
8.ABS valves20A
9.Engine functions30A
10.Climate system blower40A
11.Headlight washers20A
12.Feed to heated rear window30A
13.Starter motor relay30A
14.Trailer connector (acces-
sory)40A
15.Not in use
16.Feed to audio system30A
17.Windshield wipers30A
18.Feed to passenger com-
partment fuse box40A
19.Not in use
20.Horn15A
21.Not in use
22.Not in use
23.Engine control module
(ECM)/transmission control
module (TCM)10A

09 Maintenance and servicing
Fuses 09
234* Option/accessory, for more information, see Introduction.
24.Not in use
25.Not in use
26.Ignition switch15A
27.A/C compressor10A
28.Not in use
29.Front fog lights*15A
30.Not in use
31.Not in use
32.Fuel injectors10A
33.Heated oxygen sensor, vac-
uum pump20A
34.Ignition coils, climate unit
pressure sensor10A
35.Engine sensor valves, A/C
relay, relay coil, PTC ele-
ment oil trap, canister, mass
air meter15A
36.Engine control module
(ECM), throttle sensor10A

09 Maintenance and servicing
Fuses09

235 Fuse box in the passenger compartment
G020601
The fuse box in the passenger compartment is
located under the glove compartment.
To access the fuses:
1. Remove the upholstery covering the fuse
box by first pressing in the center pins in
the mounting clips approximately 0.5 in
(1 cm) with a small screwdriver and then
pulling the pins out.
2. Turn both retaining screws (2) counter-
clockwise until they release.
3. Fold down the fuse box (3) half way. Pull it
toward the seat until it stops. Fold it down
completely. The fuse box can be unhooked
completely.
4. Replace the blown fuse.
5. Close the fuse box in reverse order.6. Pull the center pins fully out of the mount-
ing clips, secure the upholstery with the
mounting clips and press the pins into the
mounting clips again. The mounting clips
then expand, holding the upholstery in
position.

09 Maintenance and servicing
Fuses 09
236* Option/accessory, for more information, see Introduction.
Fuses in the passenger compartment
-Fuse 37-42, not in use-
43.Audio system, Blue-
tooth,Volvo Navigation sys-
tem*15A
44.Supplemental Restrain Sys-
tem (SRS), engine control
module10A
45.12-volt socket in rear seat15A
46.Lighting – glove compart-
ment, instrument panel, and
footwells5A
47.Interior lighting5A
48.Tailgate window wiper/
washer15A
49.Supplemental Restrain Sys-
tem (SRS), Occupant
Weight Sensor (OWS)10A
50.Not in use
51.AWD, fuel filter relay10A
52.Transmission control mod-
ule (TCM), ABS5A
53.Power steering10A
54.Park assist*, Active Bending
Lights*10A
55.Not in use
56.Volvo Navigation System
remote key module, alarm
siren control module10A
57.On-board diagnostic
socket, brake light switch15A
58.Right high beam, auxiliary
lights relay7.5A

09 Maintenance and servicing
Fuses09
* Option/accessory, for more information, see Introduction.237
59.Left high beam7.5A
60.Heated driver's seat*15A
61.Heated passenger's seat*15A
62.Moonroof*20A
63.Power window and door
lock – rear passenger's side
door20A
64.Sirius satellite radio*5A
65.Audio system5A
66.Audio system control mod-
ule (ICM), climate system10A
67.Not in use
68.Cruise control5A
69.Climate system, rain sen-
sor*, BLIS button*5A
70.Not in use
71.Not in use
72.Not in use
73.Moonroof, front ceiling
lighting, auto-dim mirror*,
seat belt reminder5A
74.Fuel pump relay15A
75.Not in use
76.Not in use
77.Auxiliary equipment control
module (AEM)15A
78.Not in use
79.Back-up lights5A
80.Not in use
81.Power window and door
lock – rear driver's side door20A
82.Power window – front pas-
senger's side door25A
83.Power window and door
lock – front driver's side
door25A
84.Power passenger's seat25A
85.Power driver's seat25A
86.Interior lighting relay, cargo
area light, power seats5A

238

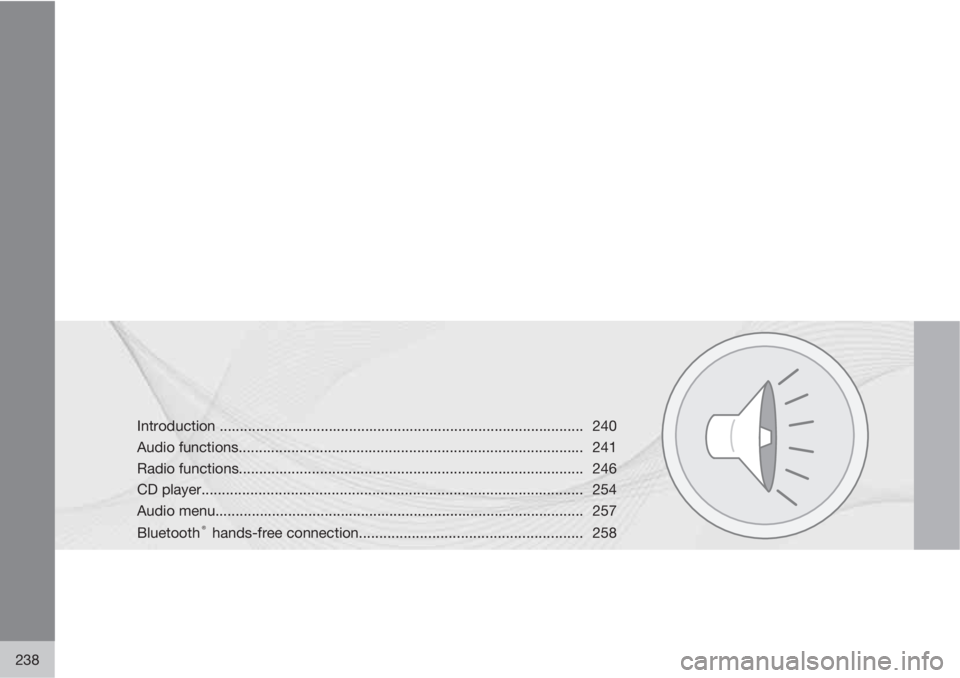

Introduction .......................................................................................... 240
Audio functions..................................................................................... 241
Radio functions..................................................................................... 246
CD player.............................................................................................. 254
Audio menu........................................................................................... 257
Bluetooth
® hands-free connection....................................................... 258

AUDIO

10 Audio
Introduction
10
240* Option/accessory, for more information, see Introduction.
Controls
G020245
POWER: press for on/off. If the audio sys-
tem is on when the remote key is turned to
position 0, it will continue to play until the
key is removed from the ignition slot (or the
driver's door is opened on vehicles with the
optional keyless drive). The system will
start automatically the next time the key is
turned to position I. See page 145 for infor-
mation about the ignition switch positions.
Display
Keypad
MENU: opens the menu system
Navigation control: Use the up/down
arrows to navigate among menu alterna-
tives.
EXIT: press to exit the menu system
ENTER: press to confirm a selection or
activate/deactivate a function
The audio system's functions can also be con-
trolled from the steering wheel keypad.
The menu alternatives are numbered and can
be selected directly from the keypad. Press
MENU and then the number(s) of the desired
menu alternative.
Audio levels
The audio systems is available in three levels:
•Performance1
•High Performance
•Premium Sound*
NOTE
The audio system features and equipment
described in this chapter may not be avail-
able on all audio levels.
1Certain Canadian models
