2011 VOLVO V50 Owner´s Manual

SPECIFICATIONS

11 Specifications

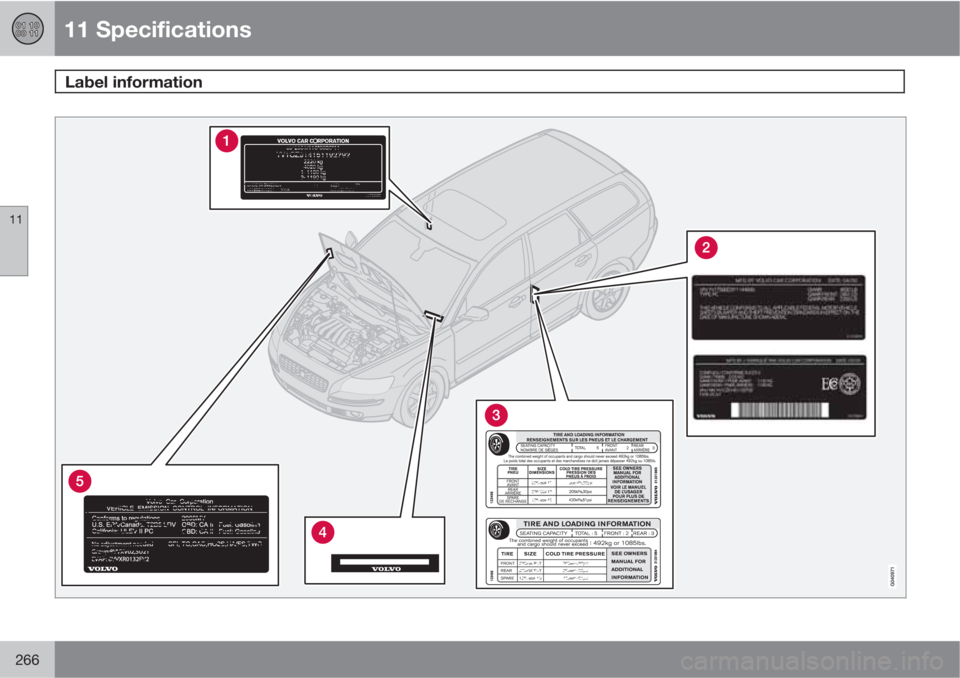

Label information
11
266

11 Specifications
Label information
11
267
Model plate
Vehicle Identification Number (VIN). Codes for
color and upholstery, etc.
The model plate is located on the rear side of
the B-pillar (the pillar between the front and
rear passenger doors) and the rear passeng-
er's door must be open in order to see it.
Federal Motor Vehicle Safety
Standards (FMVSS) specifications (USA)
and Ministry of Transport (CMVSS)
standards (Canada)
Your Volvo is designed to meet all applicable
safety standards, as evidenced by the certifi-
cation label on the driver's side B-pillar (the
structural member at the side of the vehicle, at
the rear of the driver's door opening). For fur-
ther information regarding these regulations,
please consult your Volvo retailer.
Tire inflation pressures
This label indicates the correct inflation pres-
sures for the tires that were on the vehicle when
it left the factory.
Canadian models have the upper decal.
U.S. models have the lower decal.
Vehicle Identification Number (VIN)1
The VIN plate is located on the top left surface
of the dashboard. The VIN is also stamped on
the right hand door pillar.
Vehicle Emission Control Information
Your Volvo is designed to meet all applicable
emission standards, as evidenced by the cer-
tification label on the underside of the hood.
For further information regarding these regula-
tions, please consult your Volvo retailer.
1The Vehicle Identification Number (VIN) should always be quoted in correspondence concerning your vehicle with the retailer and when ordering parts.

11 Specifications
Dimensions and weights
11
268
Dimensions
PositionDimension
AWheelbase103.9 in. (264 cm)
BLength177.7 in. (451 cm)
CLoad length, floor, seatback down69.7 in. (177 cm)
DLoad length, floor39 in. (99 cm)
ELoad height26.9 in (68.5 cm)
FHeight57.2 in. (145 cm)
GTrack, front60.4 in. (154 cm)

11 Specifications
Dimensions and weights
11

269
PositionDimension
HTrack, rear60.3 in. (153 cm)
ILoad width, floor39.5 in (100.2 cm)
JWidth69.7 in. (177 cm)
KWidth encl. door mirrors79.6 in. (202 cm)
Weights
CategoryUSACanada
Gross vehicle weight4320 lbs1960 kg
Capacity weight800 lbs365 kg
Permissible axle weight, front2380 lbs1080 kg
Permissible axle weight, rear2220 lbs1010 kg
Curb weight3310 - 3340 lbs1510 kg
Max. roof load165 lbsAll models: 75 kg
Max. trailer weight (w/o brakes)1540 lbsAll models: 700 kg
Max. trailer weight (with brakes)2000 lbsAll models: 900 kg
Max. tongue weight165 lbsAll models: 75 kg

11 Specifications
Dimensions and weights
11
270
CAUTION
The maximum permissible axle loads and/
or the gross vehicle weight must not be
exceeded.
WARNING
When adding accessories, equipment, lug-
gage and other cargo to your vehicle, the
total capacity weight must not be exceeded.

11 Specifications
Fuel, oils, and fluids
11

271 Specifications and capacities
CategorySpecificationCapacity
Fuel tankOctane rating: unleaded gasoline, minimum
octane requirement AKI 87, recommended rat-
ing AKI 91 or above.15.9 US gallons (60 liters)
Engine oil (with filter replacement)See page 272 for information on engine oil
specifications.6.1 US quarts (5.8 liters)
Automatic transmission oilJWS 33098.14 US quarts (7.7 liters)
CoolantVolvo original coolant/antifreeze (50/50 mix-
ture of water and anti-freeze)10.5 US quarts (10 liters) – models with automatic
transmission
Brake fluidDOT 4+ boiling point >536 °F (280 °C), P/N
94374330.63 US quarts (0.6 liters)
Power steering fluidWSS M2C204-A or equivalent1.3 US quarts (1.2 liters) – system and reservoir com-
bined
Washer fluid reservoirUse washer fluid solvent in cold weather con-
ditions.4.2 US qts (4 liters)
Air conditioning systemRefrigerant – R134a1.2 lbs. (530 grams)

11 Specifications
Fuel, oils, and fluids
11
272
NOTE
The transmission oil does not normally need
to be changed during the service life of the
vehicle. However, it may be necessary to
replace the oil if the vehicle is often driven
in areas of sustained temperature extremes
(hot or cold), when towing a trailer over long
distances, for prolonged driving in moun-
tainous areas, or if the vehicle is often driven
short distances in temperatures under 40 °F
(5 °C).
Oil specifications
Engine oil must meet the minimum ILSAC
specification GF-4, API SL, or ACEA A1/B1.
Lower quality oils may not offer the same fuel
economy, engine performance, or engine pro-
tection.
Volume: 6.1 US qts (5.8 liters).
Volume between the MIN and MAX marks on
the dipstick: approximately 1.4 US qts (1.3 lit-
ers).
Volvo recommends Castrol.
Depending on your driving habits, premium or
synthetic oils may provide superior fuel econ-
omy and engine protection. Consult your Volvo
retailer or a trained and qualified Volvo service
technician for recommendations on premium
or synthetic oils.
Oil additives must not be used.
NOTE
Synthetic oil is not used when the oil is
changed at the normal service intervals.
This oil is only used at customer request, at
additional charge. Please consult a trained
and qualified Volvo service technician.
Oil viscosityIncorrect viscosity oil can shorten engine life
under normal use. SAE 5W-30 will provide
good fuel economy and engine protection. See
the viscosity chart.
G023491
Viscosity chart
Extreme engine operationSynthetic oils meeting SAE 0W-30 or 0W-40
and complying with oil quality requirements are
recommended for driving in areas of sustained
temperature extremes (hot or cold), when tow-ing a trailer over long distances, and for pro-
longed driving in mountainous areas.
American Petroleum Institute (API)
symbol
G022917
The API Service Symbol "donut" is divided into
three parts:
•The upper section describes the oil's per-
formance level.
•The center identifies the oil's viscosity.
•The lower section indicates whether the oil
has demonstrated energy-conserving
properties in a standard test in comparison
to a reference oil.
