2011 TOYOTA FJ CRUISER Owners Manual

33
1-2. Opening, closing and locking the doors
1
Before driving
■
Key reminder buzzer
A buzzer sounds if the driver’s door is opened, while the engine switch is in
the ACC or LOCK position to remind you to remove the key.
■ Customization that can be co nfigured at Toyota dealer
Settings (e.g. unlocking function using a key) can be changed.
(Customizable features P. 493)
CAUTION
■To prevent an accident
Observe the following precautions while driving the vehicle.
Failing to do so may result in a door opening and an occupant falling out,
resulting in death or serious injury.
●Always use a seat belt.
● Always lock all doors.
● Ensure that all doors are properly closed.
● Do not pull the inside handle of the doors while driving.
The doors may be opened and the passengers are thrown out of the vehi-
cle and it may result in serious injury or death.
Be especially careful for the side doors, as the doors may be opened even
if the inside lock buttons are in locked position.

34
1-2. Opening, closing and locking the doors

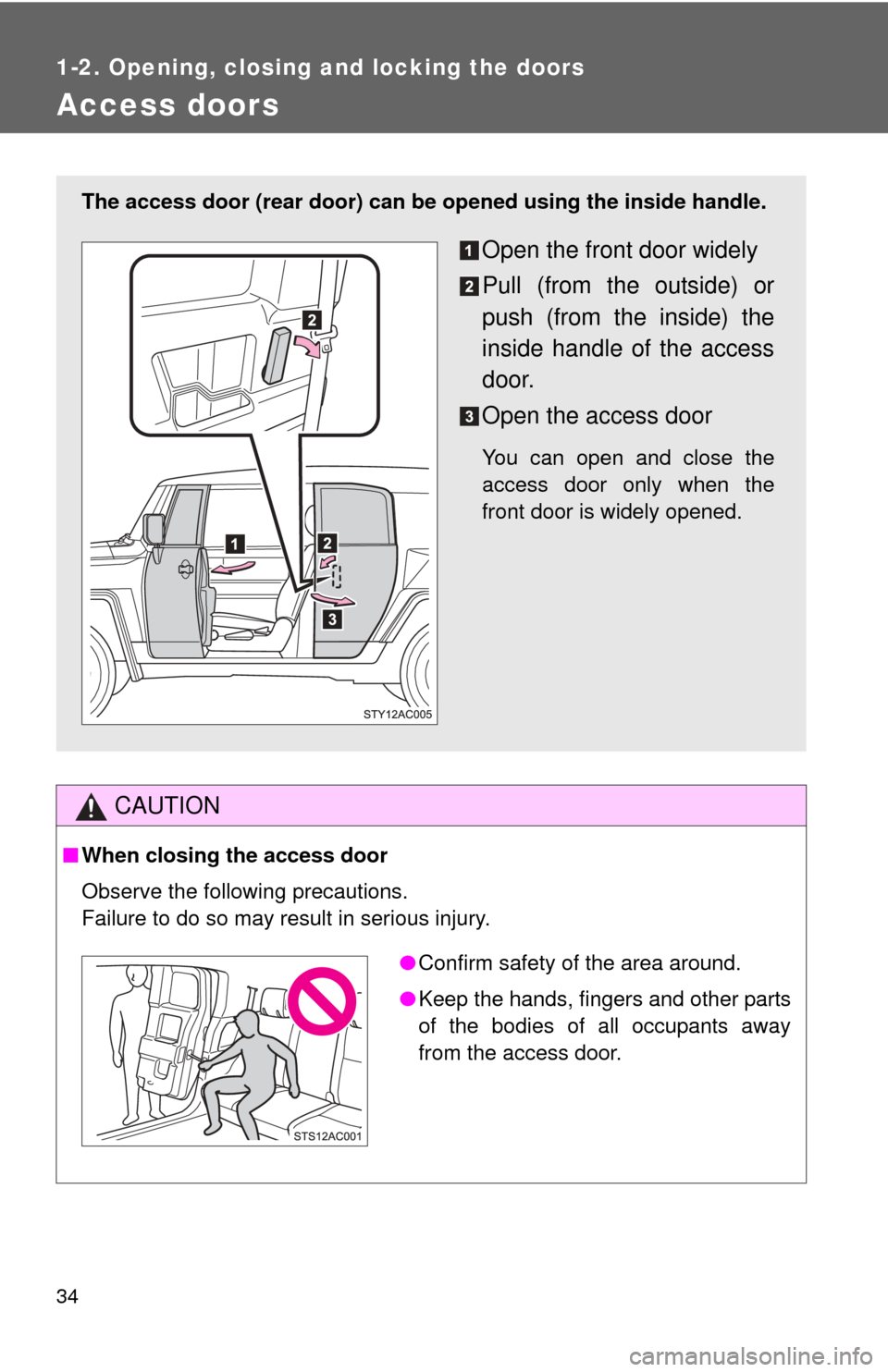

Access doors
CAUTION
■When closing the access door
Observe the following precautions.
Failure to do so may result in serious injury.
The access door (rear door) can be opened using the inside handle.
Open the front door widely
Pull (from the outside) or
push (from the inside) the
inside handle of the access
door.
Open the access door
You can open and close the
access door only when the
front door is widely opened.
●Confirm safety of the area around.
● Keep the hands, fingers and other parts
of the bodies of all occupants away
from the access door.

35
1-2. Opening, closing and locking the doors
1
Before driving
NOTICE
■
When opening or closing the front door and access door
The front door and access door could be damaged if they hit each other
when being opened or closed.

36
1-2. Opening, closing and locking the doors

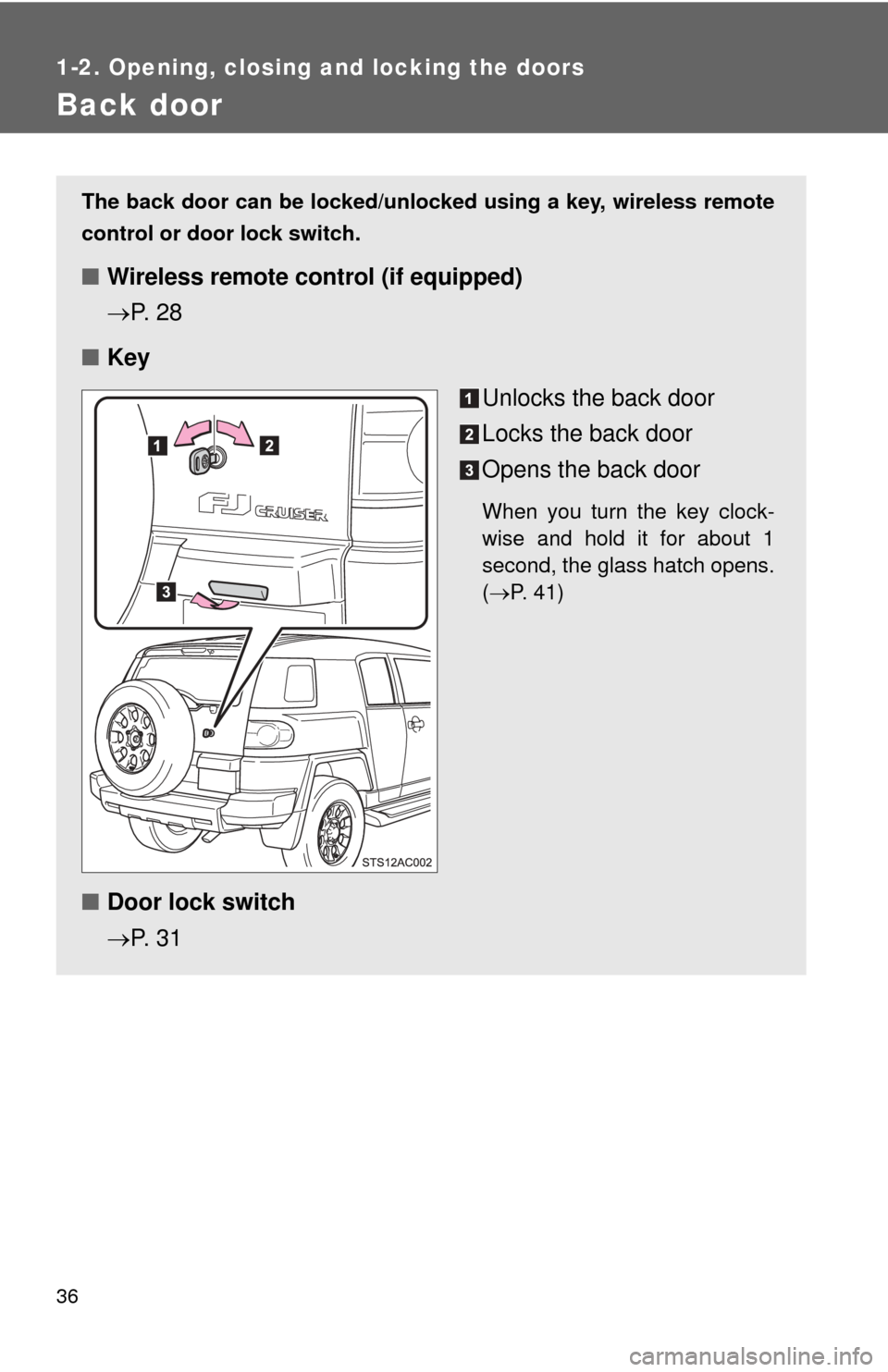

Back door
The back door can be locked/unlocked using a key, wireless remote
control or door lock switch.
■ Wireless remote control (if equipped)
P. 2 8
■ Key
Unlocks the back door
Locks the back door
Opens the back door
When you turn the key clock-
wise and hold it for about 1
second, the glass hatch opens.
(P. 41)
■ Door lock switch
P. 3 1

37
1-2. Opening, closing and locking the doors
1
Before driving
■
Back door fixing function
The back door can be held in the following positions:
Half open position
Open the back door to the half
open position.
It cannot be held in this posi-
tion when being closed.
Full open positionYou can hold the back door in
this position:
Locks the back door
damper
Unlocks the back door
damper
When closing the door, be sure
to unlock the damper.

38 1-2. Opening, closing and locking the doors
Rear step bumperFor rear end protection and eas-
ier step-up loading.
To get on the rear step bumper,
use the shaded area in the illus-
tration.
CAUTION
■Caution while driving
●Keep the back door closed while driving.
If the back door is left open, it may hit near-by objects while driving or lug-
gage may be unexpectedly thrown out, causing an accident.
In addition, exhaust gases may enter the vehicle, causing death or a seri-
ous health hazard. Make sure to close the back door before driving.
● Before driving the vehicle, make sure that the back door is fully closed. If
the back door is not fully closed, it may open unexpectedly while driving,
causing an accident.
● Never let anyone sit in the luggage compartment. In the event of sudden
braking or a collision, they are susceptible to death or serious injury.
● Do not get on the rear step bumper.
■ When children are in the vehicle
Observe the following precautions.
Failure to do so may result in death or serious injury.
●Do not leave children alone in the luggage compartment.
If children are accidentally locked in the luggage compartment, they could
have heat exhaustion.
● Do not allow children to open or close the back door.
Doing so may cause the back door to operate unexpectedly, or cause the
child’s hands, head, or neck to be caught by the closing back door.

39
1-2. Opening, closing and locking the doors
1
Before driving
CAUTION
■
Operating the back door
Observe the following precautions.
Failure to do so may cause parts of the body to be caught, resulting in death
or serious injury.
●When opening or closing the back door, thoroughly check to make sure
the surrounding area is safe.
● If anyone is in the vicinity, make sure they are safe and let them know that
the back door is about to open or close.
● Use caution when opening or closing the back door in windy weather as it
may move abruptly in strong wind.
● Do not pull on the back door damper stay to close the back door, and do
not hang on the back door damper stay.
Doing so may cause hands to be caught or the back door damper stay to
break, causing an accident.
● Do not attach any accessories other than genuine Toyota parts to the back
door. Such additional weight on the back door may cause the back door to
closed again after it is opened.
●The back door may close if the back
door damper is not opened fully. It is
more difficult to open or close the back
door on an incline than on a level sur-
face, so beware of the back door unex-
pectedly opening or closing by itself.
Make sure that the back door is fully
open and secure before using the lug-
gage compartment.
● When closing the back door, take extra
care to prevent your fingers etc. from
being caught.
● When closing the back door, make sure
to press it lightly on its outer surface.

40 1-2. Opening, closing and locking the doors
NOTICE
■To prevent damage to th e back door components
Do not allow more than one person to get on the rear step bumper at a time.
■ Back door damper stays
The back door is equipped with damper stays that hold the back door in
place.
Observe the following precautions.
Failure to do so may cause damage to the back door damper stay, resulting
in malfunction.
●Ensure that the damper is unlocked before closing the back door.
●Do not attach any foreign objects, such
as stickers, plastic sheets, or adhesives
to the damper stay rod.
● Do not touch the damper stay rod with
gloves or other fabric items.
● Do not attach any accessories other
than genuine Toyota parts to the back
door.
● Do not place your hand on the damper
stay or apply vertical forces to it.
Damper stay rod
