2011 TOYOTA FJ CRUISER run flat

360 4-2. Maintenance
Vehicle exterior
Steering wheel• Moves smoothly?
• Has correct free play?
• No strange noises?
ItemsCheck points
Door • Operate smoothly?
Engine hood • The lock system works properly?
Fluid leaks • Is there any leakage after park-
ing?
Tire • Inflation pressure is correct?
• Tire surfaces not worn or dam-
aged?
• Tires rotated according to the maintenance schedule?
• Wheel nuts are not loose?
CAUTION
■ If the engine is running
Turn the engine off and ensure that there is adequate ventilation before per-
forming maintenance checks.
ItemsCheck points

5
When trouble arises
421
5-1. Essential information
If your vehicle needs to be towed
Before towingThe following may indicate a problem with your transmission. Contact
your Toyota dealer before towing.
● The engine is running, but the vehicle will not move.
● The vehicle makes an abnormal sound.
Emergency towing
If a tow truck is not available, in an emergency your vehicle may be
temporarily towed using a cable or chain secured to the emergency
towing eyelet. This should only attempted on hard, surfaced roads for
short distances at low speeds.
A driver must be in the vehicle to steer and operate the brakes. The
vehicle’s wheels, drive train, axles, steering and brakes must be in
good condition.
Towing eyelet
If towing is necessary, we recommend having your vehicle towed by
your Toyota dealer or a commerci al towing service, using a lift-type
truck or a flat bed truck.
Use a safety chain system for all to wing, and abide by all state/pro-
vincial and local laws.
The wheels and axle on the groun d must be in good condition.
If they are damaged, use a towing dolly or flat bed truck.

426
5-1. Essential information
If you think something is wrong
If you notice any of the following symptoms, your vehicle probably
needs adjustment or repair. Contact your Toyota dealer as soon as
possible.
■ Visible symptoms
●Fluid leaks under the vehicle
(Water dripping from the air cond itioning after use is normal.)
● Flat-looking tires or uneven tire wear
● Engine coolant temperature g auge needle continually points
higher than normal
● Voltmeter continually points higher or lower than normal.
■ Audible symptoms
●Changes in exhaust sound
● Excessive tire squeal when cornering
● Strange noises related to the suspension system
● Pinging or other noises related to the engine
■ Operational symptoms
●Engine missing, stumbling or running rough
● Appreciable loss of power
● Vehicle pulls heavily to one side when braking
● Vehicle pulls heavily to one side when driving on a level road
● Loss of brake effectiveness, s pongy feeling, pedal almost
touches the floor

450 5-2. Steps to take in an emergency
CAUTION
■Using the jack
Improper use of the jack may lead to death or serious injuries due to the
vehicle suddenly falling off the jack.
●Do not use the jack for any purpose ot her than replacing tires or install-
ing and removing tire chains.
●Only use the jack that comes with this vehicle for replacing a flat tire.
Do not use it on other vehicles, an d do not use other jacks for replac-
ing tires on this vehicle.
●Always check that the jack is securely set to the jack point.
●Do not put any part of your body under the vehicle supported by a jack.
●Do not start or run the engine while your vehicle is supported by the
jack.
●Do not raise the vehicle while someone is in it.
●When raising the vehicle, do not put an object on or under the jack.
●Do not raise the vehicle to a hei ght greater than that required to
replace the tire.
●Use a jack stand if it is necessary to get under the vehicle.
Take particular care when lowering the vehicle to ensure that no one
working on or near the vehicle will be injured.
■Using the jack handle
Tighten all the square head bolts securely to prevent the extension parts
from coming apart unexpectedly.

516 Alphabetical index
Clinometer ................................ 141
Clock ........................................ 327
Clutch start cancel switch....... 174
Compass ........................... 141, 343
Condenser ................................ 373
Cooling systemEngine overheating ............... 459
CRS .............................................97
Cruise control........................... 148
Cup holders .............. 318, 319, 322
Curtain shield airbags ...............79
Customizable features............. 493
Daytime running light
system .................................... 144
Defogger
Rear window ......................... 213
Dimension................................. 468
Dinghy towing .......................... 203
Do-it-yourself main tenance..... 362
Doors Access doors...........................34
Door glasses ...........................69
Door lock ...........................28, 31
Open door warning light ........ 433
Side doors ...............................31
Side mirrors .............................66
Driver’s seat belt reminder
buzzer ..................................... 433
Driver’s seat belt reminder light ......................................... 433
Driving Break-in tips .......................... 116
Correct posture .......................77
Driving assist systems........... 175
Procedures ............................ 124
Winter driving tips.................. 190 Emergency, in case of
Blown fuse ............................ 399
If the engine will not start ...... 453
If the shift lever cannot be shifted from P ..................... 454
If the vehicle battery is discharged .......................... 456
If a warning buzzer
sounds ................................ 430
If a warning light turns on ...... 430
If you have a flat tire ............. 440
If you lose your keys ............. 455
If you think something is wrong .................................. 426
If the vehicle becomes stuck ................................... 462
If your vehicle has to
be stopped in an
emergency .......................... 464
If your vehicle needs to be
towed .................................. 421
If your vehicle overheats ....... 459
Emergency flashers
Switch ................................... 420
Engine Compartment ........................ 367
Engine switch ........................ 124
Exhaust gas .......................... 120
Hood ..................................... 366
How to start the engine ......... 124
Identification number............. 470
If the engine will not start ...... 453
Ignition switch ....................... 124
Immobilizer system ................. 74
Overheating .......................... 459
Warning light ......................... 431
D
E

524

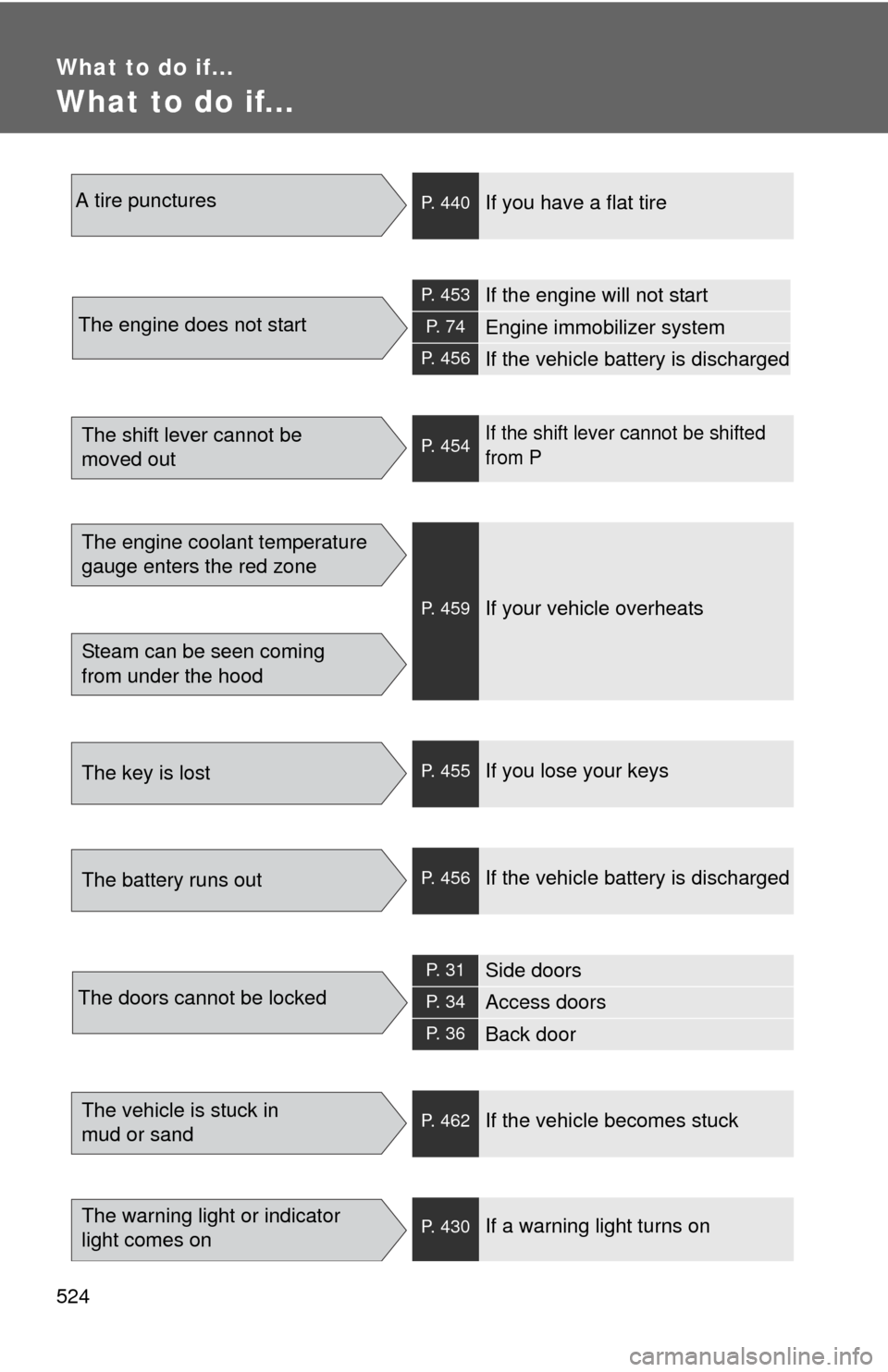

What to do if...
What to do if...
A tire puncturesP. 440If you have a flat tire
The engine does not start
P. 453If the engine will not start
P. 7 4Engine immobilizer system
P. 456If the vehicle battery is discharged
The shift lever cannot be
moved outP. 454If the shift lever cannot be shifted
from P
The engine coolant temperature
gauge enters the red zone
Steam can be seen coming
from under the hood
P. 459If your vehicle overheats
The key is lostP. 455If you lose your keys
The battery runs outP. 456If the vehicle battery is discharged
The doors cannot be locked
P. 3 1Side doors
P. 3 4Access doors
P. 3 6Back door
The vehicle is stuck in
mud or sandP. 462If the vehicle becomes stuck
The warning light or indicator
light comes onP. 430If a warning light turns on
