2011 TOYOTA FJ CRUISER Owners Manual

5
When trouble arises
465
5-2. Steps to take in an emergency
CAUTION
■
If the engine has to be turned off while driving
●Power assist for the brakes and steering wheel will be lost, making the
brake pedal harder to depress and the steering wheel heavier to turn.
Decelerate as much as possible before turning off the engine.
● Never attempt to remove the key, as doing so will lock the steering wheel.

466 5-2. Steps to take in an emergency

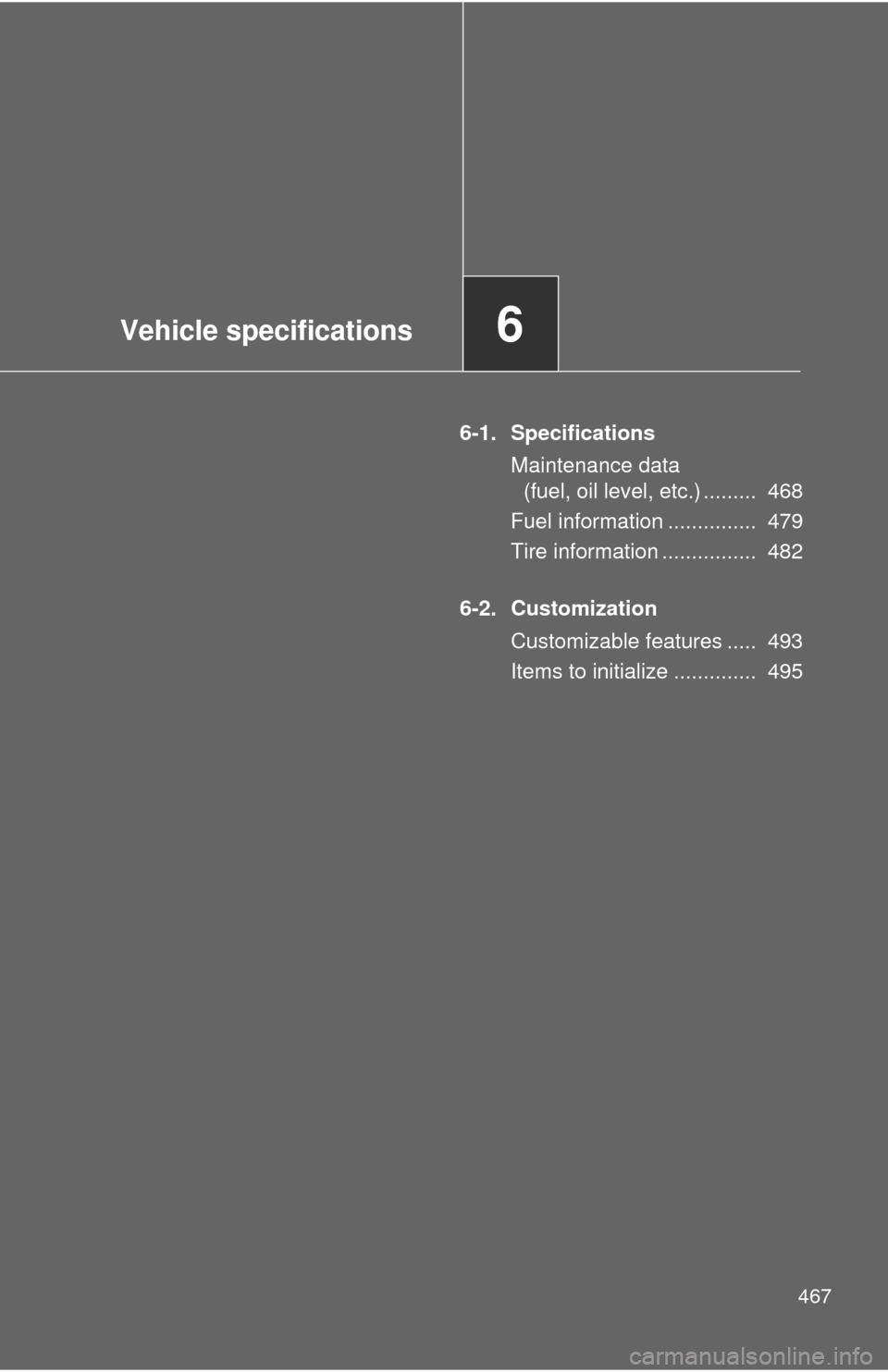

Vehicle specifications6
467
6-1. SpecificationsMaintenance data (fuel, oil level, etc.) ......... 468
Fuel information ............... 479
Tire information ................ 482
6-2. Customization Customizable features ..... 493
Items to initialize .............. 495

468
6-1. Specifications
Maintenance data (fuel, oil level, etc.)
Dimensions and weight
*: Unladen vehicle
Overall length183.9 in. (4670 mm)
Overall width75.0 in. (1905 mm)
Overall
height*2WD models 71.3 in. (1810 mm)
4WD models 72.0 in. (1830 mm)
Wheelbase105.9 in. (2690 mm)
Front tread 63.2 in. (1605 mm)
Rear tread63.2 in. (1605 mm)
Vehicle capacity weight
(Occupants + luggage) 1130 lb. (510 kg)
Towing capacity
(Trailer weight + cargo)5000 lb. (2270 kg)

469
6-1. Specifications
6
Vehicle specifications
Vehicle identification
■ Vehicle identification number
The vehicle identificati on number (VIN) is the legal identifier for your
vehicle. This is the primary identification number for your Toyota. It is
used in registering the ownership of your vehicle.
This number is stamped on the
top left of the instrument panel.
This number is stamped on the
front right frame.
This number is also on the
Certification Label.

470 6-1. Specifications
■Engine number
The engine number is stamped
on the engine block as shown.
Engine
Fuel
Model1GR-FE
Type 6-cylinder V type, 4-cycle, gasoline
Bore and stroke 3.70  3.74 in. (94.0  95.0 mm)
Displacement 241.4 cu.in. (3956 cm3)
Drive belt tension Automatic adjustment
Valve clearance Automatic adjustment
Fuel type Unleaded gasoline only
Octane rating 87 (Research octane number 91) or higher
Fuel tank capacity
(Reference) 19.0 gal. (72.0 L, 15.8 lmp.gal.)

471
6-1. Specifications
6
Vehicle specifications
Lubrication system
■ Engine oil selection
“Toyota Genuine Motor Oil” is used in your Toyota vehicle. Use
Toyota approved “Toyota Genuine Motor Oil” or equivalent to satisfy
the following grade and viscosity.
Oil grade: ILSAC multigrade engine oil
Recommended viscosity: SAE 0W-20
SAE 0W-20 is the best choice for
good fuel economy and good
starting in cold weather.
If SAE 0W-20 is not available,
SAE 5W-20 oil may be used.
However, it must be replaced
with SAE 0W-20 at the next oil
change.
The 0W portion of the oil viscosity rating indicates the characteristic of the
oil which allows cold startability. Oils with a lower value before the W allow
for easier starting of the engine in cold weather.
The 20 in 0W-20 indicates the oil viscosity when the oil is at its operating
temperature. An oil with a higher viscosity may be better suited if the
vehicle is operated at high speeds, or under extreme load conditions.
Oil capacity
(Drain and refill
- reference)With filter
Without filter 6.4 qt. (6.1 L, 5.4 Imp.qt.)
6.0 qt. (5.7 L, 5.0 Imp.qt.)
Outside temperature

472 6-1. Specifications
How to read oil container label:
The ILSAC (International Lubricant Standardization and Approval
Committee) Certification Mark is added to some oil containers to help
you select the oil you should use.
Cooling system
Capacity Vehicles with an automatic transmission
10.4 qt. (9.8 L, 8.6 Imp.qt.)
Vehicles with a manual transmission
9.9 qt. (9.4 L, 8.3 Imp.qt.)
Coolant typeUse either of the following.
• “Toyota Super Long Life Coolant”
• Similar high-quality ethylene glycol-based non-silicate, non-amine, non-nitrite, and
non-borate coolant with long-life hybrid
organic acid technology
Do not use plain water alone.
