2011 TOYOTA FJ CRUISER Owners Manual

49
1-3. Adjustable components (s
eats, mirrors, steering wheel)
1
Before driving
Separate the bottom cushion
from the hinge.
Fold the hinge as shown in the
illustration.

50 1-3. Adjustable components (seats, mirrors, steering wheel)
■If you cannot raise the seatback
■ When the bottom cushion is reinstalled
■ Waterproof and water-repellent seats
Waterproof and water-repellent seats are installed in your vehicle: however,
the water-repellent effect does not last forever.
Release the seat belt lock by:
Pushing on the lower front edge of the
seatback to slacken the seat belt.
Letting the seat belt retract a little.
Click the claw of the hinge into the hole of
the bottom cushion before refastening the
dial.
Firmly tighten the hexagon head bolts
using a torque wrench.Tightening torque: 12.5 ft·lbf (17 N·m, 1.7 kgf·m)

51
1-3. Adjustable components (s
eats, mirrors, steering wheel)
1
Before driving
CAUTION
■When the seatback is folded
Do not sit on or place anything on the seatback while the vehicle is in
motion.
■ When returning the seats to their original position
Observe the following precautions. Failure to do so may result in death or
serious injury.
●Do not return the seatback while the vehicle is in motion.
● Be careful not to get your hands or feet pinched in the seat.
● Make sure the seatbacks and bottom cushions are securely locked. Fail-
ure to do so will prevent the seat belt from operating properly.
● Check that the seat belts are not twisted or caught under the seat.
● Arrange the seat belts in the proper positions for ready use.
■ When removing or reinstalling the bottom cushion
Observe the following precautions. Failure to do so may result in death or
serious injury.
●Do not remove or reinstall the bottom cushion while the vehicle is in
motion.
● Do not get in the vehicle with the bottom cushions uninstalled.
● Do not leave the removed bottom cushion unsecured in the vehicle.
● Do not try to sit on or place anything on the removed bottom cushion.
● Do not drop the bottom cushion.
● Have the hexagon head bolts tightened with a torque wrench to 12.5 ft·lbf
(17 N·m, 1.7 kgf·m), or have them tightened by your Toyota dealer.
Failure to do so may cause the dials to be loosened and the bottom cush-
ions to be removed.

52 1-3. Adjustable components (seats, mirrors, steering wheel)
NOTICE
■Before folding down or removing the seats
●The seat belts buckles must be stowed.
● The head restraints must be removed before you fold down the seatback.
■ After returning the seatback and re installing the bottom cushion
Return the seat belt buckles to their cor-
rect position.
Always pass seat belt buckles through
the bands to secure them.

53
1
1-3. Adjustable components (seats, mirrors, steering wheel)
Before driving

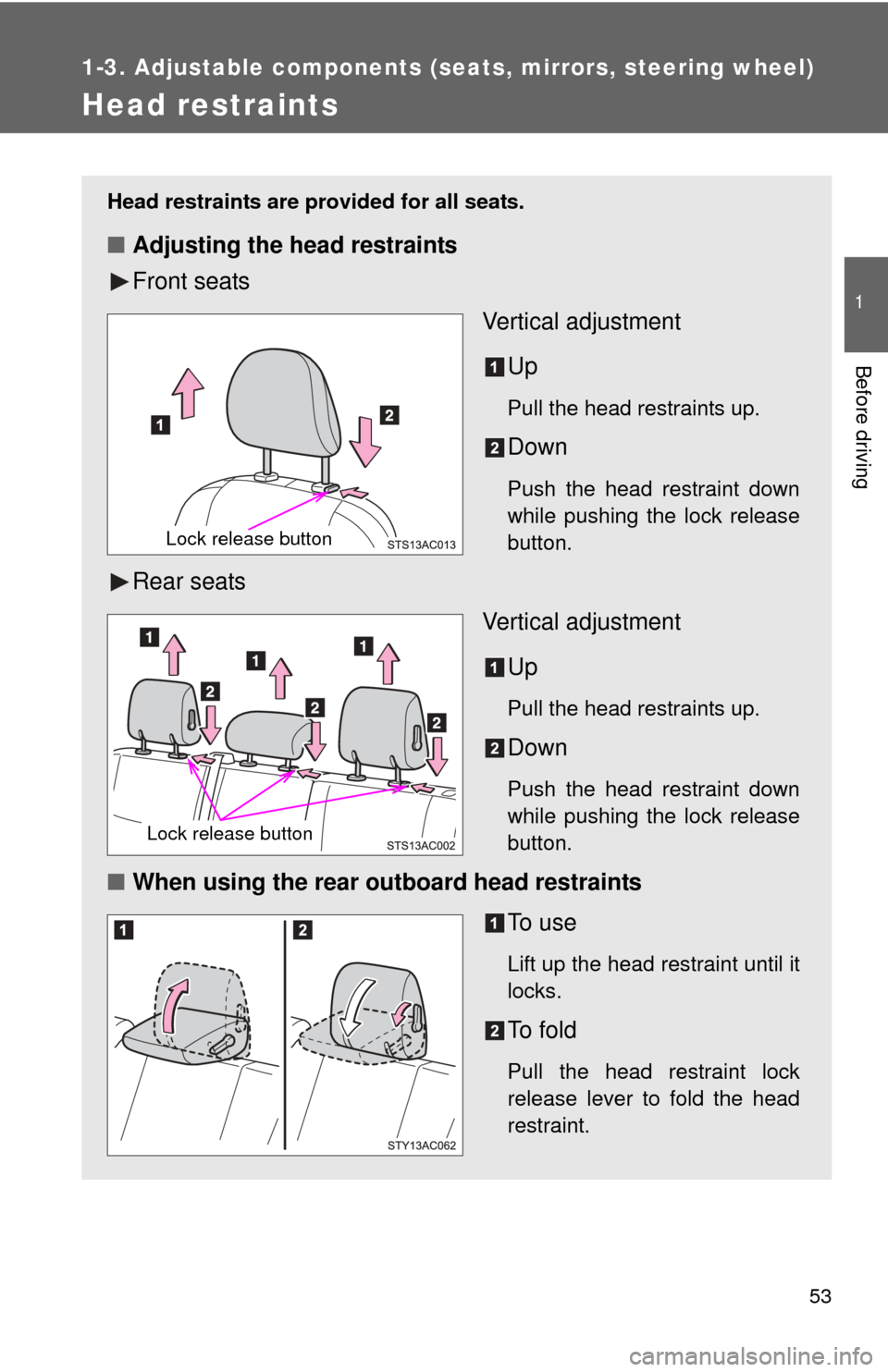

Head restraints
Head restraints are provided for all seats.
■Adjusting the head restraints
Front seats
Vertical adjustment
Up
Pull the head restraints up.
Down
Push the head restraint down
while pushing the lock release
button.
Rear seats Vertical adjustment
Up
Pull the head restraints up.
Down
Push the head restraint down
while pushing the lock release
button.
■When using the rear outboard head restraints
To u s e
Lift up the head restraint until it
locks.
To f o l d
Pull the head restraint lock
release lever to fold the head
restraint.
Lock release button
Lock release button

54 1-3. Adjustable components (seats, mirrors, steering wheel)
■Removing the head restraints
Front seats
Rear seats
■ Installing the head restraints
Front seats
Rear seats
Pull the head restraint up while pushing
the lock release button.
Pull the head restraint up while pushing
the lock release button.
Align the head restraint with the installa-
tion holes and push it down to the lock
position.
Press and hold the lock release button
when lowering the head restraint.
Align the head restraint with the installa-
tion holes and push it down to the lock
position.
Press and hold the lock release button
when lowering the head restraint.

55
1-3. Adjustable components (s
eats, mirrors, steering wheel)
1
Before driving
■When installed the rear outboard h ead restraints to opposite direction
While pressing in the screwdriver, pull up the head restraint.
■ Adjusting the height of th e front seat head restraints
■ Adjusting the rear cent er seat head restraints
Always raise the head restraint one level from the stowed position when
using.
CAUTION
■ Head restraint precautions
Observe the following precautions regarding the head restraints. Failure to
do so may result in death or serious injury.
●Use the head restraints designed for each respective seat.
● Adjust the head restraints to the correct position at all times.
● After adjusting the head restraints, push down on them and make sure
they are locked in position.
● Do not drive with the head restraints removed.
Push a flathead screwdriver into the slot.
The slot is located on the right side of the
right head restraint anchor.
Make sure that the head restraints are
adjusted so that the center of the head
restraint is closest to the top of your ears.

56
1-3. Adjustable components (seats, mirrors, steering wheel)

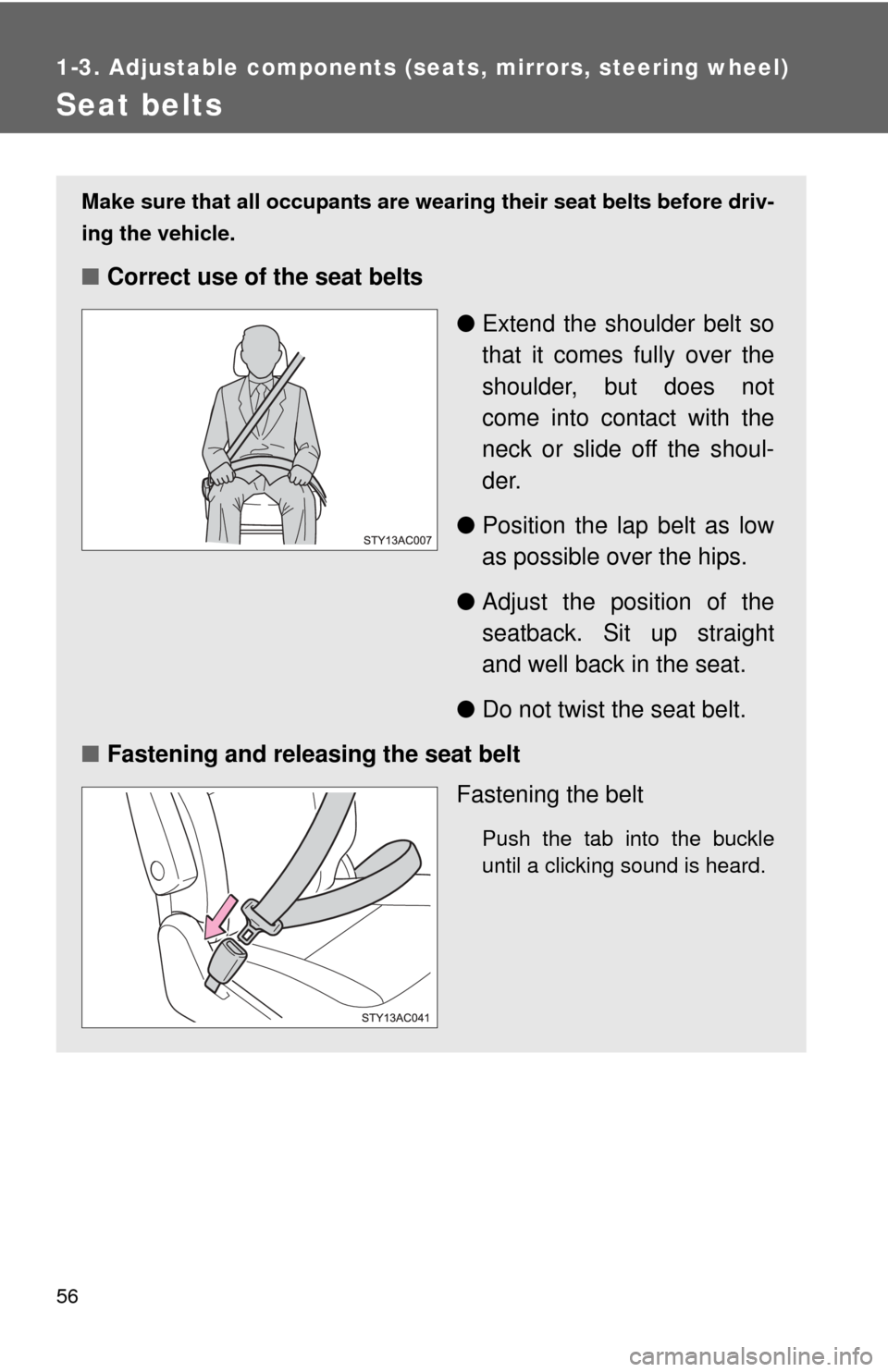

Seat belts
Make sure that all occupants are wearing their seat belts before driv-
ing the vehicle.
■Correct use of the seat belts
●Extend the shoulder belt so
that it comes fully over the
shoulder, but does not
come into contact with the
neck or slide off the shoul-
der.
● Position the lap belt as low
as possible over the hips.
● Adjust the position of the
seatback. Sit up straight
and well back in the seat.
● Do not twist the seat belt.
■ Fastening and releasing the seat belt
Fastening the belt
Push the tab into the buckle
until a clicking sound is heard.
