46 1-2. Opening, closing and locking the doors and trunk
AVALON_U (OM41428U)
Automatic door locking and unlocking systems
The following functions can be set or canceled:
FunctionOperation
Shift position linked
door locking functionShifting the shift lever out of “P” locks all
doors.
Shift position linked
door unlocking functionShifting the shift lever to “P” unlocks all
doors.
Speed linked door lock-
ing functionAll doors are locked when the vehicle speed is
approximately 12 mph (20 km/h) or higher.
Driver’s door linked door
unlocking function
Vehicles with smart key system
All doors are unlocked when the driver’s door
is opened within 10 seconds after turning the
“ENGINE START STOP” switch OFF.
Vehicles without smart key system
All doors are unlocked when the driver’s door
is opened within 10 seconds after turning the
engine switch to the “LOCK” position.

47 1-2. Opening, closing and locking the doors and trunk
1
Before driving
AVALON_U (OM41428U)■Setting and canceling the functions
To switch between setting and canceling, follow the procedure
below:
Vehicles with smart key system: Close all the doors and turn
the “ENGINE START STOP” switch to IGNITION ON mode.
(Perform within 10 seconds.)
Vehicles without smart key system: Close all the doors and
turn the engine switch to the “ON” position. (Perform
within 10 seconds.)
Shift the shift lever to “P” or “N”,
press and hold the driver’s door
lock switch (
or ) for about 5
seconds then release.
The shift lever and switch posi-
tions corresponding to the
desired function to be set are
shown as follows.
Use the same procedure to can-
cel the function.

49 1-2. Opening, closing and locking the doors and trunk
1
Before driving
AVALON_U (OM41428U)
■Customization that can be configured at Toyota dealer
Settings (e.g. unlocking function using a key) can be changed.
(Customizable features P. 532)
CAUTION
■To prevent an accident
Observe the following precautions while driving the vehicle.
Failing to do so may result in a door opening and an occupant falling out,
resulting in death or serious injury.
●Always use a seat belt.
●Always lock all doors.
●Ensure that all doors are properly closed.
●Do not pull the inside handle of the doors while driving.
●Set the rear door child-protector when children are seated in the rear seat.

50
1-2. Opening, closing and locking the doors and trunk
AVALON_U (OM41428U)

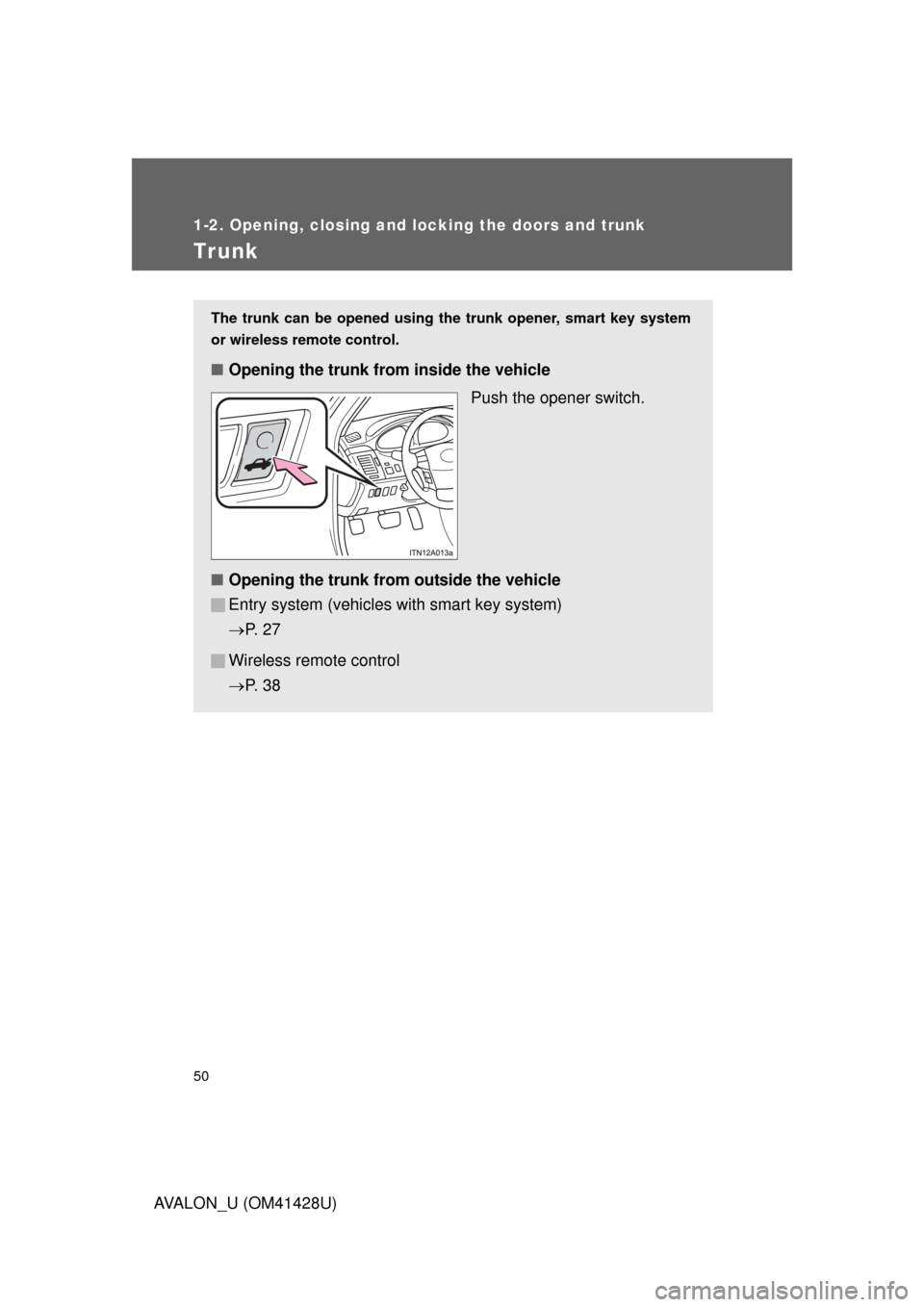

Trunk
The trunk can be opened using the trunk opener, smart key system
or wireless remote control.
■Opening the trunk from inside the vehicle
Push the opener switch.
■Opening the trunk from outside the vehicle
Entry system (vehicles with smart key system)
P. 2 7
Wireless remote control
P. 3 8

58
1-3. Adjustable components (seats, steering wheel, mirrors)
AVALON_U (OM41428U)
Driving position memor y system
: If equipped
Your preferred driving position (the position of the driver’s seat and
outside rear view mirrors) can be entered into the computer’s mem-
ory and recalled with the touch of a button. It is also possible to set
this function to activate automatically when the doors are unlocked.
Two different driving positions can be entered into memory.
■Entering a position to memory
Vehicles with smart key system: Turn the “ENGINE START
STOP” switch to IGNITION ON mode.
Vehicles without smart key system: Turn the engine switch
to the “ON” position.
Adjust the driver’s seat and outside rear view mirrors to the
desired positions.
Push the “SET” button, then
within 3 seconds, push button
“1” or “2” until the signal
beeps.
If the selected button has
already been preset, the previ-
ously recorded position will be
overwritten.

59 1-3. Adjustable components (seats, steering wheel, mirrors)
1
Before driving
AVALON_U (OM41428U)
■Recalling the memorized position
Vehicles with smart key system: Turn the “ENGINE START
STOP” switch to IGNITION ON mode.
Vehicles without smart key system: Turn the engine switch
to the “ON” position.
Push button “1” or “2” to recall
the memorized position.

60 1-3. Adjustable components (seats, steering wheel, mirrors)
AVALON_U (OM41428U)
Linking driving position memory with door unlock operation
(vehicles with smart key system)
Memorized driving positions can be recalled when you unlock the
driver’s door using the entry function or wireless remote control and
open the driver’s door.
■Setting the linked door unlock operation
Set the driving positions into the memory system using the “1”
or “2” buttons. (P. 5 8 )
Turn the “ENGINE START STOP” switch OFF, then close the
driver’s door.
Push the “1” or “2” button on the
driver’s side and the button
on the wireless remote control at
the same time for about 1 sec-
ond until you hear a beep.
Open one of the doors.
If a door is not opened within 60 seconds after is pressed, the
doors will be locked again and the alarm will automatically be set.
In case that the alarm is triggered, immediately stop the alarm.
(P. 94)

75
1
1-3. Adjustable components (seats, steering wheel, mirrors)
Before driving
AVALON_U (OM41428U)
Inside rear view mirror
Glare from the headlights of vehicles behind can be reduced by
using the following functions.
In auto mode, sensors are used to detect the headlights of vehicles
behind and automatically reduces the reflected light.
Press the button for longer
than 3 seconds to turn auto
mode on/off.
The indicator comes on when
auto mode is turned on.
Vehicles with smart key sys-
tem: The anti-glare mirror is
automatically set to auto when-
ever the “ENGINE START
STOP” switch is turned to
IGNITION ON mode.
Vehicles without smart key
system: The anti-glare mirror is
automatically set to auto when-
ever the engine switch is
turned to the “ON” position.
