2011 Seat Alhambra headlamp

101
Lights and visibility
For those vehicles in which it is not possible to adjust the headlights from
the menu, adhe s
ive strips are used to cover certain parts of the headlamp
cover or the headlights may be adjusted at a specialised workshop. For fur-
ther information, please refer to a specialised workshop. SEAT recommends
visiting a Technical Service. Note
Use of the Touris
t light option and the adhesives on the headlights is only
allowed if they are to be used for a short period of time. To modify the direc-
tion of the headlights permanently, please take the vehicle to a specialised
workshop. SEAT recommends visiting a Technical Service. 
“Coming home” and “Leaving home” function (guidance
lights)C omin

g HomeThe “Coming home” function should be switched on manually. However the
“Le
av

ing home” function is automatically controlled by a photo sensor. “Coming Home” Necessary operations
To switch sys-
tem on: – Switch off the ignition.
– Briefly fl
a

sh the headlights for approximately one sec-
ond ⇒ page 96.
The “Coming home” lighting comes on when the driver's
door is opened. The delay in switching off the headlights
is counted from when the last door or tailgate is closed. The system
swit
c

hes off: – Automatically at the end of the delay period.
– Autom
atic

ally, if 30 seconds after coming on, a vehicle
door or tailgate remains open.
– If the light switch is turned to position .
– If the ignition is switched on. “Leaving home” Necessary operations
To switch sys-
tem on: – Unlock the vehicle when the light switch is in position

and the phot

o sensor detects darkness. The system
swit
c

hes off: – Automatically, at the end of the delay period.
– When the
v
ehicle is locked.
– When the light switch is turned to position .
– When the ignition is switched on. Lighting around the exterior mirrors
The lighting ar
ou

nd the exterior mirrors illuminates the door area on enter-
ing and leaving the vehicles. It comes on when the vehicle is unlocked,
when the vehicle door is opened and when the “Coming home” or “Leaving
home” function is switched on. If the equipment includes the light sensor,
the lighting around the exterior mirrors only comes when it is dark. Note
● The time tak en f
or the headlights to go off can be changed in the Lights
& Visibility menu and the function can be switched on or off ⇒ page 62.
● When the “Coming home” function is on, if the vehicle door is opened
there is
no audible warning signal to advise that the light is still on. Safety First Operating instructions Practical tips Technical Data

247
Vehicle maintenance and cleaning
● Insert a new blade of the same l ength and type in the wiper arm in the
opposite direction to the arrow B and hook into place. This feature is op-
eration al
when the knob is in position (arrow A ).
● Replace the wiper arm on the rear window. WARNING
Worn or dirty wiper blades reduce visibility and increase the risk of acci-
dent and seriou s

injury.
● Always replace damaged or worn blades or blades which do not clean
the winds
creen correctly. CAUTION
● Damaged or dirty windscreen wipers could scratch the glass.
● If pr

oducts containing solvents, rough sponges or sharp objects are
used to c
lean the blades, the graphite layer will be damaged.
● Never use fuel, nail varnish remover, paint thinner or similar products to
cle

an the windows. 
Caring for and polishing the vehicle paintwork Waxing
Re
gu

lar waxing protects the paintwork. It is time to apply a good coat of wax
when water no longer forms droplets and rolls off the clean paintwork.
Even if a wax solution is used regularly in the automatic car wash, SEAT rec-
ommends protecting the paint with a hard wax coating at least twice a year.
Polishing
Polishing is only necessary if the paint has lost its shine, and the gloss can-
not be brought back by applying wax. If the polish does not contain wax, a wax product should be applied after
polishin

g. CAUTION
● To prevent damage, car polish or hard wax should not be used on com-
ponents p

ainted in matt paint, plastic components and the glass headlamp
and tail light covers.
● Do not polish the paintwork if it is dirty, apply polish in dusty or sandy
zones. 
C

leaning chrome parts Clean chrome parts with a damp cloth. SEAT recommends the use of a
chr
ome c

are product to clean stains and dirt from chrome surfaces. Use a
soft dry cloth to polish chrome parts. CAUTION
To prevent scratching chrome surfaces:
● Do not use abrasive products.
● Do not clean or polish chrome parts in a sandy or dusty environment.
● Do not polish dirty surfaces. 
Caring for and cleaning anodized surfaces It is not easy to detect the difference between aluminium and an anodized
sur
f

ace, for example, a radiator grille. However, anodized surfaces must not
be treated in the same way as aluminium surfaces. Never use rough spong-
es or cloths to wipe away insect remains. Safety First Operating instructions Practical tips Technical Data

326
If and when
Changing bulbs
Introduction Changing bulbs requires a certain amount of manual skill. If you are unsure,
SEA
T r
ecommends that you consult an qualified workshop or request assis-
tance from a specialist. In general, a specialist is required if other vehicle
components must be removed or if the discharge lamps must be replaced.
You should store spare light bulbs in the vehicle for safety-relevant lights.
Spare bulbs may be obtained from the Official dealers and workshops. In
some countries, it is a legal requirement to carry spare bulbs in the vehicle.
Driving with faults and blown bulbs on the vehicle exterior lighting is
against the law.
Additional bulb specifications
The specifications of some headlamp bulbs and bulbs for the tail lamps fit-
ted at the factory may be different to those of conventional bulbs. Bulb in-
formation is displayed on the bulb socket or on the bulb itself.
Additional information and warnings:
● Lights and visibility ⇒ page 95
● W

orking in the engine compartment ⇒ page 275
● V

ehicle tools ⇒ page 320
● F

uses ⇒ page 322 WARNING
If the road is not well-lit and the vehicle is not clearly visible to other
driver s, ther

e is a risk of accident. WARNING
Failure to replace bulbs correctly may cause serious accidents.
● Before carrying out any work in the engine compartment please read
and ob ser

ve the warnings ⇒ page 275. In any vehicle, the engine com-
partment is a hazardous area and could cause severe injury.
● Discharge lamps work with high-voltage and can cause serious or fa-
tal

injury if handled incorrectly.
● H7 and discharge lamps are highly pressurised and could explode
when being ch
anged.
● Only replace the bulbs concerned when they have cooled.
● Never replace bulbs alone if you are not familiar with the operations
neces
sary. If you are not sure about procedures then visit a Technical
Service to carry out the necessary work.
● Never touch the bulb glass directly. Fingerprints will be evaporated by
the heat of
the operating bulb thus “fogging” up the reflector.
● The headlamp frameworks in the engine compartment and the tail
lamps
contain sharp elements. Always protect your hands when chang-
ing bulbs. CAUTION
After changing a bulb, if the rubber covers and plastic caps are not replaced
corr ectly

on the headlamp framework, the electrical installation may be
damaged, especially if water is allowed to enter. 
Indicator lights up Possible cause Solution
 A vehicle exterior lighting
bu
l

b is not working. Replace the faulty bulb.


330
If and when
To replace the xenon headlights bulb Fig. 205 In the engine
comp
ar
tment: Turn signal
cover. Fig. 206 Turn signal in-
dicat
or l

amp holder 1 and turning light
2 .
There is no need to remove the headlight to replace bulbs.
Comp l

ete operations only in the sequence given: Turn signal indicators
1 Turning lights
2 1. Always take the checklist into account and take the necessary ac-
tions ⇒

 page 327. 2. Open the bonnet
 ⇒ page 275. 3. Rotate the cover ⇒ 
fig. 205 in the dir
ection of the arrow and remove
it. 4. Rotate the lamp holder
1 ⇒ fig. 206 to the left all the way
and p
u

ll it out backwards with
the bulb. Press the wire clip downwards
and pu
l
l the lamp holder 2 ⇒ fig. 206 out w
ith the b
ulb. 5. Depending on the model, the bulb is removed directly from the
lamp ho l

der or it may need to be rotated and then removed. 6. Replace the faulty bulb by a new identical bulb.
7. Place the bulb holder in the
hea
dlight

and rotate to the right
all the way. Place the lamp holder in the
hea
dlight
and pull the wire clip
upwards until it clicks into place. 8. Rotate the cover ⇒ 
fig. 205 in the op
posite direction to the arrow as
far as it will go. Always seek the help of a specialist when changing the Xenon dipped beam
and fu
l

l beam headlamps ⇒  in Introduction on page 326.
Note
The illustrations show the left hand headlight. The structure of the right
hand s ide he

adlight is symmetric. 

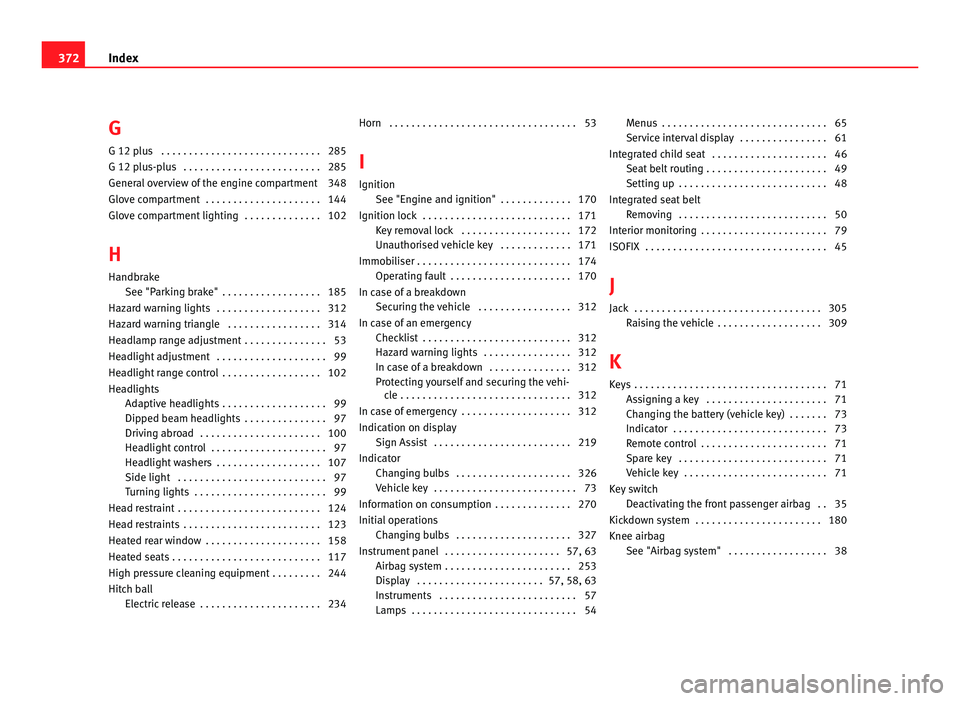

G
G 12 plu s
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 285
G 12 plus-plus . . . . . . . . . . . . . . . . . . . . . . . . . 285
General overview of the engine compartment 348
Glove compartment . . . . . . . . . . . . . . . . . . . . . 144
Glove compartment lighting . . . . . . . . . . . . . . 102
H Handbrake See "Parking brake" . . . . . . . . . . . . . . . . . . 185
Hazard warning lights . . . . . . . . . . . . . . . . . . . 312
Hazard warning triangle . . . . . . . . . . . . . . . . . 314
Headlamp range adjustment . . . . . . . . . . . . . . . 53
Headlight adjustment . . . . . . . . . . . . . . . . . . . . 99
Headlight range control . . . . . . . . . . . . . . . . . . 102
Headlights Adaptive headlights . . . . . . . . . . . . . . . . . . . 99
Dipped beam headlights . . . . . . . . . . . . . . . 97
Driving abroad . . . . . . . . . . . . . . . . . . . . . . 100
Headlight control . . . . . . . . . . . . . . . . . . . . . 97
Headlight washers . . . . . . . . . . . . . . . . . . . 107
Side light . . . . . . . . . . . . . . . . . . . . . . . . . . . 97
Turning lights . . . . . . . . . . . . . . . . . . . . . . . . 99
Head restraint . . . . . . . . . . . . . . . . . . . . . . . . . . 124
Head restraints . . . . . . . . . . . . . . . . . . . . . . . . . 123
Heated rear window . . . . . . . . . . . . . . . . . . . . . 158
Heated seats . . . . . . . . . . . . . . . . . . . . . . . . . . . 117
High pressure cleaning equipment . . . . . . . . . 244
Hitch ball Electric release . . . . . . . . . . . . . . . . . . . . . . 234 Horn . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
I
Ignition See "Engine and ignition" . . . . . . . . . . . . .
170
Ignition lock . . . . . . . . . . . . . . . . . . . . . . . . . . . 171 Key removal lock . . . . . . . . . . . . . . . . . . . . 172
Unauthorised vehicle key . . . . . . . . . . . . . 171
Immobiliser . . . . . . . . . . . . . . . . . . . . . . . . . . . . 174 Operating fault . . . . . . . . . . . . . . . . . . . . . . 170
In case of a breakdown Securing the vehicle . . . . . . . . . . . . . . . . . 312
In case of an emergency Checklist . . . . . . . . . . . . . . . . . . . . . . . . . . . 312
Hazard warning lights . . . . . . . . . . . . . . . . 312
In case of a breakdown . . . . . . . . . . . . . . . 312
Protecting yourself and securing the vehi-cle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 312
In case of emergency . . . . . . . . . . . . . . . . . . . . 312
Indication on display Sign Assist . . . . . . . . . . . . . . . . . . . . . . . . . 219
Indicator Changing bulbs . . . . . . . . . . . . . . . . . . . . . 326
Vehicle key . . . . . . . . . . . . . . . . . . . . . . . . . . 73
Information on consumption . . . . . . . . . . . . . . 270
Initial operations Changing bulbs . . . . . . . . . . . . . . . . . . . . . 327
Instrument panel . . . . . . . . . . . . . . . . . . . . . 57, 63 Airbag system . . . . . . . . . . . . . . . . . . . . . . . 253
Display . . . . . . . . . . . . . . . . . . . . . . . 57, 58, 63
Instruments . . . . . . . . . . . . . . . . . . . . . . . . . 57
Lamps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54 Menus . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65
Servic
e interval display . . . . . . . . . . . . . . . . 61
Integrated child seat . . . . . . . . . . . . . . . . . . . . . 46 Seat belt routing . . . . . . . . . . . . . . . . . . . . . . 49
Setting up . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
Integrated seat belt Removing . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
Interior monitoring . . . . . . . . . . . . . . . . . . . . . . . 79
ISOFIX . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
J
Jack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 305 Raising the vehicle . . . . . . . . . . . . . . . . . . . 309
K
Keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71 Assigning a key . . . . . . . . . . . . . . . . . . . . . . 71
Changing the battery (vehicle key) . . . . . . . 73
Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73
Remote control . . . . . . . . . . . . . . . . . . . . . . . 71
Spare key . . . . . . . . . . . . . . . . . . . . . . . . . . . 71
Vehicle key . . . . . . . . . . . . . . . . . . . . . . . . . . 71
Key switch Deactivating the front passenger airbag . . 35
Kickdown system . . . . . . . . . . . . . . . . . . . . . . . 180
Knee airbag See "Airbag system" . . . . . . . . . . . . . . . . . . 38372
Index
