239
Trailer towing
● The trailer must have a fixed drawbar.
● Tr
ailers with brakes must be equipped with a mechanical inertia brake. WARNING
Do not let the extra safety afforded by the stabilisation system tempt you
into t ak

ing any risks when driving.
● Adjust your speed and driving style to visibility, road, traffic and
weather c
onditions.
● If the road surface is slippery, take care when accelerating.
● When a system is operating, lift your foot off the accelerator. WARNING
It is possible that the combination stabilisation system does not correct-
ly r ec

ognised all driving situations.
● It is possible that the stabilisation system does not detect snaking of
a light trai
ler and thus does not intervene.
● When driving on slippery ground, the trailer could jack-knife
despite
the stabilisation system.
● Trailers with a high centre of gravity may even tip over before they
star
t to rock sideways.
● If a trailer is not used at the trailer socket is connected (for example,
inst
allation of a bicycle carrier with lights), repeated automatic braking
may occur in extreme driving conditions. Retrofitting a tow hitch
Fig. 157 Measurements and attachments to retrofit a tow hitch.
SEA T r

ecommends visiting a specialist workshop to retrofit a tow hitch. For
example, it may be necessary to adjust the cooling system or to include
thermal plates. SEAT recommends visiting a Technical Service.
In any case, the separation distances must be observed when fitting a tow
hitch. The distance between the centre of the tow hitch ball and the road
surface ⇒ fig. 157 D must never be lower than that indicated. This also ap-
plie s

when the vehicle is fully laden, including maximum drawbar load.
Separation distances ⇒ fig. 157:
Attachment points.
1.040 mm (41 inches)
74 mm (3 inches)
364 mm (14 inches) 
A B
C
D
Safety First Operating instructions Practical tips Technical Data

262
Accessories, parts replacement and modifications
electromagnetic radiation transmitted and the risk to human health. It will
also impr o
ve the quality of the connection.
If the phone is used inside the vehicle without the hands-free system, it will
not be securely fastened and will not be connected to the exterior aerial of
the vehicle telephone. Nor will the telephone charge if it is not on the sup-
port. In addition, some calls may break off and the quality of the connection
will be affected.
Mobile phones should only be used inside the vehicle if they are connected
to a hands-free system with an exterior aerial. WARNING
If the mobile phone is not securely fastened in position, it could be sent
flyin g ar

ound the vehicle in the event of sharp braking, sudden manoeu-
vres or accident, causing injury.
● While driving, mobile phones must be securely fastened in position,
outside the r
adius of action of the airbags, or safely stowed away. WARNING
When using a mobile phone without a connection to an exterior aerial,
the max imum permitt

ed levels of electromagnetic radiation may be ex-
ceeded. This is also the case if the aerial has not been correctly installed.
● A minimum of 20 centimetres should be kept between mobile phone
aerial
s and artificial pacemakers, as mobile telephones may affect the
working of pacemakers.
● Do not carry a mobile phone in your breast pocket directly over the
pacem
aker when the phone is switched on.
● If you suspect interference, switch the mobile phone off immediately. Jacking points for raising vehicle
Fig. 160 Front jacking
points
f

or raising vehicle
with lifting platform or
jack. Fig. 161 Rear jacking
points
f

or raising vehicle
with lifting platform or
jack.
Always use the jacking points indicated in the figures ⇒ fig. 160 and
⇒ fig. 161 when rais
ing the vehicle. If the vehicle is not lifted at these
points, it could be seriously damaged ⇒  or lead to serious injury
⇒  .


263
Accessories, parts replacement and modifications
The vehicle should not be lifted using lifting platforms with lift pads con-
tainin g fluid.
When r
aising a vehicle using a platform or jack, a series of precautionary
measures are required. Never raise the vehicle with a lifting platform or jack
unless you have received training in how to do so and know how to lift the
vehicle safely.
Notes on raising the vehicle with a jack ⇒ page 309. WARNING
The improper use of the lifting platform or the jack when raising the vehi-
cl e m

ay result in accidents or serious injury.
● Before raising the vehicle, please observe the manufacturer's instruc-
tions f
or the platform or jack, and the legal requirements, where applica-
ble.
● There should not be anyone inside the vehicle when it is being raised
or once it i
s in the air.
● Only use the jacking points indicated in the figures ⇒ fig. 160
and
⇒ fig. 161 when raising the vehicle. If the vehicle is not lifted at the indi-
cated points, it may fall from the platform while the engine or gearbox is
being dismounted, for example.
● The jacking points should be centrally aligned and firmly positioned
on the platf
orm support plates.
● Never start the engine when the vehicle is raised! The vehicle may fall
from the pl
atform due to the engine vibrations.
● If it is necessary to work underneath the vehicle while it is raised, you
should c
heck that the supporting stands have an adequate load capacity.
● Never climb onto the lifting platform.
● Always make sure that the weight of the vehicle does not exceed the
lifting p
latform load capacity. CAUTION
● Never raise the vehicle at the engine oil sump, the gearbox or the rear or
fr ont

axles.
● Always use an intermediat
e rubber support to prevent damage to the
vehicle underbody. Check that the arms of the lifting platform are able to
move with obstruction.
● The arms should not come into contact with the side running boards or
other parts
of the vehicle. Safety First Operating instructions Practical tips Technical Data

309
Wheels and tyres

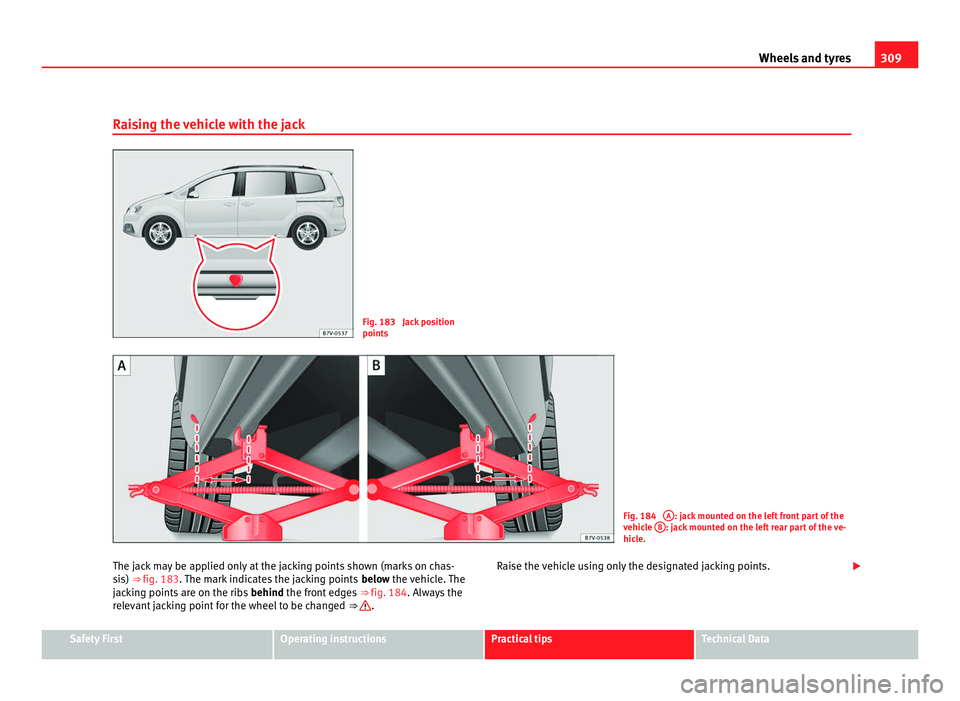

Raising the vehicle with the jack Fig. 183 Jack position
points
Fig. 184
A : jack mounted on the left front part of the
vehic l
e B : jack mounted on the left rear part of the ve-
hicl e.
The j
ack may be applied only at the jacking points shown (marks on chas-
sis)
⇒ fig. 183. The mark indicates the jacking points below the vehicle. The
jacking points are on the ribs behind the front edges ⇒ fig. 184. Always the
relevant jacking point for the wheel to be changed ⇒  .
Raise the vehicle using only the designated jacking points.
Safety First Operating instructions Practical tips Technical Data

310
Wheels and tyres
Check list
For y
our own safety and that of other passengers, the following points
should be observed in the order given ⇒  :
Select a s

uitable flat and firm surface for raising the vehicle.
Switch off the engine, engage a gear (manual gearbox) or place the se-
lector lever in position P ⇒ page 174 and turn on the electronic parking
brake ⇒ page 183.
When towing a trailer: unhook the trailer from the towing vehicle and
park it correctly.
Loosen the wheel bolts on the wheel to be changed ⇒ page 307.
Look below the vehicle for the jacking point ⇒ fig. 183 closest to the
tyre which has to be changed.
Raise the jack with the handle until it can be inserted below the jacking
point.
Ensure that the foot of the jack is firmly on the ground and that it is
placed immediately below the lifting point on the vehicle ⇒ fig. 184.
Straighten the jack and continue raising it using the handle until the
claw holds the vertical reinforcement beneath the vehicle ⇒ fig. 184.
Raise the vehicle until the wheel is clear of the ground. WARNING
If the vehicle is not correctly raised, it could fall off the jack causing seri-
ous injur

y. Please observe the following rules to minimise the risk of in-
jury:
● You should only use a jack approved by SEAT for your vehicle. Other
jack
s, even those approved for other SEAT models, might slip out of
place.
● The ground should be firm and flat. If the ground is sloped or soft
then the vehic
le could slip and fall off the jack. If necessary, support the
jack on a wide solid base. 1.
2.
3.
4.
5.
6.
7.
8.
9. WARNING (Continued)
● If the ground is slippery (for example, on tiles), place a non-slip sur-
f ac

e (for example a floor mat) beneath the jack to avoid slipping.
● Only fit the jack at the prescribed jacking points. The claw of the jack
should grip the r
einforcement nerve on the underbody ⇒ fig. 184.
● You should never have any limbs beneath a raised vehicle which is
only s
upported by a jack.
● If you have to work underneath the vehicle, you must use suitable
stand
s additionally to support the vehicle, there is a risk of accident!.
● Never raise the vehicle if it is tilting to one side or the engine is run-
ning.
● Never s

tart the engine when the vehicle is raised. The vehicle may
come loose fr
om the jack due to the engine vibrations. WARNING
Failure to follow the checklist prepared for your own safety could lead to
acc ident

s and severe injuries.
● Always complete the operations given in the checklist and observe
the genera
l rules of safety. 
