2011 RENAULT SCENIC relay

13B-124
MR-372-J84-13B200$324.mif
V13
DIESEL INJECTION
Fault finding – Interpretation of faults
EDC16
Program No.: C1
Vdiag no.: 18, 1C, 20
13B
DF239
CONTINUED
CC.0
NOTESNone
Check the condition and correct operation of relay R1, component code 1068.
Replace the relay if necessary.
Check the insulation to earth of connection 3FB between components 1068 and 983.
If the connection or connections are faulty and there is a repair method (see Technical Note 6015A, Repairing
electrical wiring, Wiring: Precautions for repair), repair the wiring, otherwise replace it.
CC.1
NOTESNone.
Check the condition and correct operation of relay R11, component code 1068.
Replace if defective.
Check the continuity and insulation from + 12 V of connection 3JAA between components 120 and 597.
If the connection or connections are faulty and there is a repair method (see Technical Note 6015A, Repairing
electrical wiring, Wiring: Precautions for repair), repair the wiring, otherwise replace it.
AFTER REPAIRDeal with any faults.
Carry out a road test followed by another check with the diagnostic tool.

13B-125
MR-372-J84-13B200$324.mif
V13
DIESEL INJECTION
Fault finding – Interpretation of faults
EDC16
Program No.: C1
Vdiag no.: 18, 1C, 20
13B
DF240
PRESENT
OR
STOREDTHERMOPLUNGER N° 1 RELAY CIRCUIT
CO: Open circuit
CC.0: Short circuit to earth
CC.1: Short circuit to + 12 V
1.DEF: Inconsistent signal
NOTESConditions for applying the fault finding procedure to stored faults:
The fault appears after the engine is started or after actuator command AC063
Thermoplunger no. 1 relay.
If faults DF238 “Thermoplunger relay No. 3 circuit” and DF239 “Thermoplunger
relay No. 2 circuit” occur, ignore them and go directly to configuration CF030
“Thermoplunger configuration”.
Special notes:
Use bornier Elé. 1681 for any work on the computer connectors.
See the Wiring diagrams Technical Note for the vehicle to locate the fuses and
relays concerned.
1.DEF
CO
NOTESNone
Check for + 12 V after ignition feed on relay mounting R1, component code 1067 on connection 3FB.
If there is no + 12 V supply, refer to the interpretation of fault DF015 Main relay control circuit.
Check the condition of the connectors on thermoplunger no. 1 relay (R1) and on the injection computer.
Repair if necessary.
Check the condition and correct operation of relay R1, component code 1067.
Replace if defective.
Check the continuity and absence of interference resistance of connection 3JA between components 120
and 597.
If the connection or connections are faulty and there is a repair method (see Technical Note 6015A, Repairing
electrical wiring, Wiring: Precautions for repair), repair the wiring, otherwise replace it.
AFTER REPAIRDeal with any faults.
Carry out a road test followed by another check with the diagnostic tool.
EDC16_V18_DF240/EDC16_V1C_DF240/EDC16_V20_DF240

13B-126
MR-372-J84-13B200$324.mif
V13
DIESEL INJECTION
Fault finding – Interpretation of faults
EDC16
Program No.: C1
Vdiag no.: 18, 1C, 20
13B
DF240
CONTINUED
CC.0
NOTESNone
Check the condition and correct operation of relay R1, component code 1067.
Replace if defective.
Check the insulation to earth of connection 3FB between components 1067 and 983.
If the connection or connections are faulty and there is a repair method (see Technical Note 6015A, Repairing
electrical wiring, Wiring: Precautions for repair), repair the wiring, otherwise replace it.
CC.1
NOTESNone.
Check the condition and correct operation of relay R1, component code 1067.
Replace if defective.
Check the continuity and insulation from + 12 V of connection 3JA between components 120 and 597.
If the connection or connections are faulty and there is a repair method (see Technical Note 6015A, Repairing
electrical wiring, Wiring: Precautions for repair), repair the wiring, otherwise replace it.
AFTER REPAIRDeal with any faults.
Carry out a road test followed by another check with the diagnostic tool.

13B-162
MR-372-J84-13B200$468.mif
V13
13B
DIESEL INJECTION
Fault finding – Status summary table
Tool status Diagnostic tool title
ET001+ After ignition computer feed
ET003Engine immobiliser
ET004Air conditioning authorisation
ET007Pre-postheating unit control
ET014Monitor cooling fan 1
ET015Monitor cooling fan 2
ET021High speed fan assembly request
ET022Low speed fan assembly request
ET038Engine
ET042Cruise control/speed limiter
ET076Starting
ET077Impact detected
ET079Air conditioning present
ET088Compressor actuation request
ET104Injector code use
ET111Number of passenger compartment heating resistors fixed (Vdiag 50 only)
ET112Passenger compartment heating resistors cut out (Vdiag 50 only)
ET143Low-speed fan assembly relay control (Vdiag 18, 1C, 20 only)
ET144High-speed fan assembly relay control (Vdiag 18, 1C, 20 only)
ET205Heating element no. 1 relay control (Vdiag 58 only)
ET206Heating element no. 2 relay control (Vdiag 58 only)
ET207Heating element no. 3 relay control (Vdiag 58 only)
ET238Synchronisation
ET341Immobiliser code programmed
ET405Clutch pedal switch
ET415Cruise control/speed limiter deactivation
ET651EGR programming cut-off
EDC16
Program No: C1
Vdiag No: 18, 1C, 20,
50, 58, 5C
MR-372-J84-13B200$468.mif

13B-164
MR-372-J84-13B200$504.mif
V13
13B
DIESEL INJECTION
Fault finding – Interpretation of statuses

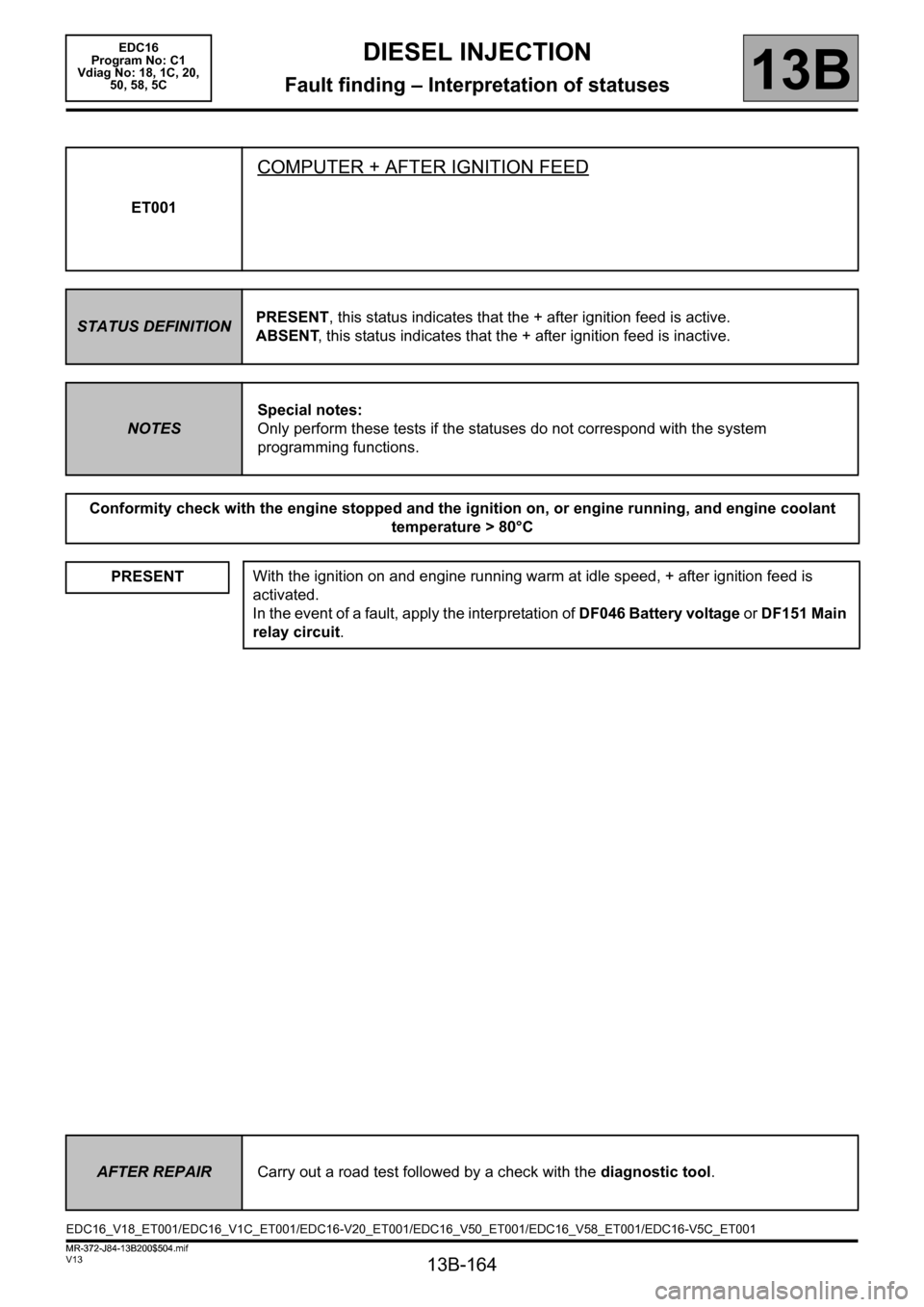

ET001
COMPUTER + AFTER IGNITION FEED
STATUS DEFINITIONPRESENT, this status indicates that the + after ignition feed is active.
ABSENT, this status indicates that the + after ignition feed is inactive.
NOTESSpecial notes:
Only perform these tests if the statuses do not correspond with the system
programming functions.
Conformity check with the engine stopped and the ignition on, or engine running, and engine coolant
temperature > 80°C
PRESENT
With the ignition on and engine running warm at idle speed, + after ignition feed is
activated.
In the event of a fault, apply the interpretation of DF046 Battery voltage or DF151 Main
relay circuit.
AFTER REPAIRCarry out a road test followed by a check with the diagnostic tool.
EDC16_V18_ET001/EDC16_V1C_ET001/EDC16-V20_ET001/EDC16_V50_ET001/EDC16_V58_ET001/EDC16-V5C_ET001 EDC16
Program No: C1
Vdiag No: 18, 1C, 20,
50, 58, 5C
MR-372-J84-13B200$504.mif

13B-168
MR-372-J84-13B200$504.mif
V13
EDC16
Program No: C1
Vdiag No: 18, 1C, 20,
50, 58, 5CDIESEL INJECTION
Fault finding – Interpretation of statuses13B
ET007
PRE-POSTHEATING UNIT CONTROL
STATUS DEFINITIONACTIVE, when the heater plugs are activated according to the engine coolant
temperature.
INACTIVE, after the engine has been running for a certain period.
In the event of a fault, consult the interpretation of fault DF017 Preheating unit
control circuit.
NOTESSpecial notes:
Only perform these tests if the statuses do not correspond with the system
programming functions.
Conformity check with engine running, engine coolant temperature > 80 °C
"ACTIVE"
Then
"INACTIVE"
After the engine has been running for a certain period, the status changes from ACTIVE
to INACTIVE.
In the event of a fault, consult the interpretation of fault DF017 Preheating unit control
circuit.
Sensor conformity check
ACTIVEWhen the vehicle is started from cold, the injection computer controls the pre-
postheating unit so that the vehicle can be started.
Status ET007 becomes YES a few seconds after the ignition is switched on and during
pre/postheating.
If the vehicle does not start and status ET007 becomes YES, check:
– supply fuse F2 (Scénic II and Mégane II) or FM12 (Laguna II) (70A) for the
preheating unit, located on the power supply fuse board in the engine compartment
connection unit, below the Protection and Switching Unit,
– the resistance of the heater plugs.
Replace any plug with a resistance greater than 2Ω.
If the vehicle starts and status ET007 remains YES during the engine operating phase,
refer to the interpretation of faults:
– DF017 Preheating relay control circuit.
– DF025 Pre-postheating unit diagnostic connection.
AFTER REPAIRCarry out a road test, then check with the diagnostic tool.
EDC16_V50_ET007/EDC16_V58_ET007/EDC16_V5C_ET007/EDC16_V18_ET007/EDC16_V1C_ET007/EDC16-V20_ET007

13B-169
MR-372-J84-13B200$504.mif
V13
EDC16
Program No: C1
Vdiag No: 18, 1C, 20,
50, 58, 5CDIESEL INJECTION
Fault finding – Interpretation of statuses13B
ET007
CONTINUED
INACTIVE
After the engine is started and the postheating phase, the injection computer should
stop the pre-postheating unit operating.
Status ET007 should become NO.
In the event that the vehicle does not start and status ET007 remains NO, check the
continuity and absence of interference resistance of the following connections:
– Connection code 3FY,
– Connection code 3FF.
Between components 120 and 257.
If the connection or connections are faulty and if there is a repair method (see
Technical Note 6015A, Repairing electrical wiring, Wiring: Precautions for repair),
repair the wiring, otherwise replace it.
If the fault is still present, refer to the interpretation of faults:
– DF017 Preheating relay control circuit.
– DF025 Pre-postheating unit diagnostic connection.
AFTER REPAIRCarry out a road test followed by a check with the diagnostic tool.

13B-189
MR-372-J84-13B200$504.mif
V13
13B
DIESEL INJECTION
Fault finding – Interpretation of statuses
ET143
LOW-SPEED FAN ASSEMBLY RELAY CONTROL
STATUS DEFINITIONACTVE: This status indicates that the low-speed fan assembly relay is actuated.
INACTIVE: This status indicates that the low-speed fan assembly relay is not actuated.
NOTESIf the vehicle is fitted with air conditioning, the fan assembly electrical circuit contains
2 relays. The fan assembly speed 1 relay will be actuated when the engine coolant
temperature exceeds 96° and will be dedicated to cooling the engine as long as the
engine coolant temperature does not exceed 99°.
If the engine coolant temperature exceeds 99°, fan assembly speed 2 relay will be
actuated and the engine cooling fan will run more quickly.
ACTIVE
When the coolant reaches 96°C, the diesel computer actuates the low-speed fan
assembly relay and status ET143 becomes ACTIVE.
The relay then supplies the fan assembly and the cooling fan begins to turn.
Run command AC038 Low-speed fan unit relay and check visually that the cooling
fan is turning.
If this is not the case, carry out the following operations:
– check the condition of fuse FM15 (60A) and the motor relay R09,
– disconnect the low-speed and high-speed relays, check their operation and the
condition of the connections.
– repair if necessary,
– check for a + 12 V on connection 3FB of the low speed relay when it is actuated
then check the continuity and the absence of interference resistance on connection
3JN between components 120 and 597.
If the connection or connections are faulty and there is a repair method (see Technical
Note 6015A, Repairing electrical wiring, Wiring: Precautions for repair), repair the
wiring, otherwise replace it.
INACTIVEIf the engine temperature is less than 96°C, the engine cooling fan cannot switch on
and the low-speed fan assembly relay cannot be actuated.
Sta tus ET143 becomes INACTIVE when the control relay and the engine cooling fan
are not supplied.
AFTER REPAIRCarry out a road test, then check with the diagnostic tool.
EDC16_V18_ET143/EDC16_V1C_ET143/EDC16_V20_ET143EDC16
Program No: C1
Vdiag No: 18, 1C, 20
