2011 RENAULT SCENIC ESP

13B-269
MR-372-J84-13B200$648.mif
V13
DIESEL INJECTION
Fault finding – Interpretation of parameters
EDC16
Program No: C1
Vdiag No: 18, 1C, 20,
50, 58, 5C
13B
* Temp: TemperaturePR382
PARTICLE FILTER UPSTREAM TEMPERATURE
PARAMETER
DEFINITIONThis parameter indicates the particle filter upstream temperature in °C.
NOTESSpecial notes:
Only perform these tests if the parameters do not correspond with the system
operation programming.
Conformity check with the engine stopped and the ignition on, or with the engine running and the engine
coolant temperature > 80°C.
PR382 ≈ 200°C
In the event of a fault, refer to the interpretation of faults DF309 Particle filter downstream temp* sensor and
DF310 Particle filter upstream temp* sensor.
AFTER REPAIRCarry out a road test, then check with the diagnostic tool.
EDC16_V50_PR382/EDC16_V58_PR382/EDC16_V5C_PR382/EDC16_V18_PR382/EDC16_V1C_PR382/EDC16_V20_PR382

13B-270
MR-372-J84-13B200$648.mif
V13
DIESEL INJECTION
Fault finding – Interpretation of parameters
EDC16
Program No: C1
Vdiag No: 18, 1C, 20,
50, 58, 5C
13B
PR383
WEIGHT OF SOOT IN PARTICLE FILTER
PARAMETER
DEFINITIONThis parameter indicates the weight of soot in the particle filter in g.
NOTESSpecial notes:
Only perform these tests if the parameters do not correspond with the system
operation programming.
Conformity check with engine stopped and ignition on, or engine running, and engine coolant temperature
>80 °C.
Vdiag 50, 58, 5c:
PR383 < 45 g.
If the weight is greater than 45 g:
Refer to the interpretation of fault DF315 Particle filter differential pressure sensor.
Vdiag 18, 1c, 20:
PR383 < 56 g.
If the weight is greater than 56 g:
Refer to the interpretation of fault DF315 Particle filter differential pressure sensor.
AFTER REPAIRCarry out a road test followed by a check with the diagnostic tool.
EDC16_V50_PR383/EDC16_V58_PR383/EDC16_V5C_PR383/EDC16_V18_PR383/EDC16_V1C_PR383/EDC16_V20_PR383

13B-271
MR-372-J84-13B200$648.mif
V13
DIESEL INJECTION
Fault finding – Interpretation of parameters
EDC16
Program No: C1
Vdiag No: 18, 1C, 20,
50, 58, 5C
13B

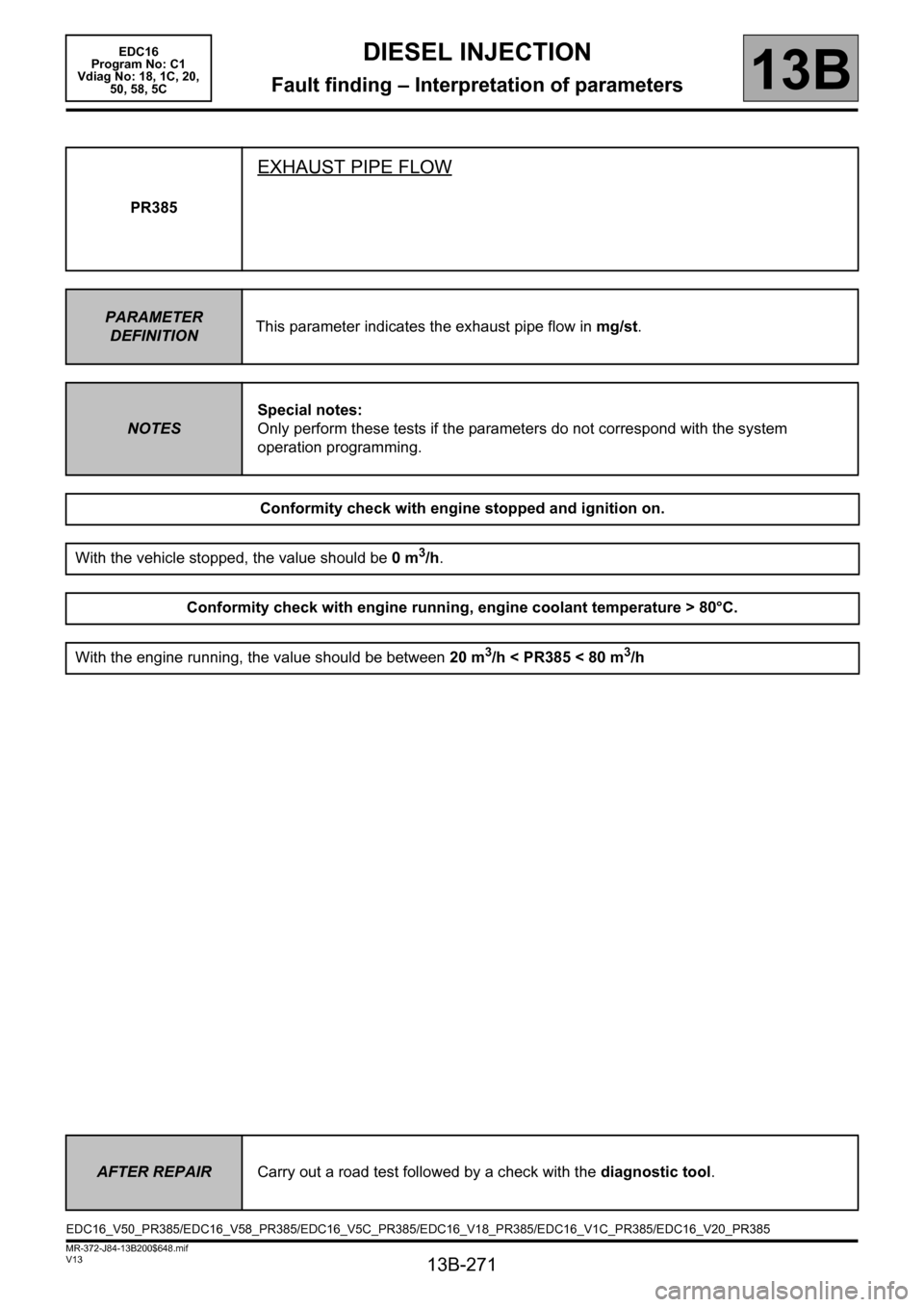

PR385
EXHAUST PIPE FLOW
PARAMETER
DEFINITIONThis parameter indicates the exhaust pipe flow in mg/st.
NOTESSpecial notes:
Only perform these tests if the parameters do not correspond with the system
operation programming.
Conformity check with engine stopped and ignition on.
With the vehicle stopped, the value should be 0 m
3/h.
Conformity check with engine running, engine coolant temperature > 80°C.
With the engine running, the value should be between 20 m
3/h < PR385 < 80 m3/h
AFTER REPAIRCarry out a road test followed by a check with the diagnostic tool.
EDC16_V50_PR385/EDC16_V58_PR385/EDC16_V5C_PR385/EDC16_V18_PR385/EDC16_V1C_PR385/EDC16_V20_PR385

13B-272
MR-372-J84-13B200$648.mif
V13
DIESEL INJECTION
Fault finding – Interpretation of parameters
EDC16
Program No: C1
Vdiag No: 18, 1C, 20,
50, 58, 5C
13B
PR391
DISTANCE SINCE PARTICLE FILTER REPLACEMENT
PARAMETER
DEFINITIONThis parameter indicates the distance travelled since the particle filter was last replaced
in miles (km).
NOTESSpecial notes:
Only perform these tests if the parameters do not correspond with the system
operation programming.
Conformity check with engine stopped and ignition on, or engine running, and engine coolant temperature
>80 °C.
Indicates the mileage since the particle filter was replaced.
AFTER REPAIRCarry out a road test, then check with the diagnostic tool.
EDC16_V50_PR391/EDC16_V58_PR391/EDC16_V5C_PR391/EDC16_V18_PR391/EDC16_V1C_PR391/EDC16_V20_PR391

13B-273
MR-372-J84-13B200$648.mif
V13
DIESEL INJECTION
Fault finding – Interpretation of parameters
EDC16
Program No: C1
Vdiag No: 18, 1C, 20,
50, 58, 5C
13B
PR403
IDLE SPEED REQUESTED BY THERMOPLUNGERS
PARAMETER
DEFINITIONThis parameter indicates the idle speed requested by the thermoplungers in rpm.
NOTESSpecial notes:
Only perform these tests if the parameters do not correspond with the system
operation programming.
Conformity check with engine running, engine coolant temperature > 80°C.
PR043 ≈ 875 rpm if one of the three thermoplungers is ACTIVE.
AFTER REPAIRCarry out a road test, then check with the diagnostic tool.
EDC16_V50_PR403/EDC16_V58_PR403/EDC16_V5C_PR403/EDC16_V18_PR403/EDC16_V1C_PR403/EDC16_V20_PR403

13B-274
MR-372-J84-13B200$684.mif
V13
13B
DIESEL INJECTION
Fault finding – Interpretation of parameters
PR405
CYLINDER NO. 2 FUEL FLOW CORRECTION
PARAMETER
DEFINITIONThis parameter indicates the cylinder's fuel flow correction in mg/stroke.
NOTESSpecial notes:
Only perform these tests if the parameters do not correspond with the system
operation programming.
Conformity check with engine stopped and ignition on.
PR405 = 0.0 mg/st.
In the event of a fault, consult test 9 Poor injector operation.
Conformity check with engine running, engine coolant temperature > 80 °C.
PR405 = 1 mg/stroke
In the event of a fault, consult test 9 Poor injector operation.
AFTER REPAIRCarry out a road test followed by a check with the diagnostic tool.
EDC16_V50_PR405/EDC16_V58_PR405/EDC16_V5C_PR405/EDC16_V18_PR405/EDC16_V1C_PR405/EDC16_V20_PR405
MR-372-J84-13B200$684.mif
EDC16
Program No: C1
Vdiag No: 18, 1C, 20,
50, 58, 5C

13B-275
MR-372-J84-13B200$684.mif
V13
DIESEL INJECTION
Fault finding – Interpretation of parameters
EDC16
Program No: C1
Vdiag No: 18, 1C, 20,
50, 58, 5C
13B
PR406
CYLINDER NO. 3 FUEL FLOW CORRECTION
PARAMETER
DEFINITIONThis parameter indicates the cylinder's fuel flow correction in mg/stroke.
NOTESSpecial notes:
Only perform these tests if the parameters do not correspond with the system
operation programming.
Conformity check with engine stopped and ignition on.
PR406 = 0.0 mg/st.
In the event of a fault, consult test 9 Poor injector operation.
Conformity check with engine running, engine coolant temperature > 80 °C.
PR406 = ≈ 1 mg/stroke
In the event of a fault, consult test 9 Poor injector operation.
AFTER REPAIRCarry out a road test, then check with the diagnostic tool.
EDC16_V50_PR406/EDC16_V58_PR406/EDC16_V5C_PR406/EDC16_V18_PR406/EDC16_V1C_PR406/EDC16_V20_PR406

13B-276
MR-372-J84-13B200$684.mif
V13
DIESEL INJECTION
Fault finding – Interpretation of parameters
EDC16
Program No: C1
Vdiag No: 18, 1C, 20,
50, 58, 5C
13B
PR412
DISTANCE VALUE AT LAST SUCCESSFUL REGENERATION
PARAMETER
DEFINITIONThis parameter indicates the vehicle's mileage at the last successful regeneration in
miles (km).
NOTESSpecial notes:
Only perform these tests if the parameters do not correspond with the system
operation programming.
Conformity check with the engine stopped and the ignition on, or with the engine running and the engine
coolant temperature > 80°C
This parameter indicates the vehicle's mileage at the last successful regeneration.
AFTER REPAIRCarry out a road test, then check with the diagnostic tool.
EDC16_V50_PR412/EDC16_V58_PR412/EDC16_V5C_PR412/EDC16_V18_PR412/EDC16_V1C_PR412/EDC16_V20_PR412
