2011 Peugeot Partner Tepee Owner's Manual - RHD (UK, Australia)

143
QUICK HEL
P
7
Changing a wheel

1. PARKING THE VEHICLE



- Tthe occupants must get out of the
vehicle and wait in a safe location.

- If possible, park the vehicle on level,
stable and non-slippery ground.

- Apply the parking brake, switch
off the ignition and engage fi rst or
reverse gear.
- If available, place a chock under
the wheel diagonally opposite the
one to be changed.
If the vehicle is fi tted with a towbar,
it is sometimes necessary to raise
the vehicle slightly to make it easier
to remove the spare wheel from its
carrier.
On certain types of ground and/or
if considerable loads are being
transported, call a PEUGEOT dealer.

CHANGING A WHEEL

2. TOOLS



- The tools are stowed in a storage
compartment located under the
front seat. If necessary, move the
seat forward to access the storage
compartment from the rear.

- Unscrew the nut then take out the
jack and the wheelbrace.


1.
Wheelbrace.

2.
Jack.

3.
Alloy wheel embellisher remover.

4.
Chock.
The jack and the tool kit are specifi c to
your vehicle. Do not use them for other
purposes.

144
Changing a wheel

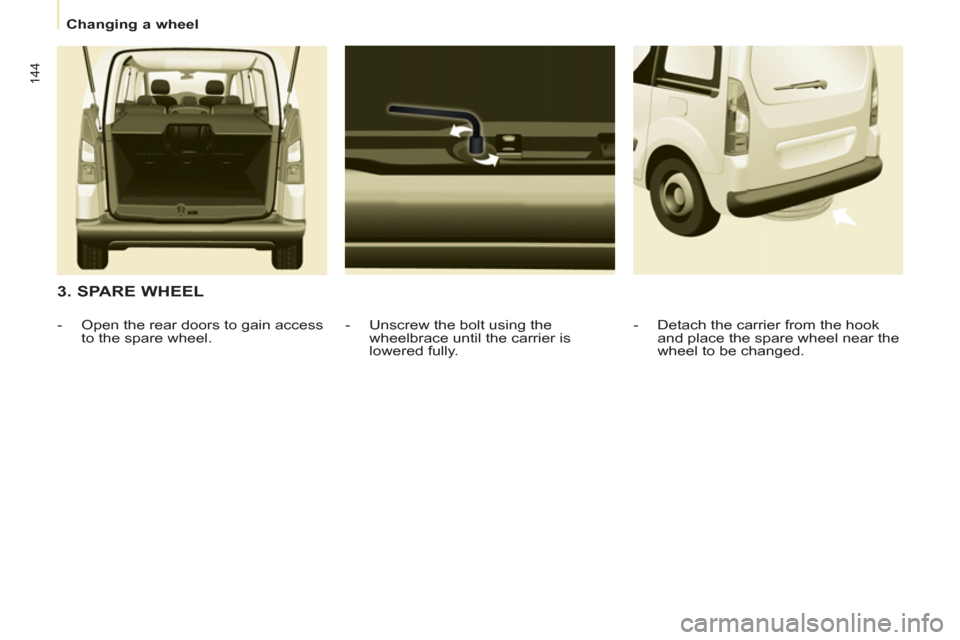

3. SPARE WHEEL


- Unscrew the bolt using the
wheelbrace until the carrier is
lowered fully.

- Open the rear doors to gain access
to the spare wheel.
- Detach the carrier from the hook
and place the spare wheel near the
wheel to be changed.

145
QUICK HEL
P
7
Changing a wheel

4. OPERATING PROCEDURE


- Place the jack in contact with the
locating point provided, the one
which is closest to the wheel to
be changed. Ensure that the jack
is straight and that the base of
the jack is fully in contact with the
ground.

- Extend the jack to lift the wheel
clear of the ground.

- Resume and complete the
unscrewing of the wheel bolts.

- Remove the bolts and remove the
wheel.

- Remove the trim pulling it using the
embellisher remover.

- Loosen the wheel bolts and start
unscrewing them. Do not extend the jack until you have
started unscrewing the bolts on the
wheel to be changed and have placed
the chock under the wheel diagonally
opposite.

146
Changing a wheel

- Lower the vehicle completely by
folding the jack, then remove the
jack.

- Tighten the bolts again using the
wheelbrace, tighten them fully
without forcing them.

- Place the wheel to be repaired in
the carrier.
- Secure the carrier on the hook then
raise the carrier using the bolt and
the wheelbrace.

Never go underneath a vehicle
that is supported only by a
jack (use a ramp). Never use
a screwdriver in place of the
wheelbrace.


5. FITTING THE SPARE WHEEL



- Position the wheel on the hub and
start tightening the bolts by hand.

- Carry out an initial tightening of the
bolts using the wheelbrace.

147
QUICK HEL
P
7

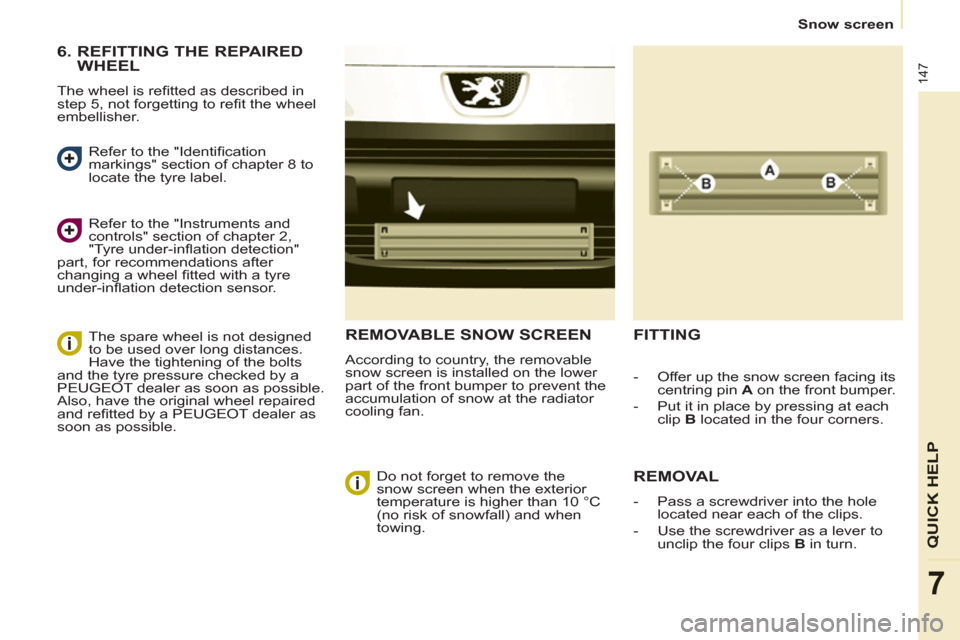

Snow screen


REMOVABLE SNOW SCREEN

According to country, the removable
snow screen is installed on the lower
part of the front bumper to prevent the
accumulation of snow at the radiator
cooling fan.

FITTING

REMOVAL



- Pass a screwdriver into the hole
located near each of the clips.

- Use the screwdriver as a lever to
unclip the four clips B
in turn.


- Offer up the snow screen facing its
centring pin A
on the front bumper.

- Put it in place by pressing at each
clip B
located in the four corners.


Do not forget to remove
the
snow screen when the exterior
temperature is higher than 10 °C
(no
risk of snowfall) and when
towing.

6. REFITTING THE REPAIRED
WHEEL
The wheel is refi tted as described in
step 5, not forgetting to refi t the wheel
embellisher.
Refer to the "Identifi cation
markings" section of chapter 8 to
locate the tyre label.
Refer to the "Instruments and
controls" section of chapter 2,
"Tyre under-infl ation detection"
part, for recommendations after
changing a wheel fi tted with a tyre
under-infl ation detection sensor.
The spare wheel is not designed
to be used over long distances.
Have the tightening of the bolts
and the tyre pressure checked by a
PEUGEOT dealer as soon as possible.
Also, have the original wheel repaired
and refi tted by a PEUGEOT dealer as
soon as possible.

148


Changing a bulb


CHANGING A BULB


Ty p e A

All glass bulb: pull gently
as it is fi tted by pressure.


High pressure washing


Open the bonnet. To access the bulbs,
reach behind the headlamp unit.
Carry out the operations in reverse
order to refi t each bulb and check that
the bonnet is closed securely.
Ty p e C

Halogen bulb: release the
retaining spring from its
housing.
Ty p e B

Bayonet bulb: press
on the bulb then turn it
anticlockwise.
Halogen bulbs must be changed
with the headlamp off. Wait a few
minutes (risk of serious burns).
Do not touch the bulb directly with your
fi ngers, use lint-free cloths.
It is normal for condensation to form
inside the headlamps. Regular use of
the vehicle eliminates this misting. The bulbs must be changed with
the ignition off or with the battery
disconnected. Wait approximately
3 minutes after changing the bulb
before reconnecting the battery.
Check that the lamps operate correctly
after each operation.
When using this type of washing
on stubborn dirt, do not persist
on the headlamps, the lamps and
their edges to avoid damaging their
coating and seals.


Types of bulb

Various types of bulb are fi tted to your
vehicle. To remove them:

149
QUICK HELP
7
Changing a bulb

3.
Direction indicators


Type B
, PY21W - 21W (amber)


- Remove the cover by pulling the
fl exible rubber tab.

- Turn the bulb holder a quarter
turn anticlockwise.

- Remove the bulb by pressing
it lightly while turning it
anticlockwise.

- Change the bulb.

- Ensure that the cover is refi tted
correctly all round to assure
correct sealing.
2.
Sidelamps


Ty p e A
, W5W - 5W


- Remove the cover by pulling the
fl exible rubber tab.

- Remove the bulb holder fi tted by
pressure by pulling the connector.

- Change the bulb.

- Ensure that the cover is refi tted
correctly all round to assure
correct sealing.

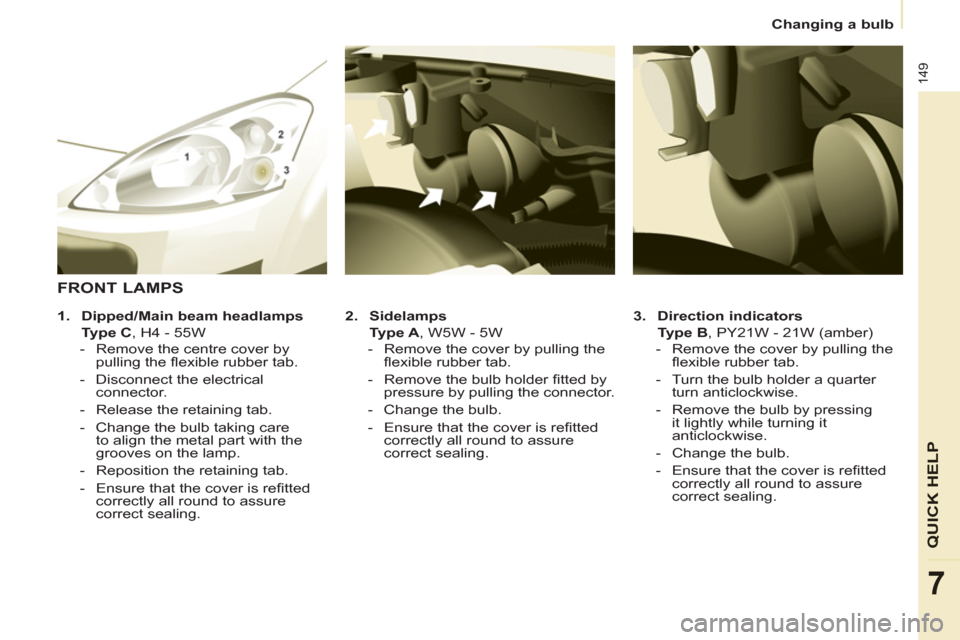

FRONT LAMPS



1.
Dipped/Main beam headlamps


Type C
, H4 - 55W


- Remove the centre cover by
pulling the fl exible rubber tab.

- Disconnect the electrical
connector.

- Release the retaining tab.

- Change the bulb taking care
to align the metal part with the
grooves on the lamp.

- Reposition the retaining tab.

- Ensure that the cover is refi tted
correctly all round to assure
correct sealing.

150


Changing a bulb


4.
Foglamps


Type C
, H1 - 55W


- Remove the foglamp by removing the
bolt, which can be accessed via the
hole provided for this purpose in the
bumper, using a Torx
© 30 screwdriver.

- Remove the three wheelarch liner fi xing
clips, located below the bumper.

- Move the mud guard upwards.

- Unclip the foglamp by squeezing the
clip to release it.

- Remove the foglamp from the outside.

- Turn the yellow cover a 1/4 turn to open.

- Separate the clips which secure the
base of bulb on each side to release the
bulb.

- Remove the bulb by pulling, keeping it
straight.

- Insert the new bulb, reposition the clips
around the base of the bulb and carry
out the operations in reverse order to
put the lamp unit and the bumper back
in position.



SIDE REPEATER


Ty p e A
, WY 5W (amber)


- Push the repeater towards the rear
and disengage it by pulling the
front.

- Contact a PEUGEOT dealer to
obtain a new repeater which is a
sealed component.

- To refi t, engage the repeater
towards the rear and bring it
towards the front.


COURTESY LAMPS


Type A
, 12V5W - 5W


- Unclip the lens by sliding a
screwdriver in the slots on each
side of the courtesy lamp.

- Pull the bulb out and change it.

- Clip the lens in its housing and
ensure that it is secured correctly.

Front/Rear
