2011 Peugeot Partner Tepee Owner's Manual - RHD (UK, Australia)

127


Towing a trailer

ACCESSORIE
S
5

For more information about
weights, refer to the administrative
documents (V5 registration
document, ...) or to the "Weights"
section of chapter 8.
TOWING A TRAILER, CARAVAN, BOAT, ETC...


Distribution of loads

Distribute the load in the trailer so
that the heaviest objects are as
close as possible to the axle and
the nose weight is close to the
maximum authorised without, however,
exceeding it.

Cooling

Towing a trailer on a slope increases
the coolant temperature. As the fan is electrically controlled, its
cooling capacity is not dependent on
the engine speed.
On the contrary, use a high gear to
lower the engine speed and reduce
your speed.
In all cases, pay attention to the
coolant temperature.


Driving advice

A towed vehicle must free wheel:
gearbox in neutral.

128
Towing a trailer

Good Practice

In certain cases of particularly arduous
use (towing the maximum load up a
steep slope in high temperatures), the
engine automatically limits its power. In
this case, the automatic cutting off of
the air conditioning allows the engine
power to be recovered.


Tyres:
Check the tyre pressures of the
towing vehicle (see the "Identifi cation
features" section of chapter 8) and of
the trailer, observing the recommended
pressure. See the "Levels" section of chapter 6. If the coolant temperature
warning light comes on, stop
the vehicle and switch off the
engine as soon as possible.
Brakes

Towing increases the braking distance.
Drive at a moderate speed, change
down early and brake gradually.

Towbar

We recommend the use of original
PEUGEOT towbars and their
harnesses, which have been tested
and approved from the design stage of
your vehicle, and that you entrust the
fi tting of this equipment to a PEUGEOT
dealer.
If this equipment is not fi tted by a
PEUGEOT dealer, it is imperative that
it is fi tted using the electrical pre-
equipment installed at the rear of the
vehicle and in accordance with the
manufacturer’s instructions.
In accordance with the general
instructions a reminder of which has
been given above, we draw your
attention to the risk linked with fi tting
a towbar or electrical accessory not
recommended by PEUGEOT. Fitting
such equipment could result in the
failure of your vehicle’s electronic
system. Please contact a PEUGEOT
dealer for information before fi tting this
type of equipment.
Side wind

Sensitivity to side wind is increased.
Drive smoothly and at a moderate
speed.

ABS/ESP

The ABS or ESP systems only control
the vehicle, not the trailer or caravan.

Rear parking assistance

The assistance does not function while
the vehicle is towing.

129
ACCESSORIE
S
5
Equipment

A further range is also available,
structured around comfort, leisure and
maintenance:

Anti-theft alarm, window
etching, fi rst aid kit, high
visibility vest, front and rear
parking sensors, warning
triangle, security bolts for alloy
wheels, ...

Seat covers compatible with
airbags for the front seats,
bench seat, rubber mats, carpet
mats, snow chains, blinds,
tailgate bicycle carrier, ...
Audio equipment, hands-free
kit, speakers, CD changer,
satellite navigation system, USB
box, Video kit, ...
Regardless of the audio and
telematic equipment offered on the
market, the technical constraints
associated with the fi tting of equipment
of these product groups mean that the
special features of the equipment and
its compatibility with the capacities of
your vehicle's standard equipment must
be taken into account. Please ask a
PEUGEOT dealer for more information
before fi tting such equipment.
To prevent the mat from becoming
caught under the pedals:


- ensure that the mat and its fi xings
are positioned correctly,

- never fi t one mat on top of another.

Maximum weights on bars


- Transverse bars on longitudinal
bars: 75 Kg (these bars are not
compatible with the Zénith roof).


These accessories and parts, having been
tested and approved for reliability and
safety, are all adapted to your vehicle. A
wide range of recommended accessories
and genuine parts is available.

Installing radiocommunication
transmitters
You are advised to contact a
PEUGEOT dealer before installing
accessory radiocommunication
transmitters with external aerial on
your vehicle.
The PEUGEOT dealer network
will inform you of the specifi cation
(frequency band, maximum output
power, aerial position, specifi c
conditions of installation) of the
transmitters which can be fi tted, in
accordance with the Motor Vehicle
Electromagnetic Compatibility Directive
(2004/104/EC).

130


Equipment


The fi tting of electrical equipment
or accessories which are not
recommended by PEUGEOT
may result in a failure of your vehicle's
electronic system. Please note this
specifi c warning. You are advised
to contact a dealer to be shown the
range of recommended equipment or
accessories.
Depending on the country in which
the vehicle is sold, it is compulsory to
have a high visibility jacket, warning
triangle and spare bulbs available in
the vehicle.
"Active Fleet Data" telematic unit
Connected directly to the heart of the
vehicle (multiplexed network: "Full
CAN"), the telematic unit, by means of
a "ready to use" service, permits the
sending in real time of information such
as:


- distance travelled,

- distance remaining before the next
service,

- warnings and faults (oil level,
coolant level, oil temperature,
coolant temperature, etc...).
This enables "Fleet" managers
to optimise the monitoring and
management of their professional
vehicles.
Depending on country, contact a
PEUGEOT dealer for more information.

Front mud fl aps, rear mud
fl aps, 15/17 inch alloy wheels,
wheelarch trim, leather steering
wheel, ...

Screenwash, interior and
exterior cleaning and
maintenance products, spare
bulbs, ...

131
CHECK
S
6
Maintenance with TOTAL


Innovation at the service of performance
The TOTAL Research and Development teams
develop lubricants for PEUGEOT which satisfy the
requirements of the latest technical innovations
incorporated in PEUGEOT vehicles.
This ensures that you obtain the best performance
for your engine.
Optimum protection for your engine
By maintaining your PEUGEOT vehicle
using TOTAL lubricants, you contribute to
increasing the longevity and performance
of your engine while protecting
the environment.



RECOMMENDS

132
Opening the bonnet


OPENING THE BONNET

Bonnet strut

Secure the strut in its location,
identifi ed by a sticker on the left-hand
panel side of the vehicle, to hold the
bonnet open.
Before closing the bonnet, put the strut
back in its clip without using excessive
force.


On the outside

Raise the bonnet slightly by reaching
in a fl at hand, palm down, to make
access to the lever easier.
With this hand, push the lever to the
left. Raise the bonnet.


On the inside

Pull the lever under the fascia panel
towards you. The bonnet is unlocked.


To close

Lower the bonnet and release it at the
end of its travel. Check that the bonnet
is locked.
Avoid manoeuvring the bonnet in
strong winds.

133
CHECK
S
6
Under the bonnet

PETROL ENGINE




1. Windscreen wash reservoir.

2. Fuse box.

3. Engine coolant reservoir.

4. Brake and clutch fl uid reservoir.

5. Air fi lter.

6. Dipstick.

7. Engine oil fi ller cap.

8. Power steering fl uid reservoir.


Battery connections:
+ Positive metal point.
- Negative metal point (earth). Take care when working under the
bonnet.

134

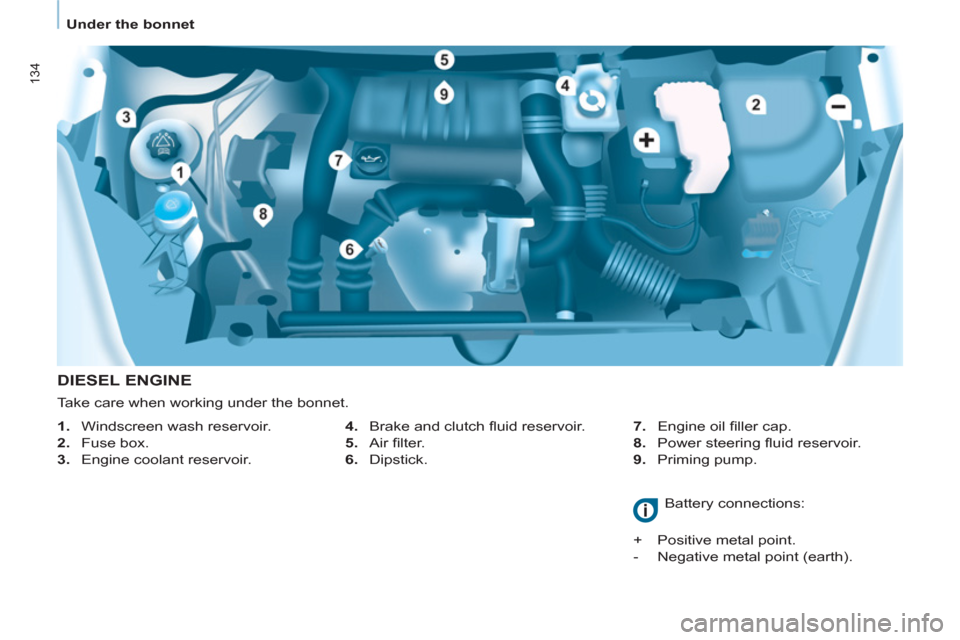

Under the bonnet



DIESEL ENGINE


4. Brake and clutch fl uid reservoir.

5. Air fi lter.

6. Dipstick.
7. Engine oil fi ller cap.

8. Power steering fl uid reservoir.

9. Priming pump.



1. Windscreen wash reservoir.

2. Fuse box.

3. Engine coolant reservoir.

Battery connections:
+ Positive metal point.
- Negative metal point (earth). Take care when working under the bonnet.
