Dimensions

16
1
Dimensions
TECHNICAL DAT
A
8

DIMENSIONS (MM)


L Overall length

4 380

H Overall height

1 801-1 862

A Wheelbase

2 728

B Front overhang

925

C Rear overhang

727

D Width over panels: without mirrors
1 810
with mirrors
2 112

E Width of front tracks
1 505-1 507

F Width of rear tracks
1 554-1 556

- Length of the loading surface to the seat Row 2
990
Row 2, seat fully folded
1 343
With front passenger seat folded
3 000

162
Dimensions

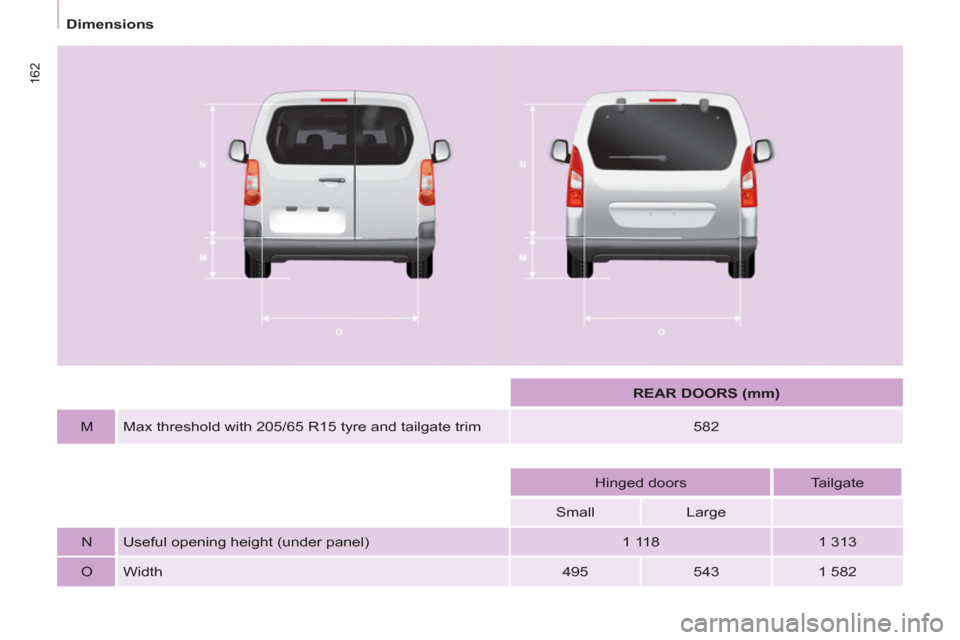

REAR DOORS (mm)


M
Max threshold with 205/65 R15 tyre and tailgate trim
582






Hinged doors
Tailgate

Small
Large




N Useful opening height (under panel)
1 118
1 313

O Width
495
543
1 582

16
3
Dimensions
TECHNICAL DAT
A
8

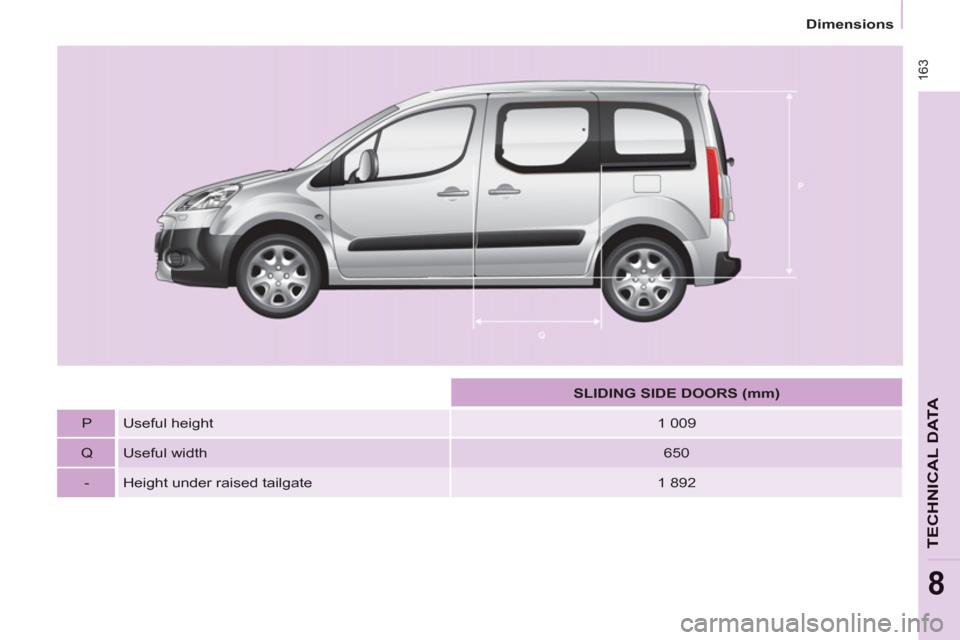

SLIDING SIDE DOORS (mm)


P Useful height
1 009

Q Useful width
650

- Height under raised tailgate
1 892

Weights
164

WEIGHTS AND TOWED LOADS (KG)


General points

For more information, refer to your
registration certifi cate.
In each country, it is imperative that
the towed loads authorised by local
legislation are complied with. To fi nd
out your vehicle's towing capacities
and its gross train weight, consult a
PEUGEOT dealer. The braked towed weight with load
transfer can be increased on condition
that the equivalent of this load is
removed from the vehicle so that the
GTW is not exceeded. Warning: towing
using a lightly loaded towing vehicle
may have an adverse effect on its road
holding.
The speed of a towing vehicle must not
exceed 50 mph (80 km/h) (comply with
the legislation in force in your country). High ambient temperatures may result
in a reduction in the performance
of the vehicle in order to protect the
engine; when the ambient temperature
is higher than 37 °C, limit the towed
weight.
The kerb weight is equal to the weight
without load + driver (75 kg) + fuel tank
fi lled to 90 %.
The GTW and towed load values
indicated are valid up to a maximum
altitude of 1 000 metres; the towed
load mentioned must be reduced by
10 % for each additional 1 000 metres.

Identification markings
165
TECHNICAL DAT
A
8

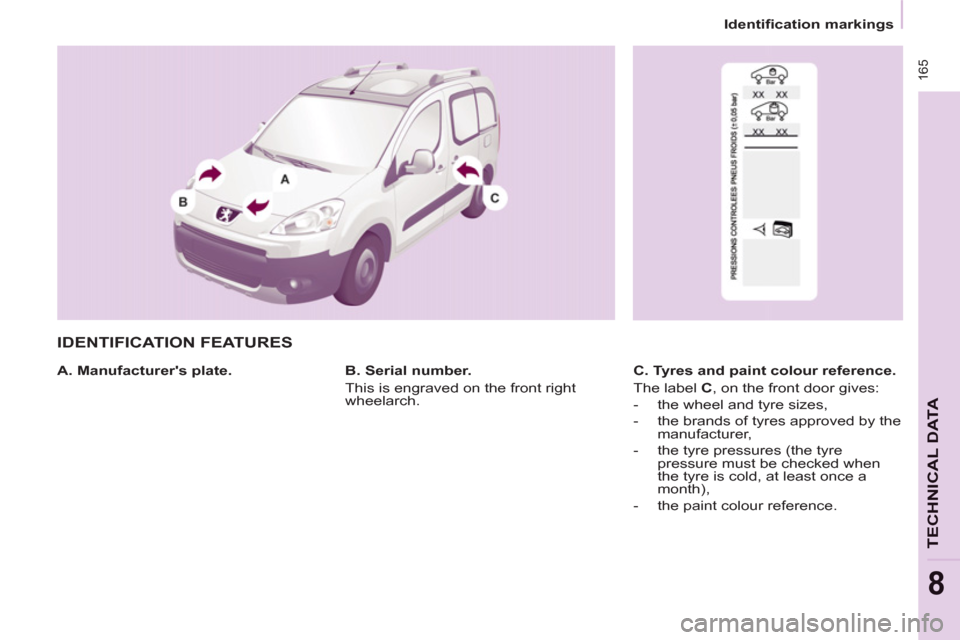

IDENTIFICATION FEATURES


A. Manufacturer's plate.
C. Tyres and paint colour reference.
The label C
, on the front door gives:


- the wheel and tyre sizes,

- the brands of tyres approved by the
manufacturer,

- the tyre pressures (the tyre
pressure must be checked when
the tyre is cold, at least once a
month),

- the paint colour reference.


B. Serial number.
This is engraved on the front right
wheelarch.
