2011 Peugeot Expert VU Owner's Manual

6
7
6
6
7


Exterior

FAMILIARISATIO
N
1

103
Diesel engines
Petrol engine
104
132

Towing eye

Opening the bonnet
Lift the cover located at the foot of the left-hand
seat and pull the release lever upwards.
At the front, unclip the cover by pressing it
at the bottom.
At the rear, unclip the cover using a coin or
the flat part of the towing eye. 102 Partially open the bonnet, lift the safety
catch and raise the bonnet. Secure the stay in one of the two notches,
according to the height required, to hold the
bonnet open.
Take care when carrying out work under the bonnet.
Refer to "Levels" in section 6 for instructions on the use of fluids.

Interior


8



INSTRUMENTS AND CONTROLS


1.
Lighting and direction indicator stalk.

2.
Instrument panel with screen.

3.
Wiper, screenwash, trip computer
controls.

4.
Gear lever.

5.
Ignition.

6.
Audio system controls.

7.
Driver's airbag, horn.

8.
Steering wheel height and reach
adjustment.

9.
Headlamp beam adjustment.

10.
Cruise control, speed limiter
switches.

11 .
12 volt accessory socket
(120 W max), cigarette lighter type.

12.
Ashtray.

13.
Glove box, auxiliary socket,
passenger's airbag deactivation
switch.

9


Interior

FAMILIARISATIO
N
1


CENTRE CONSOLE AND OVERHEAD STORAGE UNIT



1.
Location of controls:


- central locking/unlocking,

- locking/unlocking the load space.

2.
Heating and/or air conditioning
controls.

3.
Location of the ticket/card storage or
controls:


- deactivation the ESP,

- deactivation of the interior
protection alarm, alarm LED,

- deactivation of the parking
sensors.

4.
Storage compartment.

5.
Audio system or storage
compartment.

6.
Central adjustable vents.

7.
Hazard warning lamps switch.

8.
Screen or storage compartment.

9.
Courtesy lamp.

10.
Passenger's airbag deactivated
warning lamp

11 .
Location of the ticket/card storage,
heated seat controls.




ADJUSTING THE TIME


- a centre console with screen: refer to
"Adjusting the date and time" in section 9,

- a centre console without screen: refer to
"Instruments and controls" in section 2.

Depending on the configuration of your
vehicle, you have either:

3





Interior


10


Driver's seat


SITTING COMFORTABLY



1.
Forwards-backwards adjustment.

2.
Backrest angle.

3.
Cushion height.

4.
Lumbar.

5.
Head restraint height.
64

2
4
3
3
11


Interior

FAMILIARISATIO
N
1


Seat belts
Steering wheel

Electric windows

Mirrors
41
86 81

79 Electric adjustments, electric folding/
unfolding.
Height adjustment.
Fastening. Adjust the height and reach of the steering
wheel. Manual adjustments.

3
3
7





Interior


12


SEEING CLEARLY

42 Lighting off.
Sidelamps.
Main beam headlamps (blue).
Dipped beam headlamps (green).


Wiper control stalk

2
fast.
1
normal.
I
intermittent.
0
off.

9
9
3
3
3
9
13


Interior

FAMILIARISATIO
N
1


DRIVING SAFELY


Peugeot Connect Media Navigation (RT5)
This easy to use audio system offers a
map of Europe on SD Card, a Bluetooth
telephone connection and the playing of
MP3/WMA files. 47
Cruise control
The vehicle speed must be higher than
25 mph (40 km/h) with at least 4th gear
engaged.
Peugeot Connect Sound (RD5)
This audio system incorporates a hard disk
with a capacity of 10 Gb, reserved for your
music.
The Jukebox function permits the selective
playing of up to 10 hours of music. The
detailed map of Europe is stored on this
hard disk, without the addition of a CD. It is
displayed on the 16/9 7" colour screen and
offers a 3D view.
Via your SIM card, the GSM hands-free
telephone also provides access to the
PEUGEOT emergency call centre (subject
to conditions).
Peugeot Connect Navigation (RNEG)
50

Speed limiter
The lowest speed which can be programmed
is 20 mph (30 km/h).
Emergency or assistance call with
Peugeot Connect Media Navigation
(RNEG)
This system allows an emergency or
assistance call to be sent to the dedicated
PEUGEOT centre.
For more information on the use of this
system, refer to section 9, "Technology on
board".
Fixed speed limiter
49

3
33





Interior


14


Overhead storage unit
70

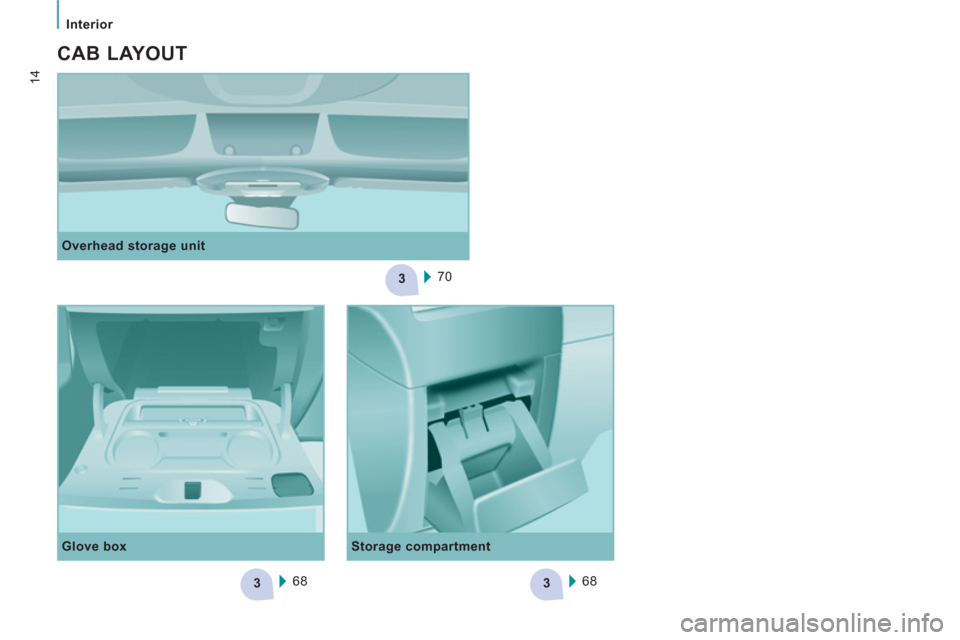

CAB LAYOUT


Glove box
68 68

Storage compartment
