2011 Peugeot Expert VU Owner's Manual

12
7


Changing a fuse

QUICK HELP
7

RIGHT-HAND SIDE DASHBOARD
FUSES


- Tilt the storage compartment then
pull it firmly to access the fuses.

Fuses


A (amps)

Allocation


1


15
Rear wiper


2


-
Free


3


5
Airbag control unit


4


10
Steering wheel angle sensor, Diagnostic socket, ESP
sensor, Manual ventilation, Clutch switch, Headlamp beam
height, Particle emission filter pump


5


30
Electric mirrors, Passenger electric window motor


6


30
Front electric windows supply


7


5
Courtesy lamps and glove box lamp


8


20
Multifunction screen, Anti-theft alarm siren, Audio
equipment, Compact disc changer, Audio/telephone, Trailer
fusebox (accessory), Coachbuilder/vehicle converter unit
(platform cab)


9


10
Load space accessory socket


10


30
Rear ride height corrector, Steering wheel switching,
Instrument panel


11


15
Diagnostic socket, Ignition switch


12


15
Hands-free kit, Airbag control unit, Parking sensors
control unit


13


5
Engine fusebox, Trailer fusebox


14


15
Rain sensor, Digital air conditioning, Instrument panel


15


30
Locking/unlocking/deadlocking


16


-
Free


17


40 Heated rear screen, Heated mirrors


17


10
Heated mirrors only

128


Changing a fuse


PASSENGER COMPARTMENT
FUSES


- Unclip the battery compartment cover.

- Remove the red battery terminal (+).

When you have finished, close the cover
carefully.

Fuses


A (amps)

Allocation


1


30
Heated seats


2


-
Free


3


40/50
Trailer fuse box (accessory)/Coachbuilder/vehicle modifier
unit (platform cab)


4


-
Free


36


15
Hinged door locks


37


10
Hinged door locks


38


20
Hinged door rear wiper


39


-
Free


40


5
Folding door mirrors

12
9


Changing a fuse

QUICK HELP
7

FUSES UNDER THE BONNET



- After opening the bonnet, slide the
screenwash support to make access
easier.

- Unclip and tilt the box to access the
fuses.

Fuses


A (amps)

Allocation


1


20
Engine control unit, Fuel supply and air supply systems,
Fan assembly


2


15
Horn


3


10
Front and rear screenwash pump


4


20
Headlamp wash pump


5


15
Fuel supply system


6


10
Power steering, Secondary brake pedal switch


7


10
Braking system (ABS/ESP)


8


20
Starter motor control


9


10
Main brake pedal switch


10


30
Fuel supply and air supply systems, Emissions control systems


11


40
Front ventilation


12


30 Windscreen wipers


13


40
Built-in systems interface


14


30
Free

130


Changing a fuse


TOWING/TOWBAR/
COACHBUILDERS/PLATFORM
CAB FUSES
The descriptions communicated are an
indication only as this additional box
relates to other information which depends
on the coachbuilder/vehicle convertor for
which this document cannot act
as a technical support.

Fuses


A (amps)

Allocation


1


15
Free


2


15
Ignition relay and optional generator


3


15
Trailer 12 V supply


4


15
Permanent supply for vehicle convertors


5


10
Hazard warning lamps

131

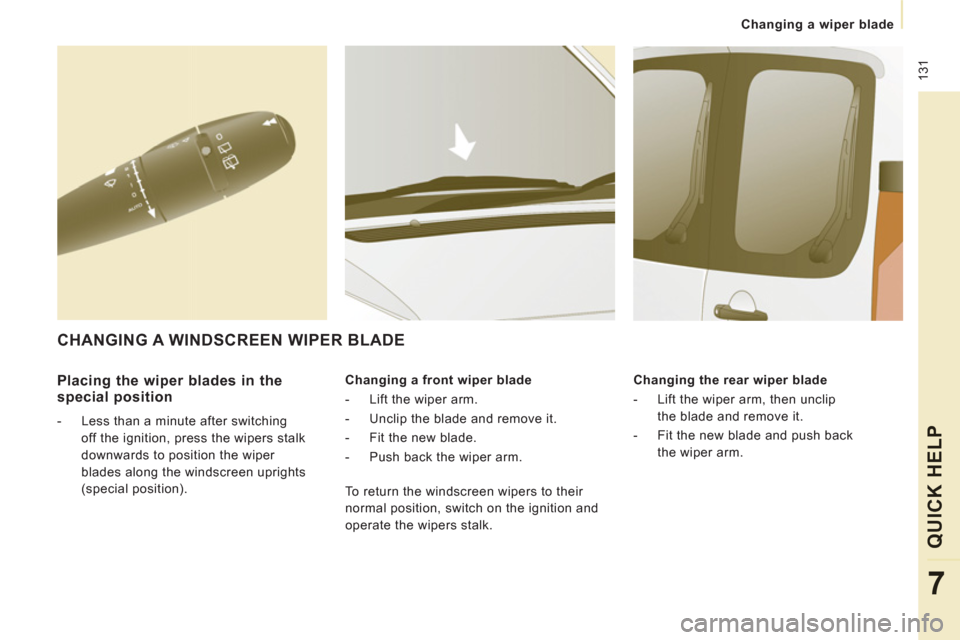

Changing a wiper blade

QUICK HELP
7


Placing the wiper blades in the
special position


- Less than a minute after switching
off the ignition, press the wipers stalk
downwards to position the wiper
blades along the windscreen uprights
(special position).
Changing a front wiper blade


- Lift the wiper arm.

- Unclip the blade and remove it.

- Fit the new blade.

- Push back the wiper arm.
Changing the rear wiper blade


- Lift the wiper arm, then unclip
the blade and remove it.

- Fit the new blade and push back
the wiper arm.



CHANGING A WINDSCREEN WIPER BLADE

To return the windscreen wipers to their
normal position, switch on the ignition and
operate the wipers stalk.

132


Having your vehicle towed



Without lifting (4 wheels on the road)

You should always use a towing bar.


From the front



- Unclip the cover by pressing the
bottom part.

- Fully screw in the removable towing eye.


TOWING THE VEHICLE


Lifting (2 wheels on the road only)

It is preferable to raise the vehicle using
professional lifting equipment.


From the rear



- Unclip the cover using a coin or the
flat part of the towing eye,

- Fully screw in the removable towing eye.



Vehicles fitted with a manual
gearbox (Diesel version)
In the case of vehicles fitted with a manual
gearbox, the gear lever must be in the
neutral position. Failure to observe this
special condition may result in damage
to certain braking components and the
absence of braking assistance the next time
the engine is started.

133


Having your vehicle towed

QUICK HELP
7


General recommendations

Observe the legislation in force in your
country.
Ensure that the weight of the towing vehicle
is higher than that of the towed vehicle.
The driver must stay at the wheel of the
towed vehicle.
Driving on motorways and fast roads is
prohibited when towing.
When towing a vehicle with all four wheels
on the ground, always use an approved
towing bar; rope and straps are prohibited.
When towing a vehicle with the engine off,
there is no longer any power assistance for
braking or steering.
In the following cases, you must always call
on a professional recovery service:


- vehicle broken down on a motorway or
fast road,

- when it is not possible to put the
gearbox into neutral, unlock the
steering, or release the parking brake,

- towing with only two wheels on the
ground,

- where there is no approved towing bar
available...

134

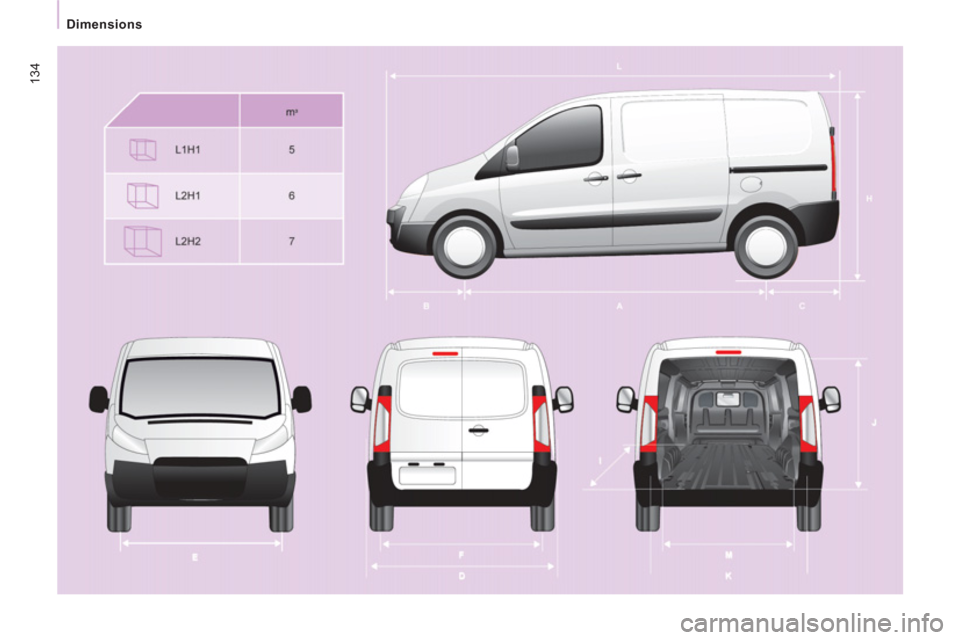

Dimensions
