2011 Peugeot Expert VU Owner's Manual

9.1
TECHNOLOGY on BOARD

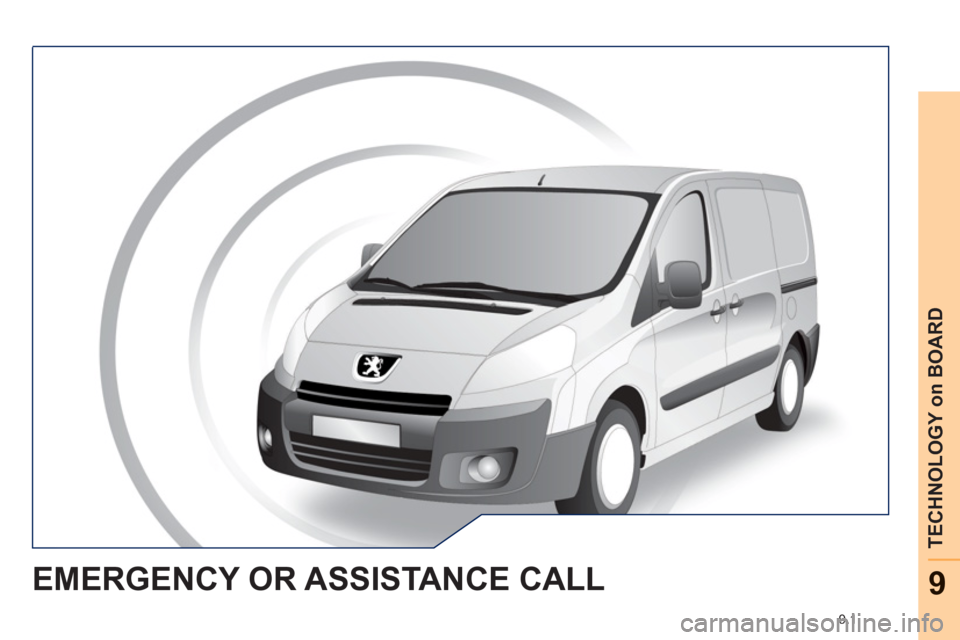

9EMERGENCY OR ASSISTANCE CALL

9.2
If an impact is detected by the airbag control unit, and independently
of the deployment of any airbags, an emergency call is made automatically.
The messa
ge "Deteriorated emergency call" associated with fl ashing
of the orange indicator lamp indicates a malfunction. Contact a
PEUGEOT dealer.
In an emer
gency, press the SOS button until an audible
signal is heard and a "Confi rmation/Cancellation"
screen is displayed (if valid SIM card inserted).
A call is made to the PEU
GEOT Emergency team
which receives locating information from the vehicleand can send a detailed alert to the relevant emergency services.
In countries in which the team is not operational, or
when the locatin
g service has been expressly declined,
the call is sent to the emergency services (11 2). Warning - the emergency call and the services are only active
i
f the internal telephone is used with a valid SIM card. With a
Bluetooth telephone and without a SIM card, these services are not
operational. Press this button for access to PEUGEOT services.
Customer call Select "Customer call" to request
an
y information about the PEUGEOT marque.

Select "PEUGEOT Assistance" tomake a roadside assistance call.
PEUGEOT Assistance
This service is subject to conditions and availability. Consult a
PEUGEOT dealer. If you have purchased your vehicle outside the
PEUGEOT dealer network, we invite you to have a dealer check theconfi guration of these services and, if desired, modifi ed to suit your
wishes.


EMERGENCY OR ASSISTANCE CALL USING
PEUGEOT CONNECT COM

9.3
PEUGEOT CONNECT MEDIA

The Peugeot Connect Media is coded in such a waythat it will only operate in your vehicle. If it is to be
installed in another vehicle, contact a PEUGEOT dealer for confi guration of the system.

For safet
y reasons, it is imperative that the driver carries
out operations which require prolonged attention while
the vehicle is stationary.
When the en
gine is switched off and to prevent
discharging of the battery, the Peugeot Connect Mediamay switch off after a few minutes.



MULTIMEDIA AUDIO/TELEPHONE SYSTEM
JUKEBOX FUNCTION (10 GB)/GPS (EUROPE)


01 First steps

02
Voice commands and
steering mounted controls


03 Screen and main menu

04 Navigation - Guidance

05 Traffic information

06 Audio/Video

07 Telephone

08 Trip computer

09 Configuration

10 Screen menu map p.
p.
p.
p.
p.
p.
p.
p.
p.
p. 9.4
9.5
9.7
9.11
9.21
9.23
9.32
9.36
9.38
9.39
CONTENTS


Frequently asked questions p.
9.45

9.4
01
2
8
16
18 17
71114 3
59
4 1512 13
61
10
FIRST STEPS
1. On/Off and Volume adjustment.
2. Selection of the source: radio, Jukebox, CD and auxiliary (AUX, if activated on the Confi guration menu). Long press: CD copyto hard disk.
3. Audio option adjustments: front/rear, left/right balance, loudness, sound ambiences.
4. Display the list of local radio stations, of the tracks on the CD or of the MP3/USB/Jukebox directories. Long press: update the local radio stations.


5. Automatic search for a lower/higher frequency. Selection of the previous/next CD, MP3, USB or Jukebox track.
Long press: fast forward and backward play.


6. Selection of wavebands FM1, FM2, FMast, AM.


7. TA (Traffi c Announcement) function on/off.
Long press: access to the PTY (radioProgramme TYpes) mode.


8. Ejection of the CD.


9. SIM card slot.


10. Keypad for entering descriptions by successive presses.


11. Access to the "PEUGEOT" services menu.


12. Selection and confi rmation.


13. Selection of the previous/next MP3/USB/Jukebox directory.


14. Cancellation of the current operation. Longpress: return to the current application.


15. Display the main menu.


16. Modifi cation of the screen display. Longpress: reinitialisation of the system.


17. Selection of the display on the screenbetween modes: TRIP, TEL, NAV and AUDIO.


18. Long press on the SOS button:emergency call.

9.5
02VOICE COMMANDS AND STEERING MOUNTED CONTROLS
RADIO: automatic search for a higher frequency.
CD/MP3/USB/JUKEBOX: selection of the next track.
CD/USB: continuous press: fast forwards play.


RADIO: selection of the next stored station.

MP3/USB/JUKEBOX: selection of the next folder.
Selection of the next item on a menu.


RADIO: selection of the previous stored station.

MP3/USB/JUKEBOX: selection of the previous folder.
Selection of the previous item on a menu.


RADIO: automatic search for a lower frequency.
CD/MP3/USB/JUKEBOX: selection of the previous track.
CD/USB: continuous press: fast backwards play.

- Change of sound source.

- Confi rmation of a selection.

- Pick up/Hang up the telephone.

- Press for more than2 seconds: access to thetelephone menu.

Volume increase.

Volume decrease.

Mute: by pressing the volume increaseand decrease buttons simultaneously.

The sound is restored bypressing one of the twovolume buttons.

9.6
02
1
2

VOICE COMMANDS
VOICE COMMANDS AND STEERING MOUNTED CONTROLS


DISPLAYING THE LIST AND USING THEM
To display the list o
f available voice commands, press the voice recognition control to start the voice recognition,
then say HELP or the voice recognition command.
For the same operation, press and
hold the MENU button and select the"Voice commands list" function.
Press the voice recognition control tostart the voice recognition.
Say the words one by one and wait for the audible confi rmation signal between each word.
Th
e list which follows is exhaustive.

LEVEL 1LEVEL 2
LEVEL 3

radiomemory autostoreprevious/next
list 1 to
6/*
cd pla
yer
Jukebox (if activated)
USB previous/next track
track number/trackscan
random play
directory (CD-MP3 inserted)list 1 to 250/*
previous
/next
repeat
help/what can I sa
y/cancel
call/
guide to "Pre-recorded description"

telephone l
ast number
voice box
voice mail directory "Pre-recorded description"

messagedisplayreaddirectory "Pre-recorded description"
nav
igation stop/resume
zoom in/out
vi
ew *
destination
vehicle
tr
affi c info displayread

displa
yaudio
telephone
trip computer
Navigation
air conditioning
previous/next
s
top
delete yes/no f
or all level 1 and 2

* help/what can I say/cancel for all level 1, 2 or *
Voice commands list

9.7
03
°
SCREEN AND MAIN MENU
The system uses the complete and detailed NAVTEQ maps installed directly on the equipment's hard disk.
Updates of the maps of the UK and of the other European countries, supplied by our partner NAVTEQ, are available from the PEUGEOT network.
This displa
ys the following information, via the audio control panel:


- time,

- date,

- ambient temperature
(if there is a risk of ice, you are warned by amessage),

- audio source displa
ys (radio, CD, jukebox, ...),

- telematic system displays
(telephone, services, ...),

- check o
f openings (doors, boot, ...),

- warnin
g messages (e.g.: "Fuel level low") and vehicle function statusmessages (e.g.: "Auto lighting activated") displayed temporarily,

- trip computer information,

- GPS
(Europe) satellite navigation system information.
> COLOUR SCREEN
Telephone
Orange
Time:
Date:
Screen confi guration: refer to the section - Screen menu map.

9.8
03SCREEN AND MAIN MENU








For maintenance of the screen, the use of a soft, non-abrasive cloth (spectacles cloth) is recommended without any additional product.
TRAFFIC INFORMATION:TMC information, messages.
MAP: orientation, details,display.


NAVIGAT ION GUIDANCE:GPS, stages, options.


VEHICLE DIAGNOSTICS:alert log, status of the functions.


VIDEO: activation,parameters.


CONFIGURATION: vehicle, display,time, languages, voice, auxiliarysocket (AUX) parameters.


TELEMATIC: telephone,directory, SMS.


AUDIO FUNCTIONS: radio,CD, Jukebox, options.


Long press on MENU:help.
