2011 Peugeot Expert VU mirror controls

2

Contents
Remote control 19Key 20Alarm 21Doors 23Instrument panel 26Adjusting the time 27Warning lamps 28Fuel gauge 34Coolant 34Service indicator 35Lighting rheostat 36Gearboxes 37Gear shift indicator 37Automatic gearbox 38Steering wheel adjustment 41Starting and stopping 41
Lighting 42controls 42wipers 45Cruise control 47Fixed speed limiter 49Speed limiter 50Manual heating/air conditioning53automatic 55De-icing and demisting 59Additional heating 61Seats 642-seat front bench 66Cab fittings 68Courtesy lights 71Toll cards/car park tickets 71Crew cab 72Load space fittings 73Rear suspension 76Mirrors 79Electric windows 81
2. READY TO
SET OFF 19-414. SAFETY 82-97
Presentation 4Communication4Exterior 5Sitting comfortably 10Seeing clearly 12Driving safely 13Cab layout 14Load space 15Ventilation 16Eco-driving 17
1. FAMILIARISATION 4-18
Parking brake 82Hazard warning lamps 82Parking sensors 83Horn 84Anti-lock braking system (ABS) 84Emergency braking assistance 84Traction control (ASR) andstability control (ESP) 85Seat belts 86Airbags 89Lateral airbags 91Front airbags 92Deactivating the passenger'sairbag 92Child seats 93Recommended seats 95
3. EASE OF USE and COMFORT 42-81

44
Steering mounted controls

Automatic illumination of headlamps

Activation
Turn the ring to the
AUTOposition.
Th
e activation of this function is
accompanied by a message in the screen.
If the sunshine sensor does not function
correctly, the lighting comes on accompanied
by the service warning lamp, an audible signal
and a message in the screen.
Contact a PEUGEOT dealer or a qualified
workshop.


HEADLAMP BEAM
Depending on the load in your vehicle,
the beam settin
g must be adjusted.
0 -
N
o load.
1 -

Partial load.
2-
Average load.
3 -
Maximum authorised load.
Do not cover the sunshine sensor
located on the windscreen, behind
th
e mirror. It is used for the automatic
illumination of headlamps and for
the automatic rain sensitive wipers.The sidelam
ps and dipped
beam headlamps switch
on automaticall
y if the light
is poor, or durin
g operation
of the windscreen wipers. The
y switch off as
soon as the light becomes bright enough or
the windscreen wi
pers stop.
This
function is not compatible with the
da
ytime running lamps.
Deactivation
Turn the ring
forwards or rearwards. The
deactivation of this function is accom
panied
by a message on the display.
The function is deactivated temporaril
y when
you use the manual lights stalk.
Initial settin
g is position 0.
In foggy weather or in snow, the
sunshine sensor may detect sufficient
light. As a consequence, the lighting will not
come on automatically. If necessary, you
must switch on the dipped beam headlamps
manually.

56
Ventilation

Driver or passenger side comfort value
The value indicated on the display
corresponds to a level of comfort and
not a temperature in de
grees Celsius or
F
ahrenheit.
Automatic operation
Do not cover the sunshine sensor,
l
ocated on the windscreen behind the
mirror, it is used for regulation of the air
conditioning.
AUTO comfort programme
This is the normal air conditioning system
operat
ing mode.
Press this button, the AUTO
symbol is
displayed.
In
accordance with the comfort valueselected, the system controls the
distribution, the fl ow and the intake of air to guaranteecomfort and a suffi cient circulation of air in the
passenger compartment. No further action on your part
is required. No further action on your part is required.
When the engine is cold, to prevent anexcessive diffusion of cold air, the ventilation
will reach its optimum level gradually.
For
your comfort, the settings are stored
when the ignition is switched off and arereinstated the next time the vehicle isstarted, if the temperature in the passenger compartment has not changed significantly;
otherwise, operation resumes in automatic
mode. T
urn this control to the left or to
the right to decrease or increase
the value. A settin
g around the
value 21 provides optimum
comfort. However, depending on your
requirements, a settin
g between 18 and 24
i
s usual.

81


Mirrors and windows
EASE OF USE AND COMFOR
T
3

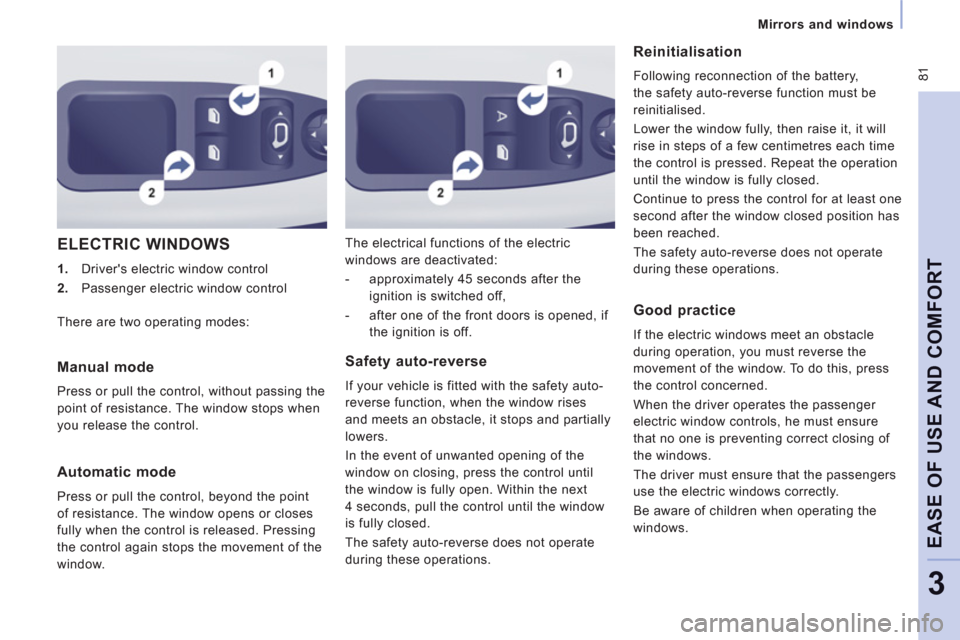

ELECTRIC WINDOWS



1.
Driver's electric window control

2.
Passenger electric window control Th
e electrical functions of the electric
windows are deactivated:


- approximately 45 seconds after the
ignition is switched off,

- after one of the front doors is opened, if
the ignition is off.


Reinitialisation

Following reconnection of the battery,
the safet
y auto-reverse function must be
reinitialised.
Lower the window full
y, then raise it, it will
rise in steps of a few centimetres each time
the control is
pressed. Repeat the operation
until the window is fully closed.
Continue to press the control for at least one
second after the window closed position has
been reached.
The sa
fety auto-reverse does not operate
durin
g these operations.


Manual mode
Press or pull the control, without passing the
point of resistance. The window stops when
you release the control.


Automatic mode
Press or pull the control, beyond the point
o
f resistance. The window opens or closes
full
y when the control is released. Pressing
the control a
gain stops the movement of the
win
dow.
Safety auto-reverse
If your vehicle is fitted with the safety auto-
reverse
function, when the window rises
and meets an obstacle, it stops and partially
lowers.
In the event of unwanted openin
g of the
w
indow on closing, press the control until
the window is fully open. Within the next
4 seconds,
pull the control until the window
is
fully closed.
The safet
y auto-reverse does not operate
during these operations.

Good practice

If the electric windows meet an obstacle
during operation, you must reverse the
movement of the window. To do this, press
th
e control concerned.
When the driver operates the passen
ger
electric window controls, he must ensure
that no one is preventin
g correct closing of
th
e windows.
The driver must ensure that the passen
gers
use the electric windows correctly.
Be aware of children when operatin
g the
w
indows.
There are two operating modes:

144


Instruments and controls



Headlamp beam height adjustment 44
Starter, ignition 41
Wiper controls 45-46
Automatic wiping 45
Windscreen/headlamp wash 45
Trip computer Section 9

Cruise control 47-49
Fixed speed limiter 49
Speed limiter 50-52

Steering mounted controls:


- Peugeot Connect Media
Navigation (RT5) Section 9

- Peugeot Connect Navigation (RNEG) Section 9

- Peugeot Connect Sound (RD5) Section 9

Lighting controls 42-43
Automatic illumination of headlamps 44
Foglamps 43
Daytime running lamps 43

INSTRUMENTS AND CONTROLS


Opening the bonnet 102
Parking brake 82

Electric windows,
electric mirrors 79-81
Instrument panels, screens,
speedometers 26-27
Warning lamps, indicator lamps 28-33
Indicators, gauge 34-36
Setting the time in the instrument panel 27
Dashboard lighting dimmer 36
Gear shift indicator 37

Steering wheel adjustment 41
Horn 84

145


Instruments and controls

VISUAL SEARCH
10


Screens, display Section 9
Setting the time in the screen Section 9

Rear view mirror 80
Toll cards, car park tickets 71
Courtesy lamps 71, 123

Warning lamp in the overhead storage unit 26
Heated seats 65

Right-hand side
dashboard fuses 127
Passenger's airbag deactivation 92
Controls


- central locking 23

- load space locking 23

- alarm 21-22

- parking sensors 83

- ASR, ESP 85


Technology on board Section 9


- Emergency or assistance call

-
Peugeot Connect Media Navigation (RT5)


- Peugeot Connect Navigation (RNEG)

- Peugeot Connect Sound (RD5)


Gearbox 37-40
Hazard warning lamps 82

Heating, ventilation


- manual ventilation 53-54

- air conditioning A/C 53

- air recirculation 54

Air conditioning with separate adjustments 55-57
Demisting/defrosting 59-60
Additional heating 61-62

Cab fi ttings 68-70


- glove box,

- overhead storage,

- ashtray,

- sun visor,

- 12 volt socket,

- ticket holder,

- storage compartment.
