Page 12 of 236
FAMILIARISATION
10
INSTRUMENTS AND CONTROLS
1.
Steering lock and ignition.
2.
Door mirror controls.
Electric window and rear electric
window deactivation controls.
3.
Lighting and direction indicator
control stalk. Headlamp wash
control.
4.
Central adjustable air vents.
5.
Sunshine sensor.
6.
Cooled upper glove box.
7.
Lockable lower glove box.
Passenger’s airbag deactivation.
Fusebox.
8.
Heated seat controls.
9.
Armrest with storage
compartments.
12 volt socket (120 W max).
10.
Cup holder.
11 .
Four wheel drive system position
selector.
12.
Removable ashtray/
12 volt socket (120 W max).
13.
Automatic air conditioning controls.
14.
Temperature sensor.
15.
Hazard warning lamps switch.
16.
Colour screen/Audio system
Page 129 of 236
8
CHECKS
PETROL ENGINE
1.
Screenwash and headlamp wash
reservoir.
2.
Coolant reservoir.
3.
Power steering fl uid reservoir.
4.
Brake fl uid reservoir.
5.
Fusebox.
6.
Battery.
7.
CVT gearbox dipstick.
8.
Radiator cap.
9.
Engine oil dipstick.
10.
Engine oil fi ller cap.
11 .

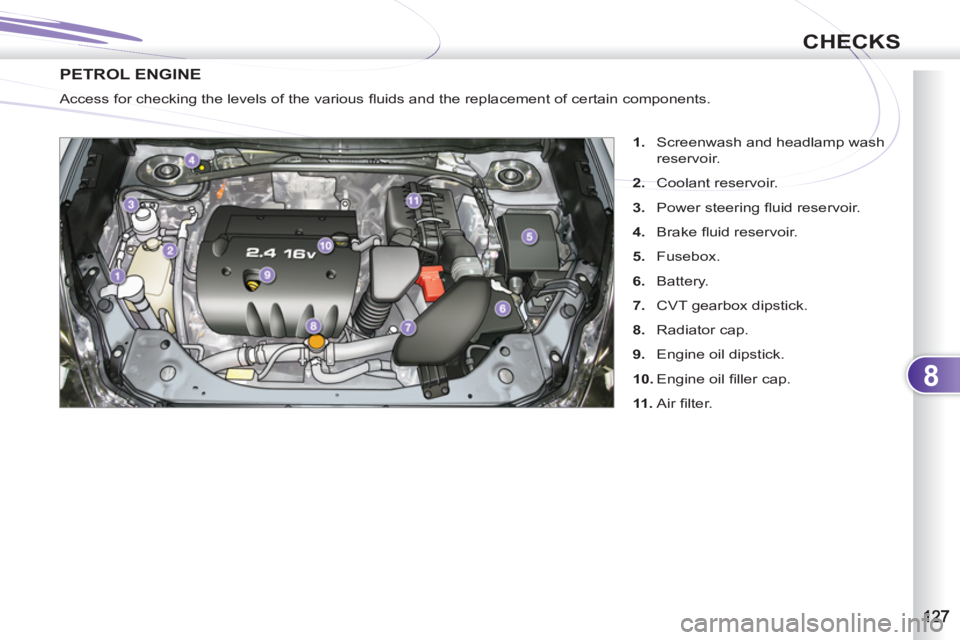

Air fi lter. Access for checking the levels of the various fl uids and the replacement of certain components.
Page 130 of 236
8
CHECKS
SEL ENGINEDIESEL EN

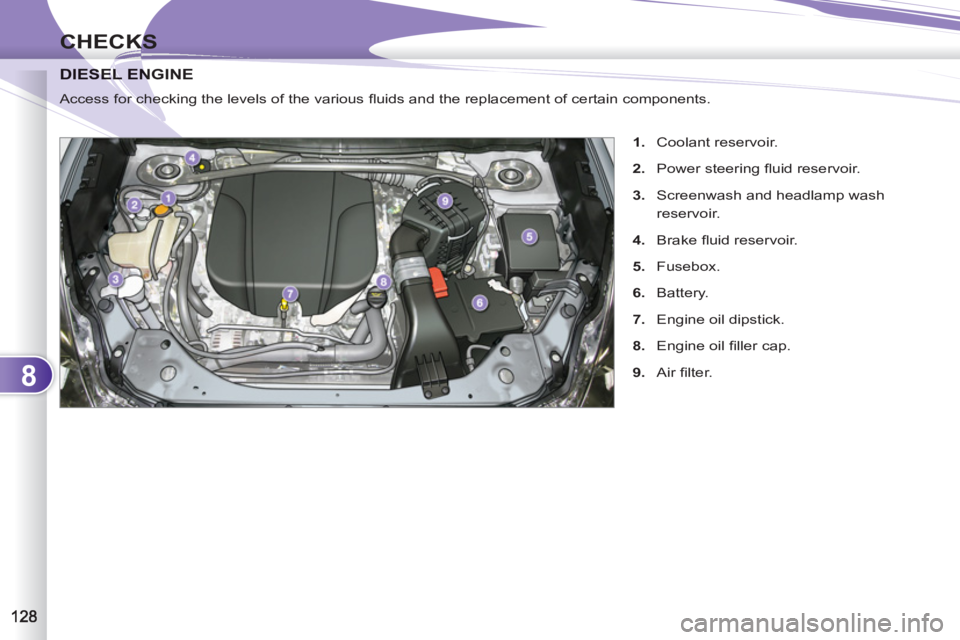

Access for checking the levels of the various fl uids and the replacement of certain components.
1.
Coolant reservoir.
2.
Power steering fl uid reservoir.
3.
Screenwash and headlamp wash
reservoir.
4.
Brake fl uid reservoir.
5.
Fusebox.
6.
Battery.
7.
Engine oil dipstick.
8.
Engine oil fi ller cap.
9.
Air fi lter.
Page 146 of 236
9
PRACTICAL INFORMATION

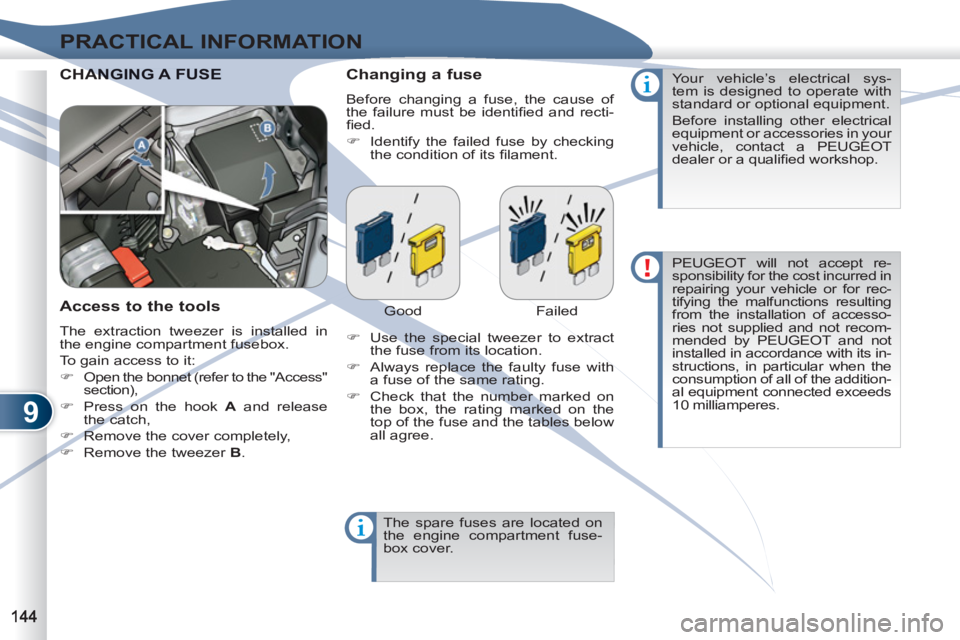

CHANANGING A FUSE
Changing a fuse
Before changing a fuse, the cause of
the failure must be identifi ed and recti-
fi ed.
)
Identify the failed fuse by checking
the condition of its fi lament.
Access to the tools
The extraction tweezer is installed in
the engine compartment fusebox.
To gain access to it:
)
Open the bonnet (refer to the "Access"
section),
)
Press on the hook A
and release
the catch,
)
Remove the cover completely,
)
Remove the tweezer B
.
Good Failed
)
Use the special tweezer to extract
the fuse from its location.
)
Always replace the faulty fuse with
a fuse of the same rating.
)
Check that the number marked on
the box, the rating marked on the
top of the fuse and the tables below
all agree.
The spare fuses are located on
the engine compartment fuse-
box cover. Your vehicle’s electrical sys-
tem is designed to operate with
standard or optional equipment.
Before installing other electrical
equipment or accessories in your
vehicle, contact a PEUGEOT
dealer or a qualifi ed workshop.
PEUGEOT will not accept re-
sponsibility for the cost incurred in
repairing your vehicle or for rec-
tifying the malfunctions resulting
from the installation of accesso-
ries not supplied and not recom-
mended by PEUGEOT and not
installed in accordance with its in-
structions, in particular when the
consumption of all of the addition-
al equipment connected exceeds
10 milliamperes.
Page 147 of 236
9
PRACTICAL INFORMATION
Dashboard fuses
The fuseboxes are placed in the lower
dashboard behind the glove box.
Access to the fuses
)
Open the glove box,
)
Push the two opening guides A
in-
wards to pass the fi rst notch,
)
Remove the retaining tab B
pulling
it outwards,
)
Support the cover and tilt it down-
wards,
)
Change the fuse (refer to the cor-
responding paragraph).
Fuse N°
Rating
Functions
1
30 A
Heating.
2
15 A
Brake lamps, third brake lamp, built-in systems
interface.
3
10 A
Rear foglamps.
4
30 A
Windscreen wipers and screenwash.
5
10 A
Diagnostic socket.
6
20 A
Central locking, door mirrors.
7
15 A
Audio system, telematics, multifunction screen,
hands-free kit.
8
7.5 A
Remote control key, air conditioning control unit,
instrument panel, switch panel, steering mounted
controls.
9
15 A
Multifunction screen, instrument panel.
10
15 A
Built-in systems interface.
11
15 A
Rear wiper.
12
7.5 A
Instrument panel, 4 wheel drive control unit,
air conditioning control panel, ABS control
unit, multifunction screen, automatic headlamp
adjustment, heated seats, airbag control unit,
steering wheel angle sensor, sunroof, rear screen
demisting, remote control.
13
-
Not used.
14
10 A
Ignition switch.
15
20 A
Sunroof.
16
10 A
Door mirrors, audio system, telematics.
Page 148 of 236
9
PRACTICAL INFORMATION
Access to the fuses
)
Open the glove box,
)
Push the two opening guides A
in-
wards to pass the fi rst notch,
)
Remove the retaining tab B
pulling
it outwards,
)
Support the cover and tilt it down-
wards,
)
Change the fuse (refer to the cor-
responding paragraph).
* The maxi-fuses provide additional protection for the electrical systems. All work on the maxi-fuses must be carried
out by a PEUGEOT dealer or a qualifi ed workshop.
Fuse N°
Rating
Functions
17
10 A
4 wheel drive control unit.
18
7.5 A
Reversing lamps, parking sensors control unit,
reversing camera, airbag control unit.
19
15 A
Accessory socket.
20*
30 A
Electric window controls.
21
*
30 A
Rear screen demisting.
22
7.5 A
Heated door mirrors.
23
-
Not used.
24
25 A
Driver’s electric seat, footwell lighting, rear bench
seat release.
25
30 A
Heated seats.
Page 149 of 236
9
PRACTICAL INFORMATION

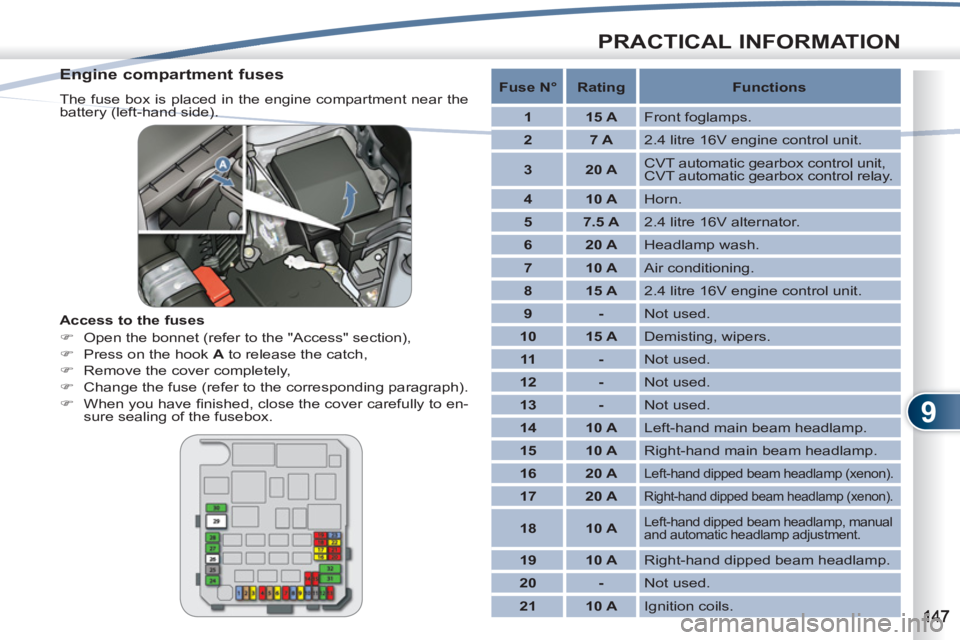

Engine compartment fuses
The fuse box is placed in the engine compartment near the
battery (left-hand side).
Access to the fuses
)
Open the bonnet (refer to the "Access" section),
)
Press on the hook A
to release the catch,
)
Remove the cover completely,
)
Change the fuse (refer to the corresponding paragraph).
)
When you have fi nished, close the cover carefully to en-
sure sealing of the fusebox.
Fuse N°
Rating
Functions
1
15 A
Front foglamps.
2
7 A
2.4 litre 16V engine control unit.
3
20 A
CVT automatic gearbox control unit,
CVT automatic gearbox control relay.
4
10 A
Horn.
5
7.5 A
2.4 litre 16V alternator.
6
20 A
Headlamp wash.
7
10 A
Air conditioning.
8
15 A
2.4 litre 16V engine control unit.
9
-
Not used.
10
15 A
Demisting, wipers.
11
-
Not used.
12
-
Not used.
13
-
Not used.
14
10 A
Left-hand main beam headlamp.
15
10 A
Right-hand main beam headlamp.
16
20 A
Left-hand dipped beam headlamp (xenon).
17
20 A
Right-hand dipped beam headlamp (xenon).
18
10 A
Left-hand dipped beam headlamp, manual
and automatic headlamp adjustment.
19
10 A
Right-hand dipped beam headlamp.
20
-
Not used.
21
10 A
Ignition coils.
