2011 PEUGEOT 4007 dashboard

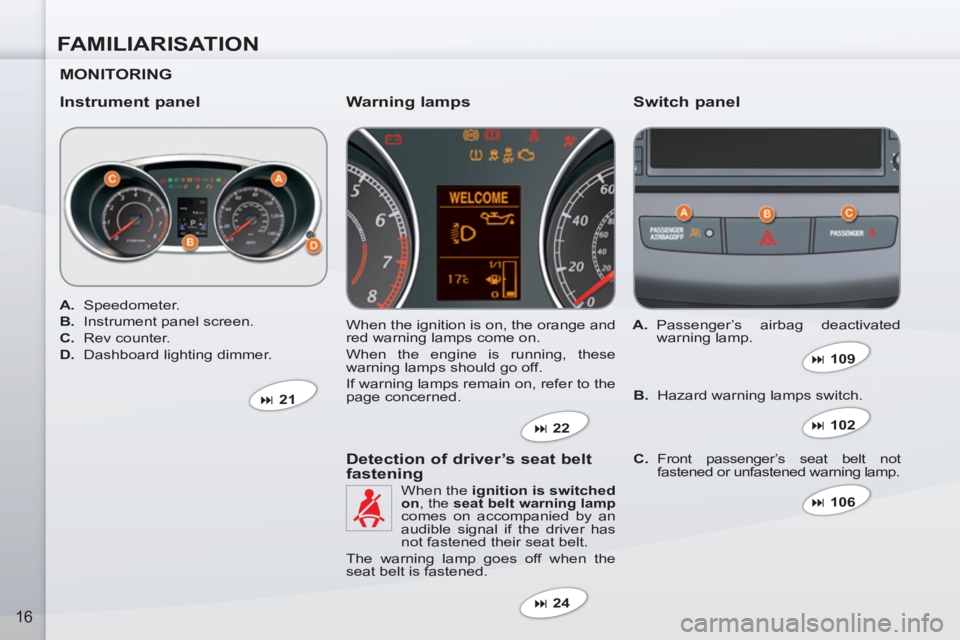

FAMILIARISATION
16

MONITORING

Instrument panel
Switch panel

When the ignition is on, the orange and
red warning lamps come on.
When the engine is running, these
warning lamps should go off.
If warning lamps remain on, refer to the
page concerned.

Warning lamps




21


A.
Passenger’s airbag deactivated
warning lamp.



109

B.
Hazard warning lamps switch.



102

C.
Front passenger’s seat belt not
fastened or unfastened warning lamp.



106




22



Detection of driver’s seat belt
fastening
When the ignition is switched on, the seat belt warning lamp
comes on accompanied by an
audible signal if the driver has
not fastened their seat belt.
The warning lamp goes off when the
seat belt is fastened.



24


A.
Speedometer.

B.
Instrument panel screen.

C.
Rev counter.

D.
Dashboard lighting dimmer.

1
INSTRUMENTS and CONTROLS
INSTRUMENT PANEINSTRUMENT PANEL

3.
Instrument panel screen:


- Warning and status displays.

- Total and trip distance recorders.

- Service indicator.

- Coolant temperature.

- Trip computer information.

- Cruise control setting.

-
Dashboard lighting and parameter
settings.

- Fuel level.

- Ambient temperature.

- Transmission mode.

Panel grouping together the dials and
warning/indicator lamps. These inform
the driver of the activation/deactivation
of a system or of the occurrence of a
fault.
Screen type 1
Screen type 2


1.
Rev counter.

2.
Speedometer.

1
INSTRUMENTS and CONTROLS
Each time the engine is started: a series of warning lamps and/or messages come on, applying a checking self test. They go
off after a few seconds. Engine running: the warning lamp or the message becomes a warning if it remains on continuously
or fl ashes. This initial warning may be accompanied by an audible signal and a message on the screen. Do not ignore these
warnings.
The messages displayed may differ between the type 1 instrument panel and the type 2 instrument panel.
When the cause of the appearance of the warning lamp or warning message has been rectifi ed, the warning disappears
from the screen automatically. If the cause of the warning is not rectifi ed, you can return to the previous screen at any time
by pressing the INFO
button on the dashboard.
The symbol "!"
is displayed.
To return to the previous screen (with the "!"
symbol), you must press the INFO
button several times.
INSTRUMENT PANEINSTRUMENT PANEL DISPLAYS


Warning messages (ignition at "OFF")

You can close the warning messages which show these symbols in order to move on to the next screen.
To do this, press the INFO
button according to the symbol displayed.
Press briefl y
. Press and hold
.


Symbols which appear in the top right corner of the screen.



Message



is on



Cause



Solution - action



Observations








Key in
ignition


Fixed The driver's door is open
and you have forgotten
to remove the key from
the ignition. Turn the ignition switch
to the LOCK position
and remove the key. Only if the engine has
been started.
An intermittent audible
signal is heard.





Lighting

left
on


Fixed You have forgotten to
switch off the vehicle
lighting. Switch off the vehicle
lighting by placing the
stalk at OFF. An intermittent audible
signal is heard.

1
INSTRUMENTS and CONTROLS
The total distance is
displayed in zone 1

of the screen and the
trip distance in zone 2

(refer to the "Distance
recorders" section).
Distance recorder (A and B)
INFORMATION IN THINFORMATION IN THE
INSTRUMENT PANEL SCREEN

Information display

With the ignition on, press the INFO

button, located on the dashboard to the
right of the instrument panel, to display
the various information in succession:


- distance recorder A,

- distance recorder B,

- service indicator,

- coolant temperature,

- range,

- trip computer,

- setting menu. This displays the distance
and the number of months
remaining before the
next service in line with
with the manufacturer’s
servicing schedule (refer
to the "Service indicator"
section).
Service indicator
When the engine is
running, this indicates
the temperature of the
coolant (refer to the
"Coolant temperature
indicator" section).
Coolant temperature When the engine is
running, this indicates
the number of miles
(kilometres) which can
still be travelled with the
fuel remaining in the tank
based on the average
fuel consumption over
the last few miles (kilometres) travelled
(refer to the "Range" section).
Range

This indicates the average
fuel consumption, the
average speed and the
current fuel consumption
(refer to the "Trip computer"
section).


Trip computer


When the vehicle is
stationary
, this allows the
user to change the following
settings (refer to the "Setting
menu" section):


- the display language,

- the temperature dis-
play units,

- the fuel consumption units,

- the option to reset the average
fuel consumption and the average
speed,

- the break (rest) reminder display in-
terval.


Setting menu

1
INSTRUMENTS and CONTROLS
TRIP COMPUTER
Average fuel
consumption
(l/100 km or km/l or
mpg)
This is the average fuel
consumption since the
last zero reset.
This fi gure may change following
a change in the style of driving or
the relief resulting in a change in
the current fuel consumption.


Average speed
(km/h or mph)
This is the average
speed calculated since
the last zero reset.


Resetting the information to zero

When the ignition is switched on, the
zero reset switches automatically from
manual mode to automatic mode.
If dashes "---" are displayed
for long periods in place of the
digits while driving, contact a
PEUGEOT dealer or a qualifi ed
workshop.


Current fuel
consumption
(l/100 km or km/l or
mpg)
This is the average fuel
consumption during
the last few seconds of
driving.


Information display

With the ignition on, press the INFO

button on the dashboard, to the right
of the instrument panel, several times
in succession to display the different
information:


- average fuel consumption,

- average speed,

- current fuel consumption. When the required information is
displayed, press the INFO
button for
more than two seconds to reset all of
the information to zero.

Automatic
If the ignition key remains in the
OFF position for more than 4 hours,
the information is reset to zero
automatically.

1
INSTRUMENTS and CONTROLS

When the vehicle is
stationary
, it allows
the user to change the
following settings:


- resetting average fuel
consumption and av-
erage speed,

- the fuel consumption units,

- the temperature display units,

- the display language,

- activation/deactivation of the INFO

button sound,

- the break (rest) reminder display in-
terval,

- restore factory settings.

SETTING MENU
SETTING MENU

System which provides access to the
settings of certain functions.
The various menus may differ for the
type 1 instrument panel and the type 2
instrument panel.

With the ignition on
, press the INFO

button on the dashboard, to the right of
the instrument panel, several times in
succession until the "SETTING MENU"
screen is displayed.
To change the settings, you
must stop the vehicle and switch
on the ignition.
Apply the parking brake and
place the gear lever in neutral.
When the vehicle is moving
,
the setting menu screen is not
displayed when you press the
INFO
button.


Operation



)
press and hold the INFO
button for
a few seconds to display the menu
screen.
Press and hold the INFO
button
for a few seconds to return to
the previous screen.
When the menus screen is
displayed, if no operation is
carried out within 15 seconds,
the setting menu screen is
displayed.
)
on the menu screen, press the INFO

button to select a function from the
list:


MENU
2/3:



- a/b
(option of displaying a different
language in the instrument panel
screen and the navigation screen),

- activation/deactivation of the INFO

button sound
,

- ALARM
(changing the "BREAK RE-
MINDER" display interval),

- choice of the direction indicators
sound,

- activation/deactivation of current
fuel consumption,



MENU
1/3
:



- 1 - 2
(options for resetting aver-
age fuel consumption and average
speed),

- UNIT
(choice of the fuel consump-
tion units),

- choice of the temperature display
unit

s
,

- LANGUAGE
(choice of display lan-
guage),
MENU 3/3:



- RESET
(restore factory settings).

6
SAFETY

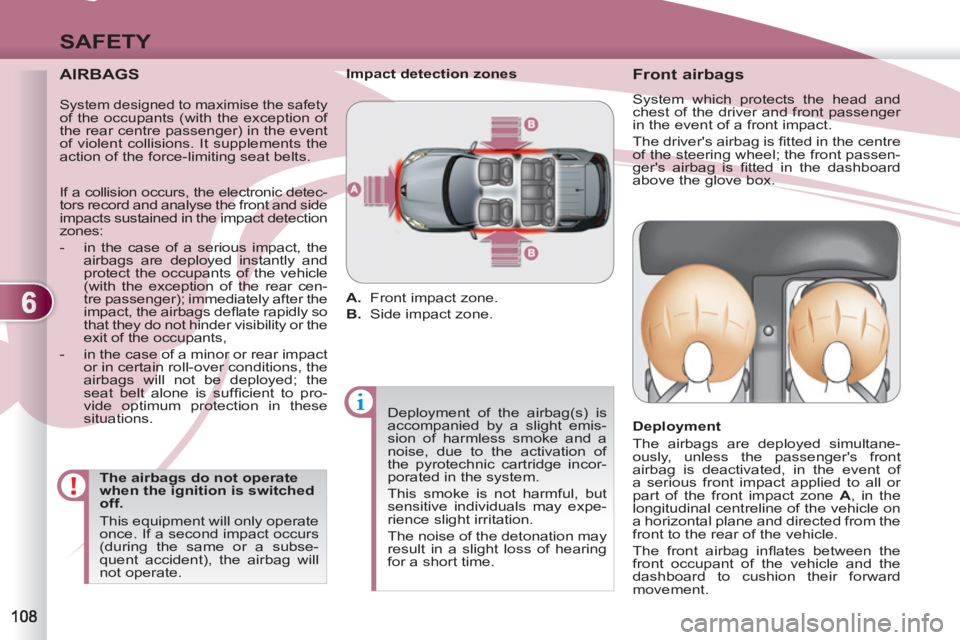

AIRBAGS


The airbags do not operate
when the ignition is switched
off.
This equipment will only operate
once. If a second impact occurs
(during the same or a subse-
quent accident), the airbag will
not operate.










Front airbags

System which protects the head and
chest of the driver and front passenger
in the event of a front impact.
The driver's airbag is fi tted in the centre
of the steering wheel; the front passen-
ger's airbag is fi tted in the dashboard
above the glove box.

Deployment
The airbags are deployed simultane-
ously, unless the passenger's front
airbag is deactivated, in the event of
a serious front impact applied to all or
part of the front impact zone A
, in the
longitudinal centreline of the vehicle on
a horizontal plane and directed from the
front to the rear of the vehicle.
The front airbag infl ates between the
front occupant of the vehicle and the
dashboard to cushion their forward
movement.
Impact detection zones


A.
Front impact zone.

B.
Side impact zone.
Deployment of the airbag(s) is
accompanied by a slight emis-
sion of harmless smoke and a
noise, due to the activation of
the pyrotechnic cartridge incor-
porated in the system.
This smoke is not harmful, but
sensitive individuals may expe-
rience slight irritation.
The noise of the detonation may
result in a slight loss of hearing
for a short time.



System designed to maximise the safety of the occupants (with the exception of
the rear centre passenger) in the event
of violent collisions. It supplements the
action of the force-limiting seat belts.
If a collision occurs, the electronic detec-
tors record and analyse the front and side
impacts sustained in the impact detection
zones:


- in the case of a serious impact, the
airbags are deployed instantly and
protect the occupants of the vehicle
(with the exception of the rear cen-
tre passenger); immediately after the
impact, the airbags defl ate rapidly so
that they do not hinder visibility or the
exit of the occupants,

- in the case of a minor or rear impact
or in certain roll-over conditions, the
airbags will not be deployed; the
seat belt alone is suffi cient to pro-
vide optimum protection in these
situations.

6
SAFETY

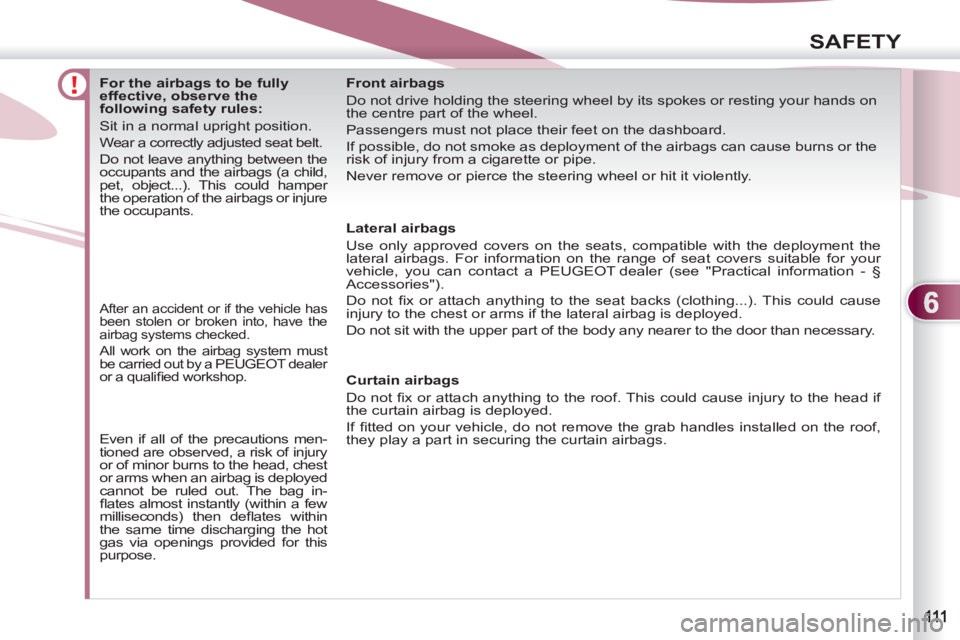

For the airbags to be fully
effective, observe the
following safety rules:
Sit in a normal upright position.
Wear a correctly adjusted seat belt.
Do not leave anything between the
occupants and the airbags (a child,
pet, object...). This could hamper
the operation of the airbags or injure
the occupants.


Lateral airbags
Use only approved covers on the seats, compatible with the deployment the
lateral airbags. For information on the range of seat covers suitable for your
vehicle, you can contact a PEUGEOT dealer (see "Practical information - §
Accessories").
Do not fi x or attach anything to the seat backs (clothing...). This could cause
injury to the chest or arms if the lateral airbag is deployed.
Do not sit with the upper part of the body any nearer to the door than necessary.

After an accident or if the vehicle has
been stolen or broken into, have the
airbag systems checked.
All work on the airbag system must
be carried out by a PEUGEOT dealer
or a qualifi ed workshop.

Even if all of the precautions men-
tioned are observed, a risk of injury
or of minor burns to the head, chest
or arms when an airbag is deployed
cannot be ruled out. The bag in-
fl ates almost instantly (within a few
milliseconds) then defl ates within
the same time discharging the hot
gas via openings provided for this
purpose.
Front airbags
Do not drive holding the steering wheel by its spokes or resting your hands on
the centre part of the wheel.
Passengers must not place their feet on the dashboard.
If possible, do not smoke as deployment of the airbags can cause burns or the
risk of injury from a cigarette or pipe.
Never remove or pierce the steering wheel or hit it violently.


Curtain airbags
Do not fi x or attach anything to the roof. This could cause injury to the head if
the curtain airbag is deployed.
If fi tted on your vehicle, do not remove the grab handles installed on the roof,
they play a part in securing the curtain airbags.
