Page 8 of 236
FAMILIARISATION
6

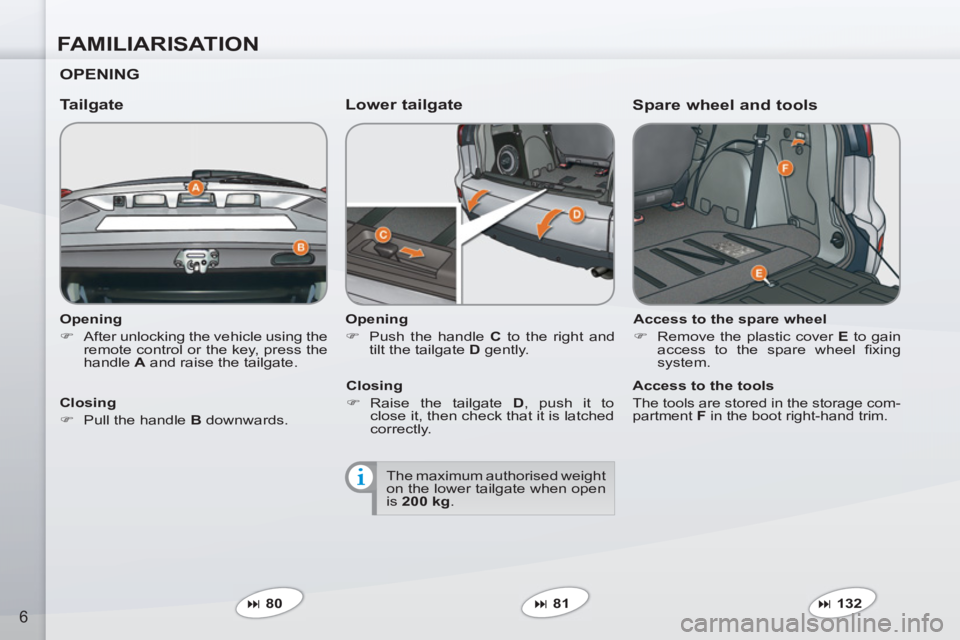

Opening
)
After unlocking the vehicle using the
remote control or the key, press the
handle A
and raise the tailgate.
Tailgate
Lower tailgate
Opening
)
Push the handle C
to the right and
tilt the tailgate D
gently.
The maximum authorised weight
on the lower tailgate when open
is 200 kg
.
Spare wheel and tools
Access to the spare wheel
)
Remove the plastic cover E
to gain
access to the spare wheel fi xing
system.
80
OPENING
81
132
Closing
)
Pull the handle B
downwards.
Closing
)
Raise the tailgate D
, push it to
close it, then check that it is latched
correctly.
Access to the tools
The tools are stored in the storage com-
partment F
in the boot right-hand trim.
Page 22 of 236
20
Limit the causes of excess
consumption
Spread loads throughout the vehicle;
place the heaviest items in the bottom
of the boot, as close as possible to the
rear seats.
Limit the loads carried in the vehicle
and reduce wind resistance (roof bars,
roof rack, bicycle carrier, trailer...). Use
a roof box in preference.
Remove roof bars and roof racks after
use.
At the end of winter, remove snow
tyres and refi t your summer tyres.
Observe the recommendations
on maintenance
Check the tyre pressures regularly,
when cold, referring to the label in the
door aperture, driver's side.
Carry out this check in particular:
- before a long journey,
- at each change of season,
- after a long period out of use.
Don't forget the spare wheel and the
tyres on any trailer or caravan.
Have your vehicle serviced regular-
ly (engine oil, oil fi lter, air fi lter...) and
observe the schedule of operations
recommended by the manufacturer.
When refuelling, do not continue after
the 3 rd cut-off of the nozzle to avoid
any overfl ow.
At the wheel of your new vehicle,
it is only after the fi rst 1 800 miles
(3 000 kilometres) that you will see
the fuel consumption settle down to a
consistent average.
Page 46 of 236
2
COMFORT
For even air distribution, take care not
to obstruct the exterior air intake grille
located at the bottom of the windscreen,
the vents, the air outlets under the front
seats and the air extractor located be-
hind the fl aps in the boot. The water formed by the air conditioning
condensation is discharged via an open-
ing provided for this purpose. Therefore,
a puddle of water may form underneath
the vehicle when stationary.
If the system does not produce cold air,
do not use it and have it checked by a
PEUGEOT dealer or a qualifi ed workshop.
AUTOMATIC REGULATION OF ON OF
THE DIGITAL AIR CONDITIONING
Do not cover the temperature and
humidity sensor 2
and the sunshine
sensor 7
.
They are required for regulation of the
air conditioning.
Advice on operation
In hot weather, in order to obtain
intense ventilation, it is advis-
able to use vents 1
and 4
only.
If, when the vehicle has been
parked in the sun for a long time,
the interior temperature remains
very high, fi rst ventilate the pas-
senger compartment for a few
minutes.
Switch off the air conditioning when
the climatic conditions permit.
Use of the automatic regulation of the
air conditioning is recommended. It per-
mits automatic and optimised control of
all of the following functions: air fl ow,
passenger compartment temperature
and air distribution, by means of various
sensors (ambient temperature, interior
temperature, sunshine), so preventing
the need for you to change your set-
tings other than the value displayed. In certain cases of particularly arduous
use (towing the maximum load on a
steep gradient in hot weather), switch-
ing off the air conditioning saves engine
power and therefore improves the tow-
ing capacity.
Close the windows to benefi t from the
full effectiveness of the air conditioning.
Ensure that the passenger compart-
ment fi lter is in good condition. Have
the fi lter elements replaced periodically.
If you drive in a dusty environment, re-
place it twice as often.
The air conditioning system does not
contain chlorine and is not harmful to
the ozone layer.
Operate the air conditioning system for
5 to 10 minutes, once or twice a month,
to keep it in good working order.
1.
Central vents.
2.
Temperature sensor.
3.
Air outlet to passenger footwells.
4.
Side vents.
5.
Front window demisting/defrosting
vents.
6.
Windscreen demisting/defrosting vents.
7.
Sunshine sensor.
Page 57 of 236
2
COMFORT

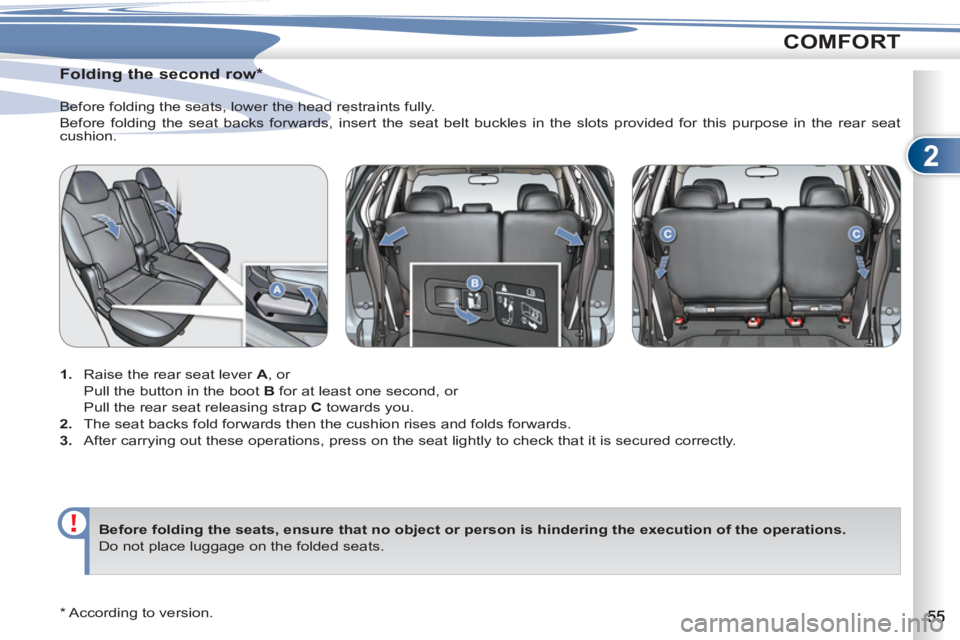

Folding the second row *
1.
Raise the rear seat lever A
, or
Pull the button in the boot B
for at least one second, or
Pull the rear seat releasing strap C
towards you.
2.
The seat backs fold forwards then the cushion rises and folds forwards.
3.
After carrying out these operations, press on the seat lightly to check that it is secured correctly. Before folding the seats, lower the head restraints fully.
Before folding the seat backs forwards, insert the seat belt buckles in the slots provided for this purpose in the rear seat
cushion.
Before
folding
the
seats
,
ensure that no object
or person is hindering
the execution of the operations.
Do not place luggage on the folded seats.
* According to version.
Page 72 of 236
2
COMFORT

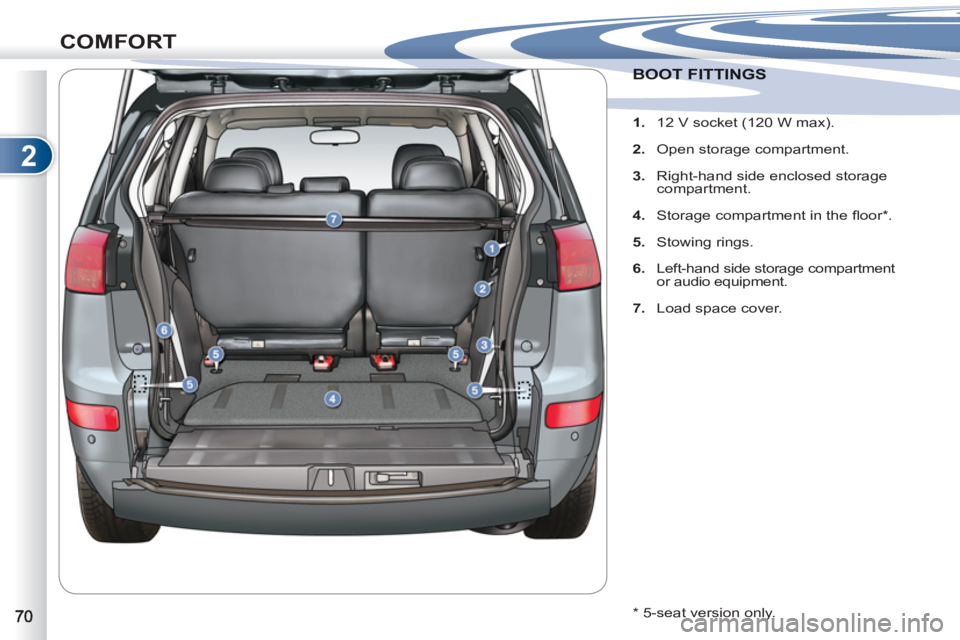

BOOTBOOT FITTINGS
1.
12 V socket (120 W max).
2.
Open storage compartment.
3.
Right-hand side enclosed storage
compartment.
4.
Storage compartment in the fl oor * .
5.
Stowing rings.
6.
Left-hand side storage compartment
or audio equipment.
7.
Load space cover.
* 5-seat version only.
Page 73 of 236
2
COMFORT
Stowing rings
There are four stowing rings in the boot
for securing luggage:
-
two rings are located on the boot fl oor,
- two rings are located on the rear side
pillars.
*
On 5-seat version only. Raise the boot fl oor to gain access to
this compartment.
Right-hand side enclosed storage
compartment
This storage compartment contains the
tools for changing a wheel.
Storage compartment in the fl oor *
12 V socket (120 W max)
This operates when the ignition switch
is in the "ON" or "ACC" position.
Lift the cover to gain access to the
socket.
Check that the electrical equip-
ment operates on 12 V and that
its maximum electrical power is
120 W.
The prolonged use of electrical
equipment without running the
engine may discharge the bat-
tery.
Page 83 of 236
3
ACCESS
Before opening the tailgate,
ensure that no one is within the
radius of opening.
For reasons of safety and cor-
rect operation, do not drive with
the tailgate open.
If the battery is disconnected,
the tailgate cannot be opened.
Do not climb onto the lower tail-
gate and do not subject it to heavy
knocks, it may be damaged.
Always close the lower tailgate
and check that it is secured cor-
rectly before closing the main
tailgate.
When closing the lower tailgate,
ensure that no person or object
is in the proximity of the moving
parts to avoid any risk of injury
or damage.
Do not open the lower tailgate
when a towbar is fi tted.
"Tailgate open" warning
This warning lamp comes on
on the instrument panel screen
when the tailgate is not closed
correctly.
LOWER TAILLGATE
Opening
)
Push the handle C
to the right and
tilt the tailgate D
gently.
Closing
)
Raise the tailgate D
, push it to close
it, then check that it is secured cor-
rectly. Maximum authorised weight on
the lower tailgate when open:
200 kg
.
Tailgate release
This enables the tailgate to be unlocked
in the event of a central locking fault.
- Fold back the rear seats to gain
access to the tailgate release from
inside the boot.
- Remove the plastic cap from the open-
ing A
in the tailgate interior pillar.
- Move the control B
to the right to
unlock and open the tailgate.
