20

Limit the causes of excess
consumption

Spread loads throughout the vehicle;
place the heaviest items in the bottom
of the boot, as close as possible to the
rear seats.
Limit the loads carried in the vehicle
and reduce wind resistance (roof bars,
roof rack, bicycle carrier, trailer...). Use
a roof box in preference.
Remove roof bars and roof racks after
use.

At the end of winter, remove snow
tyres and refi t your summer tyres.



Observe the recommendations
on maintenance

Check the tyre pressures regularly,
when cold, referring to the label in the
door aperture, driver's side.
Carry out this check in particular:


- before a long journey,

- at each change of season,

- after a long period out of use.
Don't forget the spare wheel and the
tyres on any trailer or caravan.

Have your vehicle serviced regular-
ly (engine oil, oil fi lter, air fi lter...) and
observe the schedule of operations
recommended by the manufacturer.


When refuelling, do not continue after
the 3 rd cut-off of the nozzle to avoid
any overfl ow.

At the wheel of your new vehicle,
it is only after the fi rst 1 800 miles
(3 000 kilometres) that you will see
the fuel consumption settle down to a
consistent average.

1
INSTRUMENTS and CONTROLS

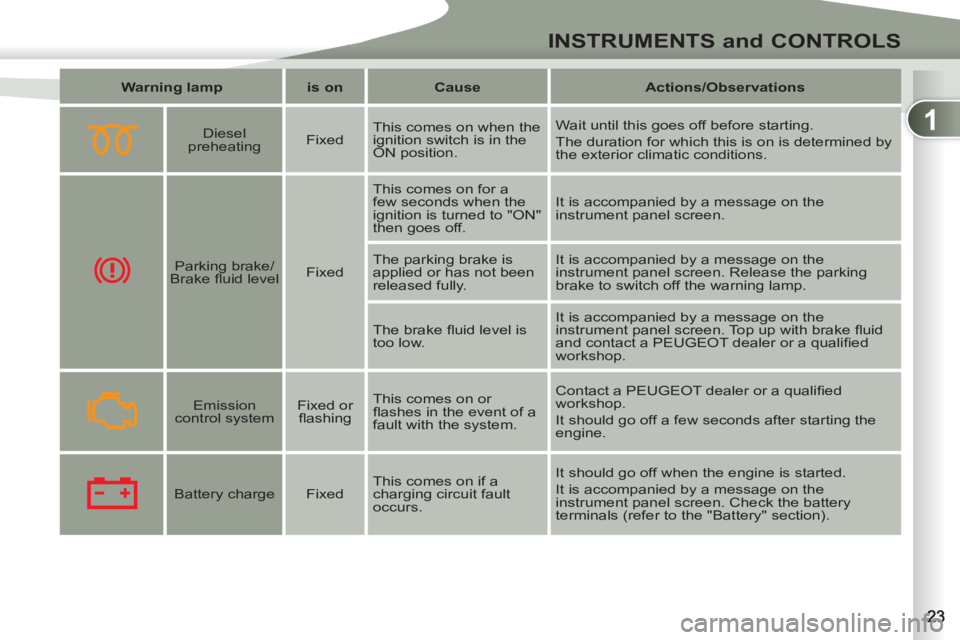

Warning lamp



is on



Cause



Actions/Observations







Diesel
preheating
Fixed This comes on when the
ignition switch is in the
ON position. Wait until this goes off before starting.
The duration for which this is on is determined by
the exterior climatic conditions.




Parking brake/
Brake fl uid level
Fixed This comes on for a
few seconds when the
ignition is turned to "ON"
then goes off. It is accompanied by a message on the
instrument panel screen.
The parking brake is
applied or has not been
released fully. It is accompanied by a message on the
instrument panel screen. Release the parking
brake to switch off the warning lamp.
The brake fl uid level is
too low. It is accompanied by a message on the
instrument panel screen. Top up with brake fl uid
and contact a PEUGEOT dealer or a qualifi ed
workshop.




Emission
control system
Fixed or
fl ashing This comes on or
fl ashes in the event of a
fault with the system. Contact a PEUGEOT dealer or a qualifi ed
workshop.
It should go off a few seconds after starting the
engine.




Battery charge
Fixed This comes on if a
charging circuit fault
occurs. It should go off when the engine is started.
It is accompanied by a message on the
instrument panel screen. Check the battery
terminals (refer to the "Battery" section).

1
INSTRUMENTS and CONTROLS


Warning lamp



is on



Cause



Actions/Observations







Driver's
seat belt not
fastened
Fixed The driver has not
fastened or has
unfastened their seat
belt. This is accompanied by a message on the
instrument panel screen.
Fasten the driver's seat belt.





ABS
Fixed This comes on if an anti-
lock braking system fault
occurs. It is accompanied by a message in the instrument
panel screen. The vehicle retains conventional
braking without assistance but you are advised to
stop. Have it checked by a PEUGEOT dealer or
a qualifi ed workshop.





Airbags and
pretensioners
Fixed This comes on for a
few seconds when the
ignition is turned to "ON"
then goes off. It should go off when the engine is started. If it
does not go off, contact a PEUGEOT dealer or a
qualifi ed workshop.
This comes on if an
airbag or pretensioner
fault occurs. It is accompanied by a message on the
instrument panel screen. Have the system
checked by a PEUGEOT dealer or a qualifi ed
workshop without delay.




Dynamic
stability control
system (ASC)
Fixed This comes on if a
dynamic stability control
system fault occurs. It is accompanied by a message on the
instrument panel screen. Have the system
checked by a PEUGEOT dealer or a qualifi ed
workshop without delay.

1
INSTRUMENTS and CONTROLS
Each time the engine is started: a series of warning lamps and/or messages come on, applying a checking self test. They go
off after a few seconds. Engine running: the warning lamp or the message becomes a warning if it remains on continuously
or fl ashes. This initial warning may be accompanied by an audible signal and a message on the screen. Do not ignore these
warnings.
The messages displayed may differ between the type 1 instrument panel and the type 2 instrument panel.
When the cause of the appearance of the warning lamp or warning message has been rectifi ed, the warning disappears
from the screen automatically. If the cause of the warning is not rectifi ed, you can return to the previous screen at any time
by pressing the INFO
button on the dashboard.
The symbol "!"
is displayed.
To return to the previous screen (with the "!"
symbol), you must press the INFO
button several times.

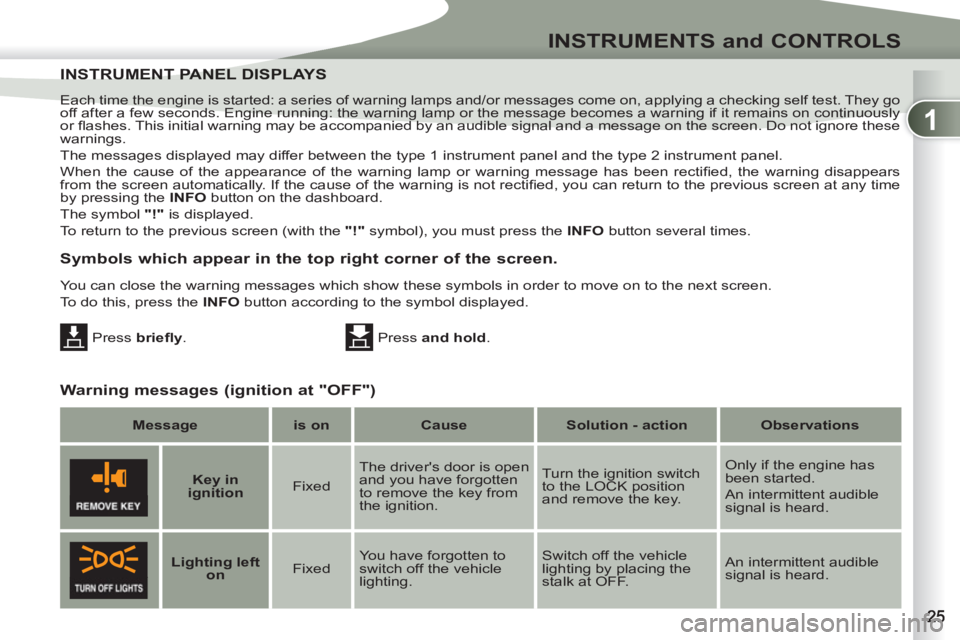

INSTRUMENT PANEINSTRUMENT PANEL DISPLAYS


Warning messages (ignition at "OFF")

You can close the warning messages which show these symbols in order to move on to the next screen.
To do this, press the INFO
button according to the symbol displayed.
Press briefl y
. Press and hold
.


Symbols which appear in the top right corner of the screen.



Message



is on



Cause



Solution - action



Observations








Key in
ignition


Fixed The driver's door is open
and you have forgotten
to remove the key from
the ignition. Turn the ignition switch
to the LOCK position
and remove the key. Only if the engine has
been started.
An intermittent audible
signal is heard.





Lighting

left
on


Fixed You have forgotten to
switch off the vehicle
lighting. Switch off the vehicle
lighting by placing the
stalk at OFF. An intermittent audible
signal is heard.

1
!
INSTRUMENTS and CONTROLS

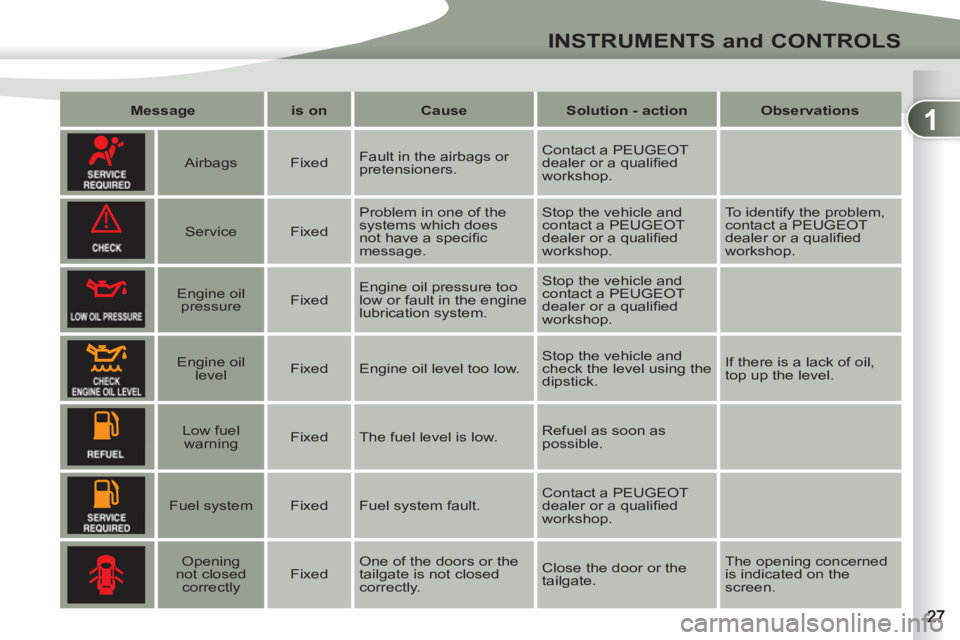

Message



is on



Cause



Solution - action



Observations







Airbags
Fixed Fault in the airbags or
pretensioners. Contact a PEUGEOT
dealer or a qualifi ed
workshop.





Service
Fixed Problem in one of the
systems which does
not have a specifi c
message. Stop the vehicle and
contact a PEUGEOT
dealer or a qualifi ed
workshop. To identify the problem,
contact a PEUGEOT
dealer or a qualifi ed
workshop.




Engine oil
pressure
Fixed Engine oil pressure too
low or fault in the engine
lubrication system. Stop the vehicle and
contact a PEUGEOT
dealer or a qualifi ed
workshop.





Engine oil
level
Fixed Engine oil level too low. Stop the vehicle and
check the level using the
dipstick. If there is a lack of oil,
top up the level.




Low fuel
warning
Fixed The fuel level is low. Refuel as soon as
possible.





Fuel system
Fixed Fuel system fault. Contact a PEUGEOT
dealer or a qualifi ed
workshop.





Opening
not closed
correctly
Fixed One of the doors or the
tailgate is not closed
correctly. Close the door or the
tailgate. The opening concerned
is indicated on the
screen.

2
COMFORT
For even air distribution, take care not
to obstruct the exterior air intake grille
located at the bottom of the windscreen,
the vents, the air outlets under the front
seats and the air extractor located be-
hind the fl aps in the boot. The water formed by the air conditioning
condensation is discharged via an open-
ing provided for this purpose. Therefore,
a puddle of water may form underneath
the vehicle when stationary.
If the system does not produce cold air,
do not use it and have it checked by a
PEUGEOT dealer or a qualifi ed workshop.
AUTOMATIC REGULATION OF ON OF
THE DIGITAL AIR CONDITIONING

Do not cover the temperature and
humidity sensor 2
and the sunshine
sensor 7
.
They are required for regulation of the
air conditioning.

Advice on operation

In hot weather, in order to obtain
intense ventilation, it is advis-
able to use vents 1
and 4
only.
If, when the vehicle has been
parked in the sun for a long time,
the interior temperature remains
very high, fi rst ventilate the pas-
senger compartment for a few
minutes.
Switch off the air conditioning when
the climatic conditions permit.

Use of the automatic regulation of the
air conditioning is recommended. It per-
mits automatic and optimised control of
all of the following functions: air fl ow,
passenger compartment temperature
and air distribution, by means of various
sensors (ambient temperature, interior
temperature, sunshine), so preventing
the need for you to change your set-
tings other than the value displayed. In certain cases of particularly arduous
use (towing the maximum load on a
steep gradient in hot weather), switch-
ing off the air conditioning saves engine
power and therefore improves the tow-
ing capacity.
Close the windows to benefi t from the
full effectiveness of the air conditioning.
Ensure that the passenger compart-
ment fi lter is in good condition. Have
the fi lter elements replaced periodically.
If you drive in a dusty environment, re-
place it twice as often.
The air conditioning system does not
contain chlorine and is not harmful to
the ozone layer.
Operate the air conditioning system for
5 to 10 minutes, once or twice a month,
to keep it in good working order.

1.
Central vents.

2.
Temperature sensor.

3.
Air outlet to passenger footwells.

4.
Side vents.

5.
Front window demisting/defrosting
vents.

6.

Windscreen demisting/defrosting vents.


7.
Sunshine sensor.

2
COMFORT

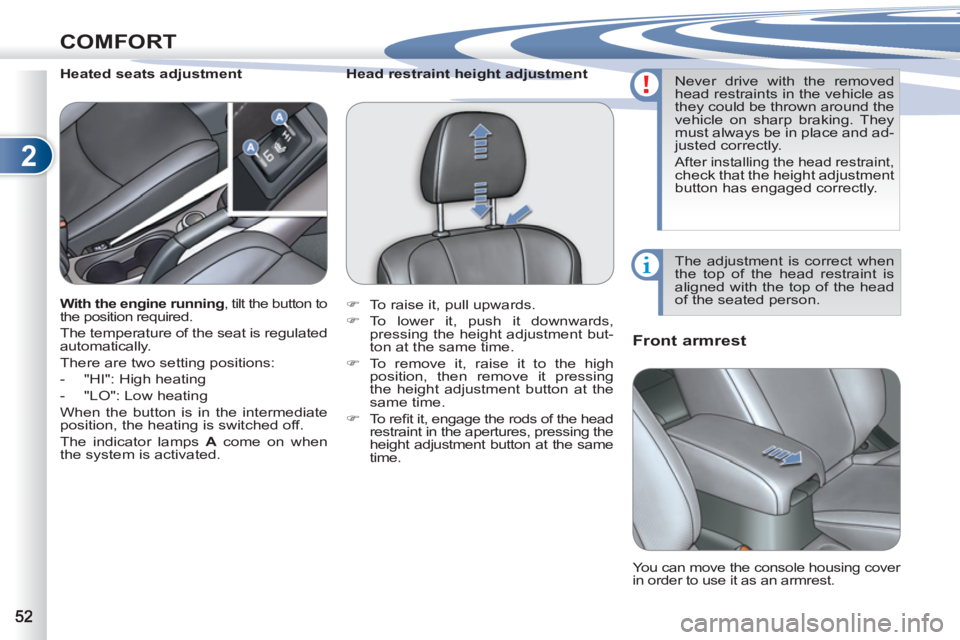

Front armrest










Heated seats adjustment

You can move the console housing cover
in order to use it as an armrest.


With the engine running
, tilt the button to
the position required.
The temperature of the seat is regulated
automatically.
There are two setting positions:


- "HI": High heating

- "LO": Low heating
When the button is in the intermediate
position, the heating is switched off.
The indicator lamps A
come on when
the system is activated.







Head restraint height adjustment


)
To raise it, pull upwards.

)
To lower it, push it downwards,
pressing the height adjustment but-
ton at the same time.

)
To remove it, raise it to the high
position, then remove it pressing
the height adjustment button at the
same time.

)
To r efi t it, engage the rods of the head
restraint in the apertures, pressing the
height adjustment button at the same
time. Never drive with the removed
head restraints in the vehicle as
they could be thrown around the
vehicle on sharp braking. They
must always be in place and ad-
justed correctly.
After installing the head restraint, check that the height adjustment
button has engaged correctly.
The adjustment is correct when
the top of the head restraint is
aligned with the top of the head
of the seated person.
