2011 PEUGEOT 4007 tow bar

7
89
1011
CONTENTS
3
Parking brake 112
Manual gearbox 112
CVT gearbox 113
DCS gearbox 115
Four wheel drive system 119
Cruise control 121
Audible rear parking sensors 123
Reversing camera 124







DRIVING 112 Î 124
Bonnet 126
Running out of fuel 126
Petrol engine 127
Diesel engine 128
Checking levels 129
Checks 130





CHECKS 125 Î 131
Changing a wheel 132
Changing a bulb 137
Changing a fuse 144
Battery 149
Changing a wiper blade 151
Towing 152
Towing a trailer 154
Fitting roof bars 155
Accessories 156








PRACTICAL
INFORMATION 132 Î 156
Engines 157
Weights 158
Dimensions 159
Identifi cation markings 160



TECHNICAL
DATA 157 Î 161
Audio CD system 162
CD changer 173
Error messages 175
Audio-Telematic System 176
Navigation 178
DVD mode 206
Hands-free telephone 214






AUDIO EQUIPMENT and
TELEMATICS 162 Î 221
VISUAL
SEARCH 222 Î 228
ALPHABETICAL
INDEX 229 Î 232

3
ACCESS
Before opening the tailgate,
ensure that no one is within the
radius of opening.
For reasons of safety and cor-
rect operation, do not drive with
the tailgate open.
If the battery is disconnected,
the tailgate cannot be opened.
Do not climb onto the lower tail-
gate and do not subject it to heavy
knocks, it may be damaged.
Always close the lower tailgate
and check that it is secured cor-
rectly before closing the main
tailgate.
When closing the lower tailgate,
ensure that no person or object
is in the proximity of the moving
parts to avoid any risk of injury
or damage.
Do not open the lower tailgate
when a towbar is fi tted.
"Tailgate open" warning

This warning lamp comes on
on the instrument panel screen
when the tailgate is not closed
correctly.

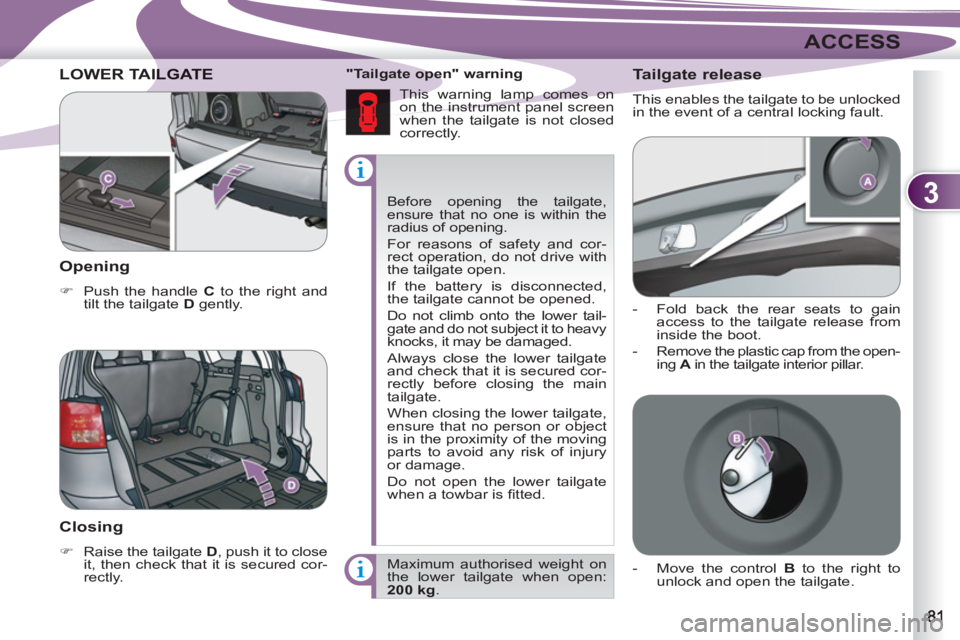

LOWER TAILLGATE

Opening



)
Push the handle C
to the right and
tilt the tailgate D
gently.



Closing



)
Raise the tailgate D
, push it to close
it, then check that it is secured cor-
rectly. Maximum authorised weight on
the lower tailgate when open:
200 kg
.







Tailgate release

This enables the tailgate to be unlocked
in the event of a central locking fault.


- Fold back the rear seats to gain
access to the tailgate release from
inside the boot.

- Remove the plastic cap from the open-
ing A
in the tailgate interior pillar.

- Move the control B
to the right to
unlock and open the tailgate.

7
DRIVING
AUDIBLE REAR PARKINGAUDIBLE
SENSORS NSO
It detects obstacles (person, vehicle,
tree, gate, ...) located behind the vehi-
cle, but it cannot detect obstacles locat-
ed immediately below the bumper.
Activation
The parking sensors are activated by
engaging reverse gear.
The proximity information is indicated by
an audible signal which becomes more
frequent as the vehicle approaches the
obstacle.
When a certain distance between the
rear of the vehicle and the obstacle is
reached, the audible signal becomes
continuous:
An object such as a stake, a road
works cone or any other similar
object may be detected at the
beginning of the manoeuvre but
may no longer be detected when
the vehicle moves closer to it.
Location of the sensors
The vehicle is fi tted with four sensors:


- two side sensors A


- two central sensors B
.
Vehicle only

Vehicle fi tted with a towbar
Detection zones
The detection zones differ depending
on whether the vehicle is fi tted with a
towbar.
If you select towbar mode, the towbar
zone C
is excluded from the detection
zones.

The parking sensor system cannot,
in any circumstances, take the place
of the need for vigilance and respon-
sibility on the part of the driver.



Sensors




Distance between
vehicle and
obstacle less than:



Side A

Approximately
25 cm
Central B
without
towbar
Approximately
40 cm
Central B
with
towbar
Approximately
60 cm
System consisting of proximity sensors
installed in the rear bumper.

7
DRIVING
REVERSING CAMERA REVERSING CAM

Linked with the navigation option, a re-
versing camera is activated automatically
when reverse gear is engaged.
The colour image is provided on the navi-
gation screen with indication of the limit of
the rear bumper and of the general direc-
tion of the vehicle.
Operating fault
If an operating fault occurs, the indicator
lamp in button A
fl ashes when reverse
gear is engaged.
Contact a PEUGEOT dealer or a quali-
fi ed workshop.
In bad weather or in winter, check
that the sensors are not covered
with mud, ice or snow.

Deactivation


)
With reverse gear engaged, press
button A
, the indicator lamp goes
off, the system is fully deactivated.


Reactivation


)
With reverse gear engaged, press
button A
again, the indicator lamp
comes on, the system is reactivated.

Modifi cation of the detection zones


)
Press button A
to deactivate the
system.

)
Press button A
again for a few sec-
onds and release it.
The detection zone modifi cation infor-
mation is indicated by an audible signal:


- double
signal on vehicles fi tted with
a towbar,

- single
signal on vehicles which are
not fi tted with a towbar.

The red line indicates the dis-
tance required to open the lower
tailgate.

9
PRACTICAL INFORMATION

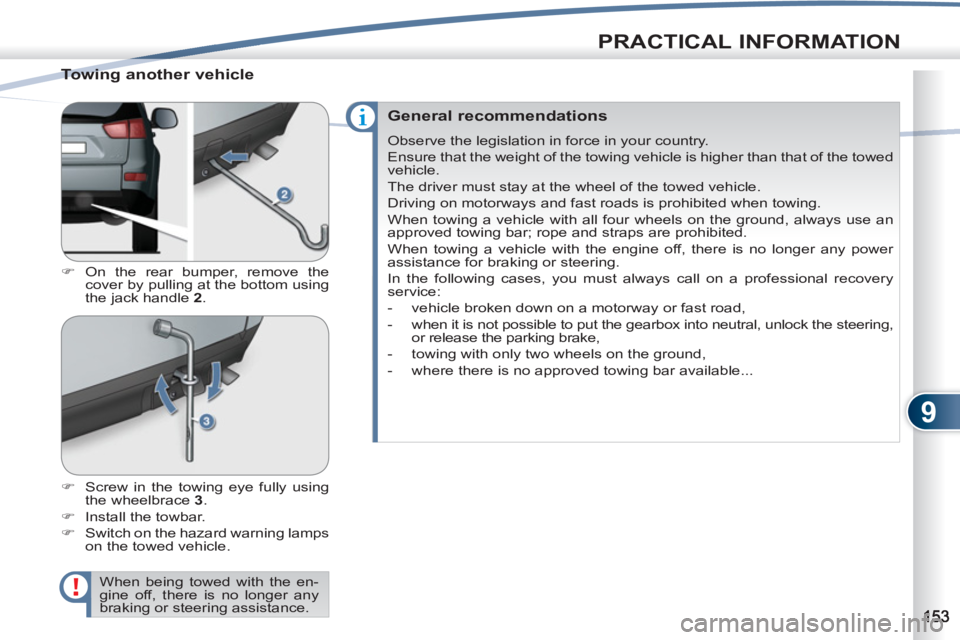

Towing another vehicle



)
On the rear bumper, remove the
cover by pulling at the bottom using
the jack handle 2
.

)
Screw in the towing eye fully using
the wheelbrace 3
.

)
Install the towbar.

)
Switch on the hazard warning lamps
on the towed vehicle.
When being towed with the en-
gine off, there is no longer any
braking or steering assistance.


General recommendations

Observe the legislation in force in your country.
Ensure that the weight of the towing vehicle is higher than that of the towed
vehicle.
The driver must stay at the wheel of the towed vehicle.
Driving on motorways and fast roads is prohibited when towing.
When towing a vehicle with all four wheels on the ground, always use an
approved towing bar; rope and straps are prohibited.
When towing a vehicle with the engine off, there is no longer any power
assistance for braking or steering.
In the following cases, you must always call on a professional recovery
service:


- vehicle broken down on a motorway or fast road,

- when it is not possible to put the gearbox into neutral, unlock the steering,
or release the parking brake,

- towing with only two wheels on the ground,

- where there is no approved towing bar available...

9
PRACTICAL INFORMATION
TOWING A TRAILER, CARAVAN, WING A TRAILER, CARAVA
ETC.
Driving advice

The maximum towing load on a long
slope depends on the gradient and the
outside temperature.
In all cases, pay attention to the coolant
temperature.

Side wind


)
Take into account the increased
sensitivity to side wind.


Cooling
Towing a trailer on a slope increases
the temperature of the coolant.
As the fan is electrically controlled, its
cooling capacity is not dependent on
the engine speed.


)
To lower the engine speed, reduce
your speed.
Braking
Towing a trailer increases the braking
distance.

Tyres


)
Check the tyre pressures of the tow-
ing vehicle and of the trailer, observ-
ing the recommended pressures.


Lighting


)
Check the lighting and signalling on
the trailer.

)
If this message is dis-
played, stop your ve-
hicle as soon as it is
safe to do so.


If the message fl ashes slowly, wait for
the engine to cool before topping up the
level, if necessary.
If the message fl ashes rapidly, contact
a PEUGEOT dealer or a qualifi ed work-
shop without delay.
Opening of the lower tailgate is
prohibited if a towbar is being
used.
We recommend the use of gen-
uine PEUGEOT towbars and
their harnesses that have been
tested and approved from the
design stage of your vehicle and
that the fi tting of the towbar is
entrusted to a PEUGEOT dealer
or a qualifi ed workshop.
If the towbar is not fi tted by a
PEUGEOT dealer, it is impera-
tive that it is fi tted using the
electrical pre-equipment located
at the rear of the vehicle and in
accordance with the manufac-
turer's instructions.
Driving with a trailer subjects the
towing vehicle to more signifi -
cant stress and its driver must
be particularly careful.


Your vehicle is primarily designed for
transporting people and luggage, but it
may also be used for towing a trailer.
Distribution of loads


)
Distribute the load in the trailer so
that the heaviest items are as close
as possible to the axle and the nose
weight approaches the maximum
permitted without exceeding it.
Air density decreases with altitude, thus
reducing engine performance. Above
1 000 metres, the maximum towing
load must be reduced by 10 % of the
GTW and so on for every 1 000 metres
of altitude.
Refer to the "Technical Data" section for
details of the weights and towing loads
which apply to your vehicle.

9
PRACTICAL INFORMATION






"Comfort":

rear parking sensors, side sun blinds,
insulated module...


"Style":
"Security and safety":

"Protection":

"Multimedia":

PVC door sill protectors, style rear
mudfl aps, Hortaz 18 inch alloy wheels,
chromed door handle shells, diffuser on
rear bumper, brushed aluminium look
boot sill protector... anti-intrusion alarm, glass etching,
wheel security bolts, fi rst aid kit, warn-
ing triangle, high visibility vest, stolen
vehicle tracking system, child seats and
booster cushions, under-infl ation detec-
tion, anti-slip covers...
mat * , side protective mouldings...
MP3/USB audio systems, audio-tele-
phone, amplifi ers, satellite navigation
systems, hands-free kit, speakers, DVD
player, connection kit for MP3 player or
portable CD player...

Installation of radio
communication transmitters
Before installing any after-
market radio communication
transmitter, you can contact a
PEUGEOT dealer for the speci-
fi cation of transmitters which
can be fi tted (frequency, maxi-
mum power, aerial position, spe-
cifi c installation requirements),
in line with the Vehicle Electro-
magnetic Compatibility Directive
(2004/104/EC).




"Transports solutions":

boot liner, dog guard, roof bars, bicycle
carrier for roof bars, ski carrier, roof
box...
Trailer towbar which must be fi tted by a
PEUGEOT dealer or a qualifi ed work-
shop.





ACCESCESSORIES

A wide range of accessories and genu-
ine parts is available from the PEUGEOT
dealer network.
These accessories and parts have
been tested and approved for reliability
and safety.
They are all adapted to your vehicle
and benefi t from PEUGEOT's recom-
mendation and warranty.
Depending on the legislation in
force in the country, it may be
compulsory to have a high vis-
ibility safety vest, warning trian-
gle and spare bulbs and fuses
available in the vehicle.
The fi tting of electrical equipment
or accessories which are not rec-
ommended by PEUGEOT may
result in a failure of your vehicle's
electronic system and excessive
electrical consumption.
Please note this precaution.
You are advised to contact a
PEUGEOT representative to be
shown the range of recommend-
ed equipment and accessories.


*

To prevent any risk of jamming of the
pedals:


- ensure that the mat is positioned
and secured correctly,

- never fi t one mat on top of another.

VISUAL SEARCH

EXTERIOR REAR

3rd brake lamp ................................141
Tailgate ........................................ 80-81
Rear wiper .........................................91
Spare wheel, jack, changing,
fi tting ..................................... 132-136
Lower tailgate ....................................81
Towbar .............................................154
Rear parking sensors .............. 123-124
Towing .............................................152 Accessories .....................................156
Roof bars .........................................155
Rear lamps, direction indicators,
foglamps ................................... 86-89
Changing bulbs ....................... 141-143 Door mirror ........................................61
Side repeaters .................................140
Opening/closing the doors ........... 79-80
Brakes ..................................... 112, 131
ABS .................................................103
Tyres, pressures ..............................160
Brake pads ......................................131
Alloy wheels ....................................132
