9
PRACTICAL INFORMATION
Spare fuses
The spare fuses are located under the engine compartment
fuse box cover.
The cover does not contain spare fuses with an am-
perage of 7.5 A, 25 A or 30 A. If one of the fuses with
these amperages develops a fault, replace it with the
following fuse:
A 7.5 A fuse
must be replaced with the 10 A spare
fuse
, a 25 A fuse
with a 20 A spare fuse
and a 30 A
fuse
with the audio system fuse (N° 31)
.
* The maxi-fuses provide additional protection for the electrical systems. All work on the maxi-fuses must be carried
out by a PEUGEOT dealer or a qualifi ed workshop.
Fuse N°
Rating
Functions
22
20 A
Engine control unit, water in Diesel detector, injection pump (Diesel), air fl ow sensor, water
presence sensors, oxygen sensor, camshaft position sensor, canister purge electrovalve,
vehicle speed sensor, variable timing (VTC) electrovalve, EGR electrovalve.
23
15 A
Petrol pump, fuel gauge.
24
*
30 A
Starter.
25
-
Not used.
26
*
40 A
ABS control unit, ASC control unit.
27*
30 A
ABS control unit, ASC control unit.
28
*
30 A
Condenser fan.
29
*
40 A
Radiator fan.
30
30 A
Passenger compartment fusebox.
31
30 A
Audio amplifi er.
32
30 A
Diesel engine control unit.
Fuse N°
Rating
33
10 A
34
15 A
35
20 A
9
PRACTICAL INFORMATION
"Comfort":
rear parking sensors, side sun blinds,
insulated module...
"Style":
"Security and safety":
"Protection":
"Multimedia":
PVC door sill protectors, style rear
mudfl aps, Hortaz 18 inch alloy wheels,
chromed door handle shells, diffuser on
rear bumper, brushed aluminium look
boot sill protector... anti-intrusion alarm, glass etching,
wheel security bolts, fi rst aid kit, warn-
ing triangle, high visibility vest, stolen
vehicle tracking system, child seats and
booster cushions, under-infl ation detec-
tion, anti-slip covers...
mat * , side protective mouldings...
MP3/USB audio systems, audio-tele-
phone, amplifi ers, satellite navigation
systems, hands-free kit, speakers, DVD
player, connection kit for MP3 player or
portable CD player...
Installation of radio
communication transmitters
Before installing any after-
market radio communication
transmitter, you can contact a
PEUGEOT dealer for the speci-
fi cation of transmitters which
can be fi tted (frequency, maxi-
mum power, aerial position, spe-
cifi c installation requirements),
in line with the Vehicle Electro-
magnetic Compatibility Directive
(2004/104/EC).
"Transports solutions":
boot liner, dog guard, roof bars, bicycle
carrier for roof bars, ski carrier, roof
box...
Trailer towbar which must be fi tted by a
PEUGEOT dealer or a qualifi ed work-
shop.
ACCESCESSORIES
A wide range of accessories and genu-
ine parts is available from the PEUGEOT
dealer network.
These accessories and parts have
been tested and approved for reliability
and safety.
They are all adapted to your vehicle
and benefi t from PEUGEOT's recom-
mendation and warranty.
Depending on the legislation in
force in the country, it may be
compulsory to have a high vis-
ibility safety vest, warning trian-
gle and spare bulbs and fuses
available in the vehicle.
The fi tting of electrical equipment
or accessories which are not rec-
ommended by PEUGEOT may
result in a failure of your vehicle's
electronic system and excessive
electrical consumption.
Please note this precaution.
You are advised to contact a
PEUGEOT representative to be
shown the range of recommend-
ed equipment and accessories.
*
To prevent any risk of jamming of the
pedals:
- ensure that the mat is positioned
and secured correctly,
- never fi t one mat on top of another.

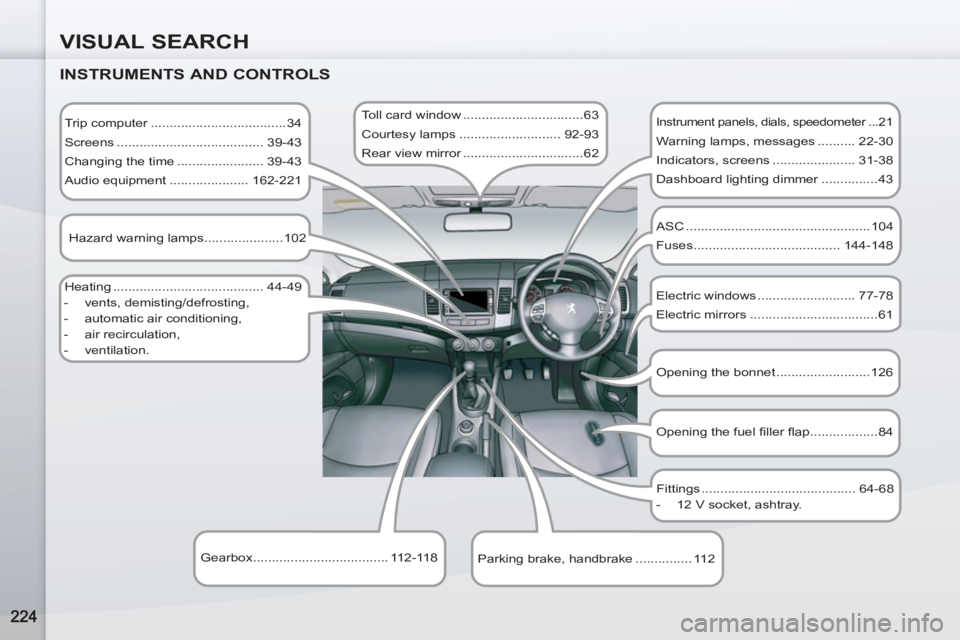

VISUAL SEARCH
INSTRUMENTS AND CONTROLS
Trip computer ....................................34
Screens ....................................... 39-43
Changing the time ....................... 39-43
Audio equipment ..................... 162-221
Hazard warning lamps .....................102
Heating ........................................ 44-49
- vents, demisting/defrosting,
- automatic air conditioning,
- air recirculation,
- ventilation. Toll card window ................................63
Courtesy lamps ........................... 92-93
Rear view mirror ................................62
Gearbox .................................... 112-118
Parking brake, handbrake ............... 112
Instrument panels, dials, speedometer ...21
Warning lamps, messages .......... 22-30
Indicators, screens ...................... 31-38
Dashboard lighting dimmer ...............43
ASC .................................................104
Fuses ....................................... 144-148
Electric windows .......................... 77-78
Electric mirrors ..................................61
Opening the bonnet .........................126
Fittings ......................................... 64-68
- 12 V socket, ashtray.
Opening the fuel fi ller fl ap ..................84
