2011 Peugeot 308 SW BL display

250
RADIO
11
2
3
05
2ABC3DEF5JKL4GHI6MNO8TUV7PQRS9WXYZ0*#
1RADIOMEDIANAVESCTRAFFICSETUPADDRBOOK
RADIOMEDIANAVESCTRAFFICADDRBOOK
2ABC3DEF5JKL4GHI6MNO8TUV7PQRS9WXYZ0*#
1RADIOMEDIANAVESCTRAFFICSETUPADDRBOOK
2ABC3DEF5JKL4GHI6MNO8TUV7PQRS9WXYZ0*#
1RADIOMEDIANAVESCTRAFFICSETUPADDRBOOK
2ABC3DEF5JKL4GHI6MNO8TUV7PQRS9WXYZ0*#
1RADIOMEDIANAVESCTRAFFICSETUPADDRBOOK

SELECTING A STATION


When the current radio station is displayed on the screen, press OK.


The radio source short-cuts menu appears and providees access to the following short-cuts:

Select the function required and pressOK to confi rm to gain access to thecorresponding settings.
TA


The RDS, if displayed, allows you to continue listening to tthe same station by automatic retuning to alternative frequencies. However, in certain conditions, coverage of an RDS station may not bee assuredthroughout the country as radio stations do not cover 100 % of theterritory. This explains the loss of reception of the station dduring a journey.
The external environment (hill, building, tunnel, underground car park...) may interfere with thereception, including in RDS following mode. This phenomenon is a normal result of the way in which radio waves are transmitted and does not in any way indicate a failure of the audio equipment.


RDS - REGIONAL MODE
Press the RADIO button to displaythe list of stations received locally sorted in alphabetical order.Select the station required by turning the ring and press to confi rm.
Press one of the buttons on the numeric keypad for mmore than 2 seconds to store the current station. A bleep confi rmms that ithas been stored.Press the button on the numeric keypad to recall the sstored radio station.
RDS
RADIOTEXT

REGIONAL PROG.
AM

RADIO
When the "RADIO" screen is displayed, turn thering or use the 4-direction navigator to select theprevious or next station on the list.

While listening to the radio, press buttons and for the automatic search for a lower or higher frequency.

251
06MUSIC MEDIA PLAYERS
CD, MP3/WMA CD,
MP3/WMA SD CARD/USB READER

In order to be able to play a recorded CDR or CDRW, whenrecording it is preferable to select the ISO 9660 level 11, 2 or Jolietstandard.
If the disc is recorded in another format it may not be pplayedcorrectly.
It is recommended that the same recording standard is always usedfor an individual disc, with as low a speed as possible (4x maximum) for optimum sound quality.
In the particular case of a multi-session CD, the Joliet standard is recommended.
The audio equipment will only play audio fi les with thee extension ".mp3" with a speed of between 8 Kbps and 320 Kbpss and theextension ".wma" with a speed of between 5 Kbps andd 384 Kbps. It also supports the VBR (Variable Bit Rate) mode. No other type of fi le (.mp4, .m3u...) can be played.

The MP3 format, an abbreviation of MPEG 1, 2 & 2.5 Audio Layer 3and the WMA format, an abbreviation of Windows Media Audio andthe property of Microsoft, are audio compression standdards whichpermit the recording of several tens of music fi les on aa single disc.


Connecting an IPod:
To play MP3 type fi les, connect the IPod using the USSB port (limited functions).
To play ITunes fi les, connect the IPod using the auxiliaary socket(AUX).


In order to be read, a USB memory stick must be formmatted to FAT 32.
It is advisable to restrict fi le names to 20 characters, wwithout using of special characters (e.g. : " " ? ; ˘) to avoid any playingg and displaying problems.
During play, exit the "SD-Card" or "USB" source beforre removing theSD card or the USB memory stick from its reader.
To avoid any risk of theft, remove the SD card or the UUSB memorystick when you leave your vehicle with the roof open.

INFORMATION AND ADVICE

252
4
5
6
RADIONAVESCTRAFFICADDRBOOKMEDIAMEDIA
2
7
3
1
2ABC3DEF5JKL4GHI6MNO8TUV7PQRS9WXYZ0*#
1RADIOMEDIANAVESCTRAFFICSETUPADDRBOOK
2ABC3DEF5JKL4GHI6MNO8TUV7PQRS9WXYZ0*#
1RADIOMEDIANAVESCTRAFFICSETUPADDRBOOK
2ABC3DEF5JKL4GHI6MNO8TUV7PQRS9WXYZ0*#
1RADIOMEDIANAVESCTRAFFICSETUPADDRBOOK
2ABC3DEF5JKL4GHI6MNO8TUV7PQRS9WXYZ0*#
1RADIOMEDIANAVESCTRAFFICSETUPADDRBOOK
MEDIA
ABCDEF5JKL4GHI68TUV7PQRS90*#
RADIOMEDIANAVESCTRAFFICSETUPADDRBOOK
06
2ABC3DEF5JKL4GHI6MNO8TUV7PQRS9WXYZ0*#
1RADIO MEDIANAV ESC TRAFFIC
SETUPADDR
BOOK
CD, MP3/WMA CD, MP3/WMA SD CARD/
USB READER
The playing and displaying of an MP3/WMA compilatioon may dependon the recording programme and/or the parameters ussed. We recommend the ISO 9660 recording standard. Press the MEDIA button.
Select the "Select media" function and press OK to confi rm.

Press this button.
Select the music source required.Press OK to confi rm. Play begins.
SELECT MEDIA

Press the MEDIA button again or select the "Media" Menu function and press OK to confi rm.

When the "MEDIA" screen is displayed, turn the ring up or down to select the previous or next compatible source.
"MEDIA" MENU
The list of tracks or MP3/WMA fi les appears under "Media" Menu.

Insert the audio or MP3 CD in the player,the SD card in the card reader or the USB peripheral in the USB reader. Play begins automatically.
MP3 CDs, SD cards or USB peripherals are the compatible sources.
MUSIC MEDIA PLAYERS

255
1
3
42ABC3DEF5JKL4GHI6MNO8TUV7PQRS9WXYZ0*#
1RADIOMEDIANAVESCTRAFFICSETUPADDRBOOK
2ABC3DEF5JKL4GHI6MNO8TUV7PQRS9WXYZ0*#
1RADIOMEDIANAVESCTRAFFICSETUPADDRBOOKRADIONAVESCTRAFFICADDRBOOKMEDIAMEDIA
22
3
ABCDEF5JKL4GHI68TUV7PQRS90*#
RADIOMEDIANAVESCTRAFFICSETUPADDRBOOKMEDIA
1
MEDIA
RADIONAVESCTRAFFICADDRBOOKMEDIAMEDIA
06
2ABC3DEF5JKL4GHI6MNO8TUV7PQRS9WXYZ0*#
1RADIO MEDIANAV ESC TRAFFIC
SETUPADDR
BOOK Connect the portable equipment (MP3 player, camcorrder, camera…) to the RCA sockets (white and red for audio; red and yyellow for video) in the glove box using an audio cable.


Press the MEDIA button then pressit again or select the Media Menufunction and press OK to confi rm.

Select the AUX music source andpress OK to confi rm. Play begins automatically.

Select "Select media" then "Externaldevice (AV)" and press OK to activate it.
EXTERNAL DEVICE


The display and management of the controls is via thee portableequipment.
USING AN EXTERNAL DEVICE (AUX)

AUDIO/VIDEO CABLE NOT SUPPLIED


If the external device is not activated, select "Ext. Devvice (Aux)management" to activate it.

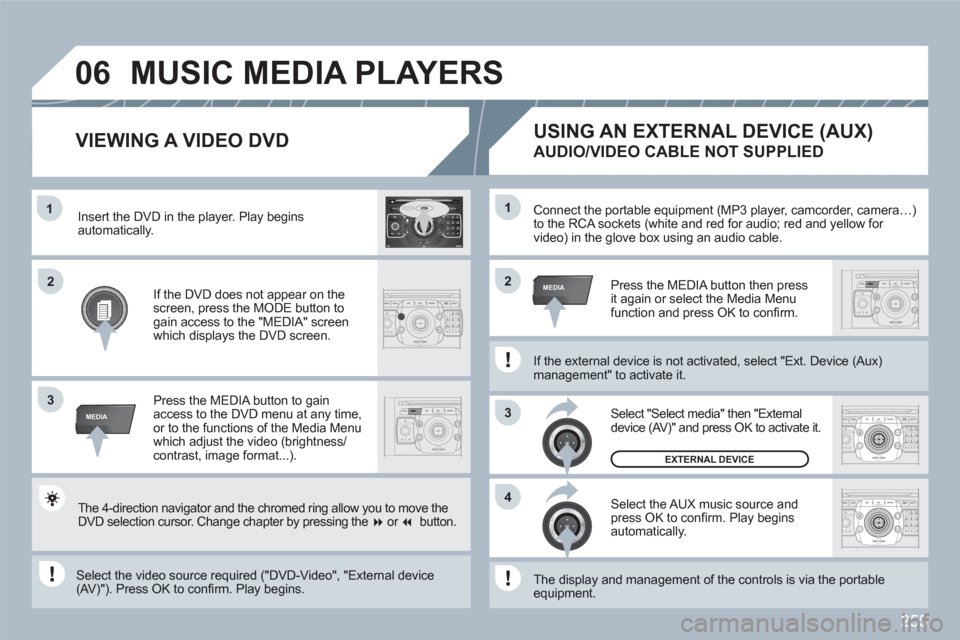

VIEWING A VIDEO DVD
Select the video source required ("DVD-Video", "Exterrnal device (AV)"). Press OK to confi rm. Play begins.
Press the MEDIA button to gain access to the DVD menu at any time, or to the functions of the Media Menu which adjust the video (brightness/contrast, image format...).
If the DVD does not appear on the screen, press the MODE button togain access to the "MEDIA" screenwhich displays the DVD screen.


Insert the DVD in the player. Play begins automatically.


The 4-direction navigator and the chromed ring allow you to move theDVD selection cursor. Change chapter by pressing the
or button.

MUSIC MEDIA PLAYERS

257
07
1
3
5
2ABC3DEF5JKL4GHI6MNO8TUV7PQRS9WXYZ0*#
1RADIOMEDIANAVESCTRAFFICSETUPADDRBOOK
4
2
12ABC3DEF5JKL4GHI6MNO8TUV7PQRS9WXYZ0*#
1RADIOMEDIANAVESCTRAFFICSETUPADDRBOOK
2ABC3DEF5JKL4GHI6MNO8TUV7PQRS9WXYZ0*#
1RADIOMEDIANAVESCTRAFFICSETUPADDRBOOK
2ABC3DEF5JKL4GHI6MNO8TUV7PQRS9WXYZ0*#
1RADIOMEDIANAVESCTRAFFICSETUPADDRBOOK
2ABC3DEF5JKL4GHI6MNO8TUV7PQRS9WXYZ0*#
1RADIOMEDIANAVESCTRAFFICSETUPADDRBOOK
*
The services available via the telephone depend on the network, the SIM card and the compatibilityof the Bluetooth equipment used. Refer to your telephone's manual and your operator to checkwhich services you have access to. A list of mobile telephones which offer the best range of servicesis available from dealers.
USING THE TELEPHONE


CONNECTING A BLUETOOTH
TELEPHONE


For safety reasons and because they require prolongeed attention onthe part of the driver, the operations for pairing the Bluuetooth mobiletelephone to the hands-free system of the Peugeot Coonnect Media must be carried out with the vehicle stationary and thee ignition on.


Activate the telephone's Bluetooth function.
The last telephone connected is reconnected automatically.
If no telephone is connected, thesystem prompts you to "Connect phone". Select "Yes" and press OK to confi rm.


Enter the authentication code on thetelephone. The code to be entered is displayed on the screen.

To change the telephone connected,press the TEL button, then selectPhone menu, then "Select phone" then "Connect Bluetooth phone"then select the telephone required or "Search phone".
Press OK at each step to confi rm.
Once the telephone has been connected, the Peugeott Connect Media can synchronise the address book and the call list. This synchronisation may take a few minutes * .
The list of telephones connected previously (4 maximum) appears onthe multifunction screen. Select the telephone requireed then select "Connect phone" for a new connection. Select "Deletee pairing" tocancel the connection to the telephone.
Press the TEL button.


For a fi rst connection, select"Search phone" and press OK to confi rm. Then select the name of the telephone.

SEARCH PHONE

259
3
112ABC3DEF5JKL4GHI6MNO8TUV7PQRS9WXYZ0*#
1RADIOMEDIANAVESCTRAFFICSETUPADDRBOOK
2
3
2ABC3DEF5JKL4GHI6MNO8TUV7PQRS9WXYZ0*#
1RADIOMEDIANAVESCTRAFFICSETUPADDRBOOK
ABCDEF5JKL4GHI68TUV7PQRS90*#
RADIOMEDIANAVESCTRAFFICSETUPADDRBOOK
2ABC3DEF5JKL4GHI6MNO8TUV7PQRS9WXYZ0*#
1RADIOMEDIANAVESCTRAFFICSETUPADDRBOOK
2ABC3DEF5JKL4GHI6MNO8TUV7PQRS9WXYZ0*#
1RADIOMEDIANAVESCTRAFFICSETUPADDRBOOK
2
07
Press the end of the steering mounted control to accept the call or end the call in progress.
Select the "Yes" tab to accept or "No"to refuse and confi rm by pressing OK.

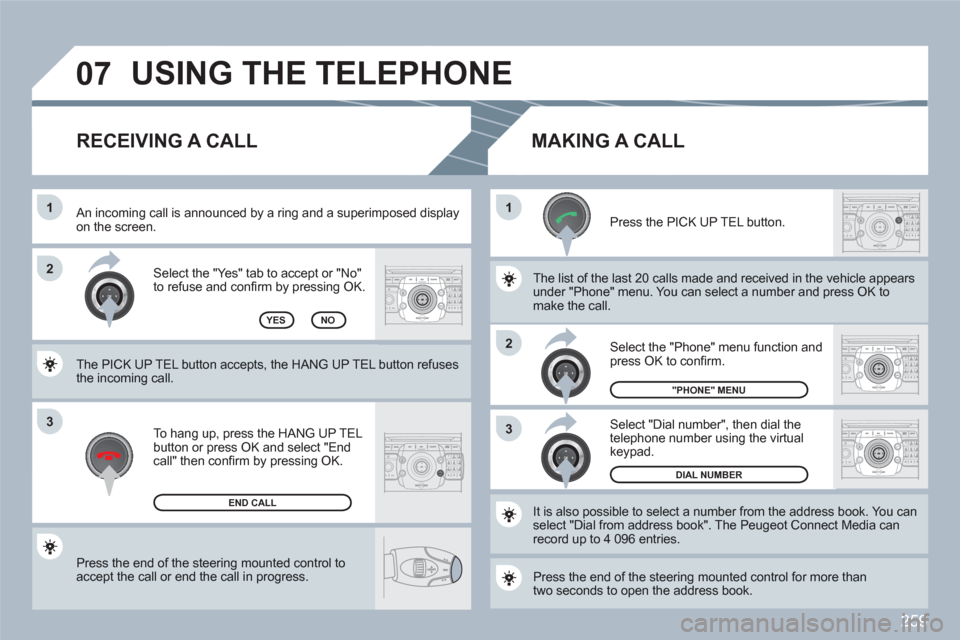

RECEIVING A CALL

MAKING A CALL

An incoming call is announced by a ring and a superimmposed display on the screen.
To hang up, press the HANG UP TEL button or press OK and select "End call" then confi rm by pressing OK.
END CALL
Press the PICK UP TEL button.

Press the end of the steering mounted control for moree thantwo seconds to open the address book.

It is also possible to select a number from the addresss book. You canselect "Dial from address book". The Peugeot Connecct Media can record up to 4 096 entries.
Select "Dial number", then dial thetelephone number using the virtual keypad.
Select the "Phone" menu function and press OK to confi rm.
DIAL NUMBER
"PHONE" MENU

The list of the last 20 calls made and received in the veehicle appears under "Phone" menu. You can select a number and prress OK tomake the call. YESNO

The PICK UP TEL button accepts, the HANG UP TEL button refuses the incoming call.
USING THE TELEPHONE

261

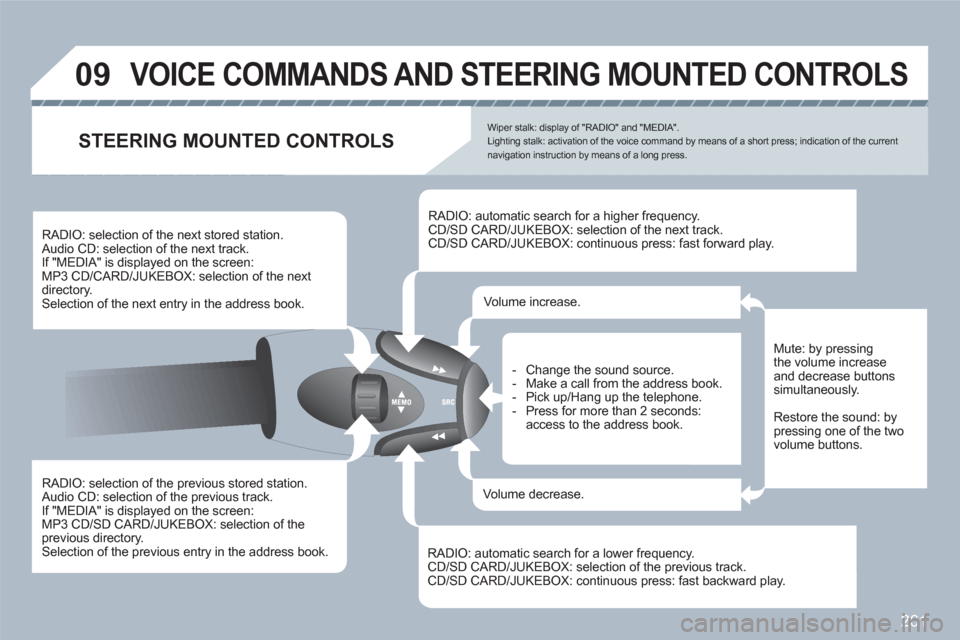

09 VOICE COMMANDS AND STEERING MOUNTED CONTROLS

RADIO: selection of the previous stored station. Audio CD: selection of the previous track.
If "MEDIA" is displayed on the screen:
MP3 CD/SD CARD/JUKEBOX: selection of the previous directory. Selection of the previous entry in the address book.


RADIO: selection of the next stored station. Audio CD: selection of the next track.
If "MEDIA" is displayed on the screen:
MP3 CD/CARD/JUKEBOX: selection of the nextdirectory. Selection of the next entry in the address book.


RADIO: automatic search for a higher frequency. CD/SD CARD/JUKEBOX: selection of the next track.
CD/SD CARD/JUKEBOX: continuous press: fast forward play.
RADIO: automatic search for a lower frequency. CD/SD CARD/JUKEBOX: selection of the previous track. CD/SD CARD/JUKEBOX: continuous press: fast backward play.





- Change the sound source.

- Make a call from the address book.

- Pick up/Hang up the telephone.

- Press for more than 2 seconds:access to the address book.


Volume increase.
Volume decrease.
STEERING MOUNTED CONTROLS
Mute: by pressingthe volume increase and decrease buttonssimultaneously.
Restore the sound: by pressing one of the twovolume buttons.
Wiper stalk: display of "RADIO" and "MEDIA".Lighting stalk: activation of the voice command by means of a short press; indication of the current navigation instruction by means of a long press.

264
10
MEDIA
1
2
3
1
2
3
3
3
3
4
3
3
3
3
12332
4
4
4
4
4
2
3
3
2
2
4
3
3
3
3
3
2
3
2
3
3
3
4
4
4
3
3
2
3
3
3
TRAFFIC
MAIN FUNCTION CHOICE A choice A1choice A2 CHOICE B...

SCREEN MENU MAP


"MEDIA" MENU


"TRAFFIC" MENU


SELECT PREFERRED LIST
Messages on route

Only warnings on route

All warning messages

All messages

Geo. Filter
Deactivate PIN

Within 2 miles (3 km)

Within 3 miles (5 km)

Within 6 miles (10 km)

Within 30 miles (50 km)

SELECT MEDIA

Audio CD/MP3-Disc/ DVD-Audio /DVD-Video

Jukebox (Folders & Files)

SD-Card

USB

External device (audio/AV)

VIDEO SETTINGS
Aspect ratio

Menu language

Display
Brightness
Contrast
Colour

AUX standard

Reset video settings


READ OUT SETTINGS

On confi rmation

Incoming messages


TMC STATION INFORMATION


JUKEBOX MANAGEMENT

Add fi les

Create folder

Modify content

Edit playlist

Play options

Folders & Files

Playlists
Memory capacity

SOUND SETTINGS


Refer to the " Sound settings

"
menu details of whichare shown on the next page.


EXT. DEVICE (AUX) MANAGEMENT

Off/Audio/Audio and Video (AV)
