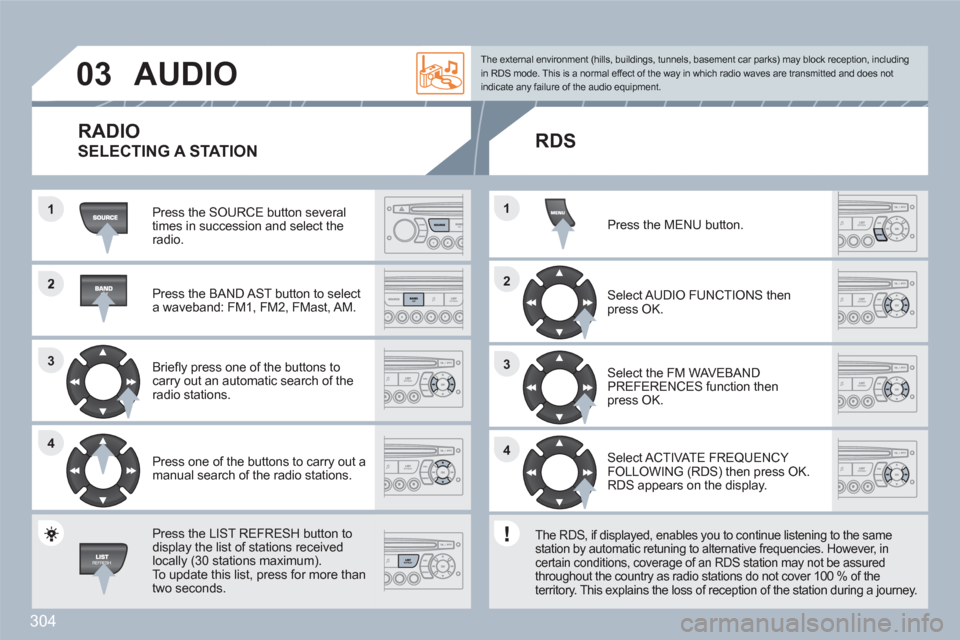

03AUDIO
Press the SOURCE button several times in succession and select theradio.


Press the BAND AST button to select a waveband: FM1, FM2, FMast, AM.


Briefl y press one of the buttons to carry out an automatic search of theradio stations.


Press one of the buttons to carry out a manual search of the radio stations.


Press the LIST REFRESH button todisplay the list of stations receivedlocally (30 stations maximum).
To update this list, press for more than two seconds.




Select ACTIVATE FREQUENCY FOLLOWING (RDS) then press OK. RDS appears on the display.


Select the FM WAVEBANDPREFERENCES function thenpress OK.
Select AUDIO FUNCTIONS then press OK.

Press the MENU button.

The external environment (hills, buildings, tunnels, basement car parks) may block reception, including in RDS mode. This is a normal effect of the way in which radio waves are transmitted and does notindicate any failure of the audio equipment.
RDS
The RDS, if displayed, enables you to continue listening to the samestation by automatic retuning to alternative frequencies. However, in certain conditions, coverage of an RDS station may not be assuredthroughout the country as radio stations do not cover 100 % of theterritory. This explains the loss of reception of the station during a journey.
RADIO


SELECTING A STATION

305
03
11
11
22
3333
22
AUDIO

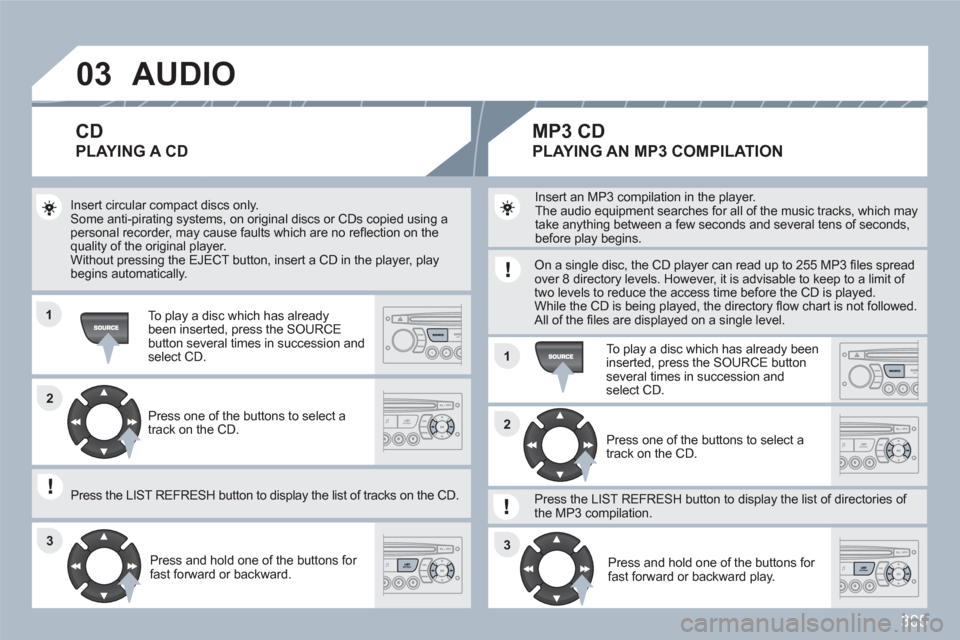

Insert circular compact discs only. Some anti-pirating systems, on original discs or CDs copied using apersonal recorder, may cause faults which are no refl ection on thequality of the original player. Without pressing the EJECT button, insert a CD in the player, playbegins automatically.
To play a disc which has already been inserted, press the SOURCE button several times in succession andselect CD.
Press and hold one of the buttons for fast forward or backward.

Insert an MP3 compilation in the player.
The audio equipment searches for all of the music tracks, which may take anything between a few seconds and several tens of seconds,before play begins.
On a single disc, the CD player can read up to 255 MP3 fi les spreadover 8 directory levels. However, it is advisable to keep to a limit of two levels to reduce the access time before the CD is played. While the CD is being played, the directory fl ow chart is not followed.All of the fi les are displayed on a single level.

To play a disc which has already been inserted, press the SOURCE buttonseveral times in succession and select CD.

Press and hold one of the buttons for fast forward or backward play.
CD
PLAYING A CD
MP3 CD


PLAYING AN MP3 COMPILATION
Press one of the buttons to select atrack on the CD.

Press the LIST REFRESH button to display the list of tracks on the CD.

Press one of the buttons to select atrack on the CD.
Press the LIST REFRESH button to display the list of directories of the MP3 compilation.

306
03
11
22
33
system.

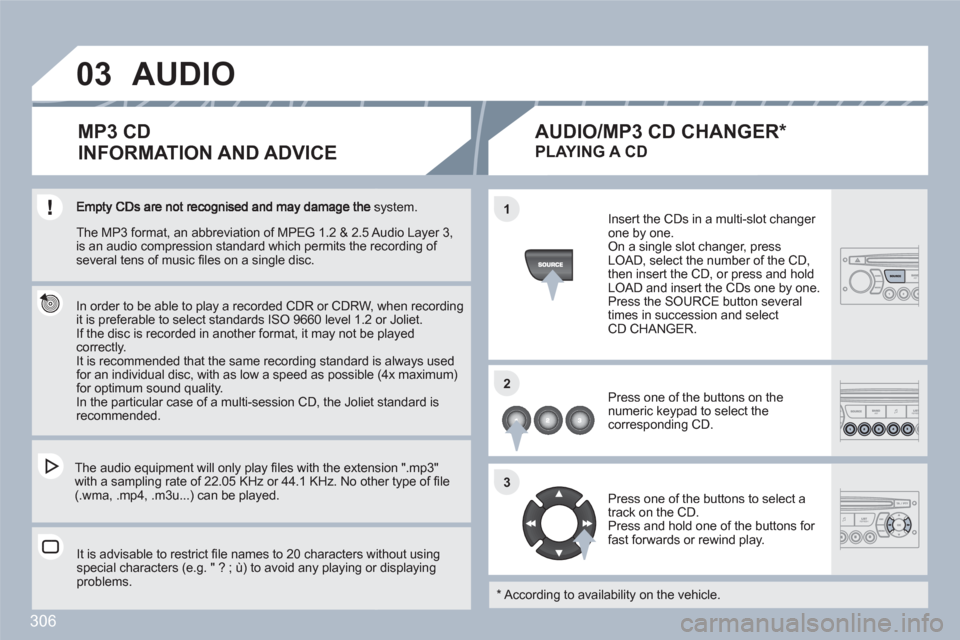

In order to be able to play a recorded CDR or CDRW, when recordingit is preferable to select standards ISO 9660 level 1.2 or Joliet.
If the disc is recorded in another format, it may not be playedcorrectly.
It is recommended that the same recording standard is always usedfor an individual disc, with as low a speed as possible (4x maximum) for optimum sound quality.
In the particular case of a multi-session CD, the Joliet standard is recommended.


The audio equipment will only play fi les with the extension ".mp3" with a sampling rate of 22.05 KHz or 44.1 KHz. No othher type of fi le (.wma, .mp4, .m3u...) can be played.


It is advisable to restrict fi le names to 20 characters wwithout using special characters (e.g. " ? ; ˘) to avoid any playing orr displayingproblems.

MP3 CD

INFORMATION AND ADVICE

AUDIO

Insert the CDs in a multi-slot changer one by one. On a single slot changer, press LOAD, select the number of the CD, then insert the CD, or press and hold LOAD and insert the CDs one by one.
Press the SOURCE button severaltimes in succession and selectCD CHANGER.

Press one of the buttons on the numeric keypad to select the corresponding CD.

Press one of the buttons to select a track on the CD.
Press and hold one of the buttons for fast forwards or rewind play.


PLAYING A CD
*
According to availability on the vehicle.
AUDIO/MP3 CD CHANGER *


The MP3 format, an abbreviation of MPEG 1.2 & 2.5 AAudio Layer 3,is an audio compression standard which permits the reecording of several tens of music fi les on a single disc.

308
33
44
11
55
22

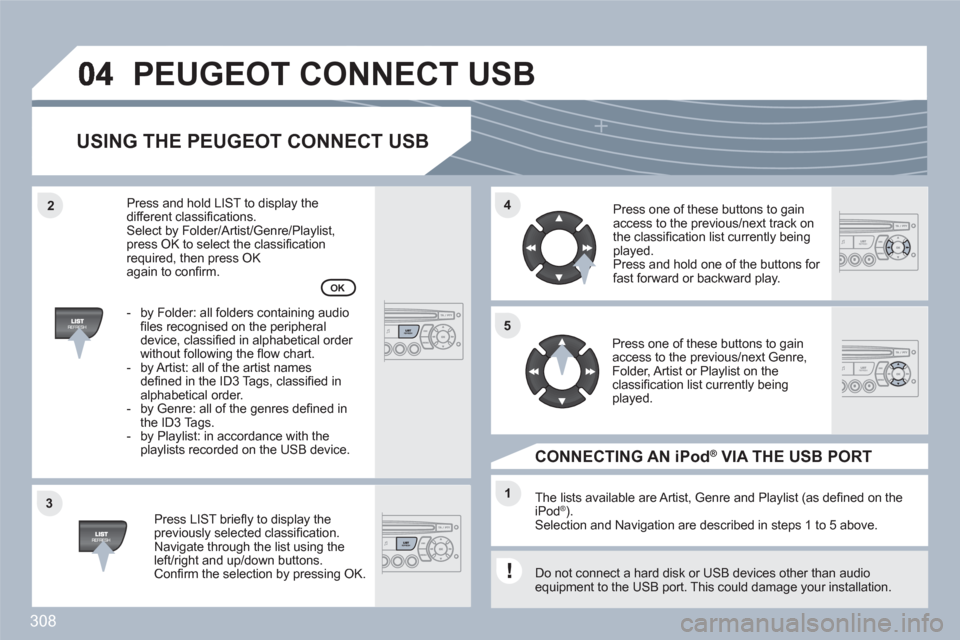

PEUGEOT CONNECT USB
USING THE PEUGEOT CONNECT USB
Press LIST briefl y to display thepreviously selected classifi cation.Navigate through the list using theleft/right and up/down buttons. Confi rm the selection by pressing OK.

The lists available are Artist, Genre and Playlist (as defi ned on theiPod ®). ®
Selection and Navigation are described in steps 1 to 5 above.


Do not connect a hard disk or USB devices other than audio equipment to the USB port. This could damage your installation.


CONNECTING AN iPod ®VIA THE USB PORT ®


Press one of these buttons to gainaccess to the previous/next track on the classifi cation list currently beingplayed.
Press and hold one of the buttons for fast forward or backward play.


Press one of these buttons to gainaccess to the previous/next Genre,Folder, Artist or Playlist on the classifi cation list currently beingplayed.


Press and hold LIST to display thedifferent classifi cations. Select by Folder/Artist/Genre/Playlist, press OK to select the classifi cation required, then press OK again to confi rm.



- by Folder: all folders containing audiofi les recognised on the peripheraldevice, classifi ed in alphabetical order without following the fl ow chart.

- by Artist: all of the artist namesdefi ned in the ID3 Tags, classifi ed in alphabetical order.

- by Genre: all of the genres defi ned inthe ID3 Tags.

- by Playlist: in accordance with the playlists recorded on the USB device.
OK

309
11
22
22
11

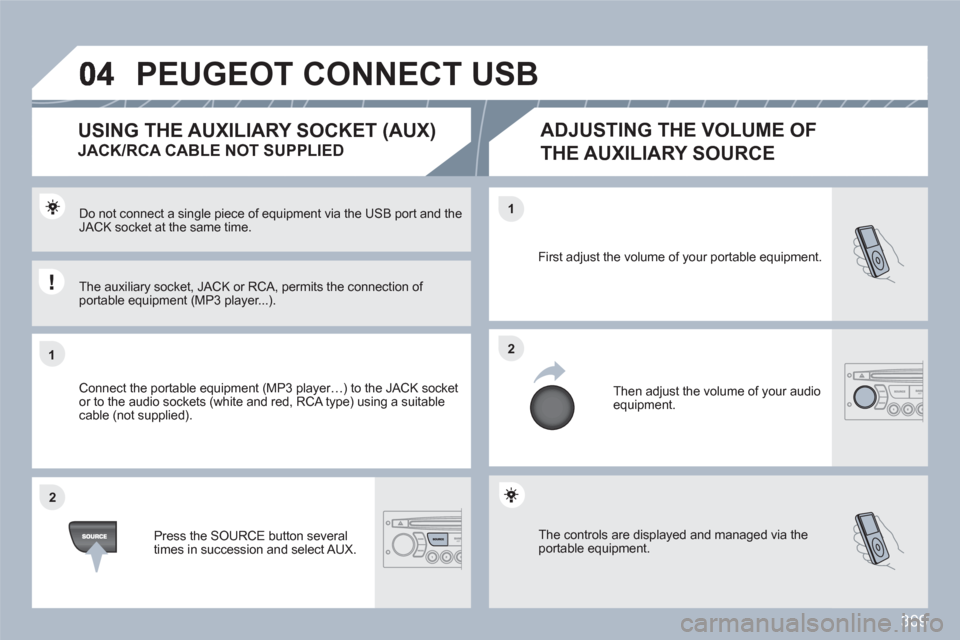

The controls are displayed and managed via the portable equipment.
First adjust the volume of your portable equipment.
Then adjust the volume of your audioequipment.
Do not connect a single piece of equipment via the USB port and the JACK socket at the same time.
Connect the portable equipment (MP3 player…) to the JACK socket or to the audio sockets (white and red, RCA type) using a suitable cable (not supplied).
Press the SOURCE button several times in succession and select AUX.



USING THE AUXILIARY SOCKET (AUX)


JACK/RCA CABLE NOT SUPPLIED

ADJUSTING THE VOLUME OF
THE AUXILIARY SOURCE
The auxiliary socket, JACK or RCA, permits the connection of portable equipment (MP3 player...).
PEUGEOT CONNECT USB

310
11
66
22
77
44
99
55
101
33
88
Saisir code authentification
01
OK Del23456789 _

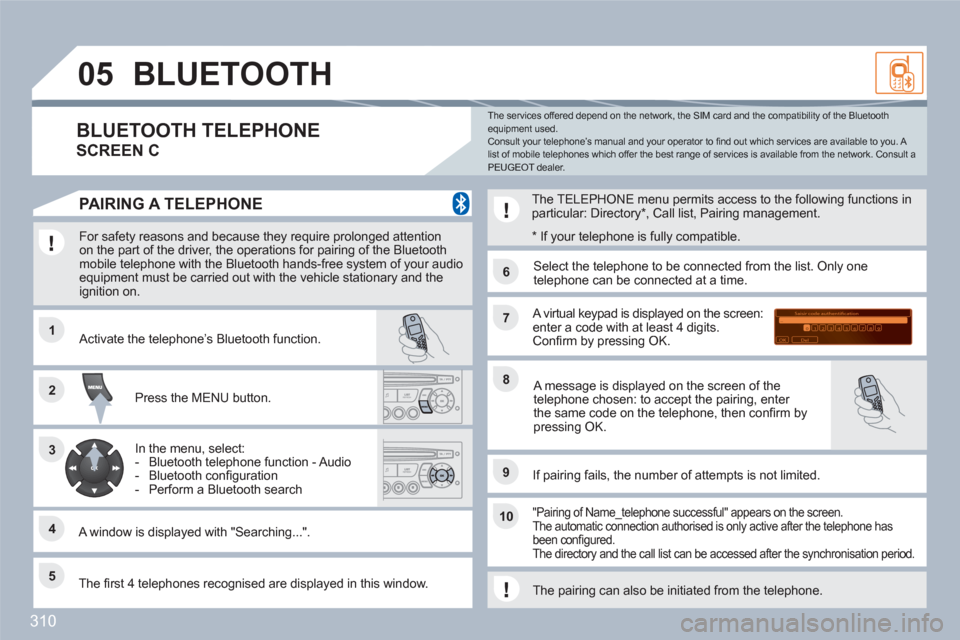

05BLUETOOTH

For safety reasons and because they require prolonged attention on the part of the driver, the operations for pairing of the Bluetooth mobile telephone with the Bluetooth hands-free system of your audioequipment must be carried out with the vehicle stationary and the ignition on.


Press the MENU button.


A window is displayed with "Searching...".


Activate the telephone’s Bluetooth function.


In the menu, select:


- Bluetooth telephone function - Audio

- Bluetooth confi guration

- Perform a Bluetooth search
The services offered depend on the network, the SIM card and the compatibility of the Bluetooth equipment used. Consult your telephone’s manual and your operator to fi nd out which services are available to you. A list of mobile telephones which offer the best range of services is available from the network. Consult a PEUGEOT dealer.
BLUETOOTH TELEPHONE
SCREEN C


The TELEPHONE menu permits access to the following functions inparticular: Directory *
, Call list, Pairing management.
The fi rst 4 telephones recognised are displayed in this window.

A virtual keypad is displayed on the screen:enter a code with at least 4 digits. Confi rm by pressing OK.
If pairing fails, the number of attempts is not limited.

Select the telephone to be connected from the list. Only onetelephone can be connected at a time.


A message is displayed on the screen of thetelephone chosen: to accept the pairing, enter the same code on the telephone, then confi rm bypressing OK.
"Pairing of Name_telephone successful" appears on the screen.The automatic connection authorised is only active after the telephone has been confi gured. The directory and the call list can be accessed after the synchronisation period.


PAIRING A TELEPHONE


*
If your telephone is fully compatible.
The pairing can also be initiated from the telephone.

311
05
11
22
11
22
33
22
11

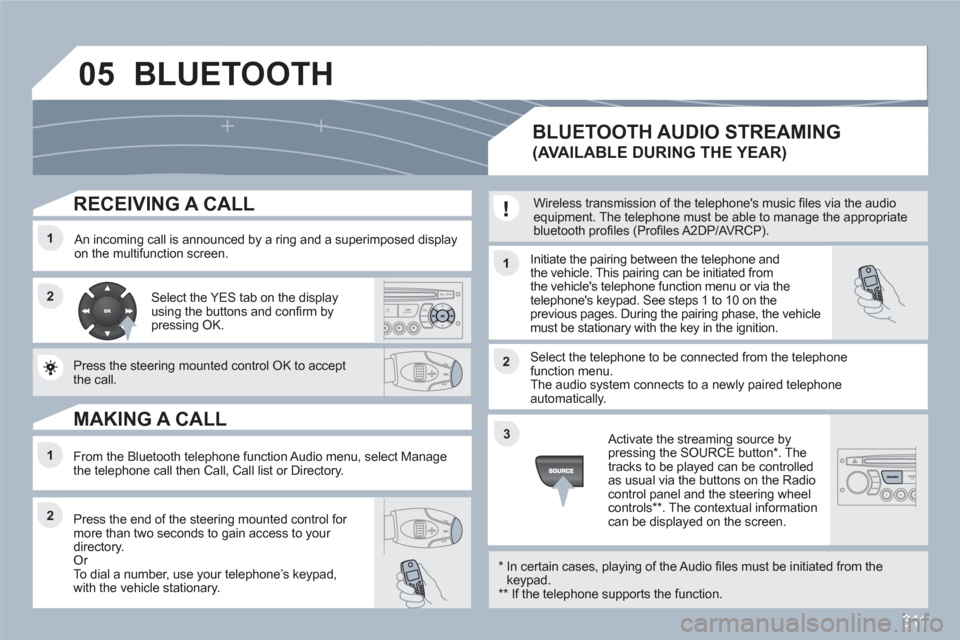

RECEIVING A CALL


An incoming call is announced by a ring and a superimposed display on the multifunction screen. Initiate the pairing between the telephone and the vehicle. This pairing can be initiated fromthe vehicle's telephone function menu or via the telephone's keypad. See steps 1 to 10 on theprevious pages. During the pairing phase, the vehiclemust be stationary with the key in the ignition.
Select the telephone to be connected from the telephone function menu. The audio system connects to a newly paired telephone automatically.
Select the YES tab on the display using the buttons and confi rm bypressing OK.


Press the steering mounted control OK to accept the call.


From the Bluetooth telephone function Audio menu, select Manage the telephone call then Call, Call list or Directory.


Press the end of the steering mounted control for more than two seconds to gain access to your directory. Or
To dial a number, use your telephoneís keypad, with the vehicle stationary.


MAKING A CALL
BLUETOOTH AUDIO STREAMING
(AVAILABLE DURING THE YEAR)

Wireless transmission of the telephone's music fi les via the audio equipment. The telephone must be able to manage the appropriatebluetooth profi les (Profi les A2DP/AVRCP).
*

In certain cases, playing of the Audio fi les must be initiated from thekeypad. **
If the telephone supports the function.
Activate the streaming source bypressing the SOURCE button * . Thetracks to be played can be controlled as usual via the buttons on the Radio control panel and the steering wheel controls
** . The contextual information can be displayed on the screen.

BLUETOOTH

313
11
22
44
55
66
88
07
3377

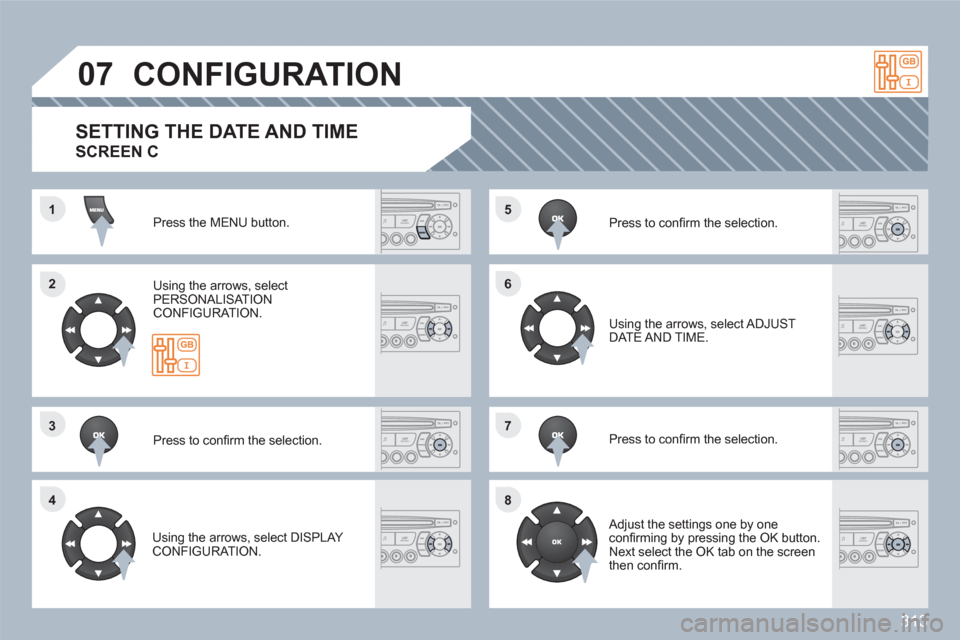

CONFIGURATION
Press the MENU button.
Using the arrows, select PERSONALISAT ION CONFIGURATION.
Press to confi rm the selection.


Using the arrows, select DISPLAY CONFIGURATION.
Press to confi rm the selection.
Press to confi rm the selection.
Using the arrows, select ADJUSTDATE AND TIME.


Adjust the settings one by oneconfi rming by pressing the OK button.Next select the OK tab on the screen then confi rm.

SETTING THE DATE AND TIME
SCREEN C
