2011 Peugeot 308 SW BL display

!
DRIVING
When the cruise control is switched
on, be careful if you maintain the
pressure on one of the programmed
speed changing buttons: this may
result in a very rapid change in the
speed of your vehicle.
Do not use the cruise control on
slippery roads or in heavy traffi c.
On a steep descent, the cruise
control will not be able to prevent
the vehicle from exceeding the pro-
grammed speed.
To avoid any risk of jamming of the
pedals:


- ensure that the mat is positioned
correctly,

- never fi t one mat on top of
another.



Programming



)
Turn dial 1
to the "CRUISE"

position: the cruise control mode
is selected but is not switched on
(OFF).

Exceeding the programmed speed

Intentional or unintentional exceeding of the programmed
speed results in fl ashing of this speed on the display.
Return to the programmed speed, by means of intentional or
unintentional deceleration of the vehicle, automatically can-
cels the fl ashing of the speed.


Return to normal driving



)
Turn dial 1
to the "0"
position: the cruise control mode
is deselected. The display returns to the distance
recorder.



Operating fault

In the event of a cruise control malfunc-
tion, the speed is cleared resulting in
fl ashing of the dashes.
Have it checked by a PEUGEOT dealer.

)
Set the programmed speed by
accelerating to the required
speed, then press button 2
or 3

(e.g.: 70 mph (110 km/h)).


)
Switch off the cruise control by pressing button 4
: the
display confi rms that it has been switched off (OFF).

)
Switch the cruise control back on by pressing button 4

again.

You can then change the programmed speed using but-
tons 2
and 3
:


- by + or - 1 mph (km/h) = short press,

- by + or - 5 mph (km/h) = long press,

- in steps of + or - 5 mph (km/h) = maintained press.

!
154
DRIVING
PARKING SENSORS
This system indicates the proximity
of an obstacle (person, vehicle, tree,
gate, etc.) which comes within the fi eld
of detection of sensors located in the
bumper.
Certain types of obstacle (stake, road-
works cone, etc.) detected initially will
no longer be detected at the end of the
manoeuvre due to the presence of blind
spots.

This function cannot, in any cir-
cumstances, take the place of the
vigilance and responsibility of the
driver.



Rear parking sensors

The system is switched on by engaging
reverse gear. This is accompanied by
an audible signal.
The system is switched off when you
exit reverse gear.

Audible assistance
The proximity information is given by
a discontinuous audible signal, the fre-
quency of which increases as the vehicle
approaches the obstacle.
The sound emitted by the speaker (right
or left) indicates the side on which the
obstacle is located.
When the distance between the vehicle
and the obstacle becomes less than ap-
proximately thirty centimetres, the audi-
ble signal becomes continuous.
This supplements the audible signal by
displaying segments on the multifunc-
tion screen which move progressively
nearer to the vehicle. When the obsta-
cle is near, the symbol "Danger" is also
displayed on the screen.


Visual assistance

ii
155
DRIVING






Front parking sensors

In addition to the rear parking sensors,
the front parking sensors are triggered
when an obstacle is detected in front
and the speed of the vehicle is still
below 6 mph (10 km/h).
The sound emitted by the speaker (front
or rear) indicates whether the obstacle
is in front or behind.
The front parking sensors are interrupted
if the vehicle stops for more than three
seconds in forward gear, if no further ob-
stacles are detected or when the speed
of the vehicle exceeds 6 mph (10 km/h).


Deactivation/Activation of the front
and rear parking sensors

Deactivation/Activation of the rear
parking sensors


The function will be deactivated au-
tomatically if a trailer is being towed
or a bicycle carrier is fi tted (vehicle
fi tted with a towbar or bicycle car-
rier recommended by PEUGEOT).



Operating fault


In bad weather or in winter, ensure
that the sensors are not covered
with mud, ice or snow. When re-
verse gear is engaged, an audible
signal (long bleep) indicates that
the sensors may be dirty.
When the vehicle is moving at a
speed below 6 mph (10 km/h), cer-
tain sound sources (motorcycle,
lorry, pneumatic drill, etc.) may trig-
ger the audible signals of the park-
ing sensor system.

The function is deactivated by pressing
this button. The indicator lamp on the
button comes on.
Pressing this button again reactivates
the function. The indicator lamp on the
button switches off.
The function is deactivated
or activated via the multi-
function screen confi gura-
tion menu.
The status of the function
is stored when the ignition
is switched off.
For further details about the access to
the parking sensors menu, refer to the
vehicle confi guration section corre-
sponding to your multifunction screen.
If an operating fault occurs,
when reverse gear is engaged
this warning lamp is displayed
on the instrument panel and/or
a message appears on the screen, ac-
companied by an audible signal (short
bleep).
Consult a PEUGEOT dealer.

1
188
PRACTICAL INFORMATION


Fuse N°



Rating


Functions



G36



30 A

Driver and passenger heated seats.


G37



5 A

Driving position memory unit, lighting rheostat.


G38



30 A

Driver's seat memory unit.


G39



30 A

Trailer fusebox supply.


G40



30 A

Hi-Fi amplifi er.

Fuse N°



Rating


Functions



F12



15 A

Instrument panel, seat belt and passenger's front
airbag warning lamps display, air conditioning,
driver's seat memory unit, 2nd row rear seat
switches, driving school module.


F13



5 A

Engine fusebox, airbags, electronic gear control
gearbox gear lever, trailer fusebox.


F14



15 A

Multifunction screen, amplifi er, Bluetooth system,
rain/brightness sensor, parking sensors control
unit.


F15



30 A

Locking and deadlocking.


F17



40 A

Rear screen and door mirrors demist/defrost.


SH



-

PARC shunt.

231
2ABC3DEF5JKL4GHI6MNO8TUV7PQRS9WXYZ0*#
1RADIOMEDIANAVESCTRAFFICSETUPADDRBOOK
2ABC3DEF5JKL4GHI6MNO8TUV7PQRS9WXYZ0*#
1RADIOMEDIANAVESCTRAFFICSETUPADDRBOOK
PEUGEOT ASSISTANCE

CUSTOMER CALL

Press this button for access to PEUGEOT services * .
Select "Customer call" to request any information about the PEUGEOTmarque.
Select "PEUGEOT Assistance" to make a breakdown assistance call.
* These services and options are subject to conditions and availability.
EMERGENCY CALL

EMERGENCY OR ASSISTANCE CALL using Peugeot Connect Media
ASSISTANCE CALL


In an emergency, press the SOS button until an audible signal is heard and a "Confi rmation/Cancellation"screen is displayed (if valid SIM card inserted). A call is made *
to thePEUGEOT Emergency team Twhich receives locating information from the vehicle and can send a detailed alert to the relevant emergency services.
In countries in which the team is not operational, or when the locating service has been expressly rejected, the call is sent to the emergency services (11 2).


If an impact is detected by the airbag control unit, and independentlyof the triggering of any airbags, an emergency call is mmade automatically.
The message "Deteriorated emergency call" associateed with fl ashingof the orange indicator lamp indicates a malfunction. CConsult aPEUGEOT dealer.





Warning - the emergency call and the services are onlyy activeif the internal telephone is used with a valid SIM card. WWith aBluetooth telephone and without a SIM card, these serrvices are notoperational.

*

This service is subject to conditions and availability. Consult a PEUGEOTdealer.

234
01
2ABC3DEF
5JKL4GHI6MNO
8TUV7PQRS9WXYZ
0*#
1
RADIO MEDIANAV ESC TRAFFIC
SETUPADDR
BOOK
1
10
2
3
4
612
9
7
8
115
TU PQRS
0*
1. CD eject.
2.RADIO: access to the "Radio" Menu. Display the list of stations in alphabetical order (FM waveband) or frequency order (AM waveband).
MEDIA: access to the "Media" Menu (Audio CD, Jukebox, External Device). Display the list of tracks. Change of source.
NAV: access to the "Navigation" Menu and display of thelast destinations.
ESC: abandon the operation in progress. Long press: return to the main display.
TRAFFIC: access to the "Traffi c" Menu (function describedin detail in sections 02 and 10).
ADDR BOOK: access to the "Address book" Menu (function described in detail in section 10).
SETUP: access to the "SETUP" Menu (confi guration) (function described in detail in sections 02 and 10). Long press: GPS coverage.
3. Audio settings (Balance/Fader, Bass/Treble, MusicalAmbience...).
4. Volume adjustment (each source is independent, including message and navigation alert) Long press: reinitialisation of the system. Short press: mute.
5. Automatic search for a radio station on a lower frequency. Selection of the previous CD or MP3 track.
6. Automatic search for a radio station on a higher frequency. Selection of the next CD or MP3 track.
FIRST STEPS
Peugeot Connect Media CONTROL PANEL
7.
Normal display or black screen.
8.
Selection of the successive display on the screen of "MAP"/"NAV" (if navigation is in progress)/"TEL" (if a conversation is inprogress)/"RADIO" or "MEDIA" currently being played.
9.
PICK UP: access to the "Phone" menu. With Bluetooth connection, accept an incoming call.
10.
HANG UP: access to the "Phone" menu. Hang up the current call or refuse an incoming call, withBluetooth connection.
11 .
Entering of numbers or letters on the alpha-numeric keypad, pre-selection of 10 radio frequencies.
12.
SD card reader.
Short press: clears the last character.
Long press: activates voicerecognition.

235
01
2ABC3DEF
5JKL4GHI6MNO
8TUV7PQRS9WXYZ
0*#
1
13
14
OK: confi rmation of the highlighted item on the screen.
- 4-direction navigator: press to the left/right.
When the "RADIO" screen is displayed: selection of theprevious/next frequency.
When "MEDIA" is displayed: selection of the previous/nexttrack.
When "MAP" or "NAV" is displayed: horizontal movement of the map.
- 4-direction navigator: press up/down.
When "RADIO" is displayed: selection of the previous/nextradio station on the list.
When the "MEDIA" screen is displayed: selection of the MP3directory.
When "MAP" or "NAV" is displayed: vertical movement of themap.
Switch to the next or previous page of a menu. Movement on the virtual keypad displayed.

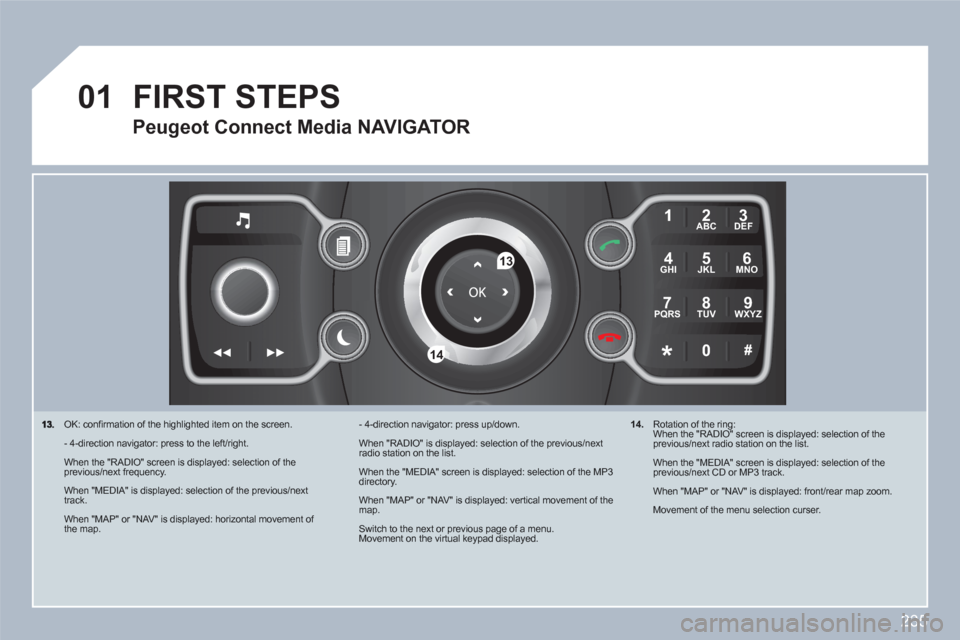

FIRST STEPS
Peugeot Connect Media NAVIGATOR
14.
Rotation of the ring: When the "RADIO" screen is displayed: selection of the previous/next radio station on the list.
When the "MEDIA" screen is displayed: selection of the previous/next CD or MP3 track.
When "MAP" or "NAV" is displayed: front/rear map zoom.
Movement of the menu selection curser.

236
02
SETUP
MEDIA
TRAFFIC

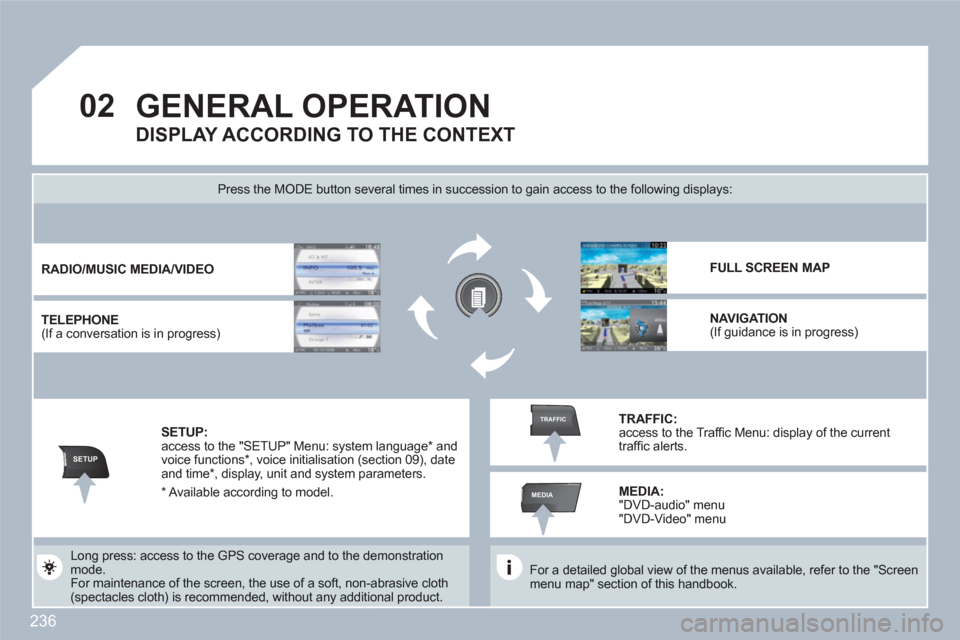

GENERAL OPERATION

For a detailed global view of the menus available, refer to the "Screen menu map" section of this handbook.


Press the MODE button several times in succession to gain access to the following displays:


Long press: access to the GPS coverage and to the demonstration mode.
For maintenance of the screen, the use of a soft, non-abrasive cloth (spectacles cloth) is recommended, without any additional product.
RADIO
/


MUSIC
MEDIA/VIDEO
TELEPHONE (If a conversation is in progress)
FULL SCREEN MAP

NAVIGATION (If guidance is in progress)



SETUP: access to the "SETUP" Menu: system language * and voice functions *
, voice initialisation (section 09), dateand time * , display, unit and system parameters.
TRAFFIC: access to the Traffi c Menu: display of the currenttraffi c alerts.
DISPLAY ACCORDING TO THE CONTEXT
MEDIA:
"DVD-audio" menu "DVD-Video" menu


* Available according to model.
