2011 Peugeot 308 SW BL display

i
49
MULTIFUNCTION SCREENS
16/9 HIGH DEFINITION RETRACTABLE COLOUR SCREEN(WITH PEUGEOT CONNECT MEDIA)

Displays on the screen

Once unfolded, it displays the following
information automatically and directly:


- time,

- date,

- altitude,

- ambient temperature (the value
displayed fl ashes if there is a risk of
ice),

- audio functions,

- parking sensors,

- telephone and address book
information,

- satellite navigation system information.
From the Peugeot Connect Media con-
trol panel, to select one of the applica-
tions:


)
press the dedicated "RADIO"
,
"MEDIA"
, "NAV"
, "TRAFFIC"
,
"ADDR BOOK"
or "SETUP"
button
for access to the corresponding
menu,

)
turn the navigator to move the
selection,

)
press the navigator to confi rm the
selection,
or

)
press the "ESC"
button to abandon
the current operation and return to
the previous display. For operation of the retractable
screen (opening, closing, adjust-
ment of the position, etc.), refer to
the paragraph "Access to the re-
tractable screen". For more information on these appli-
cations, refer to the Peugeot Connect
Media part of the "Audio and Telematics"
section.

Controls

!

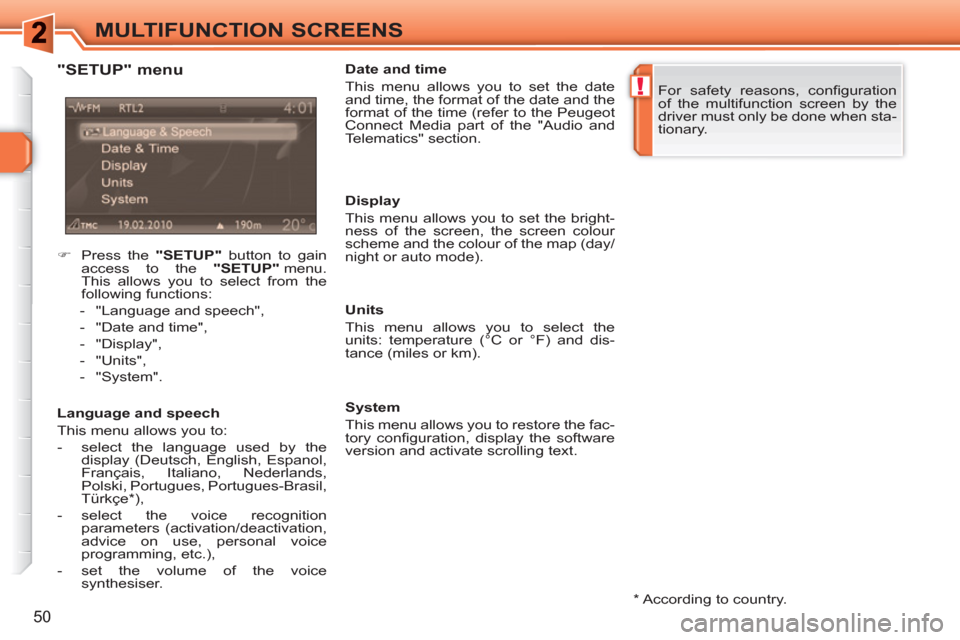

50
MULTIFUNCTION SCREENS

*
According to country.


"SETUP" menu


Language and speech
This menu allows you to:


- select the language used by the
display (Deutsch, English, Espanol,
Français, Italiano, Nederlands,
Polski, Portugues, Portugues-Brasil,
Türkçe * ),

- select the voice recognition
parameters (activation/deactivation,
advice on use, personal voice
programming, etc.),

- set the volume of the voice
synthesiser.

Date and time
This menu allows you to set the date
and time, the format of the date and the
format of the time (refer to the Peugeot
Connect Media part of the "Audio and
Telematics" section.

Display
This menu allows you to set the bright-
ness of the screen, the screen colour
scheme and the colour of the map (day/
night or auto mode).

Units
This menu allows you to select the
units: temperature (°C or °F) and dis-
tance (miles or km).

System
This menu allows you to restore the fac-
tory confi guration, display the software
version and activate scrolling text.
For safety reasons, confi guration
of the multifunction screen by the
driver must only be done when sta-
tionary.


)
Press the "SETUP"
button to gain
access to the "SETUP"
menu.
This allows you to select from the
following functions:


- "Language and speech",

- "Date and time",

- "Display",

- "Units",

- "System".

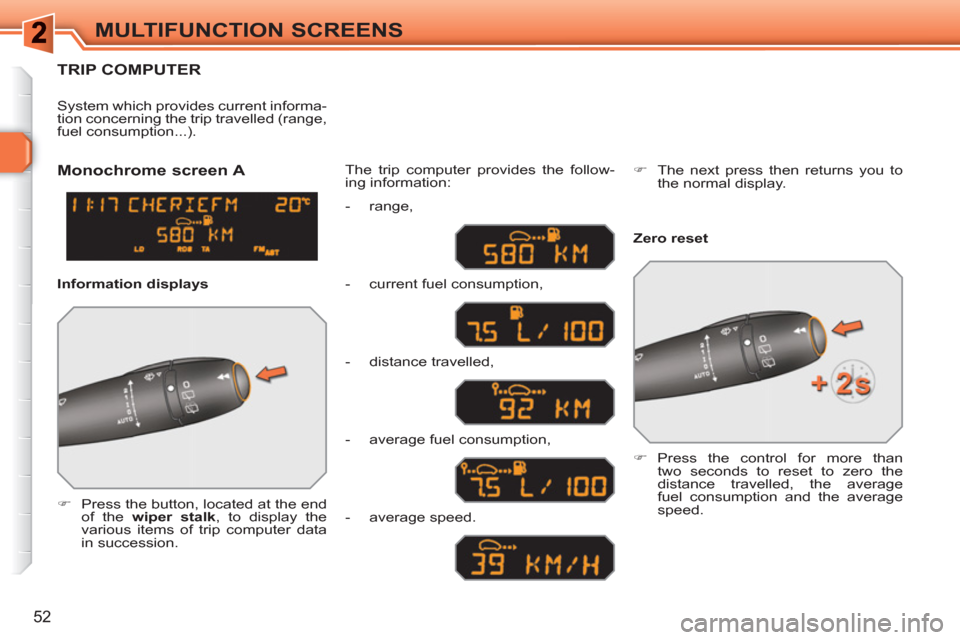

52
MULTIFUNCTION SCREENS
TRIP COMPUTER


)
Press the button, located at the end
of the wiper stalk
, to display the
various items of trip computer data
in succession. The trip computer provides the follow-
ing information: System which provides current informa-
tion concerning the trip travelled (range,
fuel consumption...).


)
Press the control for more than
two seconds to reset to zero the
distance travelled, the average
fuel consumption and the average
speed.




Monochrome screen A


Zero reset

Information displays

- range,

- current fuel consumption,

- distance travelled,

- average fuel consumption,

- average speed.
)
The next press then returns you to
the normal display.

i

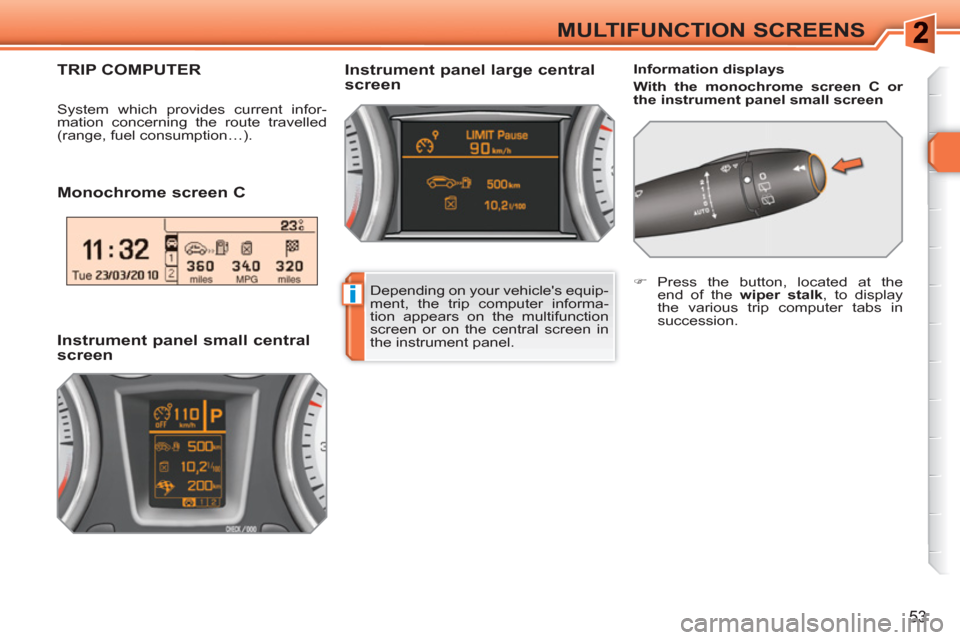

53
MULTIFUNCTION SCREENS

Monochrome screen C


Information displays

With the monochrome screen C or
the instrument panel small screen


Instrument panel large central
screen TRIP COMPUTER
System which provides current infor-
mation concerning the route travelled
(range, fuel consumption…).

Instrument panel small central
screen

Depending on your vehicle's equip-
ment, the trip computer informa-
tion appears on the multifunction
screen or on the central screen in
the instrument panel.

)
Press the button, located at the
end of the wiper stalk
, to display
the various trip computer tabs in
succession.

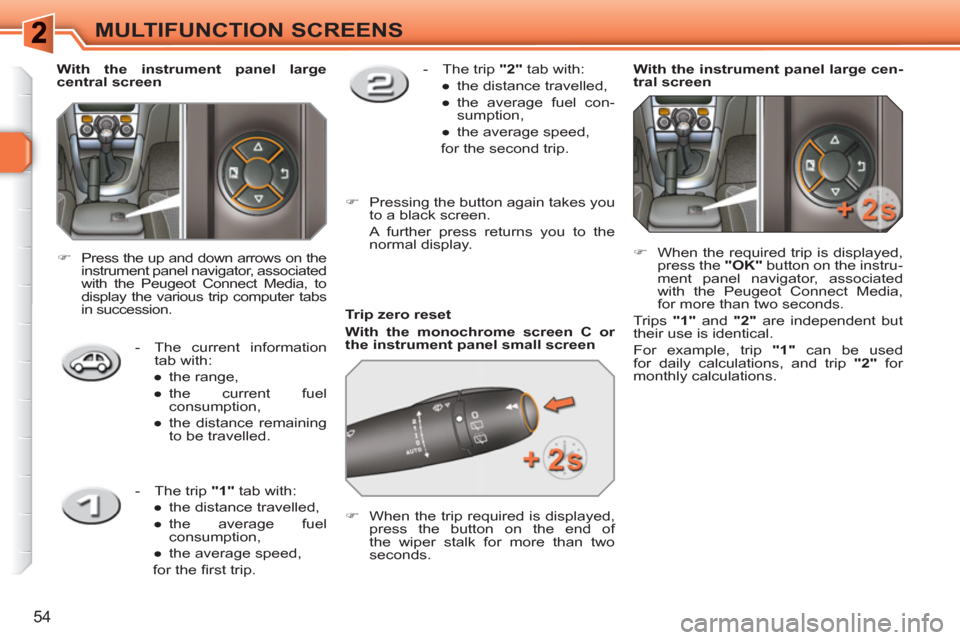

54
MULTIFUNCTION SCREENS

Trip zero reset

With the monochrome screen C or
the instrument panel small screen



)
When the trip required is displayed,
press the button on the end of
the wiper stalk for more than two
seconds.
With the instrument panel



large cen-
tral screen



)
When the required trip is displayed,
press the "OK"
button on the instru-
ment panel navigator, associated
with the Peugeot Connect Media,
for more than two seconds.
Trips "1"
and "2"
are independent but
their use is identical.
For example, trip "1"
can be used
for daily calculations, and trip "2"
for
monthly calculations.


- The trip "2"
tab with:


●
the distance travelled,

●
the average fuel con-
sumption,

●
the average speed,
for the second trip.



)
Pressing the button again takes you
to a black screen.
A further press returns you to the
normal display.

With the instrument panel

large
central screen



- The current information
tab with:


●
the range,

●
the current fuel
consumption,

●
the distance remaining
to be travelled.


)
Press the up and down arrows on the
instrument panel navigator, associated
with the Peugeot Connect Media, to
display the various trip computer tabs
in succession.


- The trip "1"
tab with:


●
the distance travelled,

●
the average fuel
consumption,

●
the average speed,
for the fi rst trip.

!
i
i

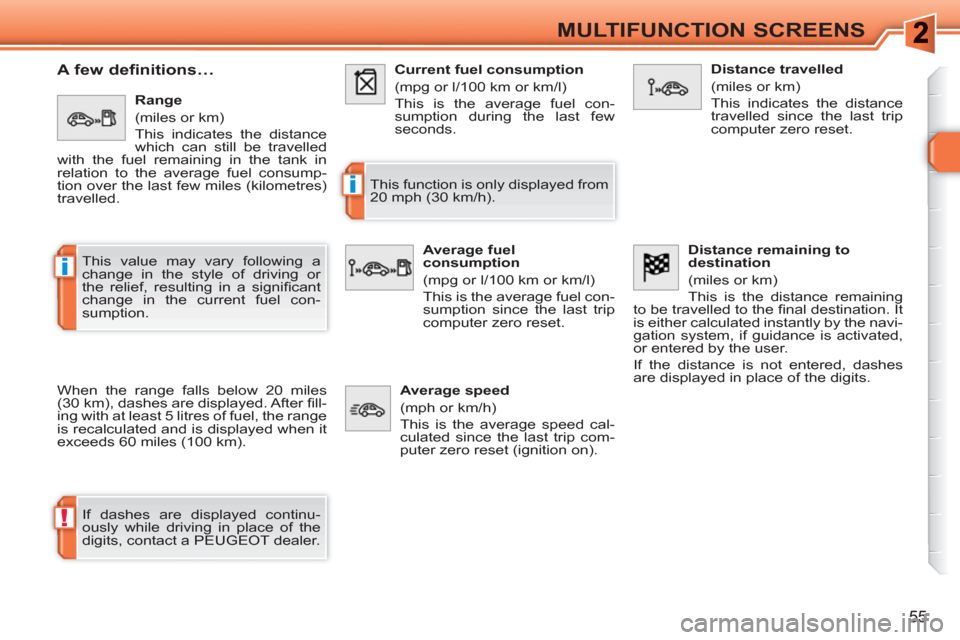

55
MULTIFUNCTION SCREENS






A few definitions…

When the range falls below 20 miles
(30 km), dashes are displayed. After fi ll-
ing with at least 5 litres of fuel, the range
is recalculated and is displayed when it
exceeds 60 miles (100 km).
If dashes are displayed continu-
ously while driving in place of the
digits, contact a PEUGEOT dealer. This function is only displayed from
20 mph (30 km/h).
This value may vary following a
change in the style of driving or
the relief, resulting in a signifi cant
change in the current fuel con-
sumption.
Range
(miles or km)
This indicates the distance
which can still be travelled
with the fuel remaining in the tank in
relation to the average fuel consump-
tion over the last few miles (kilometres)
travelled.
Current fuel consumption
(mpg or l/100 km or km/l)
This is the average fuel con-
sumption during the last few
seconds.

Average fuel
consumption
(mpg or l/100 km or km/l)
This is the average fuel con-
sumption since the last trip
computer zero reset.
Distance travelled
(miles or km)
This indicates the distance
travelled since the last trip
computer zero reset.


Average speed
(mph or km/h)
This is the average speed cal-
culated since the last trip com-
puter zero reset (ignition on).

Distance remaining to
destination
(miles or km)
This is the distance remaining
to be travelled to the fi nal destination. It
is either calculated instantly by the navi-
gation system, if guidance is activated,
or entered by the user.
If the distance is not entered, dashes
are displayed in place of the digits.

ii

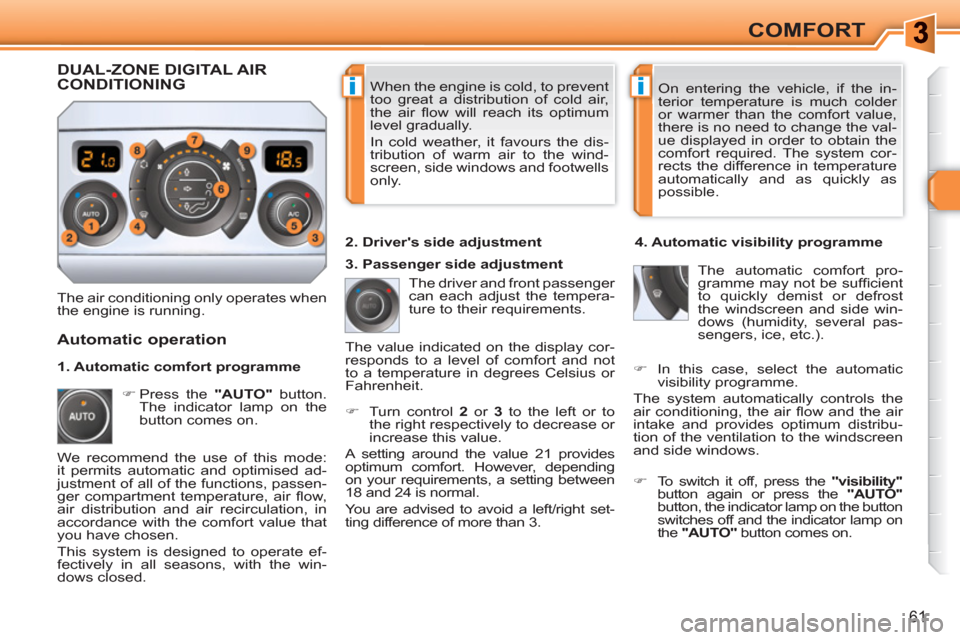

61
COMFORT
When the engine is cold, to prevent
too great a distribution of cold air,
the air fl ow will reach its optimum
level gradually.
In cold weather, it favours the dis-
tribution of warm air to the wind-
screen, side windows and footwells
only. On entering the vehicle, if the in-
terior temperature is much colder
or warmer than the comfort value,
there is no need to change the val-
ue displayed in order to obtain the
comfort required. The system cor-
rects the difference in temperature
automatically and as quickly as
possible.
The air conditioning only operates when
the engine is running. The driver and front passenger
can each adjust the tempera-
ture to their requirements.


)
Turn control 2
or 3
to the left or to
the right respectively to decrease or
increase this value.
A setting around the value 21 provides
optimum comfort. However, depending
on your requirements, a setting between
18 and 24 is normal.
You are advised to avoid a left/right set-
ting difference of more than 3.
4. Automatic visibility programme
The automatic comfort pro-
gramme may not be suffi cient
to quickly demist or defrost
the windscreen and side win-
dows (humidity, several pas-
sengers, ice, etc.).

Automatic operation



)
Press the "AUTO"
button.
The indicator lamp on the
button comes on.
2. Driver's side adjustment
DUAL-ZONE DIGITAL AIRCONDITIONING

We recommend the use of this mode:
it permits automatic and optimised ad-
justment of all of the functions, passen-
ger compartment temperature, air fl ow,
air distribution and air recirculation, in
accordance with the comfort value that
you have chosen.
This system is designed to operate ef-
fectively in all seasons, with the win-
dows closed. The value indicated on the display cor-
responds to a level of comfort and not
to a temperature in degrees Celsius or
Fahrenheit.


)
To switch it off, press the "visibility"

button again or press the "AUTO"

button, the indicator lamp on the button
switches off and the indicator lamp on
the "AUTO"
button comes on.


1. Automatic comfort programme
3. Passenger side adjustment


)
In this case, select the automatic
visibility programme.
The system automatically controls the
air conditioning, the air fl ow and the air
intake and provides optimum distribu-
tion of the ventilation to the windscreen
and side windows.

!
i

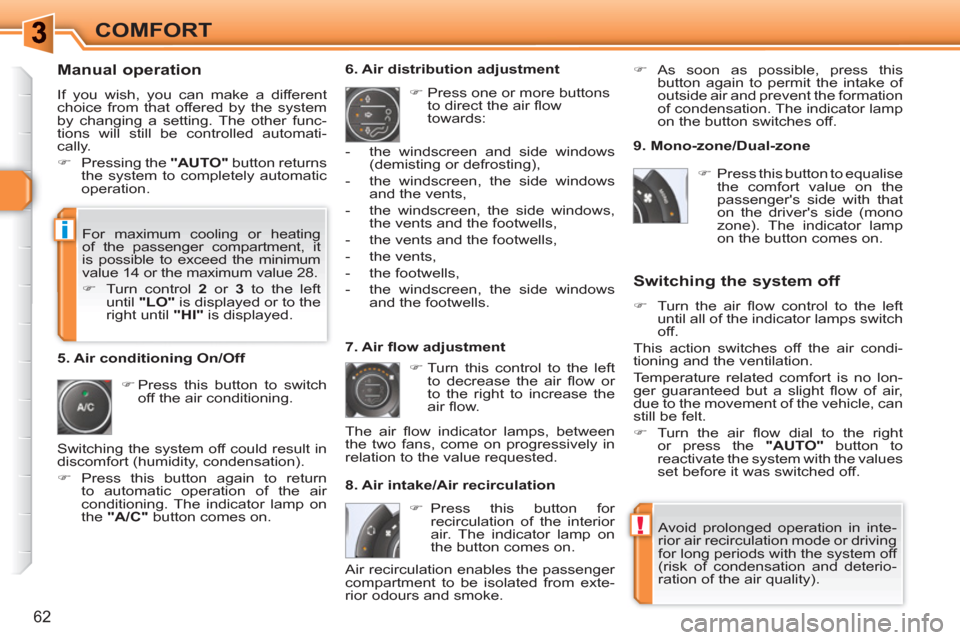

62
COMFORT

Manual operation

If you wish, you can make a different
choice from that offered by the system
by changing a setting. The other func-
tions will still be controlled automati-
cally.


)
Pressing the "AUTO"
button returns
the system to completely automatic
operation.


)
Press this button to switch
off the air conditioning.
6. Air distribution adjustment


)
Press one or more buttons
to direct the air fl ow
towards:

7. Air fl ow adjustment


)
Turn this control to the left
to decrease the air fl ow or
to the right to increase the
air fl ow.

8. Air intake/Air recirculation


Switching the system off



)
Turn the air fl ow control to the left
until all of the indicator lamps switch
off.
This action switches off the air condi-
tioning and the ventilation.
Temperature related comfort is no lon-
ger guaranteed but a slight fl ow of air,
due to the movement of the vehicle, can
still be felt.


)
Turn the air fl ow dial to the right
or press the "AUTO"
button to
reactivate the system with the values
set before it was switched off.


)
Press this button for
recirculation of the interior
air. The indicator lamp on
the button comes on.
5. Air conditioning On/Off
Avoid prolonged operation in inte-
rior air recirculation mode or driving
for long periods with the system off
(risk of condensation and deterio-
ration of the air quality).

- the windscreen and side windows
(demisting or defrosting),

- the windscreen, the side windows
and the vents,

- the windscreen, the side windows,
the vents and the footwells,

- the vents and the footwells,

- the vents,

- the footwells,

- the windscreen, the side windows
and the footwells.


The air fl ow indicator lamps, between
the two fans, come on progressively in
relation to the value requested.

)
As soon as possible, press this
button again to permit the intake of
outside air and prevent the formation
of condensation. The indicator lamp
on the button switches off.

For maximum cooling or heating
of the passenger compartment, it
is possible to exceed the minimum
value 14 or the maximum value 28.


)
Turn control 2
or 3
to the left
until "LO"
is displayed or to the
right until "HI"
is displayed.
9. Mono-zone/Dual-zone


)
Press this button to equalise
the comfort value on the
passenger's side with that
on the driver's side (mono
zone). The indicator lamp
on the button comes on.


Air recirculation enables the passenger
compartment to be isolated from exte-
rior odours and smoke. Switching the system off could result in
discomfort (humidity, condensation).


)
Press this button again to return
to automatic operation of the air
conditioning. The indicator lamp on
the "A/C"
button comes on.
