2011 Peugeot 308 SW BL fuse box

11
Direction indicators 128
Hazard warning lamps 128
Horn 128
Tyre under-infl ation detection 129
Emergency or assistance call 130
Braking assistance systems 130
Trajectory control systems 131
Front seat belts 132
Airbags 137„
„
„
„
„
„
„
„
„
SAFETY 128 Î 140
Parking brake 141
Manual gearbox 141
Gear effi ciency indicator 142
6-speed electronic
gear control gearbox 143
Automatic gearbox 147
Speed limiter 150
Cruise control 152
Parking sensors 154„
„
„
„
„
„
„
„
DRIVING 141 Î 155
Bonnet 157
Running out of fuel (Diesel) 158
Petrol engines 159
Diesel engines 160
Checking levels 161
Checks 162„
„
„
„
„
„
CHECKS
156 Î 163
Temporary puncture repair kit 164
Changing a wheel 172
Changing a bulb 179
Changing a fuse 186
Battery 192
Energy economy mode 194
Changing a wiper blade 194
Towing the vehicle 195
Towing a trailer 197
Fitting roof bars 198
Very cold climate screen 199
Accessories 199„
„
„
„
„
„
„
„
„
„
„
„
PRACTICAL
INFORMATION 164 Î 200
Petrol and Biofl ex engines 201
Petrol and Biofl ex weights 205
Diesel engines 214
Diesel weights 217
Dimensions 226
Identifi cation markings 227„
„
„
„
„
„
TECHNICAL
DATA 201 Î 228
AUDIO EQUIPMENT
and TELEMATICS 229 Î 317
VISUAL
SEARCH 318 Î 324
ALPHABETICAL
INDEX 325 Î 329

Emergency or assistance 229
Peugeot Connect Com 3D 233
Peugeot Connect Navigation 273
Peugeot Connect Sound 301„
„
„
„

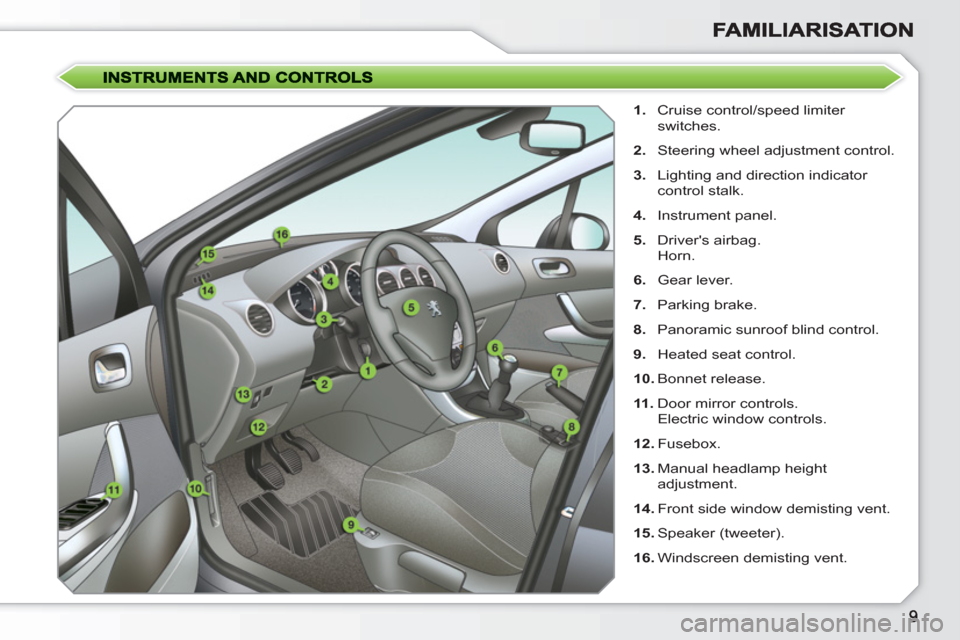

1.
Cruise control/speed limiter
switches.

2.
Steering wheel adjustment control.

3.
Lighting and direction indicator
control stalk.

4.
Instrument panel.

5.
Driver's airbag.
Horn.

6.
Gear lever.

7.
Parking brake.

8.
Panoramic sunroof blind control.

9.
Heated seat control.

10.
Bonnet release.

11 .
Door mirror controls.
Electric window controls.

12.
Fusebox.

13.
Manual headlamp height
adjustment.

14.
Front side window demisting vent.

15.
Speaker (tweeter).

16.
Windscreen demisting vent.

10
159
CHECKS
PETROL ENGINES
The various caps and covers allow access for checking the levels of the various fl uids and for replacing certain components.


1.
Power steering reservoir.

2.
Screenwash and headlamp wash
reservoir.

3.
Coolant reservoir.
4.
Brake fl uid reservoir.

5.
Battery/Fuses.

6.
Fusebox.
7.
Air fi lter.

8.
Engine oil dipstick.

9.
Engine oil fi ller cap.

1
160
CHECKS
DIESEL ENGINES
The various caps and covers allow access for checking the levels of the various fl uids, for replacing certain components and
for priming the fuel system.


1.
Power steering reservoir.

2.
Screenwash and headlamp wash
reservoir.

3.
Coolant reservoir.
4.
Brake fl uid reservoir.

5.
Battery/Fuses.

6.
Fusebox.

7.
Air fi lter.
8.
Engine oil dipstick.

9.
Engine oil fi ller cap.

10.
Priming pump * .

11 .
Bleed screw * .

*
According to engine.

1
!
i
186
PRACTICAL INFORMATION
PEUGEOT will not accept re-
sponsibility for the cost incurred in
repairing your vehicle or for recti-
fying malfunctions resulting from
the installation of accessories not
supplied and not recommended
by PEUGEOT and not installed in
accordance with its instructions,
in particular when the combined
consumption of all of the addition-
al equipment connected exceeds
10 milliamperes.



Installing electrical accessories
Your vehicle's electrical system is
designed to operate with standard
or optional equipment.
Before installing other electrical equip-
ment or accessories on your vehicle,
contact a PEUGEOT dealer.
CHANGING A FUSE

Access to the tools

The extraction pliers and the spare fus-
es are installed on the back of the dash-
board fusebox cover.
To gain access to them:


)
turn the screw a quarter of a turn to
the left,

)
unclip the cover by pulling at the top
right,

)
remove the cover completely,

)
remove the pliers.



Changing a fuse

Before changing a fuse, the cause of
the failure must be identifi ed and recti-
fi ed.


)
Identify the faulty fuse by checking
the condition of its fi lament.


)
Use the special pliers to extract the
fuse from its housing.

)
Always replace the faulty fuse with a
fuse of the same rating.

)
Check the correspondence between
the number etched on the box, the
rating etched on the fuse and the
tables below.
Correct

Incorrect

1
187
PRACTICAL INFORMATION

Dashboard fuses

The fusebox is placed in the lower sec-
tion of the dashboard (left-hand side).

Access to the fuses


)
refer to the paragraph "Access to
the tools".

Fuse tables


Fuse N°



Rating


Functions



F1



15 A

Rear wiper.


F2



30 A

Locking and deadlocking earth.


F3



5 A

Airbags and pretensioners control unit.


F4



10 A

Clutch pedal and dual-function brake switches,
electrochromatic rear view mirror, air conditioning,
steering wheel angle sensor, automatic gearbox,
switching and protection unit.


F5



30 A

Front one-touch electric windows, folding mirrors
supply, panoramic sunroof blind.


F6



30 A

Rear one-touch electric windows, trailer fusebox.


F7



5 A

Front and rear courtesy lamps, map reading lamps,
rear reading lamps, sun visor illumination, glove
box illumination, torch.


F8



20 A

Audio equipment, audio/telephone, CD changer,
multifunction screen, tyre under-infl ation detection.


F9



30 A

Front 12 V socket.


F10



15 A

Steering mounted controls, alarm siren, alarm
control unit.


F11



15 A

Low current ignition switch.

1
188
PRACTICAL INFORMATION


Fuse N°



Rating


Functions



G36



30 A

Driver and passenger heated seats.


G37



5 A

Driving position memory unit, lighting rheostat.


G38



30 A

Driver's seat memory unit.


G39



30 A

Trailer fusebox supply.


G40



30 A

Hi-Fi amplifi er.

Fuse N°



Rating


Functions



F12



15 A

Instrument panel, seat belt and passenger's front
airbag warning lamps display, air conditioning,
driver's seat memory unit, 2nd row rear seat
switches, driving school module.


F13



5 A

Engine fusebox, airbags, electronic gear control
gearbox gear lever, trailer fusebox.


F14



15 A

Multifunction screen, amplifi er, Bluetooth system,
rain/brightness sensor, parking sensors control
unit.


F15



30 A

Locking and deadlocking.


F17



40 A

Rear screen and door mirrors demist/defrost.


SH



-

PARC shunt.

1
189
PRACTICAL INFORMATION

Engine compartment fuses

The fusebox is placed in the engine
compartment near the battery (left-hand
side).

Access to the fuses


)
Unclip the cover.

)
Change the fuse (see corresponding
paragraph).

)
When you have fi nished, close the
cover carefully to ensure sealing of
the fusebox.

Fuse table


Fuse N°



Rating


Functions



F1



20 A

Engine control unit supply, injection pump and EGR
electrovalves (2 L HDI), injectors (2 L HDI).


F2



15 A

Horn.


F3



10 A

Front/rear wash-wipe.


F4



20 A

Headlamp wash.


F5



15 A

Canister purge, turbine discharge and Turbo
pressure regulation electrovalves (1.6 l THP 16V),
oil vapour heater (1.6 l THP 16V), diesel heater
(1.6 l HDI).


F6



10 A

Vehicle speed sensor, ABS/ESP control unit.


F7



10 A

Power steering control unit, automatic gearbox,
engine coolant level detector.


F8



25 A

Starter motor control.


F9



10 A

Diagnostic socket, directional headlamps, air
fl ow sensor (Diesel), particle emission fi lter pump
(Diesel)


F10



30 A

Engine control unit actuators (petrol: ignition coils,
electrovalves, oxygen sensors, injectors, heaters, fuel
pump, electronic thermostat) (Diesel: electrovalves,
heaters).


F11



40 A

Air conditioning blower.
