2011 Peugeot 308 SW BL child restraint

120
CHILD SAFETY

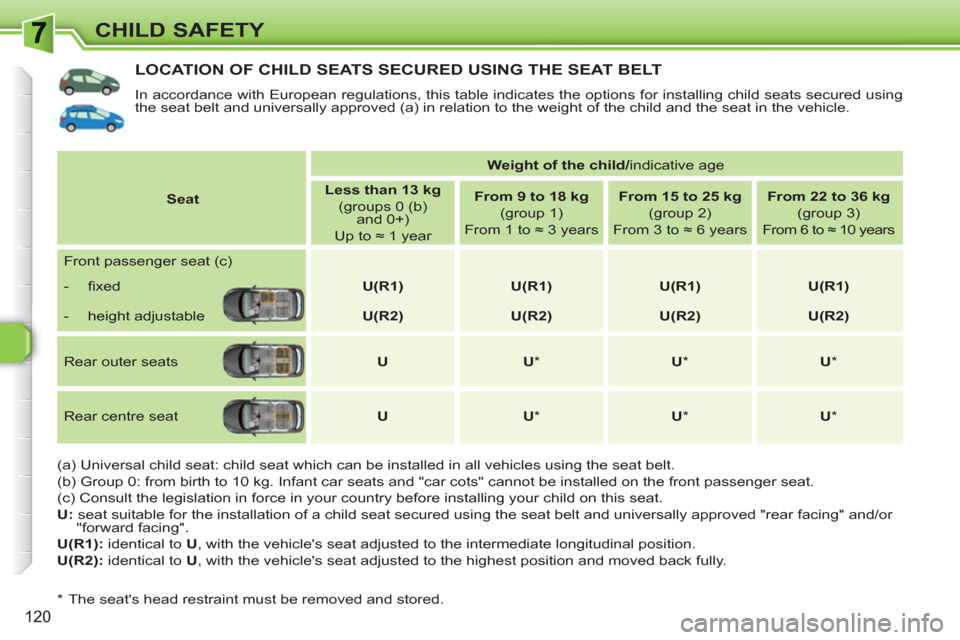

LOCATION OF CHILD SEATS SECURED USING THE SEAT BELT
In accordance with European regulations, this table indicates the options for installing child seats secured using
the seat belt and universally approved (a) in relation to the weight of the child and the seat in the vehicle.
(a) Universal child seat: child seat which can be installed in all vehicles using the seat belt.
(b) Group 0: from birth to 10 kg. Infant car seats and "car cots" cannot be installed on the front passenger seat.
(c) Consult the legislation in force in your country before installing your child on this seat.

U
: seat suitable for the installation of a child seat secured using the seat belt and universally approved "rear facing" and/or
"forward facing".

U(R1)
: identical to U
, with the vehicle's seat adjusted to the intermediate longitudinal position.

U(R2)
: identical to U
, with the vehicle's seat adjusted to the highest position and moved back fully.

*
The seat's head restraint must be removed and stored.

Seat



Weight of the child/
indicative age


Less than 13 kg


(groups 0 (b)
and 0+)
Up to ≈ 1 year

From 9 to 18 kg


(group 1)
From 1 to ≈ 3 years

From 15 to 25 kg


(group 2)
From 3 to ≈ 6 years

From 22 to 36 kg


(group 3)
From 6 to ≈ 10 years

Front passenger seat (c)



- fi xed


U(R1)



U(R1)



U(R1)



U(R1)





- height adjustable


U(R2)



U(R2)



U(R2)



U(R2)



Rear outer seats

U



U

*


U

*


U

*


Rear centre seat

U



U

*


U

*


U

*

!
122
CHILD SAFETY

Installing a booster seat
The chest part of the seat belt must
be positioned on the child's shoulder
without touching the neck.
Ensure that the lap part of the seat
belt passes correctly over the child's
thighs.
PEUGEOT recommends the use of
a booster seat which has a back, fi t-
ted with a seat belt guide at shoulder
level.
As a safety precaution, do not leave:


- a child or children alone and
unsupervised in a vehicle,

- a child or an animal in a vehicle
which is exposed to the sun, with
the windows closed,

- the keys within reach of children
inside the vehicle.
To prevent accidental opening of the
doors and rear windows, use the "Child
lock".
Take care not to open the rear windows
by more than one third.
To protect young children from the
rays of the sun, fi t side blinds on the
rear windows.
The incorrect installation of a child
seat in a vehicle compromises the
child's protection in the event of an
accident.
Remember to fasten the seat belts or the
child seat harnesses keeping the slack
relative to the child's body to a minimum,
even for short journeys.
When installing a child seat using the
seat belt, ensure that the seat belt is
tightened correctly on the child seat and
that it secures the child seat fi rmly on the
seat of your vehicle.
For optimum installation of the "forwards-
facing" child seat, ensure that the back of
the child seat is in contact with the back
of the vehicle's seat and that the head re-
straint does not cause any discomfort.
If the head restraint has to be removed,
ensure that it is stored or attached se-
curely to prevent it from being thrown
around the vehicle in the event of sharp
braking. Children under the age of 10 must not
travel in the "forwards-facing" position
on the front passenger seat, unless
the rear seats are already occupied
by other children, cannot be used or
are absent.
Deactivate the passenger airbag
when a "rearwards-facing" child seat
is installed on the front seat.
Otherwise, the child would risk being
seriously injured or killed if the airbag
were to infl ate.

i
!
i

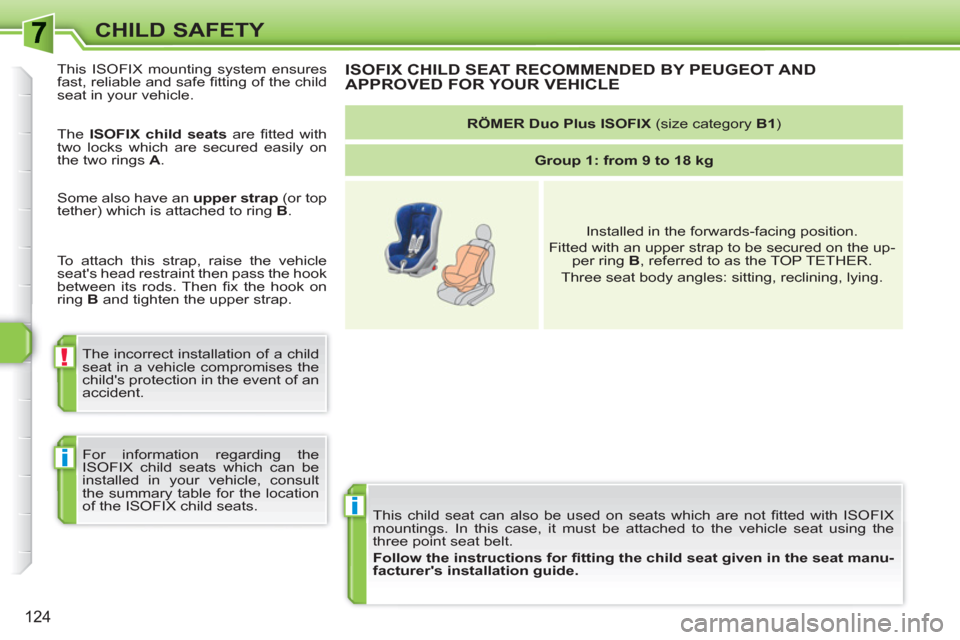

124
CHILD SAFETY
This child seat can also be used on seats which are not fi tted with ISOFIX
mountings. In this case, it must be attached to the vehicle seat using the
three point seat belt.

Follow the instructions for fi tting the child seat given in the seat manu-
facturer's installation guide.

ISOFIX CHILD SEAT RECOMMENDED BY PEUGEOT ANDAPPROVED FOR YOUR VEHICLE



RÖMER Duo Plus ISOFIX
(size category B1
)


Group 1: from 9 to 18 kg





Installed in the forwards-facing position.
Fitted with an upper strap to be secured on the up-
per ring B
, referred to as the TOP TETHER.
Three seat body angles: sitting, reclining, lying. This ISOFIX mounting system ensures
fast, reliable and safe fi tting of the child
seat in your vehicle.
The ISOFIX child seats
are fi tted with
two locks which are secured easily on
the two rings A
.
Some also have an upper strap
(or top
tether) which is attached to ring B
.
The incorrect installation of a child
seat in a vehicle compromises the
child's protection in the event of an
accident.
For information regarding the
ISOFIX child seats which can be
installed in your vehicle, consult
the summary table for the location
of the ISOFIX child seats. To attach this strap, raise the vehicle
seat's head restraint then pass the hook
between its rods. Then fi x the hook on
ring B
and tighten the upper strap.

1
i
199
PRACTICAL INFORMATION
ACCESSORIES
A wide range of accessories and genu-
ine parts is offered by the PEUGEOT
dealer network.
These accessories and parts have been
tested and approved for reliability and
safety.
They are all adapted to your vehicle and
benefi t from PEUGEOT's recommenda-
tion and warranty.


"Comfort":
parking sensors, side and rear blinds,
door defl ectors, isotherm module, head
restraint-mounted coat hanger, front
centre armrest, reading lamp, scented
air freshener...

**
Sunroof which must be fi tted by a
PEUGEOT dealer.
Removable protective screen which
prevents the accumulation of snow at
the radiator cooling fan.

Fitting



)
Offer up the very cold climate screen
to the front of the lower section of
the front bumper.

)
Press around its edge to engage its
fi xing clips one by one.

Do not forget to remove the very
cold climate screen:


- when the ambient temperature
exceeds 10 °C,

- when towing,


- at speeds above 75 mph (120 km/h).



Removal



)
Use a screwdriver as a lever to
release each fi xing clip in turn.

*
According to country.

Conversion kits
You can obtain an "Enterprise" kit to
convert a trade vehicle to a private car
and vice-versa.

"Transport solutions":
boot liner, boot mat, boot spacers,
storage under parcel shelf, transverse
roof bars, bicycle carrier, ski carrier, roof
box, towbars, wiring harnesses...
The towbar and its wiring harness must
be fi tted by a PEUGEOT dealer.

"Style":
leather steering wheel, aluminium gear
lever knob, sunroof ** , alloy wheels, wheel
trims, sport exhaust, body styling kit.

"Security and safety":
anti-theft alarm, wheel security locks,
vehicle tracking system, child seats and
booster cushions, breathalyser, fi rst aid
kit, warning triangle, high visibility jack-
et, dog guard, front foglamp kit, tempo-
rary puncture repair kit, snow chains,
anti-skid covers.
