2011 NISSAN LATIO diagram

LT-98
< SERVICE INFORMATION >
INTERIOR ROOM LAMP

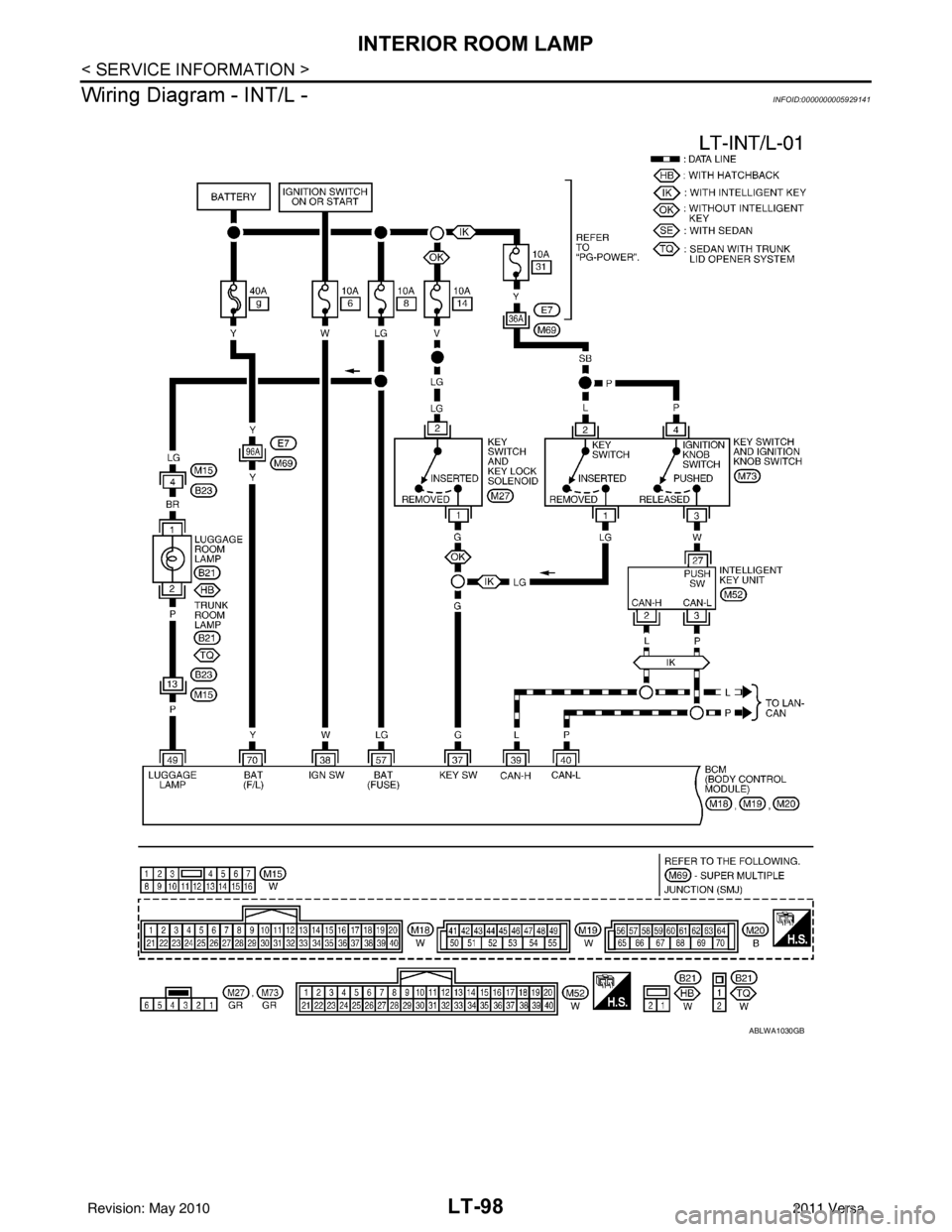

Wiring Diagram - INT/L -
INFOID:0000000005929141
ABLWA1030GB
Revision: May 2010 2011 Versa

LT-112
< SERVICE INFORMATION >
ILLUMINATION
Wiring Diagram - ILL -
INFOID:0000000005929153
ABLWA1034GB
Revision: May 2010 2011 Versa

ENGINE MAINTENANCE (HR16DE)MA-25
< SERVICE INFORMATION >
C
DE
F
G H
I
J
K
M A
B
MA
N
O P
• Checking and adjusting plug gap is not required between
change intervals.
INSTALLATION
Installation is in the reverse order of removal.
* :Always check with the Parts Department for the latest parts information.
EVAP VAPOR LINES
EVAP VAPOR LINES : Checking EVAP Vapor LineINFOID:0000000005931149
1. Visually inspect EVAP vapor lines for improper attachment and for cracks, damage, loose connections,
chafing and deterioration.
2. Inspect fuel tank filler cap vacuum relief valve for clogging, sticking, etc.
Refer to EC-79, "
System Diagram".
JPBIA0031ZZ
Make : Denso
Part number* : FXE20HE-11
Gap (nominal) : 1.1 mm (0.043 in)
Revision: May 2010 2011 Versa

MT-1
TRANSMISSION/TRANSAXLE
DE
F
G H
I
J
K L
M
SECTION MT
A
B
MT
N
O P
CONTENTS
MANUAL TRANSAXLE
RS5F91R
SERVICE INFORMATION .. ..........................
3
PRECAUTIONS .............................................. .....3
Precaution for Supplemental Restraint System
(SRS) "AIR BAG" and "SEAT BELT PRE-TEN-
SIONER" ............................................................. ......
3
Precaution Necessary for Steering Wheel Rota-
tion After Battery Disconnect ............................... ......
3
Precaution for Procedure without Cowl Top Cover ......4
Service Notice or Precaution .....................................4
PREPARATION ...................................................5
Special Service Tools ........................................ ......5
Commercial Service Tools .......................................7
NOISE, VIBRATION AND HARSHNESS
(NVH) TROUBLESHOOTING .............................
8
NVH Troubleshooting Chart ................................ ......8
DESCRIPTION ....................................................9
System Diagram .................................................. ......9
System Description ...................................................9
M/T OIL ...............................................................11
Draining ...................................................................11
Refilling ...................................................................11
Inspection ................................................................11
SIDE OIL SEAL ..................................................12
Removal and Installation .........................................12
POSITION SWITCH ........................................ ....13
Checking ............................................................. ....13
CONTROL LINKAGE .........................................14
Exploded View .................................................... ....14
Removal and Installation .........................................14
Inspection ............................................................ ....15
AIR BREATHER HOSE ......................................16
Exploded View .................................................... ....16
Removal and Installation ..................................... ....16
TRANSAXLE ASSEMBLY ................................17
Exploded View .........................................................17
Removal and Installation .........................................17
Disassembly and Assembly .....................................18
INPUT SHAFT AND GEAR ...............................36
Disassembly and Assembly .....................................36
MAINSHAFT AND GEAR .................................37
Disassembly and Assembly .....................................37
FINAL DRIVE ....................................................41
Disassembly and Assembly .....................................41
SHIFT CONTROL ..............................................42
Inspection ................................................................42
SERVICE DATA AND SPECIFICATIONS
(SDS) .................................................................
43
General Specification ..............................................43
RS6F94R
SERVICE INFORMATION .. .........................
44
PRECAUTIONS .................................................44
Precaution for Supplemental Restraint System
(SRS) "AIR BAG" and "SEAT BELT PRE-TEN-
SIONER" ............................................................. ....
44
Precaution Necessary for Steering Wheel Rota-
tion After Battery Disconnect ...................................
44
Precaution for Procedure without Cowl Top Cover ....45
Precaution ...............................................................45
PREPARATION .................................................46
Special Service Tool ................................................46
Commercial Service Tool ........................................48
NOISE, VIBRATION AND HARSHNESS
(NVH) TROUBLESHOOTING ...........................
51
NVH Troubleshooting Chart ....................................51
Revision: May 2010 2011 Versa

DESCRIPTIONMT-9
< SERVICE INFORMATION > [RS5F91R]
D
E
F
G H
I
J
K L
M A
B
MT
N
O P
DESCRIPTION
System DiagramINFOID:0000000005929660
CROSS-SECTIONAL VIEW
System DescriptionINFOID:0000000005929661
DOUBLE-CONE SYNCHRONIZER
1. Clutch housing 2. 1st-2nd synchronizer hub assembly 3. 3rd-4th synchronizer hub assembly
4. 5th input gear 5. 5th-reverse synchronizer hub assembly 6. 5th-reverse baulk ring
7. 5th main gear 8. 4th main gear 9. 3rd main gear
10. 2nd main gear 11. 2nd double cone synchronizer 12. 1st double cone synchronizer
13. 1st main gear 14. Differential side bearing 15. Differential
16. Final gear 17. Mainshaft 18. Input shaft
JPDIC0580ZZ
Revision: May 2010 2011 Versa

MTC-1
AIR CONDITIONER
C
DE
F
G H
I
K L
M
SECTION MTC
A
B
MTC
N
O P
CONTENTS
MANUAL AIR CONDITIONER
SERVICE INFORMATION .. ..........................3
PRECAUTIONS .............................................. .....3
Precaution for Supplemental Restraint System
(SRS) "AIR BAG" and "SEAT BELT PRE-TEN-
SIONER" ............................................................. ......
3
Precaution Necessary for Steering Wheel Rota-
tion After Battery Disconnect ............................... ......
3
Precaution for Procedure without Cowl Top Cover ......4
Precaution for Working with HFC-134a (R-134a) ......4
General Refrigerant Precaution ................................4
Oil Precaution ............................................................5
Precaution for Refrigerant Connection ......................5
Precaution for Service of Compressor ................ ......8
Precaution for Service Equipment ....................... ......8
Precaution for Leak Detection Dye ...........................9
PREPARATION ..................................................11
HFC-134a (R-134a) Service Tool and Equipment ....11
Commercial Service Tool ........................................14
REFRIGERATION SYSTEM ..............................15
Refrigerant Cycle ................................................ ....15
Refrigerant System Protection ................................15
Component Part Location ................................... ....16
OIL ......................................................................17
Maintenance of Oil Quantity in Compressor ....... ....17
AIR CONDITIONER CONTROL .........................19
Control Operation ................................................ ....19
Discharge Air Flow ..................................................20
System Description .................................................20
TROUBLE DIAGNOSIS .....................................22
CONSULT-III Function (BCM) ............................. ....22
How to Perform Trouble Diagnosis for Quick and
Accurate Repair ......................................................
23
Component Parts and Harness Connector Loca-
tion ...................................................................... ....
23
Schematic ...............................................................26
Wiring Diagram - Heater - .......................................27
Wiring Diagram - A/C,M - .................................... ....28
Operational Check ...................................................31
Mode Door ...............................................................32
Air Mix Door .............................................................33
Intake Door ..............................................................34
Front Blower Motor Circuit .......................................34
Magnet Clutch Circuit (If Equipped) ..................... ....38
Insufficient Cooling ..................................................46
Insufficient Heating ..................................................53
Noise .......................................................................54
CONTROLLER ..................................................56
Removal and Installation .........................................56
Disassembly and Assembly .....................................57
THERMO CONTROL AMPLIFIER ....................58
Removal and Installation .........................................58
A/C UNIT ASSEMBLY ......................................59
Removal and Installation .........................................59
Disassembly and Assembly .....................................61
BLOWER MOTOR ............................................63
Removal and Installation .........................................63
INTAKE DOOR ..................................................64
Intake Door Cable Adjustment .................................64
AIR MIX DOOR .................................................65
Air Mix Door Cable Adjustment ...............................65
MODE DOOR ....................................................66
Mode Door Cable Adjustment .................................66
BLOWER FAN RESISTOR ...............................67
Removal and Installation .........................................67
HEATER CORE .................................................68
Removal and Installation .........................................68
DUCTS AND GRILLES .....................................69
Removal and Installation .........................................69
Revision: May 2010 2011 Versa

TROUBLE DIAGNOSISMTC-27
< SERVICE INFORMATION >
C
DE
F
G H
I
K L
M A
B
MTC
N
O P

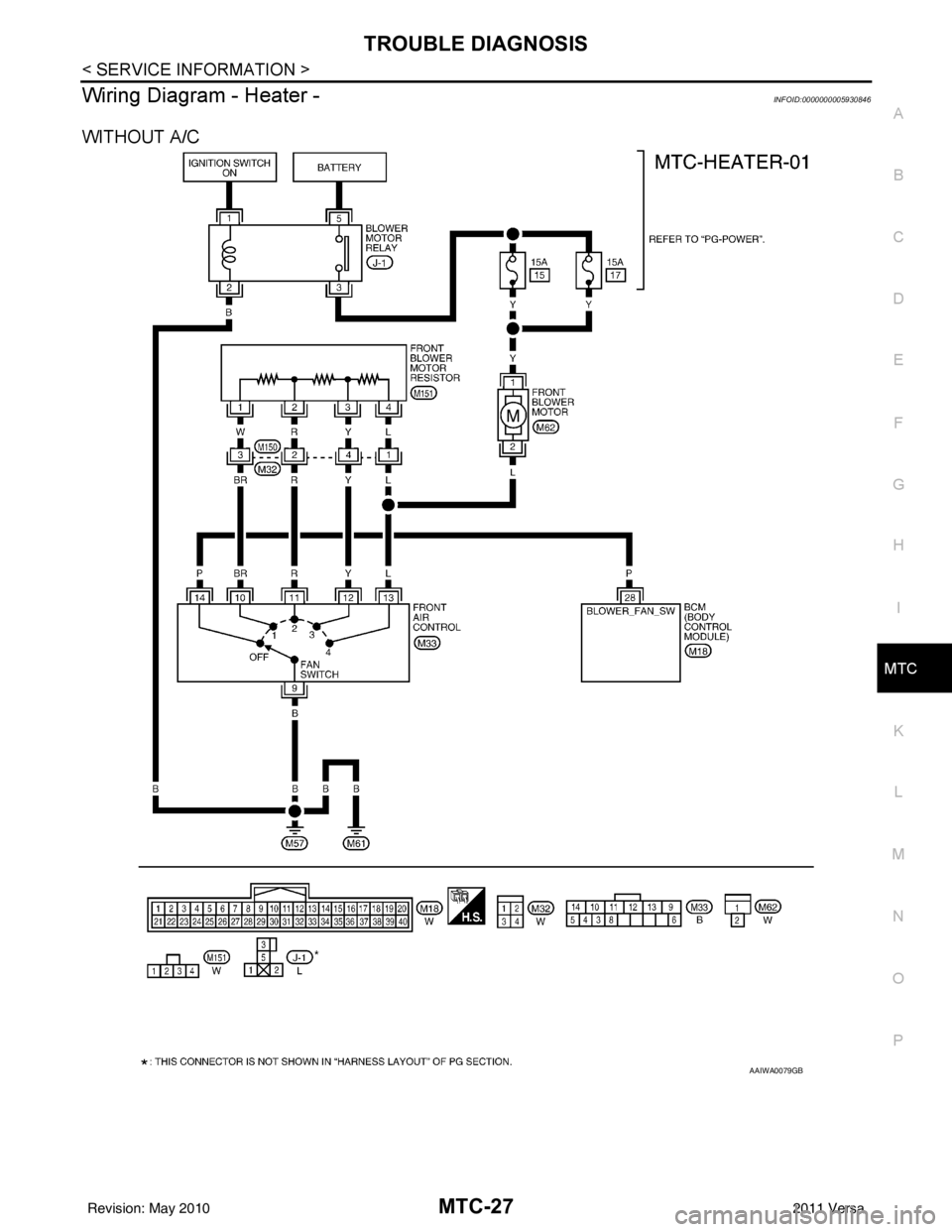

Wiring Diagram - Heater -INFOID:0000000005930846
WITHOUT A/C
AAIWA0079GB
Revision: May 2010 2011 Versa

MTC-28
< SERVICE INFORMATION >
TROUBLE DIAGNOSIS

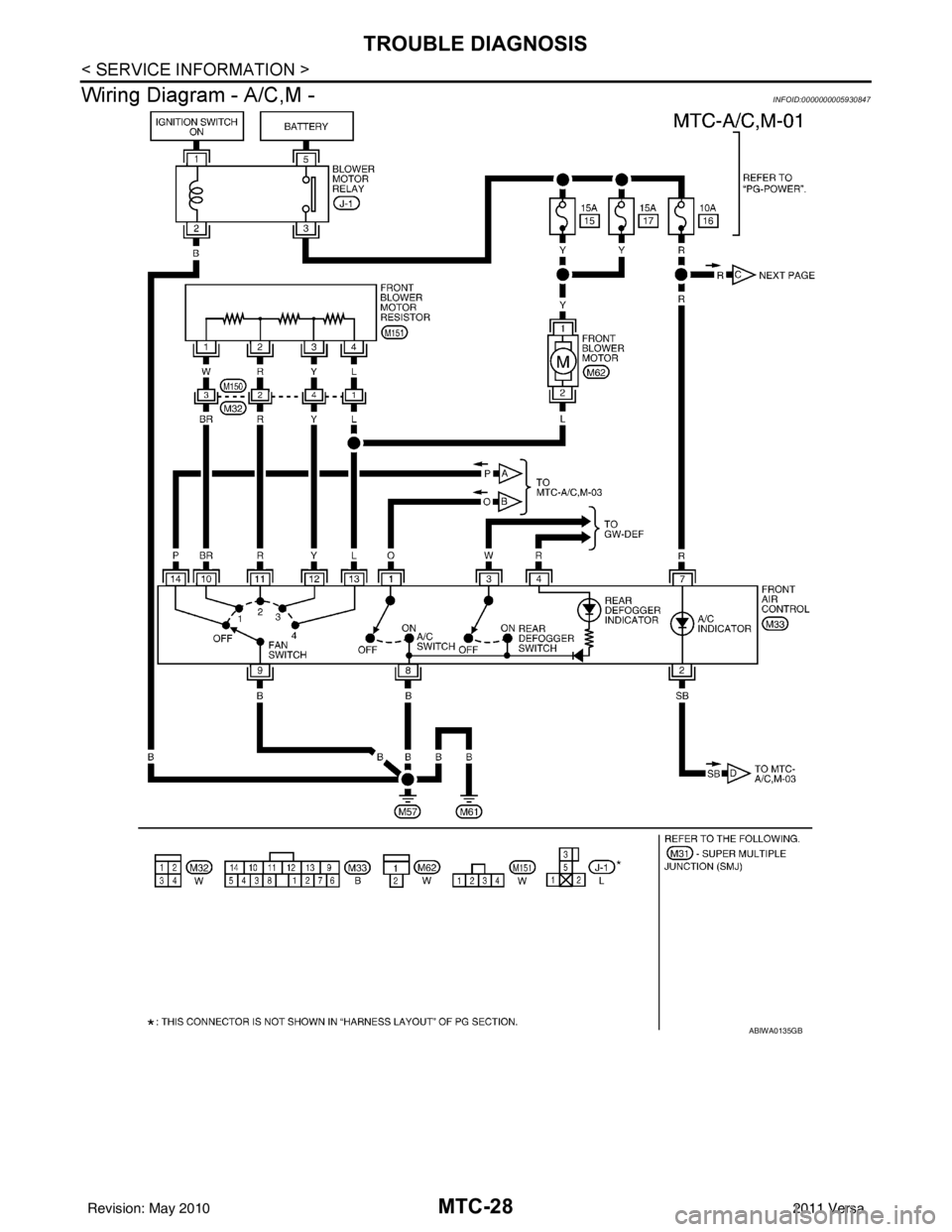

Wiring Diagram - A/C,M -
INFOID:0000000005930847
ABIWA0135GB
Revision: May 2010 2011 Versa
