2011 NISSAN LATIO diagram

HEADLAMP (FOR CANADA) - DAYTIME LIGHT SYSTEM -
LT-31
< SERVICE INFORMATION >
C
D E
F
G H
I
J
L
M A
B
LT
N
O P

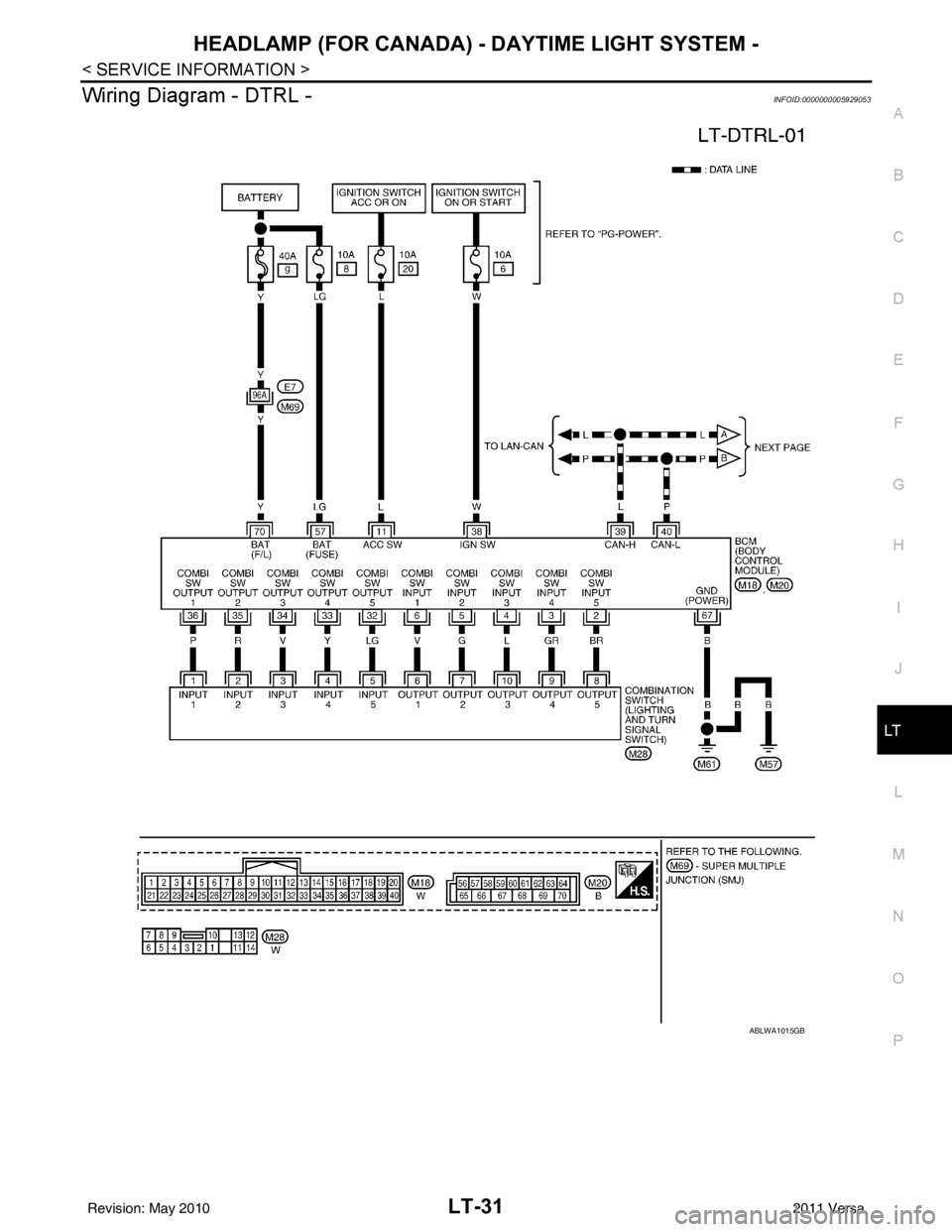

Wiring Diagram - DTRL -INFOID:0000000005929053
ABLWA1015GB
Revision: May 2010 2011 Versa

FRONT FOG LAMPLT-43
< SERVICE INFORMATION >
C
DE
F
G H
I
J
L
M A
B
LT
N
O P
Wiring Diagram - F/FOG -INFOID:0000000005929068
ABLWA1016GB
Revision: May 2010 2011 Versa

LT-54
< SERVICE INFORMATION >
TURN SIGNAL AND HAZARD WARNING LAMPS
Wiring Diagram - TURN -
INFOID:0000000005929084
ABLWA1018GB
Revision: May 2010 2011 Versa

LT-64
< SERVICE INFORMATION >
COMBINATION SWITCH
COMBINATION SWITCH

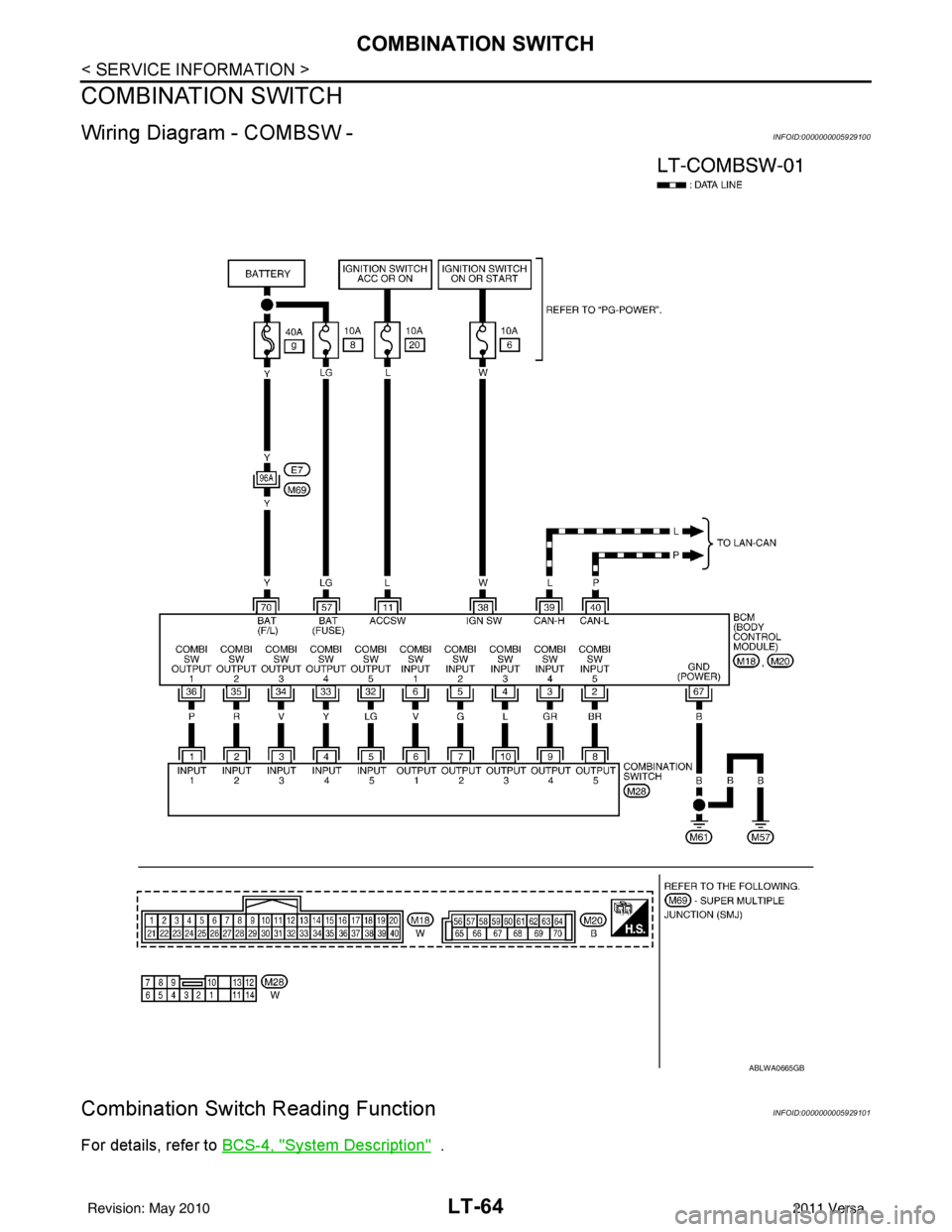

Wiring Diagram - COMBSW -INFOID:0000000005929100
Combination Switch Reading FunctionINFOID:0000000005929101
For details, refer to BCS-4, "System Description" .
ABLWA0665GB
Revision: May 20102011 Versa

LT-68
< SERVICE INFORMATION >
STOP LAMP
STOP LAMP
Wiring Diagram - STOP/LINFOID:0000000005929106
HATCHBACK
ABLWA1021GB
Revision: May 20102011 Versa

STOP LAMPLT-69
< SERVICE INFORMATION >
C
DE
F
G H
I
J
L
M A
B
LT
N
O P
Wiring Diagram - STOP/LINFOID:0000000005929107
SEDAN
Bulb Replacement (High-Mounted Stop Lamp)INFOID:0000000005929108
HATCHBACK
The LED element is not serviced separately, the hi gh-mounted stop lamp must be replaced as an assembly.
Refer to LT-70, "
Removal and Installation (High-Mounted Stop Lamp)".
ABLWA1022GB
Revision: May 2010 2011 Versa

LT-72
< SERVICE INFORMATION >
BACK-UP LAMP
BACK-UP LAMP
Wiring Diagram - BACK/L -INFOID:0000000005929112
Bulb ReplacementINFOID:0000000005929113
Refer to LT-87, "Bulb Replacement" .
ABLWA1023GB
Revision: May 2010 2011 Versa

PARKING, LICENSE PLATE AND TAIL LAMPS
LT-77
< SERVICE INFORMATION >
C
D E
F
G H
I
J
L
M A
B
LT
N
O P

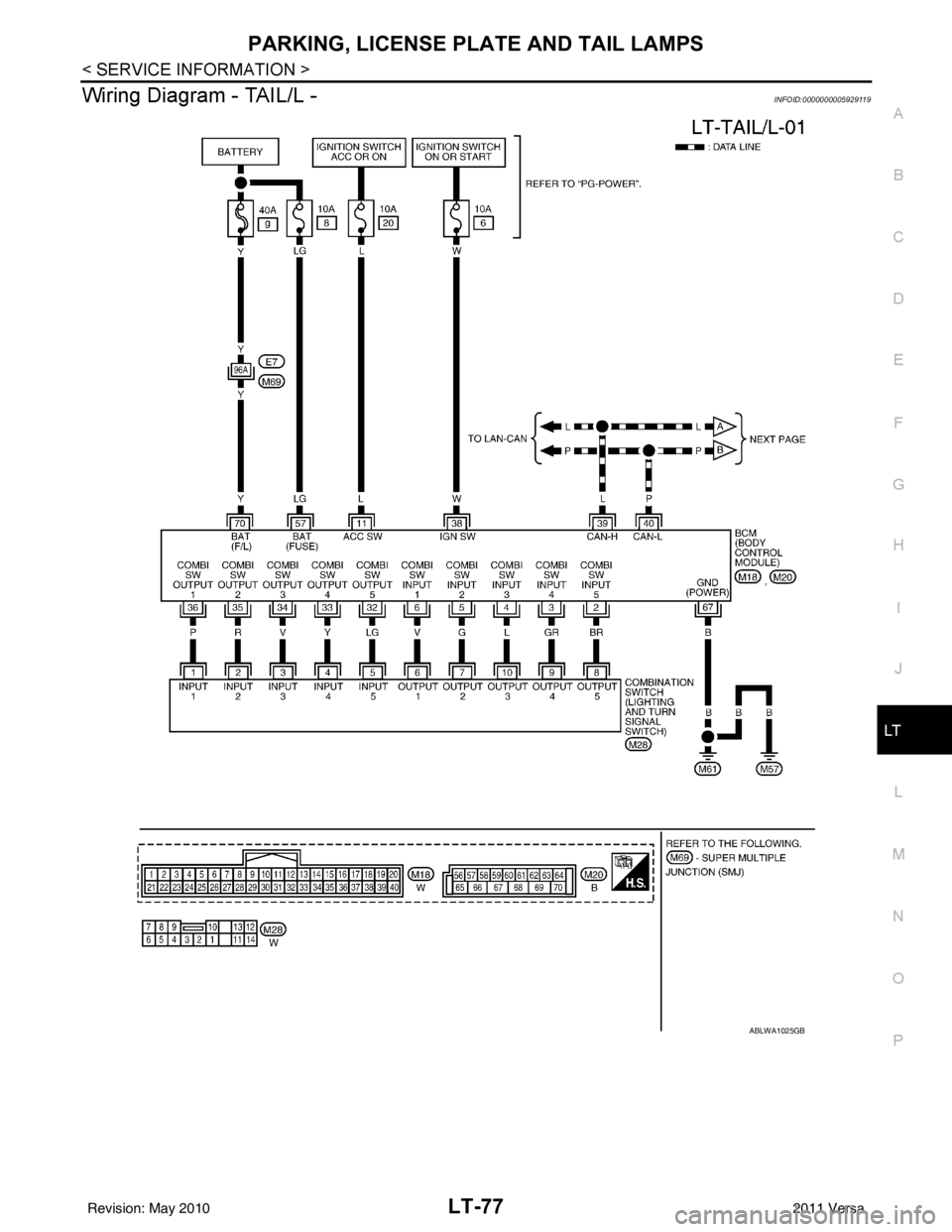

Wiring Diagram - TAIL/L -INFOID:0000000005929119
ABLWA1025GB
Revision: May 2010 2011 Versa
