2011 NISSAN GT-R navigation system

Black plate (86,1)
Model "R35-N" EDITED: 2009/ 10/ 30
Confirming routeWhen the suggested route is displayed after
calculation, the route information can be con-
firmed or the suggested route can be simulated.Basic operation:1. Push .
2. Highlight [Route Info] and push .3. Highlight the preferred item and push
. Available setting items
.
[Turn List]:
Displays the details of the suggested route.
“Using turn list” page 2-60
. [Preview]:
The system will trace the planned route
going forward or in reverse.“Using route preview” page 2-61
. [Simulation]:
Displays a simulation of the suggested
route. This function provides a detailed
image of the route with voice guidance.“Confirming route by simulation” page
2-61
. [Store Route]:
Stores a calculated route. A maximum of 5
routes can be stored. Stored routes can be
easily retrieved and set as the suggested
route.“STORING ROUTE” page 2-74
. [Map Scroll]:
Displays a map screen where the location of
the destination can be confirmed.
Even if the map screen is touched or
directional buttons other than the up or
down button are pushed, the same map
screen as when [Map Scroll] is selected is
displayed.
Using turn list:1. Highlight [Turn List] and push .
2. The information (e.g., intersections) can be confirmed on the route to the destination by
scrolling the screen using the up and down
switches of the main directional buttons or
the center dial.
3. Push

Black plate (88,1)
Model "R35-N" EDITED: 2009/ 10/ 30
Available setting items
.[Guidance Voice]:
Activates or deactivates voice guidance. The
indicator illuminates if voice guidance is
activated.
. [Guidance Volume]:
Adjusts the volume level of voice guidance.
. [Traffic Announcement]:
Provides the announcement of a traffic
information event on the route.
Setting by voice command
1. Push <
>located on the steering wheel.
2. After the tone sounds, speak a command. To turn the Voice Guidance ON or OFF:
“Voice Guidance On/Off” (Alternate Com-
mand Mode)
Recalculate routeA route can be manually searched again after
changing the search condition. When the
vehicle deviates from the suggested route, the
route from the current location to the destination
is automatically searched again.Manually re-searching route:1. Push .
2. Highlight [Recalculate] and push TER>.
3. A message is displayed, and the route is
recalculated.4. Set the route conditions. After finishing thesetting, highlight [Start] and push TER>.
“PROCEDURES AFTER SETTING
DESTINATION” page 2-43INFO:
When a waypoint has been set on the route, the
system will search for only one route even if
route recalculation is performed.
2-62
Navigation

Black plate (89,1)
Model "R35-N" EDITED: 2009/ 10/ 30
Setting Auto Reroute:1. Push .
2. Highlight [Route Settings] and push TER>.3. Highlight [Other Routing Choices] and push .
4. Highlight [Auto Reroute] and push TER>. The indicator illuminates. When the
current location map screen or route setting
screen is displayed, the system recalculates
a route with the set conditions.
“Detailed route settings” page 2-66
Setting detour routeTo detour from the suggested route, a route
detouring for a specified distance can be
calculated.1. Push . 2. Highlight [Detour] and push
.
3. Highlight a detour distance and push TER>.
After calculating the detour, the system displays
the detour route on the map.
INFO:
. When the vehicle has deviated from the
suggested route, [Detour] cannot be se-
lected.
. If the system cannot calculate a detour with
the specified conditions, it displays the
previous suggested route.
. If the vehicle is traveling very fast, the detour
route may start from a location that the
vehicle has already passed.
Navigation
2-63

Black plate (90,1)
Model "R35-N" EDITED: 2009/ 10/ 30
Searching for detour route taking
traffic information into considera-
tionWhen a serious traffic event occurs on the route,
or if the system finds a faster route, a detour alert
will pop up automatically. If the automatic alert is
not noticed, a detour can also be manually
searched.1. Push .
2. Highlight [Traffic Detour] and push TER>.
3. When the detour search is successful, detailed information about the detour route
(left screen) and the comparison screen of
the two routes (right screen) are displayed.*1
Original route (yellow)
*2
Detour route (pink)
*3
The change of distance and estimated traveltime to destination when the detour route is
taken.
4. To accept the suggested detour route, highlight [Yes], and then push .
INFO:
. If no route is set, or [Use Real Time Traffic
Information] is turned off, this function
cannot be operated.
. If a detour route is not selected and no
further action is performed, the detour route
will be automatically canceled.
. The detour suggestion can be retrieved even
after the message disappears by manually
selecting [Traffic Detour]. The system will
then search for the detour again and
suggests a detour if one is available at that
time.
. Without a subscription to an XM NavTraffic
®
broadcast, it will not be possible to get a
traffic detour or apply settings for functions related to traffic information. A message
appears when a related menu item is
selected.
. See “NOTES ON XM NavTraffic
®INFOR-
MATION” for further information.
“NOTES ON XM NavTraffic
®INFOR-
MATION” page 10-11
Automatic detour guidance:When [Auto Reroute] and [Use Real Time Traffic
Information] are turned on in the detailed route
settings, a message will automatically pop up
when the system finds a detour.
“Detailed route settings” page 2-66
1. If a traffic jam or a serious traffic problem occurs on the route while driving along the
suggested route, the automatic detour route
search starts and a message pops up if a
detour is found.
2. To accept the suggested detour route, highlight [Yes] and push .
2-64
Navigation

Black plate (91,1)
Model "R35-N" EDITED: 2009/ 10/ 30
INFO:
. If no operation is performed for one minute
after the message is displayed, the message
disappears. The detour will not be accepted,
and the current suggested route will remain
unchanged.
. When [Traffic Announcement] is turned on in
the guidance settings, the system will
announce voice guidance at the same time
that the message appears on the screen.“Guidance settings” page 2-61
Setting conditions for route calcu-
lationSearch condition settings:The route can be recalculated after changing the
route calculation conditions anywhere along the
route.1. Push .
2. Highlight [Route Settings] and push TER>.
3. Highlight [Basic Route Type] and push .
4. Highlight the preferred condition and push . The indicator for the selected
condition illuminates.
5. When the conditions are set, the system starts calculating the route with the new
conditions, and the current location map
screen is displayed. Available conditions
.
[Fastest Route]:
Prioritizes by the fastest time.
. [Minimize Freeway]:
Minimizes the use of motorways.
. [Shortest Route]:
Prioritizes by the shortest route.
INFO:
Only one of these conditions can be utilized at a
time.Setting by voice command
1. Push <
>located on the steering wheel.
2. After the tone sounds, speak a command.
To set conditions for the route calculation
(Alternate Command Mode):
“Fastest Route”
“Minimize Freeway Route”
“Shortest Route”
Navigation
2-65

Black plate (92,1)
Model "R35-N" EDITED: 2009/ 10/ 30
Detailed route settings:Detailed conditions can be set for the route
calculation.1. Push .
2. Highlight [Route Settings] and push TER>.
3. Highlight [Other Routing Choices] and push .
4. Highlight the preferred condition and push . The indicator for the selected
condition illuminates.
5. If [Route Settings] is exited after changing the settings, the system starts calculating
the route with the new conditions. Available setting items
.
[Minimize Toll Roads]:
Minimizes the use of toll roads.
. [Use Time Restricted Roads]:
Uses any roads subject to time restrictions.
. [Use Statistical Traffic Information]:
Uses statistical traffic information that is
stored in the map data.
. [Use Real Time Traffic Information]:
Uses the latest traffic information received
via the XM broadcast.
. [Use Avoid Area Settings]:
Enables the avoid area setting.
. [Use Ferries]:
Includes the use of ferries.
. [Use Learned Routes]:
Uses the roads that are most frequently
traveled with the help of self-learning
technology.
. [Auto Reroute]:
If the vehicle deviates from the suggested
route, the system automatically recalculates
a route that leads the vehicle to the
suggested route.
INFO:
. The recalculated route may not be the
shortest route because the system priori-
tizes roads that are easy to drive for safety
reasons.
. If route conditions are set from [Route
Settings], all sections in the route are
subject to the same route conditions even
though different route conditions have been
set for different sections in [Edit/Add to
Route].
. If [Use Time Restricted Roads] is deacti-
vated, the system calculates a route without
any consideration of the regulations con-
cerning the time or day of the week. There-
fore, the suggested route may include a road
subject to traffic regulations concerning the
time or day of the week. When driving along
the route, always follow all traffic regulations
regardless of whether [Use Time Restricted
Roads] is set to on or off.
. If the system cannot calculate any alternative
routes, it displays the previous route.
. If the vehicle greatly deviates from the
suggested route, the system calculates a
new route.
. Statistical traffic information is based on
previous traffic data. When the traffic situa-
tion rapidly changes due to unexpected
2-66
Navigation

Black plate (93,1)
Model "R35-N" EDITED: 2009/ 11/ 6
accidents, construction work, traffic restric-
tions, emergencies, etc., the prediction
accuracy of the system may be reduced.
. Traffic jam information displayed on the map
screen is not statistical traffic information.
. When [Use Statistical Traffic Information] is
turned on, the system may lead to a road
where a traffic jam occurs or to a detour
even though the shortest route does not
have a traffic jam.
. Even when [Use Real Time Traffic Informa-
tion] is turned on, if traffic information has
not been provided for the area, sometimes it
is possible that a detour will not be indicated
in a location where a traffic jam occurs.
. The system may not lead to a detour if traffic
closure or a traffic jam occurs far from the
present location.
. The system calculates to reduce the time
required for the entire route from the start to
the destination. If there are no appropriate
routes, the system may lead to a route where
a traffic jam occurs instead of leading to a
detour.
. This system can learn and memorize the
route that is most frequently used. However,
despite driving on the same route several
times so that the system can learn the route,
the system may have difficulty learning the route under the following conditions.
— [Use Time Restricted Roads] is set to on.
— [Use Real Time Traffic Information] is set to on.
ROUTE GUIDANCE SETTINGSVarious guidance information can be set to be
played during route guidance and the route and/
or voice guidance can be activated or deacti-
vated.Basic operation1. Push .
2. Highlight [Navigation] and push .
3. Highlight [Guidance Settings] and push .
4. Highlight the preferred item and push .
5. Push to return to the previous screen. Push

Black plate (94,1)
Model "R35-N" EDITED: 2009/ 11/ 6

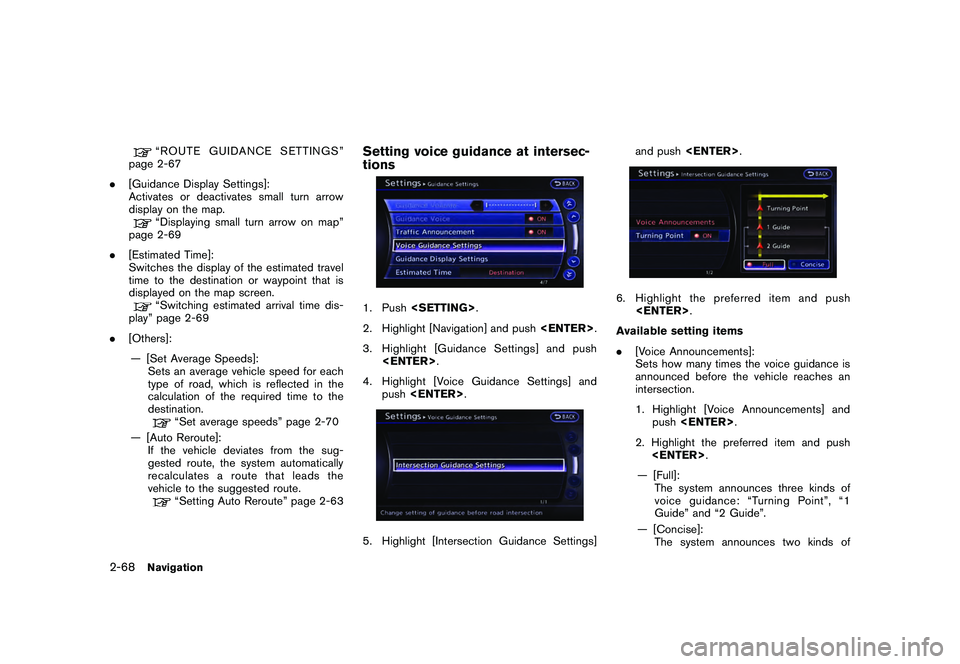

“ROUTE GUIDANCE SETTINGS”
page 2-67
. [Guidance Display Settings]:
Activates or deactivates small turn arrow
display on the map.“Displaying small turn arrow on map”
page 2-69
. [Estimated Time]:
Switches the display of the estimated travel
time to the destination or waypoint that is
displayed on the map screen.“Switching estimated arrival time dis-
play” page 2-69
. [Others]:
— [Set Average Speeds]: Sets an average vehicle speed for each
type of road, which is reflected in the
calculation of the required time to the
destination.
“Set average speeds” page 2-70
— [Auto Reroute]: If the vehicle deviates from the sug-
gested route, the system automatically
recalculates a route that leads the
vehicle to the suggested route.“Setting Auto Reroute” page 2-63
Setting voice guidance at intersec-
tions1. Push .
2. Highlight [Navigation] and push .
3. Highlight [Guidance Settings] and push .
4. Highlight [Voice Guidance Settings] and push .5. Highlight [Intersection Guidance Settings] and push
.
6. Highlight the preferred item and push
.
Available setting items
. [Voice Announcements]:
Sets how many times the voice guidance is
announced before the vehicle reaches an
intersection.
1. Highlight [Voice Announcements] and
push .
2. Highlight the preferred item and push .
— [Full]: The system announces three kinds of
voice guidance: “Turning Point”, “1
Guide” and “2 Guide”.
— [Concise]: The system announces two kinds of
2-68
Navigation
