2011 NISSAN GT-R navigation system

Black plate (21,1)
Model "R35-N" EDITED: 2009/ 10/ 30
Using controls to adjust values,
levels, etc.There are three main methods you can use to
control the navigation system: the center dial or
the touch panel. Use these controls to adjust the
volume of phone and voice guidance, the display
brightness, etc.
How to adjust:1. Highlight the preferred setting item andpush . The color of the corre-
sponding adjustment item changes.
2. Use the center dial or the touch panel, and the value or bar indicating levels increases
or decreases accordingly.
3. Push or<
>to apply the
setting.
INFO:
. You can also adjust the volume of phone and
voice guidance, etc. by tilting the steering
switch up and down.
. This same adjustment can also be made by
the touch panel operation.“LIST SCREEN” page 1-14
About Multi function display system
1-13

Black plate (7,1)
2 Navigation
Model "R35-N" EDITED: 2009/ 10/ 30
Features of this navigation system.......................... 2-2
Route guidance ............................................. 2-2
Places of interest (PLACES) directory ................. 2-2
Address book ................................................ 2-2
Avoid area .................................................... 2-2
XM NavTraffic ®
information .............................. 2-2
Automatic reroute ........................................... 2-2
Detour ......................................................... 2-3
Birdview
TM.................................................... 2-3
Voice guidance .............................................. 2-3
Map settings ..................................................... 2-4
Map types .................................................... 2-4
BirdviewTM
(3D) map ...................................... 2-5
Building graphics ........................................... 2-5
Displaying current vehicle location ...................... 2-6
Moving map .................................................. 2-7
Changing scale of map .................................... 2-9
Changing map view ...................................... 2-11
Map view settings ........................................ 2-12
Looking at information on map ........................ 2-16
Map menu screen ........................................ 2-18
Map symbols. .............................................. 2-21
Setting destination ........................................... 2-23
Destination screen ........................................ 2-23
Finding address ........................................... 2-25
Finding place .............................................. 2-26 Setting home as destination
............................ 2-32
Searching from address book ......................... 2-33
Setting previous destination ............................ 2-34
Setting previous start point ............................. 2-35
Setting from stored routes .............................. 2-36
Setting by phone number ............................... 2-36
Setting freeway entrance/exit .......................... 2-38
Setting intersection ....................................... 2-39
Setting city center ........................................ 2-40
Setting point on map .................................... 2-42
Delete destination ........................................ 2-42
Route guidance ............................................... 2-43
Procedures after setting destination .................. 2-43
About route guidance .................................... 2-47
Route screen .............................................. 2-53
Route guidance settings ................................ 2-67
Storing a location/route ..................................... 2-71
Storing location ........................................... 2-71
Storing route ............................................... 2-74
Storing tracked route .................................... 2-75
Storing avoid area ........................................ 2-76
Editing address book .................................... 2-77
Deleting stored item ..................................... 2-88
Transferring information to/from address book . .... 2-91
Navigation setting ............................................. 2-93
Basic operation ........................................... 2-93

Black plate (28,1)
Model "R35-N" EDITED: 2009/ 10/ 30
ROUTE GUIDANCEThe main features of the NISSAN Navigation
System are visual guidance and voice guidance
in selected map coverage areas. Utilizing a
network of GPS (Global Positioning System)
satellites, the NISSAN Navigation System tracks
the location on the map and navigates to a
preferred location.
Once the destination is set in a map coverage
area, the NISSAN Navigation System will
calculate a route from the current location to
the destination. The real-time map display and
turn-by-turn voice guidance leads the driver
along the route. These features can be espe-
cially helpful when driving to unfamiliar locations.
The system may be unable to set a destination
and/or calculate a route when the destination is
outside the map coverage area. Additionally,
voice guidance may not be available if the
destination is outside the map coverage area.
For more information on how to set a destina-
tion, refer to section 4.PLACES OF INTEREST (PLACES)
DIRECTORYThe NISSAN Navigation System offers an
extensive places of interest (Places) directory
in map coverage areas. This directory includes a
wide variety of destinations ranging from gas
stations, ATMs, and restaurants to casinos, skiresorts, shopping centers and businesses. A
point of interest can be searched by category,
name or phone number. After selecting a
destination, the NISSAN Navigation System will
calculate a route to that destination.
The Places directory has many uses. For
example, the directory can be sorted by the
various types of restaurants near the current
location. If an ATM or gas station is needed, the
NISSAN Navigation System can navigate to the
closest preferred location.
For more information on how to use the Places
directory, refer to section 4.
ADDRESS BOOKThe Address Book can store up to 300 locations
from map coverage areas into a personal
directory. This is especially useful for frequently
visited locations, such as clients, relatives and
friends. The Address Book function allows easy
access to frequently visited locations when
setting them as your destination.
For more information on how to use the Address
Book, refer to section 6.AVOID AREAThe Avoid Area function sets areas or freeways
that the NISSAN Navigation System does not
include in the suggested route when calculating
routes. For example, if a freeway or area that isalways congested with traffic.
For more information on the Avoid Area function,
refer to section 6.
XM NavTraffic
®INFORMATION
When available, the XM NavTraffic
®Information
broadcast may help to avoid delays due to traffic
incidents. Traffic jams, roadwork, closed roads
around the current location, etc. are represented
graphically on the map by icons depicting the
nature of the event. Incidents on the route are
automatically brought to the attention when they
are approached.
The XM NavTraffic
®Information feature, via the
guidance mode, may help to detour around
traffic problems. For more information on the XM
NavTraffic
®Information feature, refer to section
5.
AUTOMATIC REROUTEWhen detecting a deviation from the suggested
route, the NISSAN Navigation System will
automatically recalculate a new route to the
destination.
For more information on the Automatic reroute
function, refer to section 5.
2-2
Navigation
FEATURES OF THIS NAVIGATION
SYSTEM

Black plate (29,1)
Model "R35-N" EDITED: 2009/ 10/ 30
DETOURTo make a detour due to traffic conditions, the
Detour function calculates an alternative route.
The NISSAN Navigation System can calculate a
route using secondary roads that will return to
primary roads after a specified number of miles.
For more information on the Detour function,
refer to section 5.
Birdview
TM
Two map types, the 2D (Plan View) map and
Birdview
TM
(3D)map,areavailableinthe
NISSAN Navigation System. Birdview
TM
map
displays the map from an elevated perspective.
In Birdview
TM
map, it is easy to recognize an
image of the route because it provides a
panoramic view over a long distance.
For more information on Birdview
TM
map, refer
to section 3.
VOICE GUIDANCERoute guidance is provided through voice and
visual instructions. Voice guidance announces
the appropriate directions when approaching an
intersection to turn.
For more information on voice guidance, refer to
section 5.
Navigation
2-3

Black plate (47,1)
Model "R35-N" EDITED: 2009/ 10/ 30
MAP SYMBOLSThis navigation system uses symbols to display facilities.2-dimensional icons (Plan View)
Navigation
2-21

Black plate (49,1)
Model "R35-N" EDITED: 2009/ 10/ 30
DESTINATION SCREENThere are several methods that can be used to
set a destination. Understand the advantages of
each method and select the best method for
finding and setting a preferred destination.Basic operation1. Push.
2. Highlight the preferred destination setting method and push .
Available setting items
. Street Address:
Searches for a destination by address.
. Places:
Searches for a destination from various
categories of businesses or locations.
Searches for a destination from various
categories of business or locations, or
searches from the facilities in ZAGAT. .
Home:
Searches for a route from the current
location to the previously stored home
destination.
. Address Book:
Searches for a destination from the list of the
stored locations.
. Previous Destinations:
Searches for a destination from the previous
destinations.
. Delete Destination:
Deletes the currently set destination.
Available setting items (next page screen)
. Previous Start Point:
Sets the previous starting point as the
destination.
. Stored Routes:
Selects a stored route.
. Phone Number:
Searches for a point of interest by a
telephone number.
INFO:
The system cannot search for a location
using residential phone numbers. .
Freeway Entrance/Exit:
Searches for a destination from a freeway
entrance/exit.
. Intersection:
Searches for a destination from intersec-
tions.
. City Center:
Sets the center of a city as the destination.
Navigation
2-23
SETTING DESTINATION

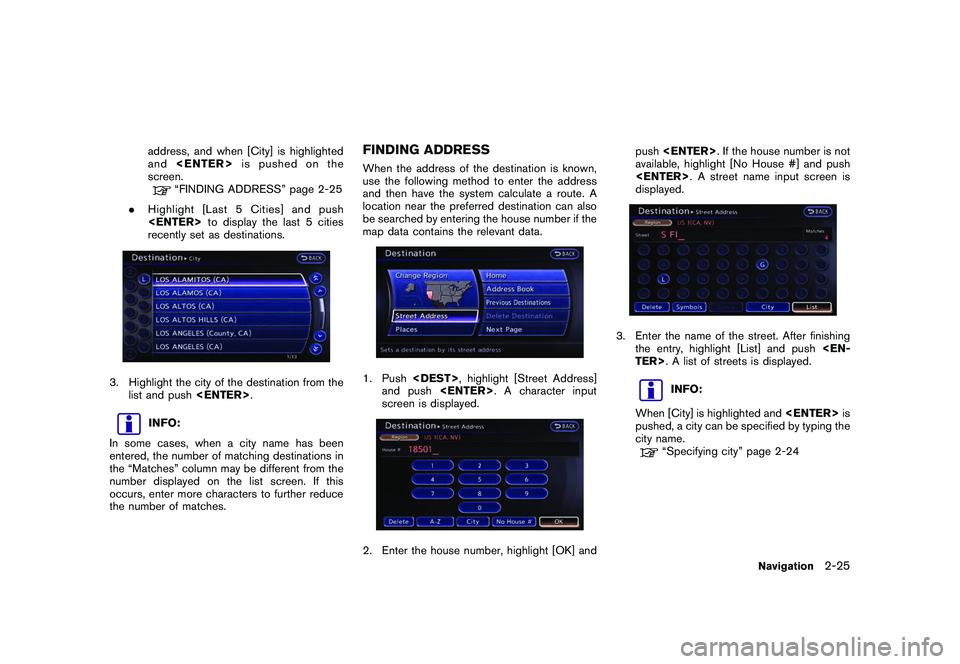

Black plate (51,1)
Model "R35-N" EDITED: 2009/ 10/ 30
address, and when [City] is highlighted
and is pushed on the
screen.
“FINDING ADDRESS” page 2-25
. Highlight [Last 5 Cities] and push
to display the last 5 cities
recently set as destinations.
3. Highlight the city of the destination from the list and push .
INFO:
In some cases, when a city name has been
entered, the number of matching destinations in
the “Matches” column may be different from the
number displayed on the list screen. If this
occurs, enter more characters to further reduce
the number of matches.
FINDING ADDRESSWhen the address of the destination is known,
use the following method to enter the address
and then have the system calculate a route. A
location near the preferred destination can also
be searched by entering the house number if the
map data contains the relevant data.1. Push , highlight [Street Address]
and push . A character input
screen is displayed.2. Enter the house number, highlight [OK] and push
. If the house number is not
available, highlight [No House #] and push
. A street name input screen is
displayed.
3. Enter the name of the street. After finishing the entry, highlight [List] and push TER>. A list of streets is displayed.
INFO:
When [City] is highlighted and is
pushed, a city can be specified by typing the
city name.“Specifying city” page 2-24
Navigation
2-25

Black plate (52,1)
Model "R35-N" EDITED: 2009/ 10/ 30
4. Highlight the correct street of the destina-tion from the list and push .
INFO:
In some cases, when a street name has
been entered, the number of matching
destinations in the “Matches” column may
be different from the number displayed on
the list screen. If this occurs, enter more
characters to further reduce the number of
matches.
5. The entire route is shown on the map. Highlight [Start] after confirming the location
of the displayed dest ination, and push
. The system sets the destination
to the selected location and starts calculat-
ing a route.
INFO:
Even after setting a destination, the location
of the destination can be adjusted, the route
can be stored, etc.“PROCEDURESAFTERSETTING
DESTINATION” page 2-43Setting by voice command
1. Push <
>located on the steering wheel.
2. After the tone sounds, speak a command.
To set the destination from a street address:
“Navigation” “Address” (Standard Mode)
“Address” (Alternate Command Mode)
INFO:
When using a voice command to set a street
name, it is recommended that the complete
street name is stated. Examples:
Correct input - North Elm Street
East Jefferson Boulevard
Incorrect input - Elm Street East Jefferson
FINDING PLACEThere are 3 methods that can be used to set the
destination to places of interest: typing the
name, choosing a category or selecting a
ZAGAT reviewed location. To help improve
searching, different start points can be chosen
to search from such as near current location,
near the destination or city center.Finding nearby place1. Push.
2. Highlight [Places] and push .
2-26
Navigation
