2011 NISSAN ALTIMA COUPE Navigation Manual

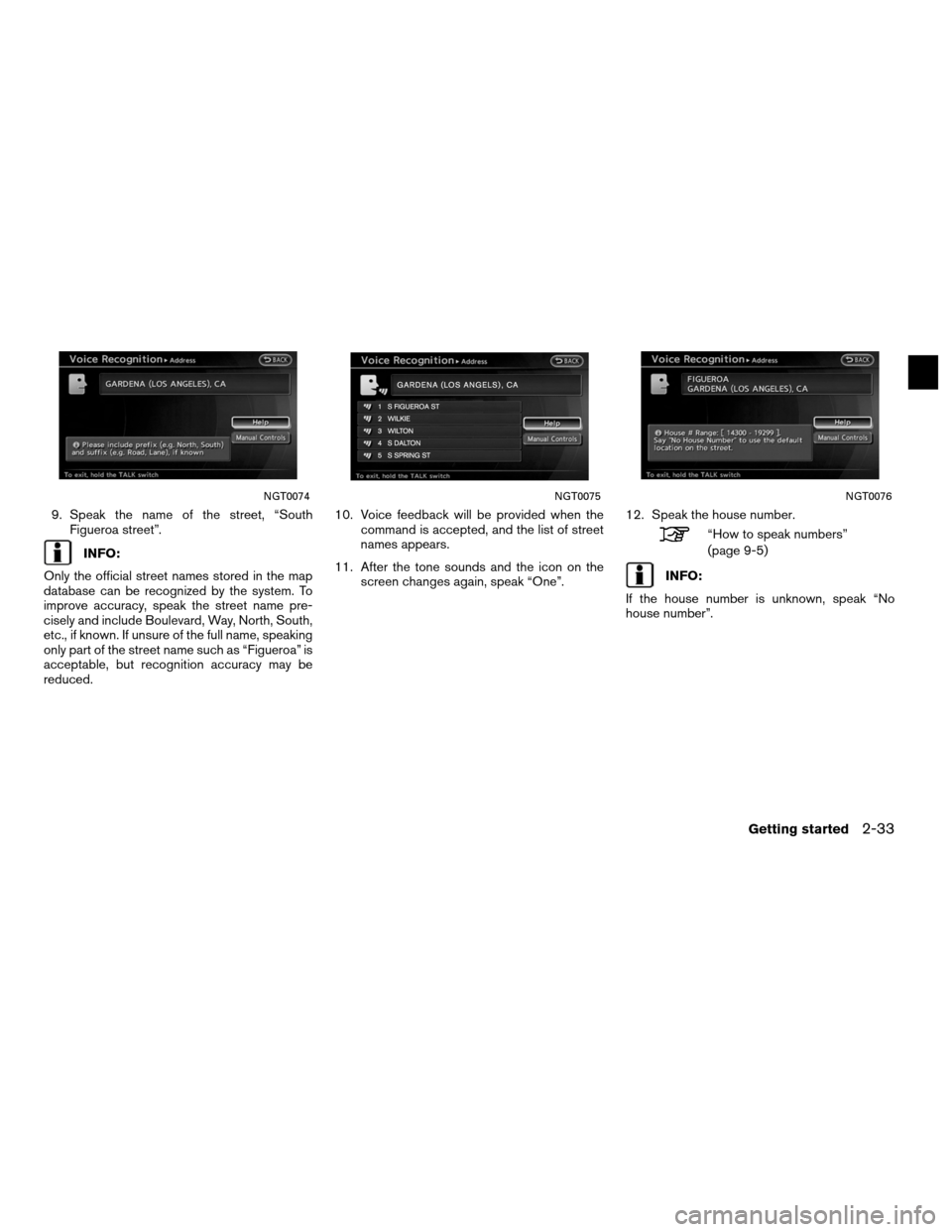

9. Speak the name of the street, “SouthFigueroa street”.
INFO:
Only the official street names stored in the map
database can be recognized by the system. To
improve accuracy, speak the street name pre-
cisely and include Boulevard, Way, North, South,
etc., if known. If unsure of the full name, speaking
only part of the street name such as “Figueroa” is
acceptable, but recognition accuracy may be
reduced. 10. Voice feedback will be provided when the
command is accepted, and the list of street
names appears.
11. After the tone sounds and the icon on the screen changes again, speak “One”. 12. Speak the house number.
“How to speak numbers”
(page 9-5)
INFO:
If the house number is unknown, speak “No
house number”.
NGT0074NGT0075NGT0076
Getting started2-33

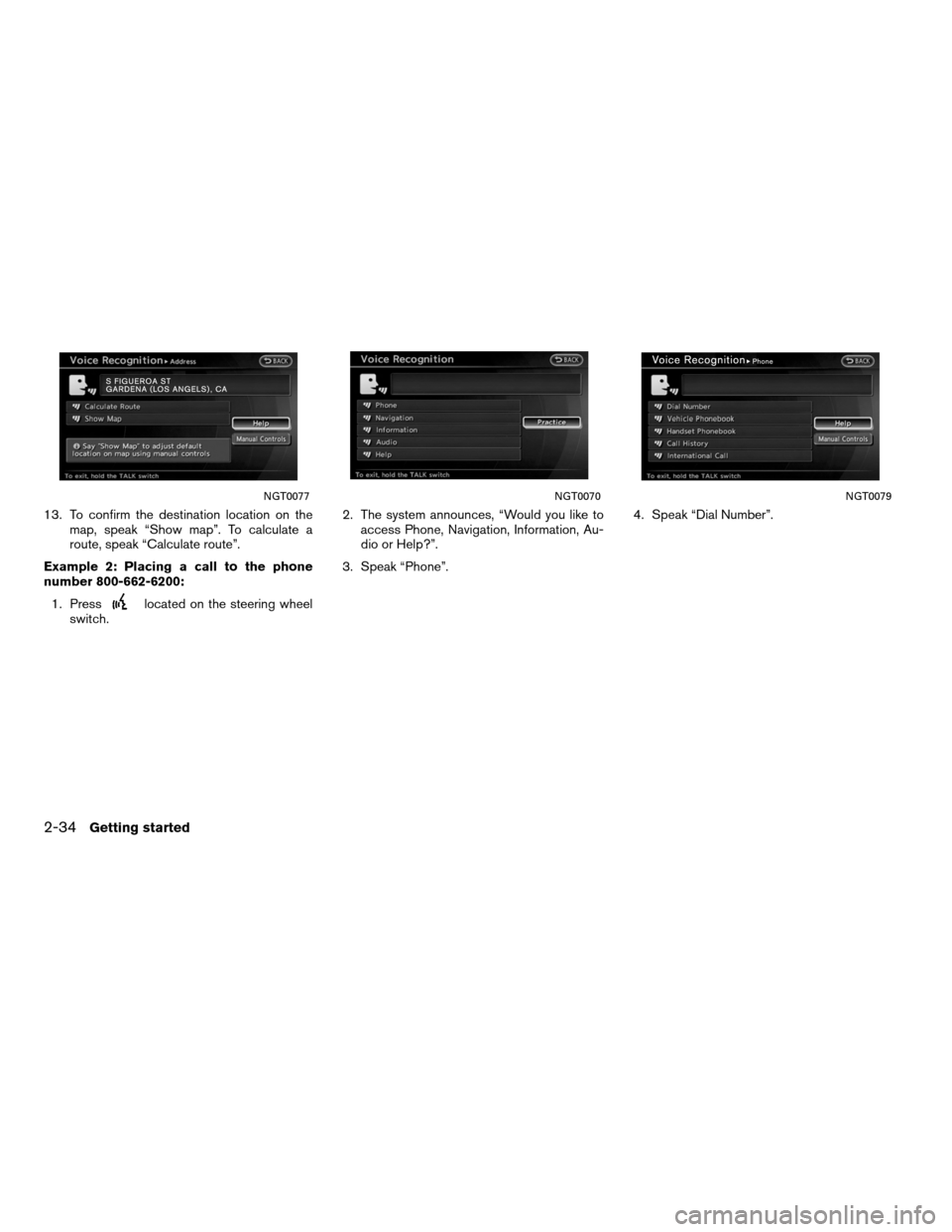

13. To confirm the destination location on themap, speak “Show map”. To calculate a
route, speak “Calculate route”.
Example 2: Placing a call to the phone
number 800-662-6200: 1. Press
located on the steering wheel
switch. 2. The system announces, “Would you like to
access Phone, Navigation, Information, Au-
dio or Help?”.
3. Speak “Phone”. 4. Speak “Dial Number”.
NGT0077NGT0070NGT0079
2-34Getting started

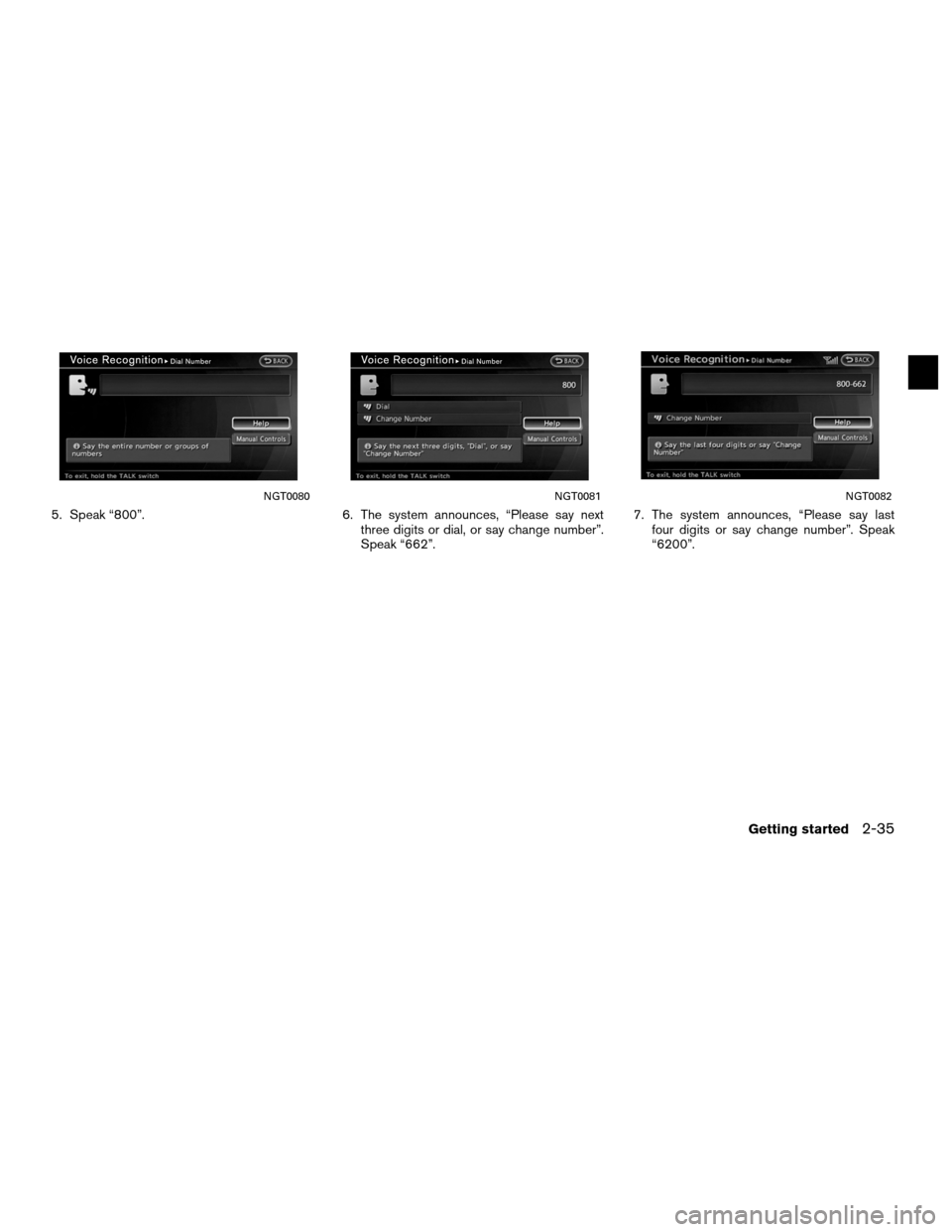

5. Speak “800”.6. The system announces, “Please say next
three digits or dial, or say change number”.
Speak “662”. 7. The system announces, “Please say last
four digits or say change number”. Speak
“6200”.
NGT0080NGT0081NGT0082
Getting started2-35

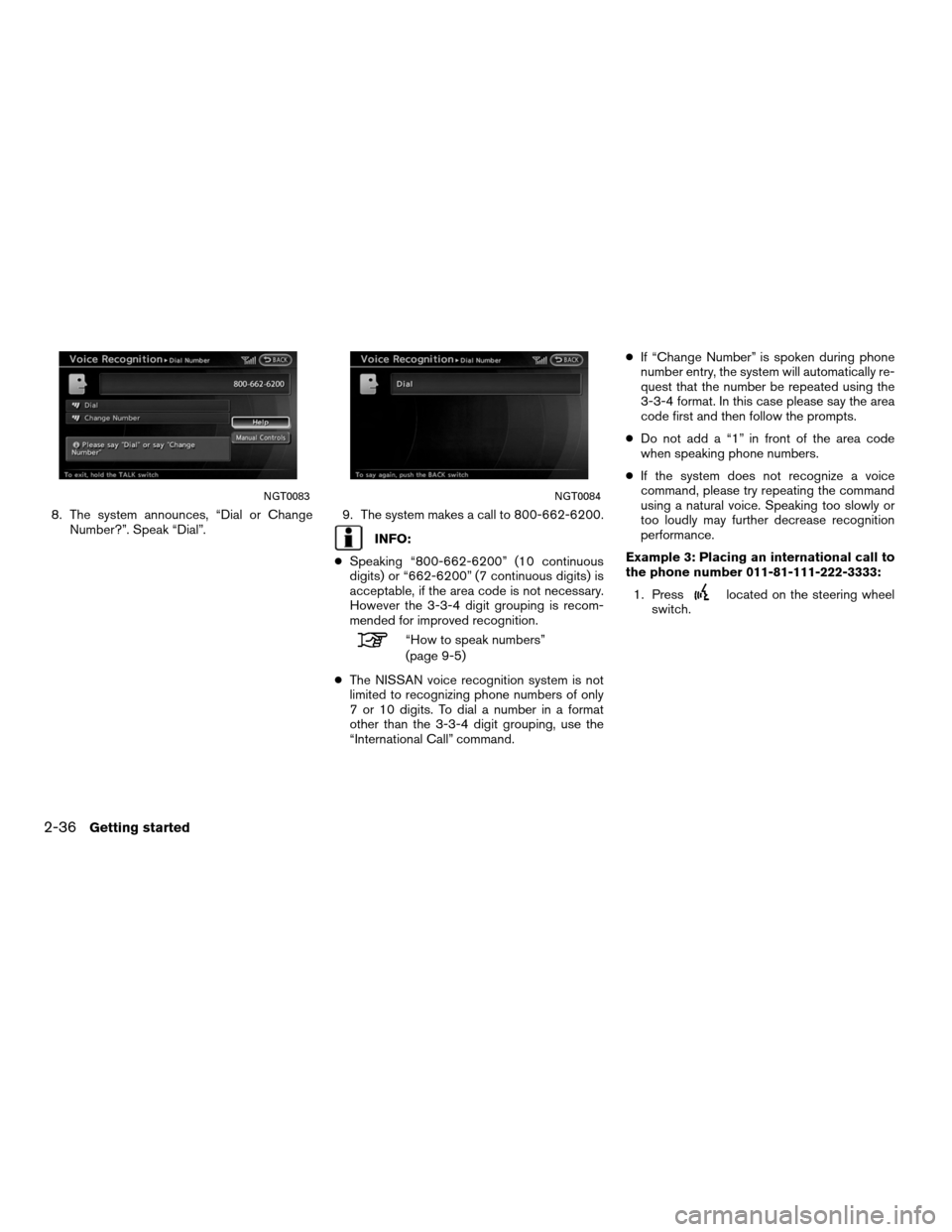

8. The system announces, “Dial or ChangeNumber?”. Speak “Dial”. 9. The system makes a call to 800-662-6200.
INFO:
● Speaking “800-662-6200” (10 continuous
digits) or “662-6200” (7 continuous digits) is
acceptable, if the area code is not necessary.
However the 3-3-4 digit grouping is recom-
mended for improved recognition.
“How to speak numbers”
(page 9-5)
● The NISSAN voice recognition system is not
limited to recognizing phone numbers of only
7 or 10 digits. To dial a number in a format
other than the 3-3-4 digit grouping, use the
“International Call” command. ●
If “Change Number” is spoken during phone
number entry, the system will automatically re-
quest that the number be repeated using the
3-3-4 format. In this case please say the area
code first and then follow the prompts.
● Do not add a “1” in front of the area code
when speaking phone numbers.
● If the system does not recognize a voice
command, please try repeating the command
using a natural voice. Speaking too slowly or
too loudly may further decrease recognition
performance.
Example 3: Placing an international call to
the phone number 011-81-111-222-3333: 1. Press
located on the steering wheel
switch.
NGT0083NGT0084
2-36Getting started

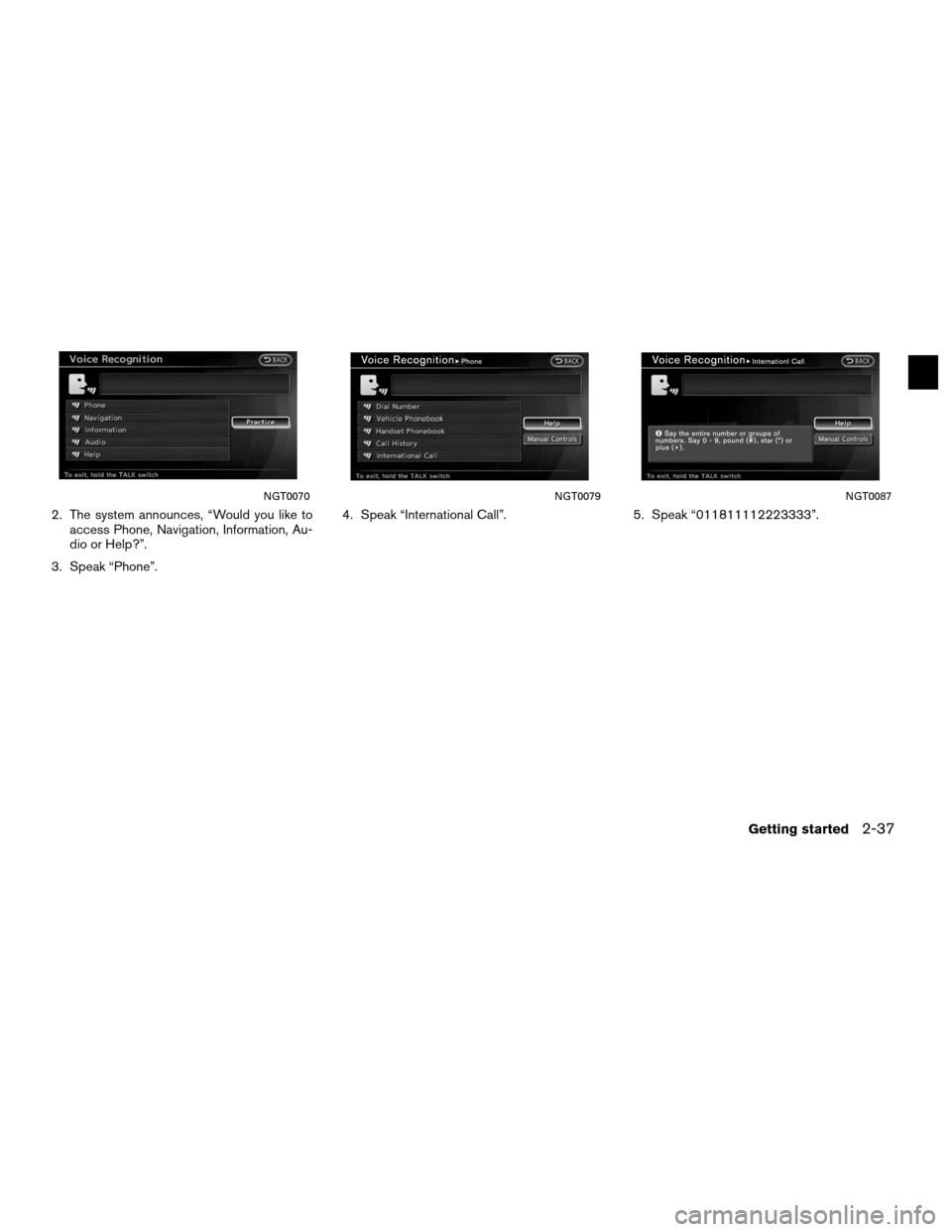

2. The system announces, “Would you like toaccess Phone, Navigation, Information, Au-
dio or Help?”.
3. Speak “Phone”. 4. Speak “International Call”. 5. Speak “011811112223333”.
NGT0070NGT0079NGT0087
Getting started2-37

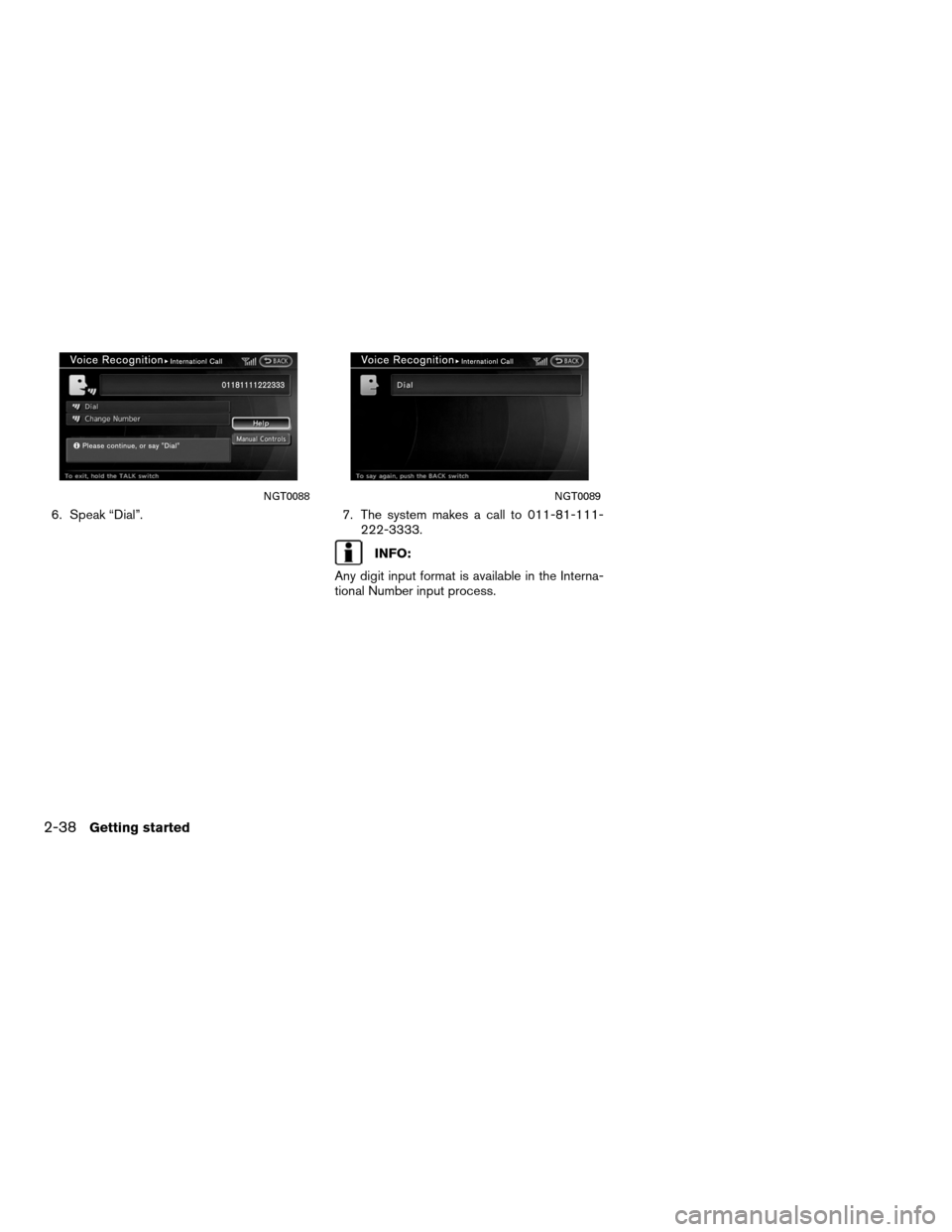

6. Speak “Dial”.7. The system makes a call to 011-81-111-
222-3333.
INFO:
Any digit input format is available in the Interna-
tional Number input process.
NGT0088NGT0089
2-38Getting started

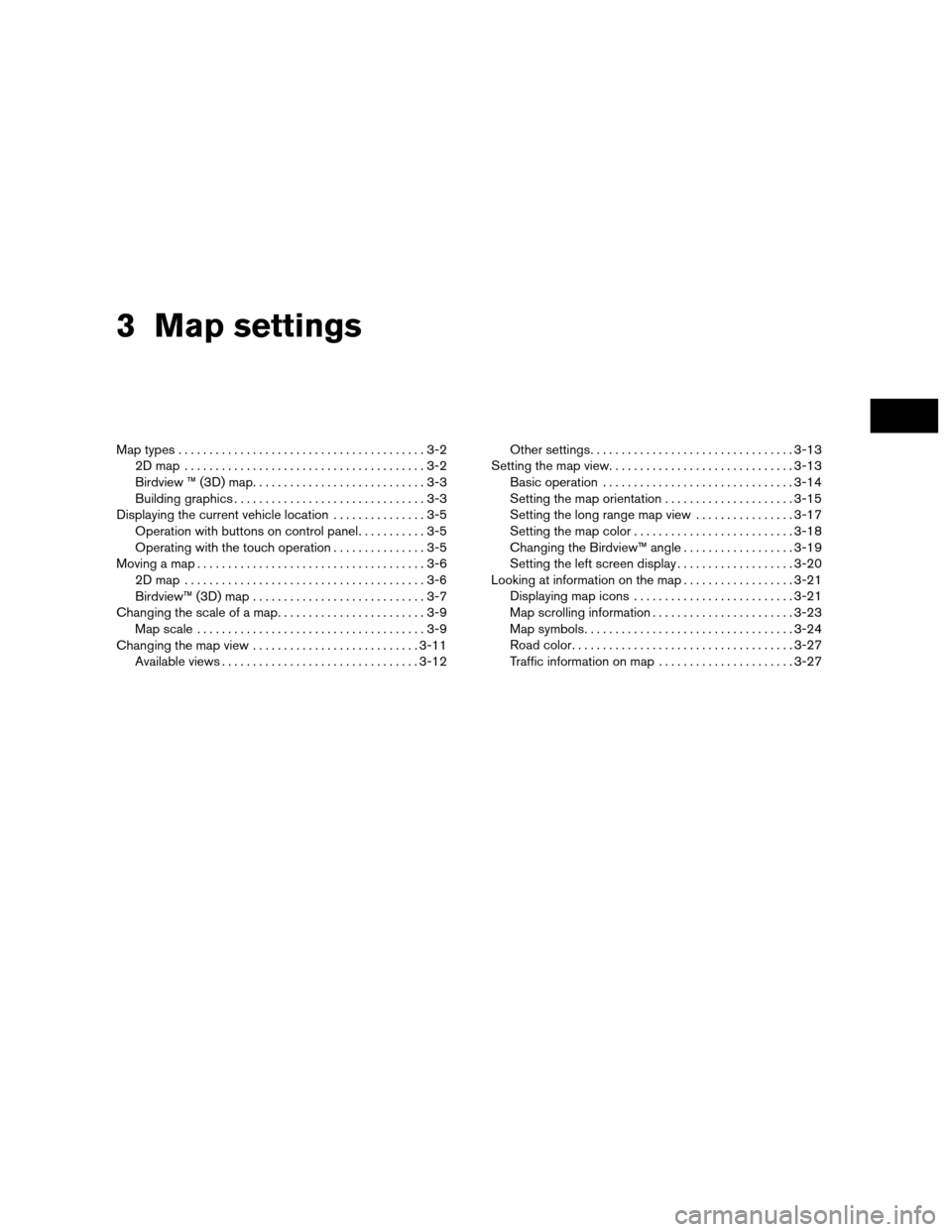

3 Map settings
Map types........................................3-2
2Dmap .......................................3-2
Birdview ™ (3D) map ............................3-3
Building graphics ...............................3-3
Displaying the current vehicle location ...............3-5
Operation with buttons on control panel ...........3-5
Operating with the touch operation ...............3-5
Moving a map . . . ..................................3-6
2Dmap .......................................3-6
Birdview™ (3D) map ............................3-7
Changing the scale of a map ........................3-9
Map scale . . . ..................................3-9
Changing the map view ........................... 3-11
Available views ................................ 3-12Other settings
................................. 3-13
Setting the map view .............................. 3-13
Basic operation ............................... 3-14
Setting the map orientation .....................3-15
Setting the long range map view ................3-17
Setting the map color .......................... 3-18
Changing the Birdview™ angle ..................3-19
Setting the left screen display ...................3-20
Looking at information on the map ..................3-21
Displaying map icons .......................... 3-21
Map scrolling information . . . ....................3-23
Map symbols .................................. 3-24
Road color .................................... 3-27
Traffic information on map ......................3-27

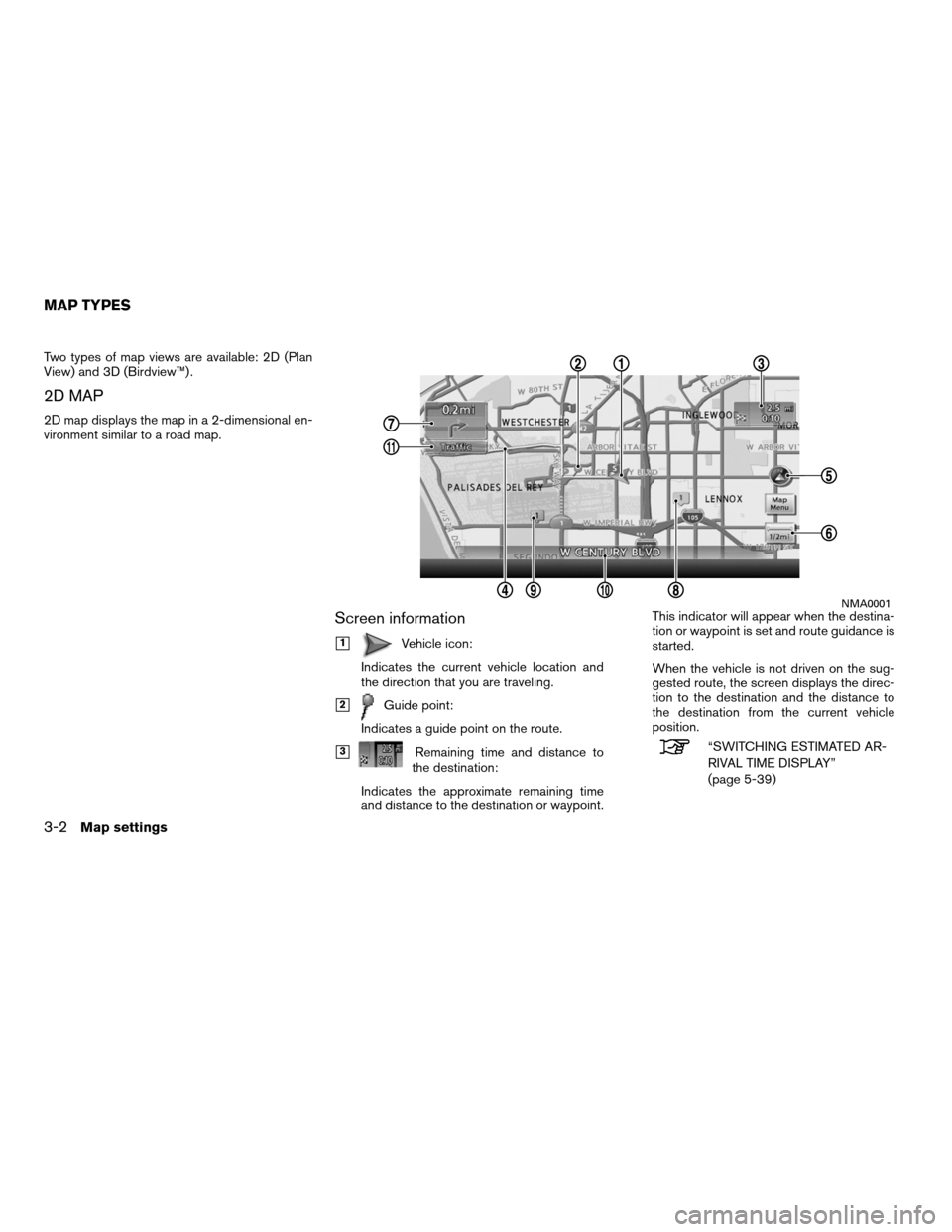

Two types of map views are available: 2D (Plan
View) and 3D (Birdview™) .
2D MAP
2D map displays the map in a 2-dimensional en-
vironment similar to a road map.
Screen information
1Vehicle icon:
Indicates the current vehicle location and
the direction that you are traveling.
2Guide point:
Indicates a guide point on the route.
3Remaining time and distance to
the destination:
Indicates the approximate remaining time
and distance to the destination or waypoint. This indicator will appear when the destina-
tion or waypoint is set and route guidance is
started.
When the vehicle is not driven on the sug-
gested route, the screen displays the direc-
tion to the destination and the distance to
the destination from the current vehicle
position.“SWITCHING ESTIMATED AR-
RIVAL TIME DISPLAY”
(page 5-39)
NMA0001
MAP TYPES
3-2Map settings
