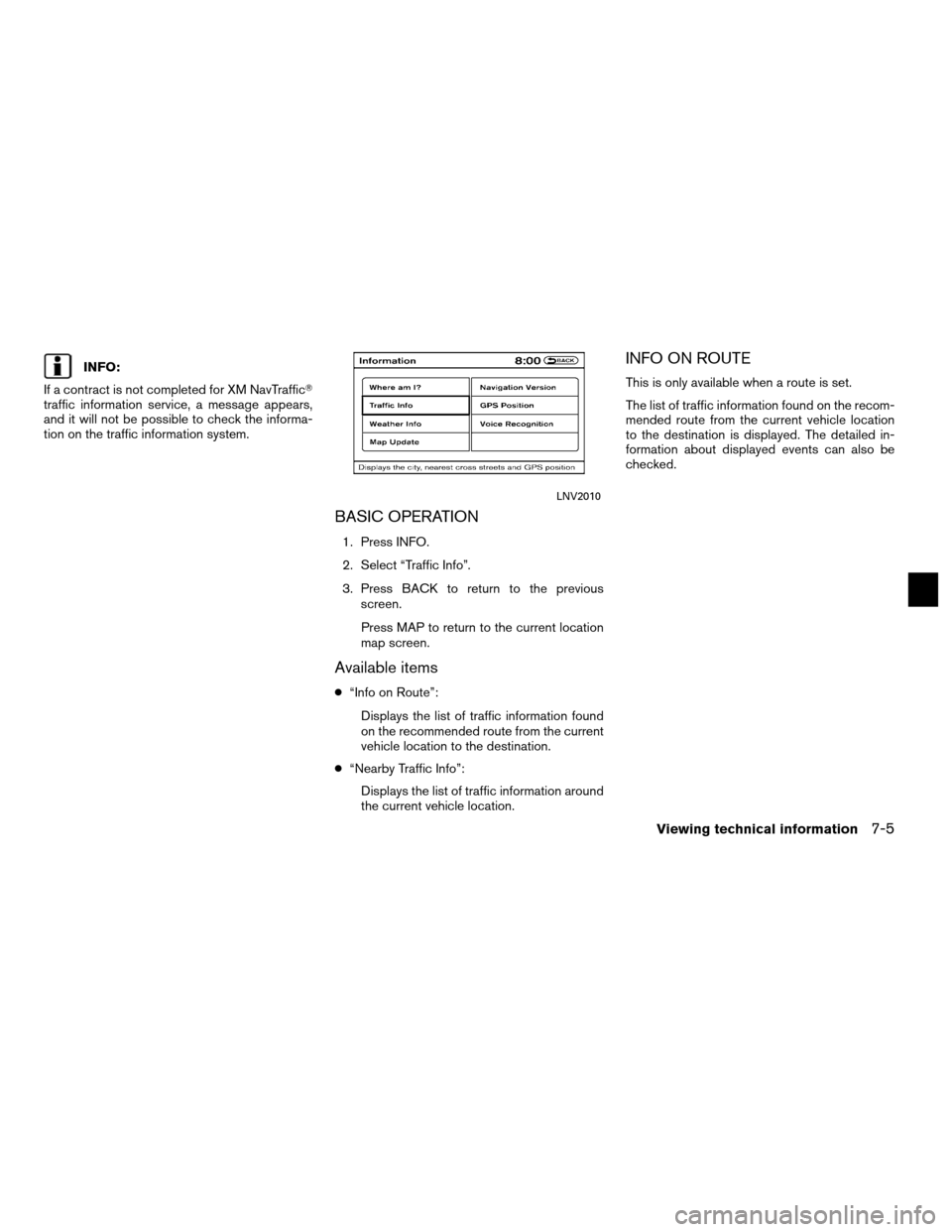

2011 NISSAN ALTIMA COUPE Navigation Manual

INFO:
If a contract is not completed for XM NavTraffic
traffic information service, a message appears,
and it will not be possible to check the informa-
tion on the traffic information system.
BASIC OPERATION
1. Press INFO.
2. Select “Traffic Info”.
3. Press BACK to return to the previous screen.
Press MAP to return to the current location
map screen.
Available items
● “Info on Route”:
Displays the list of traffic information found
on the recommended route from the current
vehicle location to the destination.
● “Nearby Traffic Info”:
Displays the list of traffic information around
the current vehicle location.
INFO ON ROUTE
This is only available when a route is set.
The list of traffic information found on the recom-
mended route from the current vehicle location
to the destination is displayed. The detailed in-
formation about displayed events can also be
checked.
LNV2010
Viewing technical information7-5

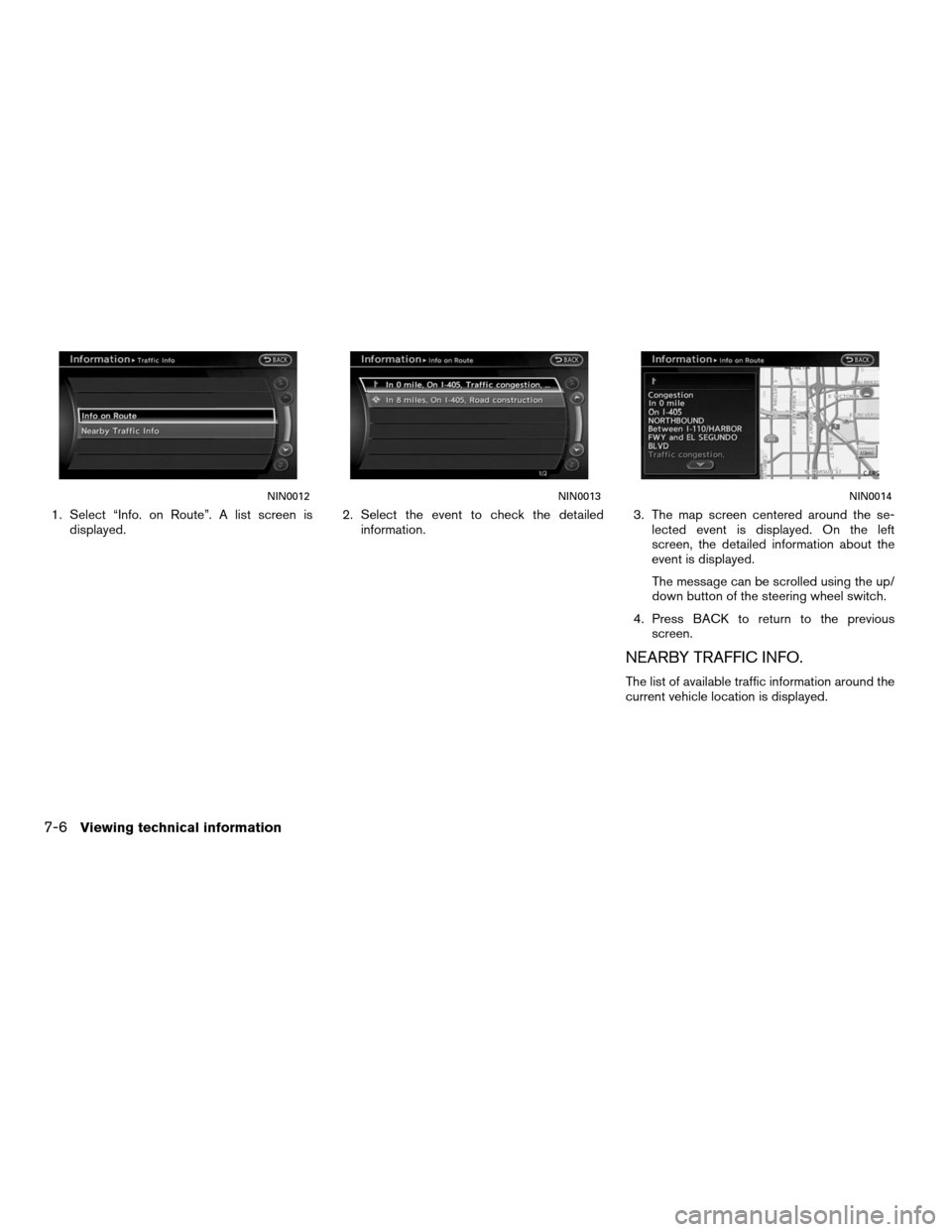

1. Select “Info. on Route”. A list screen isdisplayed. 2. Select the event to check the detailed
information. 3. The map screen centered around the se-
lected event is displayed. On the left
screen, the detailed information about the
event is displayed.
The message can be scrolled using the up/
down button of the steering wheel switch.
4. Press BACK to return to the previous screen.
NEARBY TRAFFIC INFO.
The list of available traffic information around the
current vehicle location is displayed.
NIN0012NIN0013NIN0014
7-6Viewing technical information

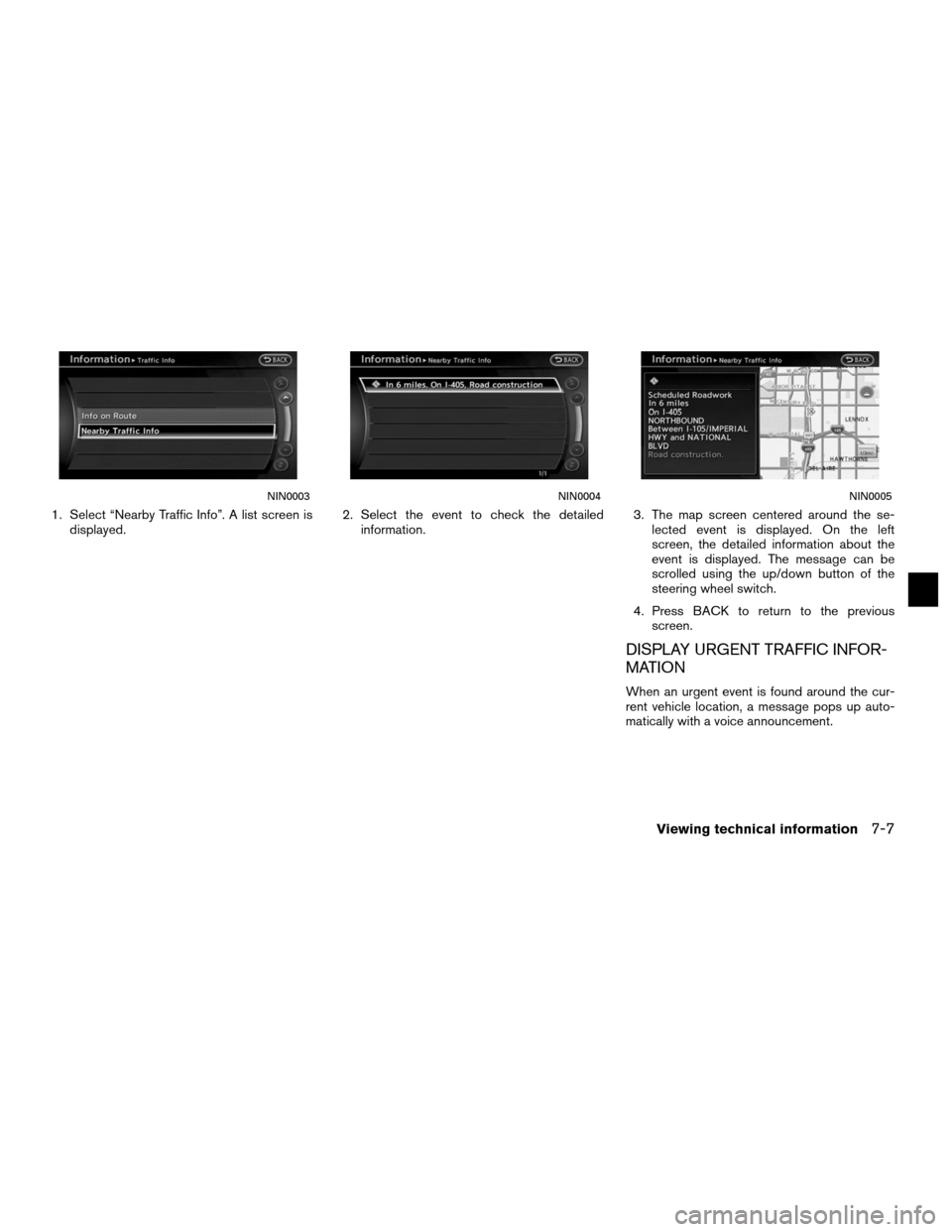

1. Select “Nearby Traffic Info”. A list screen isdisplayed. 2. Select the event to check the detailed
information. 3. The map screen centered around the se-
lected event is displayed. On the left
screen, the detailed information about the
event is displayed. The message can be
scrolled using the up/down button of the
steering wheel switch.
4. Press BACK to return to the previous screen.
DISPLAY URGENT TRAFFIC INFOR-
MATION
When an urgent event is found around the cur-
rent vehicle location, a message pops up auto-
matically with a voice announcement.
NIN0003NIN0004NIN0005
Viewing technical information7-7

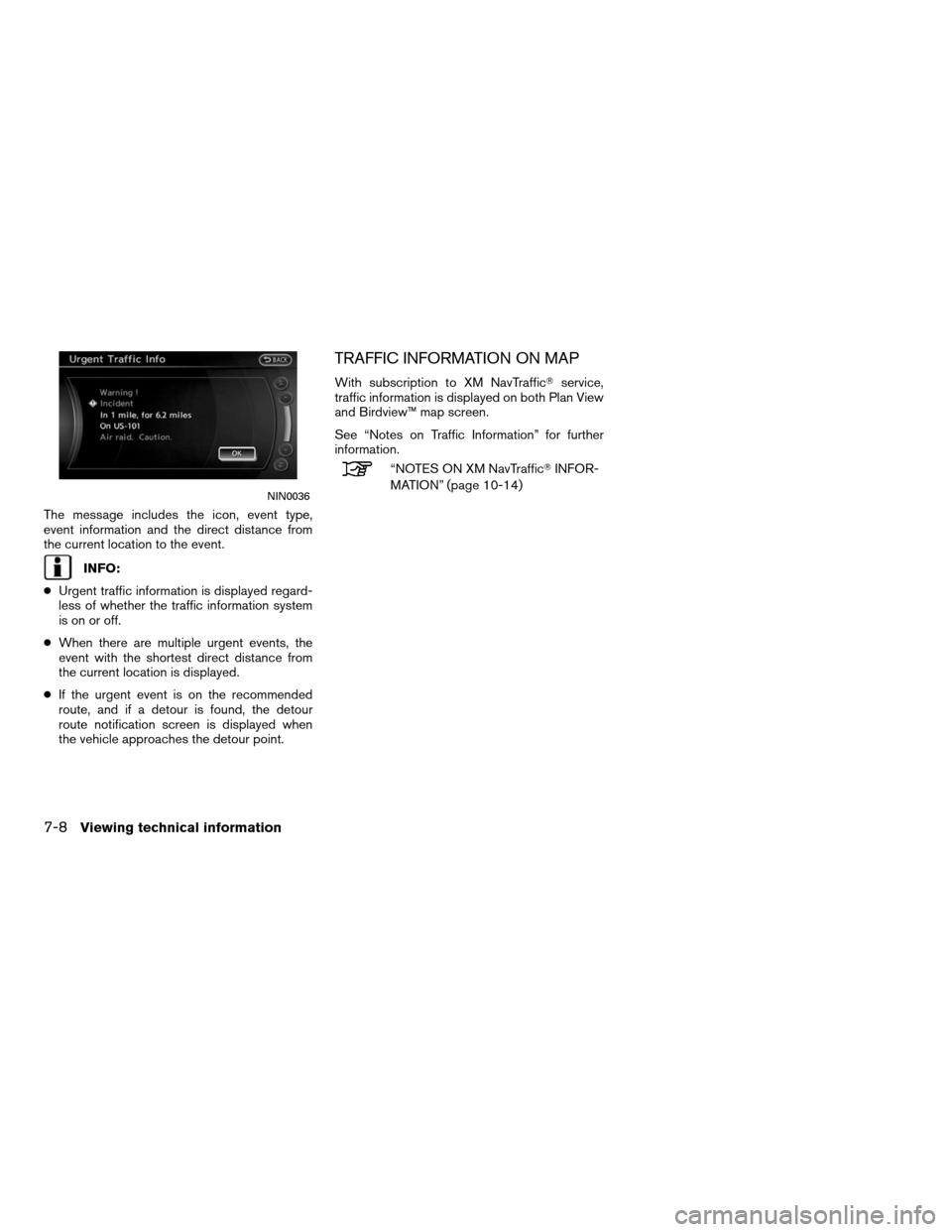

The message includes the icon, event type,
event information and the direct distance from
the current location to the event.
INFO:
● Urgent traffic information is displayed regard-
less of whether the traffic information system
is on or off.
● When there are multiple urgent events, the
event with the shortest direct distance from
the current location is displayed.
● If the urgent event is on the recommended
route, and if a detour is found, the detour
route notification screen is displayed when
the vehicle approaches the detour point.
TRAFFIC INFORMATION ON MAP
With subscription to XM NavTraffic service,
traffic information is displayed on both Plan View
and Birdview™ map screen.
See “Notes on Traffic Information” for further
information.
“NOTES ON XM NavTraffic INFOR-
MATION” (page 10-14)
NIN0036
7-8Viewing technical information

Screen information
1Road conditionsFree Flow: Green arrow
Moderate traffic: Yellow arrow
Heavy traffic: Red arrow
Section affected by serious traffic event:
Purple dashed arrow
2Estimated travel time to destination calcu-
lated with consideration of traffic information
on route.
3Traffic information icon:
If the route is not already set, all of the traffic
information icons on the map screen are
displayed in color. When the route is al-
ready set, the icons on the route are dis-
played in color, and the icons outside the
route are displayed in gray.
: Accident
: Closed road
: Information
: Road work
: Slippery road
: Weather
: Incident
4Traffic indicator:Displays the reception condition of traffic
information transmitted from the provider.
Green: Reception condition is good. Gray:
Reception condition is not good. No mark:
Subscription to XM NavTraffic service is
not detected.
Traffic information display and scale
levels
2D map and Birdview™ Map
320 miles (640 km)80 miles (160 km)32 miles (64 km)8 miles (16 km)
INFO:
The traffic information icons are not displayed on
the map screen when the map scale is set to the
building footprint graphics (2D map) or the 3D
building graphics (Birdview™ map) .
NIN0006
Viewing technical information7-9

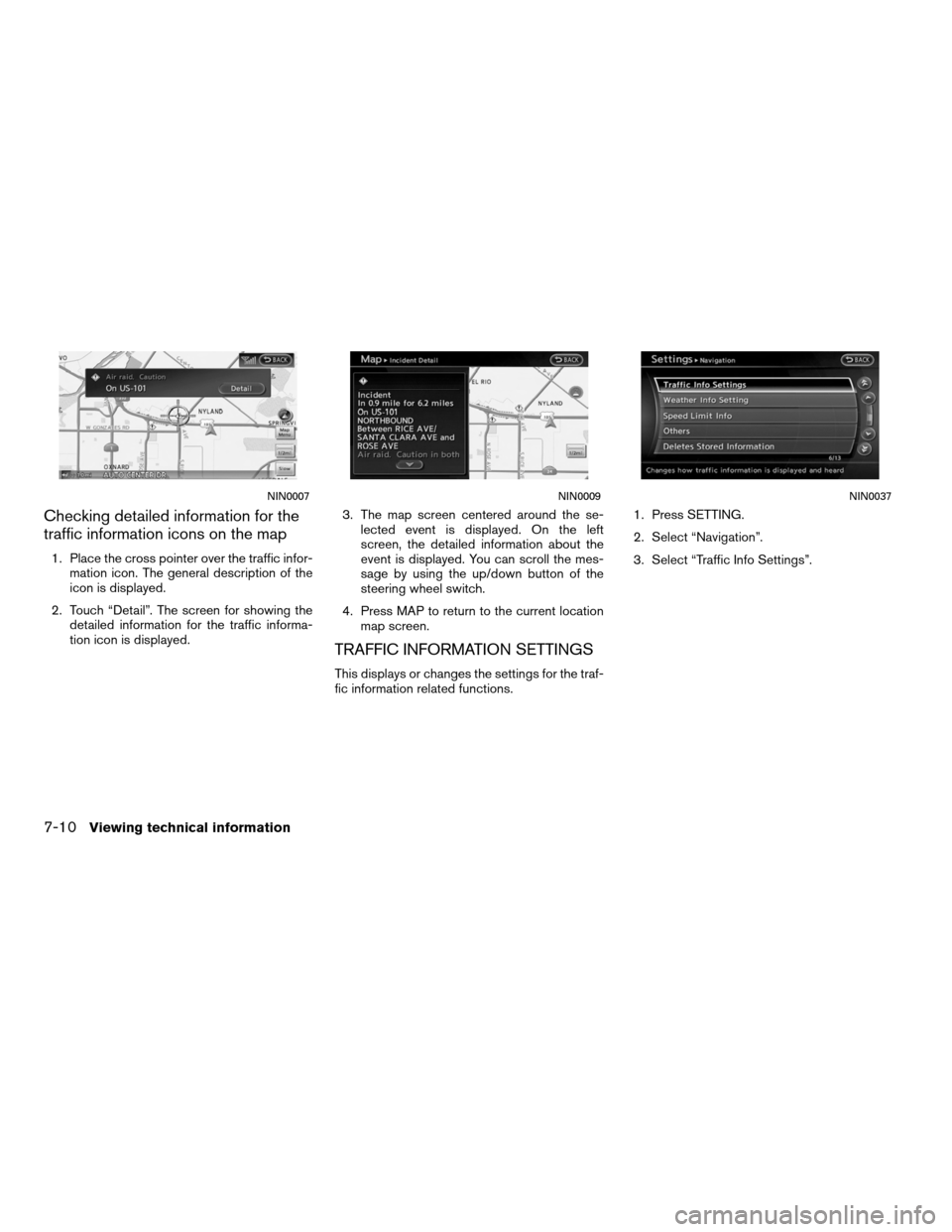

Checking detailed information for the
traffic information icons on the map
1. Place the cross pointer over the traffic infor-mation icon. The general description of the
icon is displayed.
2. Touch “Detail”. The screen for showing the detailed information for the traffic informa-
tion icon is displayed. 3. The map screen centered around the se-
lected event is displayed. On the left
screen, the detailed information about the
event is displayed. You can scroll the mes-
sage by using the up/down button of the
steering wheel switch.
4. Press MAP to return to the current location map screen.
TRAFFIC INFORMATION SETTINGS
This displays or changes the settings for the traf-
fic information related functions. 1. Press SETTING.
2. Select “Navigation”.
3. Select “Traffic Info Settings”.
NIN0007NIN0009NIN0037
7-10Viewing technical information

4. Select the preferred setting. The indicatorfor the selected setting illuminates.
Available setting items
●Use Traffic Info.:
Enables all traffic information related
functions.
● Show Incidents on Map:
Displays the traffic incidents (e.g., accident)
on the map screen.
● Show Traffic Flow on Map:
Displays the traffic flow with an arrow on the
map screen.
● Blink Red Traffic Flow:
Blinks the red traffic flow lines that repre-
sent congestions. ●
Traffic Announcements:
Announces the traffic information event on
the route.
INFO:
● Even when “Show Traffic Flow On Map” and
“Show Incidents on Map” are set to off, the list
display of “Info On Route” and “Nearby Traffic
Info” will not be affected.
● Even when “Traffic Announcements” is set to
off, the route guidance will not be affected.
Also, the announcement of emergency infor-
mation and weather information will not be
turned off.
Voice command
1. Press
located on the steering wheel
switch.
2. After the tone sounds, speak a command. To turn on or off the traffic information sys-
tem: “Information” “Traffic Information”
(Standard mode)
“Traffic Information” (Alternate command
mode) XM NavWeather™ information is a subscription
service offered by XM
Satellite Radio.
This service provides real-time information re-
garding current weather, temperature, warnings,
road conditions and forecasts where available.
The weather information is broadcast to the ve-
hicle by the XM satellites.
The service enables you to view the following in-
formation on the navigation system.
*Current weather information icon of the destina-
tion on the screen of suggested route
*Detailed weather information and forecasts of
an area of interest
*Countrywide and local maps with the current
weather, temperature, warnings and road condi-
tion information
*List of warning/watches events detected
around the current location
*Pop-up messages on the navigation screen
with voice announcements when warnings and
watches are detected around the current loca-
tion
NIN0038
VIEWING AVAILABLE WEATHER IN-
FORMATION
Viewing technical information7-11

WARNING
XM NavWeather™ information is not a
substitute for attentive driving.
Weather conditions change constantly
and emergency situations can arise
without warning. Relying only on XM
NavWeather™ information could result
in serious personal injury.
XM NavWeather™ information is available in lim-
ited markets. To subscribe to or check if this ser-
vice is available in the area, call
1-800-XMRADIO (1-800-967-2346) or access
www.xmradio.com/navweather.
INFO:
● If a contract is not completed for the XM
NavWeather™ information service, a message
appears and it will not be possible to check
the information on the traffic information
system.
● The weather information is available only for
areas that provide weather information to XM
NavWeather™.
INFO:
The reception condition of the XM weather in-
formation transmitted from the provider can be
confirmed using the “Weather” indicator on the
upper right side of the screen.
Green: The reception condition is good.
Gray: The reception condition is not good.
No mark: A subscription to the XM Nav-
Weather™ service is not detected.DISPLAYING WEATHER INFORMA-
TION SCREEN
Basic operation
1. Press INFO.
2. Select “Weather Info”.
3. Press BACK to return to the previous
screen. Press MAP to return to the current
location map screen.
Available items:
● Current Weather and Forecasts:
Displays current weather information and
three-day forecasts.
● Warnings and Watches History:
Displays a list of warnings and watches re-
cently detected around the current location.
LNV0591LNV2011
