2011 NISSAN ALTIMA COUPE Navigation Manual

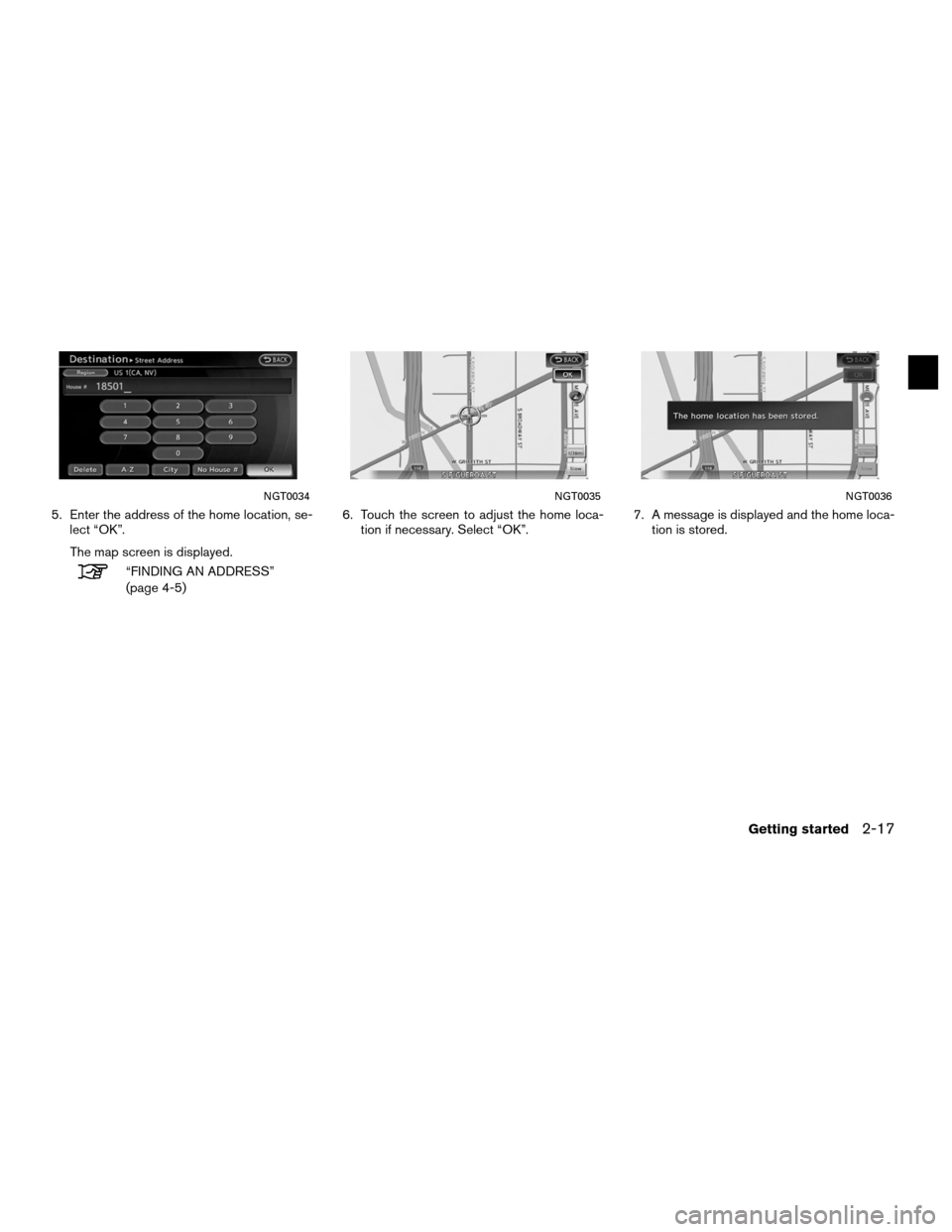

5. Enter the address of the home location, se-lect “OK”.
The map screen is displayed.
“FINDING AN ADDRESS”
(page 4-5) 6. Touch the screen to adjust the home loca-
tion if necessary. Select “OK”. 7. A message is displayed and the home loca-
tion is stored.
NGT0034NGT0035NGT0036
Getting started2-17

8. Select “OK”.
9. Press “Map” to return to the current locationmap screen. The home icon is displayed on
the map.
INFO:
The same setting can also be performed by
pressing SETTING and selecting “Navigation”.
“STORING A LOCATION BY
SEARCHING” (page 6-2)
SEARCHING FOR A DESTINATION
As an example, the method for setting a restau-
rant as the destination using “Places” is de-
scribed here.
1. Press DEST.
2. Select “Places”.
NGT0066NGT0037
SETTING A DESTINATION
2-18Getting started

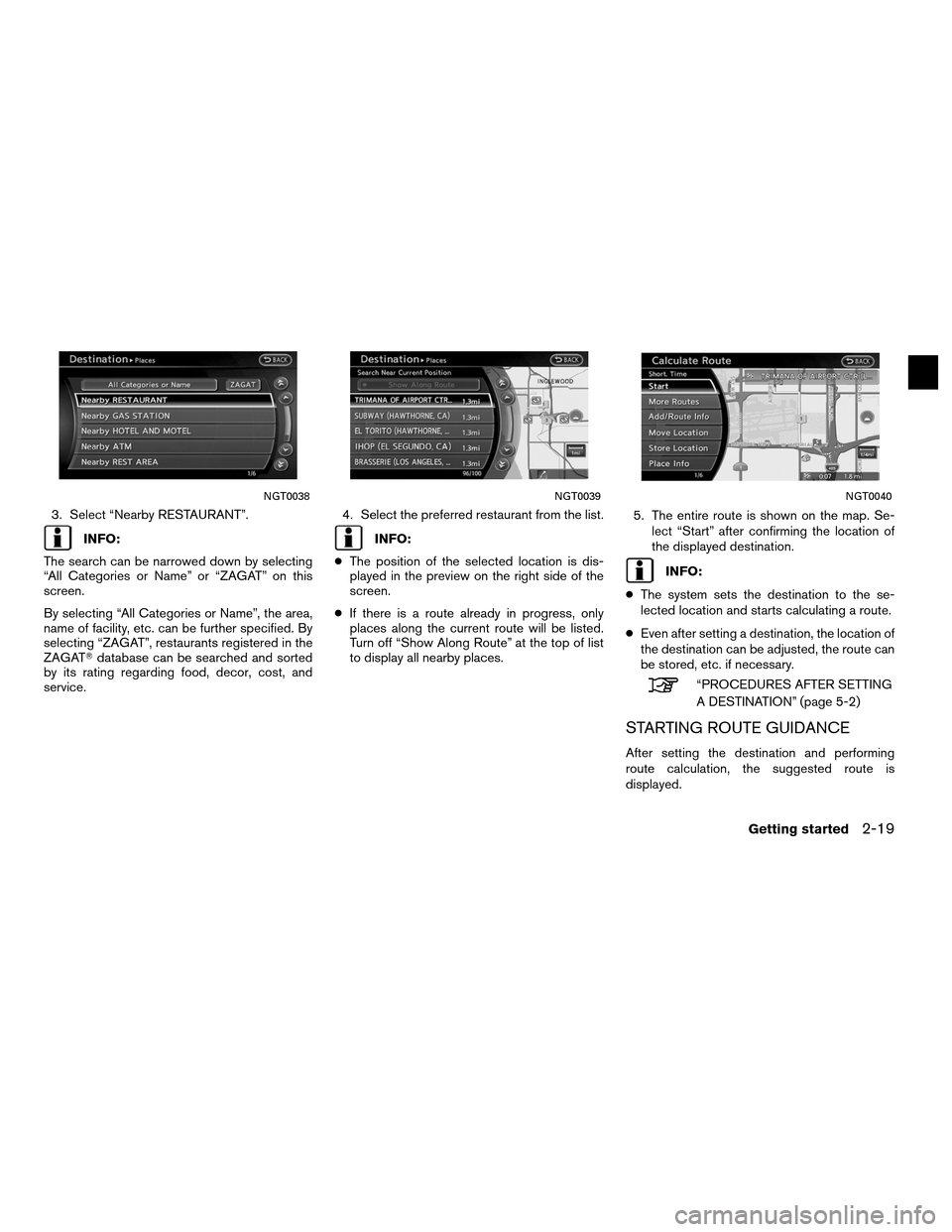

3. Select “Nearby RESTAURANT”.
INFO:
The search can be narrowed down by selecting
“All Categories or Name” or “ZAGAT” on this
screen.
By selecting “All Categories or Name”, the area,
name of facility, etc. can be further specified. By
selecting “ZAGAT”, restaurants registered in the
ZAGAT database can be searched and sorted
by its rating regarding food, decor, cost, and
service. 4. Select the preferred restaurant from the list.INFO:
● The position of the selected location is dis-
played in the preview on the right side of the
screen.
● If there is a route already in progress, only
places along the current route will be listed.
Turn off “Show Along Route” at the top of list
to display all nearby places. 5. The entire route is shown on the map. Se-
lect “Start” after confirming the location of
the displayed destination.
INFO:
● The system sets the destination to the se-
lected location and starts calculating a route.
● Even after setting a destination, the location of
the destination can be adjusted, the route can
be stored, etc. if necessary.
“PROCEDURES AFTER SETTING
A DESTINATION” (page 5-2)
STARTING ROUTE GUIDANCE
After setting the destination and performing
route calculation, the suggested route is
displayed.
NGT0038NGT0039NGT0040
Getting started2-19

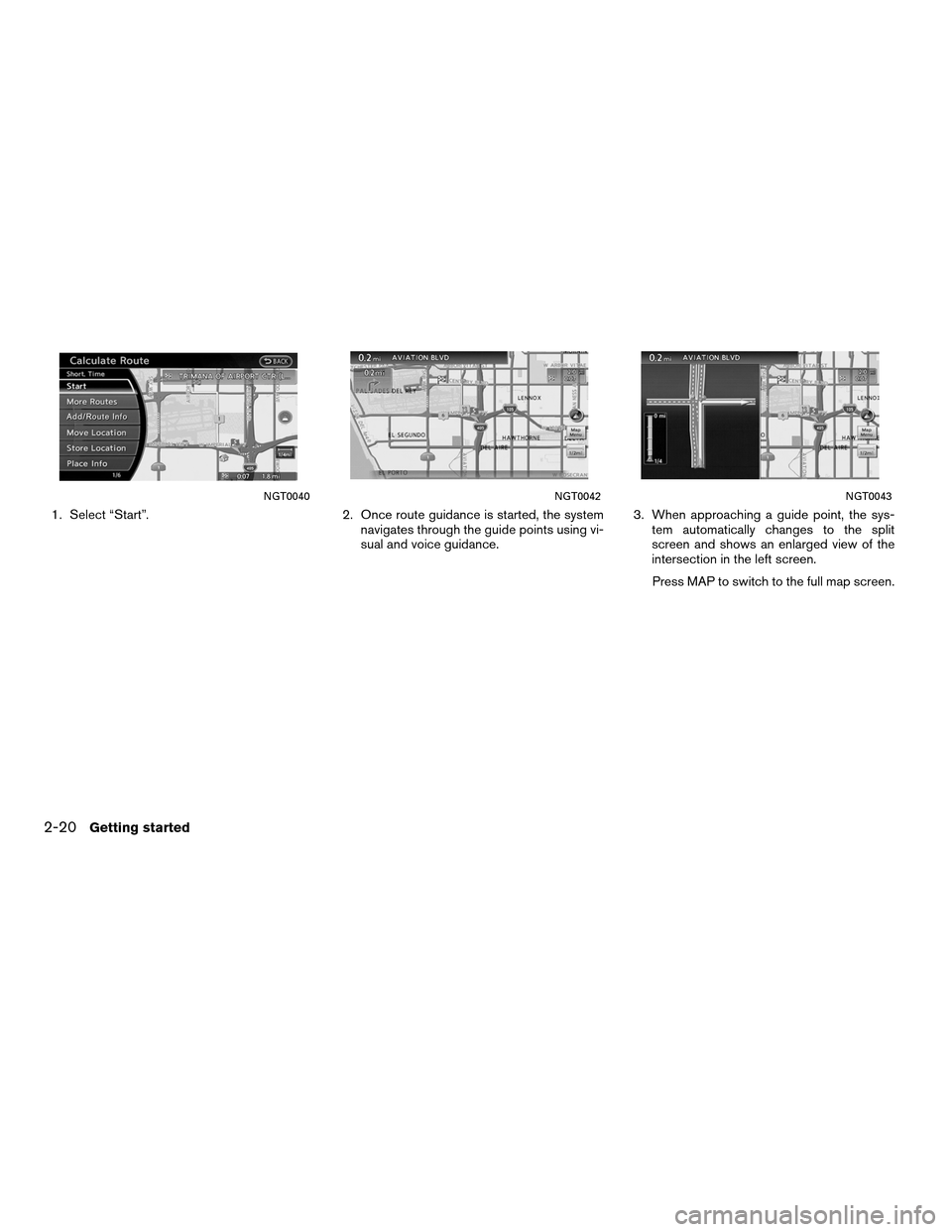

1. Select “Start”.2. Once route guidance is started, the system
navigates through the guide points using vi-
sual and voice guidance. 3. When approaching a guide point, the sys-
tem automatically changes to the split
screen and shows an enlarged view of the
intersection in the left screen.
Press MAP to switch to the full map screen.
NGT0040NGT0042NGT0043
2-20Getting started

4. When arriving at the destination, route guid-ance automatically ends.
CANCELING A ROUTE
Delete a route that is already set according to
the following procedure. 1. Press ROUTE.
2. Select “Cancel Route”.
3. A confirmation message is displayed. Se-
lect “Yes”.
INFO:
● If a route is cancelled, “Cancel Route”
changes to “Resume Route”.
Select “Resume Route” to reactivate the can-
celled route.
This is available only until a new route is set or
a currently set destination is deleted.
● The above step does not delete the destina-
tion that has been set. To delete a destination,
press DEST and select “Delete Destination”.
DELETE DESTINATION”
(page 4-33)
NGT0044NRG0019NGT0046
Getting started2-21

HOW TO VIEW MAP SCREEN
The navigation system displays various informa-
tion on the map screen.
Screen information
1Vehicle icon:
Indicates the current vehicle location and
the direction of travel.
2Starting point:
Displays the vehicle location, with which the
route is set, as the starting point.
3Guide point:
Indicates a guide point on the route.
4Waypoint:
Displays locations between the starting
point and the destination. A maximum of 5
waypoints can be set.
5Destination:
Indicates the destination location of the
route guidance. When you reach your destination, the ad-
dress will be displayed on the map screen.
6Suggested route:
Appears in bold yellow during route guidance.
7Map menu icon:
Touch the icon to display the Map Menu
screen.
“MAP MENU SCREEN”
(page 2-13)
8/Direction indicator:
Indicates the setting of the map: north al-
ways pointing up or the vehicle’s direction
always pointing up on the display. Touch the
icon to change this setting.
9Scale indicator:
Indicates the scale of the map.
Touch the icon to display the scale bar. This
allows the map scale to be adjusted.
“OPERATING WITH THE
TOUCH OPERATION”
(page 3-5)
10Street name: Displays the name of the street that the ve-
hicle is currently driving on.
LNV0569
OPERATING MAPS
2-22Getting started

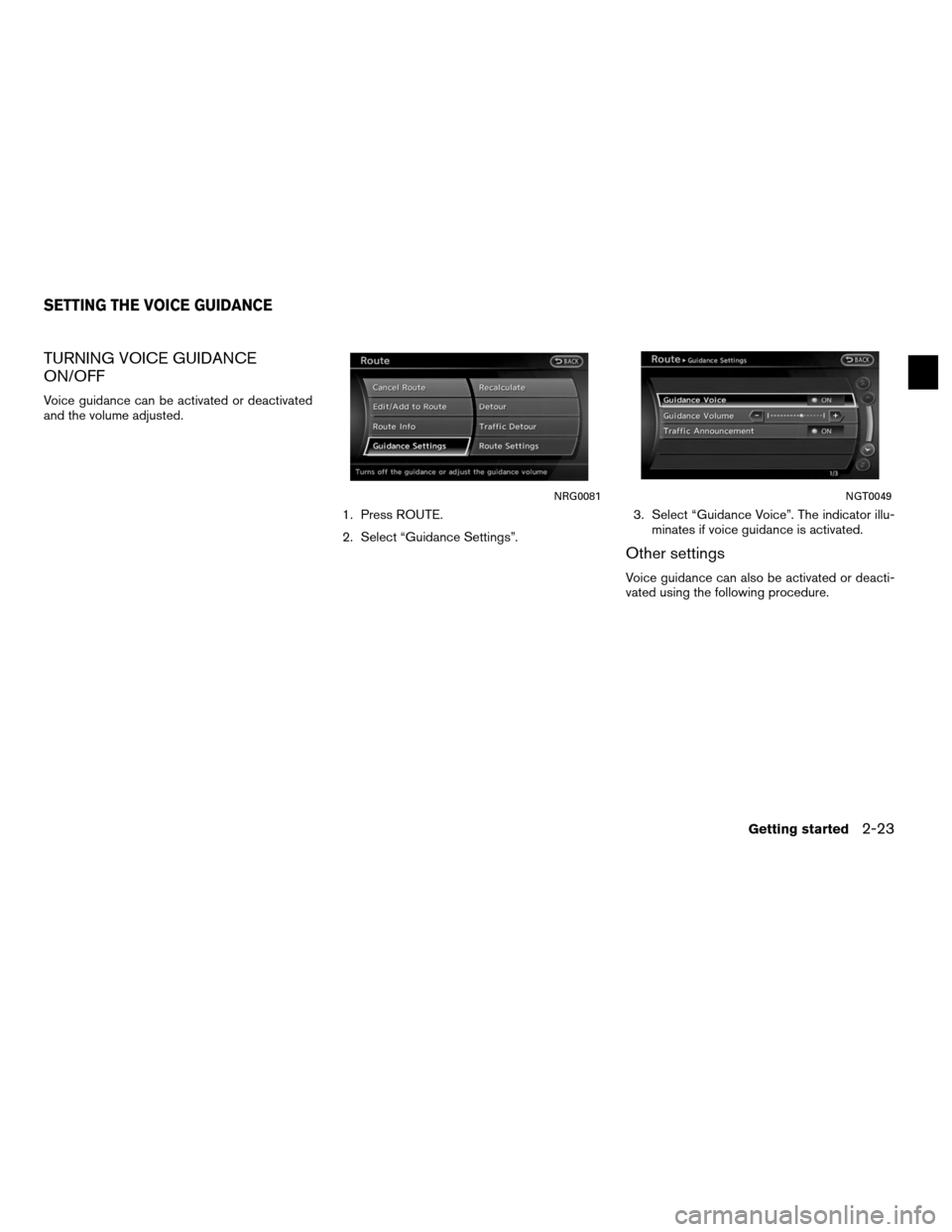

TURNING VOICE GUIDANCE
ON/OFF
Voice guidance can be activated or deactivated
and the volume adjusted.1. Press ROUTE.
2. Select “Guidance Settings”.3. Select “Guidance Voice”. The indicator illu-
minates if voice guidance is activated.
Other settings
Voice guidance can also be activated or deacti-
vated using the following procedure.
NRG0081NGT0049
SETTING THE VOICE GUIDANCE
Getting started2-23

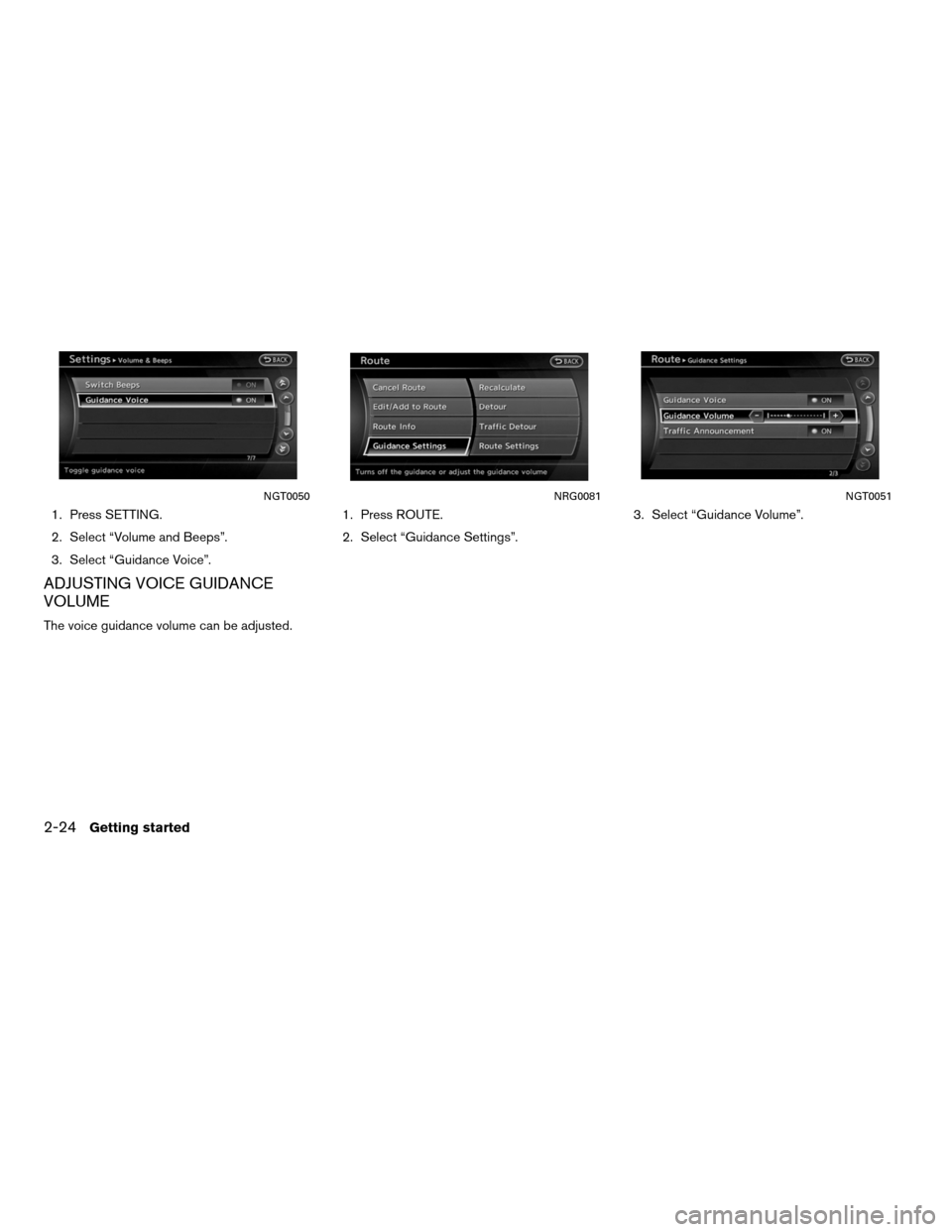

1. Press SETTING.
2. Select “Volume and Beeps”.
3. Select “Guidance Voice”.
ADJUSTING VOICE GUIDANCE
VOLUME
The voice guidance volume can be adjusted.1. Press ROUTE.
2. Select “Guidance Settings”.
3. Select “Guidance Volume”.
NGT0050NRG0081NGT0051
2-24Getting started
