2011 NISSAN ALTIMA COUPE Navigation Manual

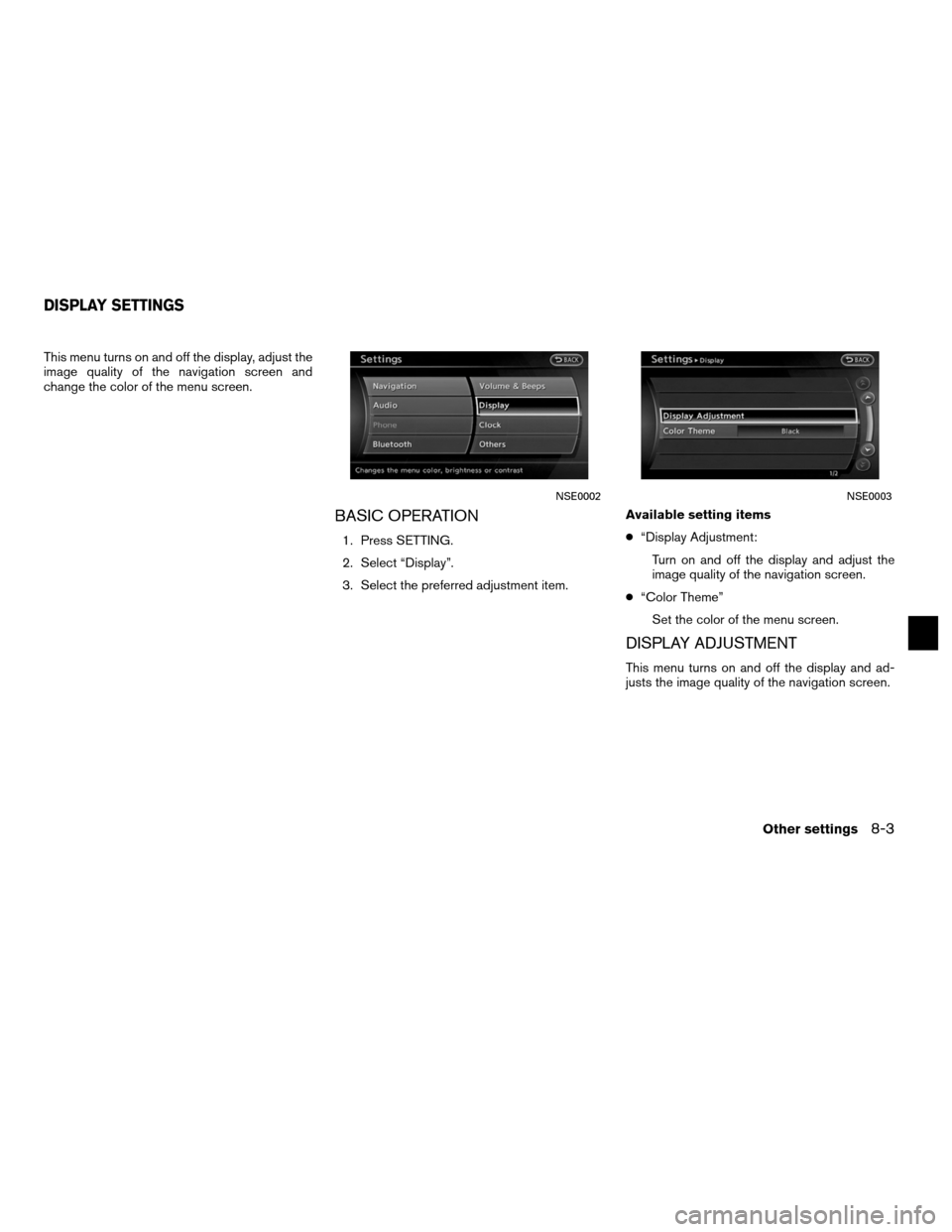

This menu turns on and off the display, adjust the
image quality of the navigation screen and
change the color of the menu screen.
BASIC OPERATION
1. Press SETTING.
2. Select “Display”.
3. Select the preferred adjustment item.Available setting items
●
“Display Adjustment:
Turn on and off the display and adjust the
image quality of the navigation screen.
● “Color Theme”
Set the color of the menu screen.
DISPLAY ADJUSTMENT
This menu turns on and off the display and ad-
justs the image quality of the navigation screen.
NSE0002NSE0003
DISPLAY SETTINGS
Other settings8-3

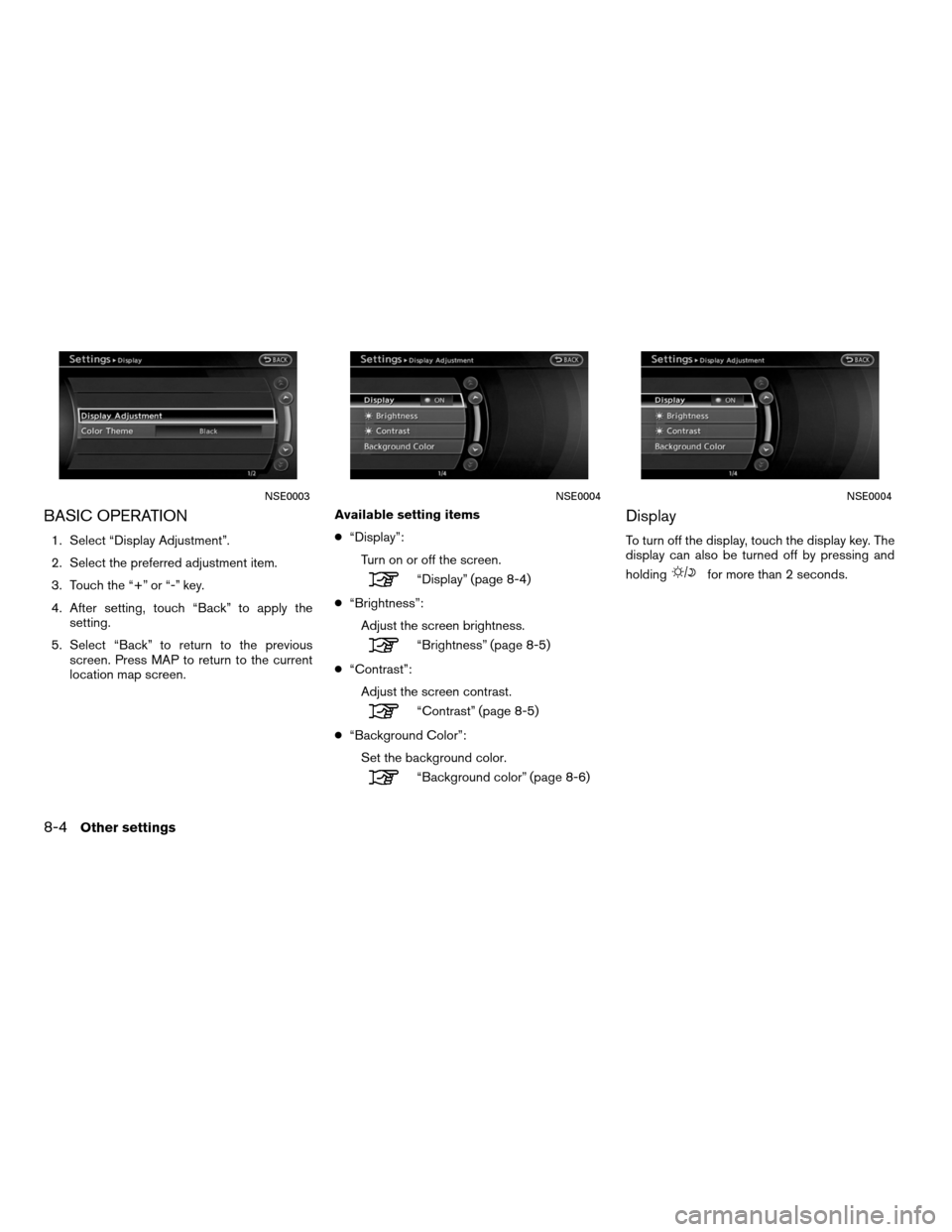

BASIC OPERATION
1. Select “Display Adjustment”.
2. Select the preferred adjustment item.
3. Touch the “+” or “-” key.
4. After setting, touch “Back” to apply thesetting.
5. Select “Back” to return to the previous screen. Press MAP to return to the current
location map screen. Available setting items
●
“Display”:
Turn on or off the screen.
“Display” (page 8-4)
● “Brightness”:
Adjust the screen brightness.
“Brightness” (page 8-5)
● “Contrast”:
Adjust the screen contrast.
“Contrast” (page 8-5)
● “Background Color”:
Set the background color.
“Background color” (page 8-6)
Display
To turn off the display, touch the display key. The
display can also be turned off by pressing and
holding
for more than 2 seconds.
NSE0003NSE0004NSE0004
8-4Other settings

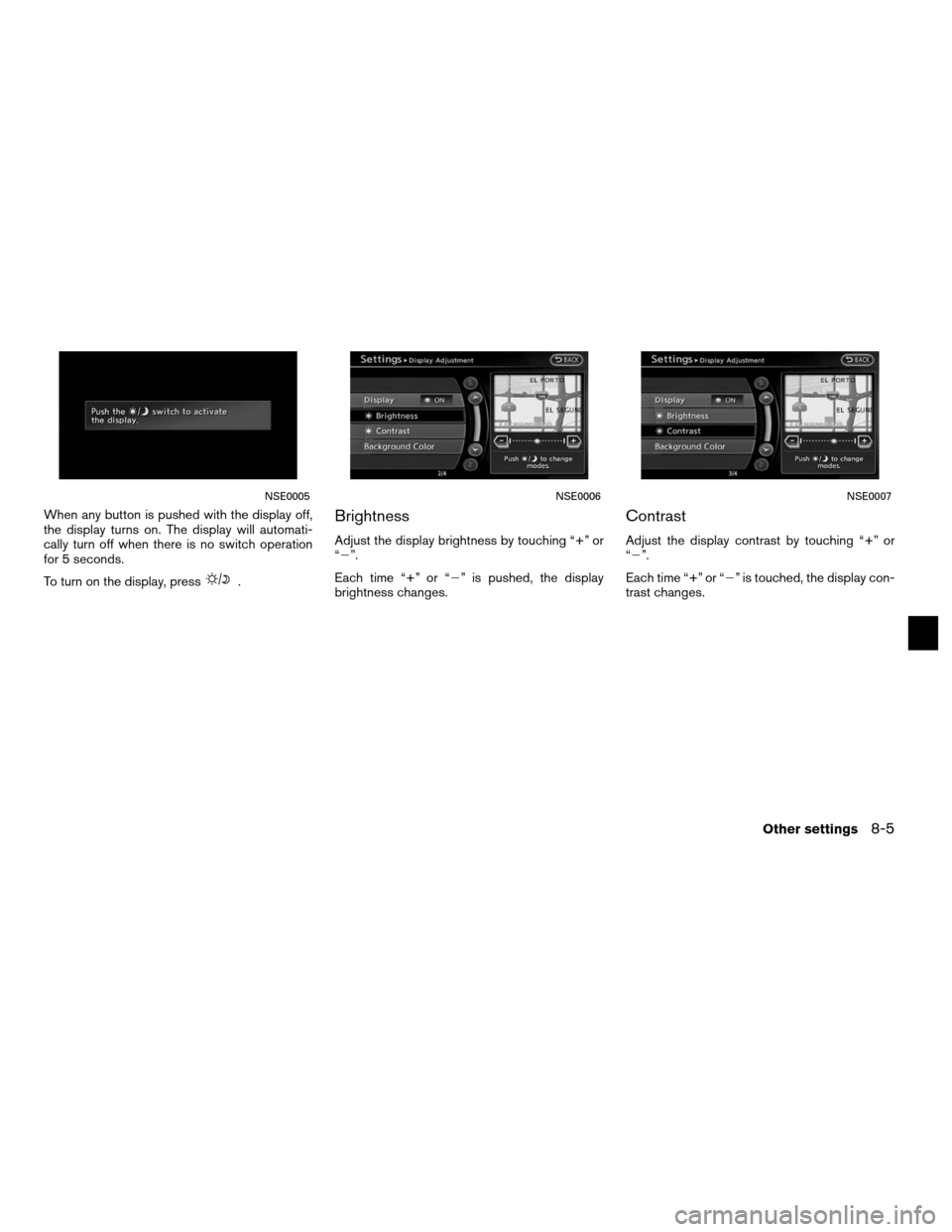

When any button is pushed with the display off,
the display turns on. The display will automati-
cally turn off when there is no switch operation
for 5 seconds.
To turn on the display, press
.
Brightness
Adjust the display brightness by touching “+” or
“”.
Each time “+” or “” is pushed, the display
brightness changes.
Contrast
Adjust the display contrast by touching “+” or
“”.
Each time “+” or “” is touched, the display con-
trast changes.
NSE0005NSE0006NSE0007
Other settings8-5

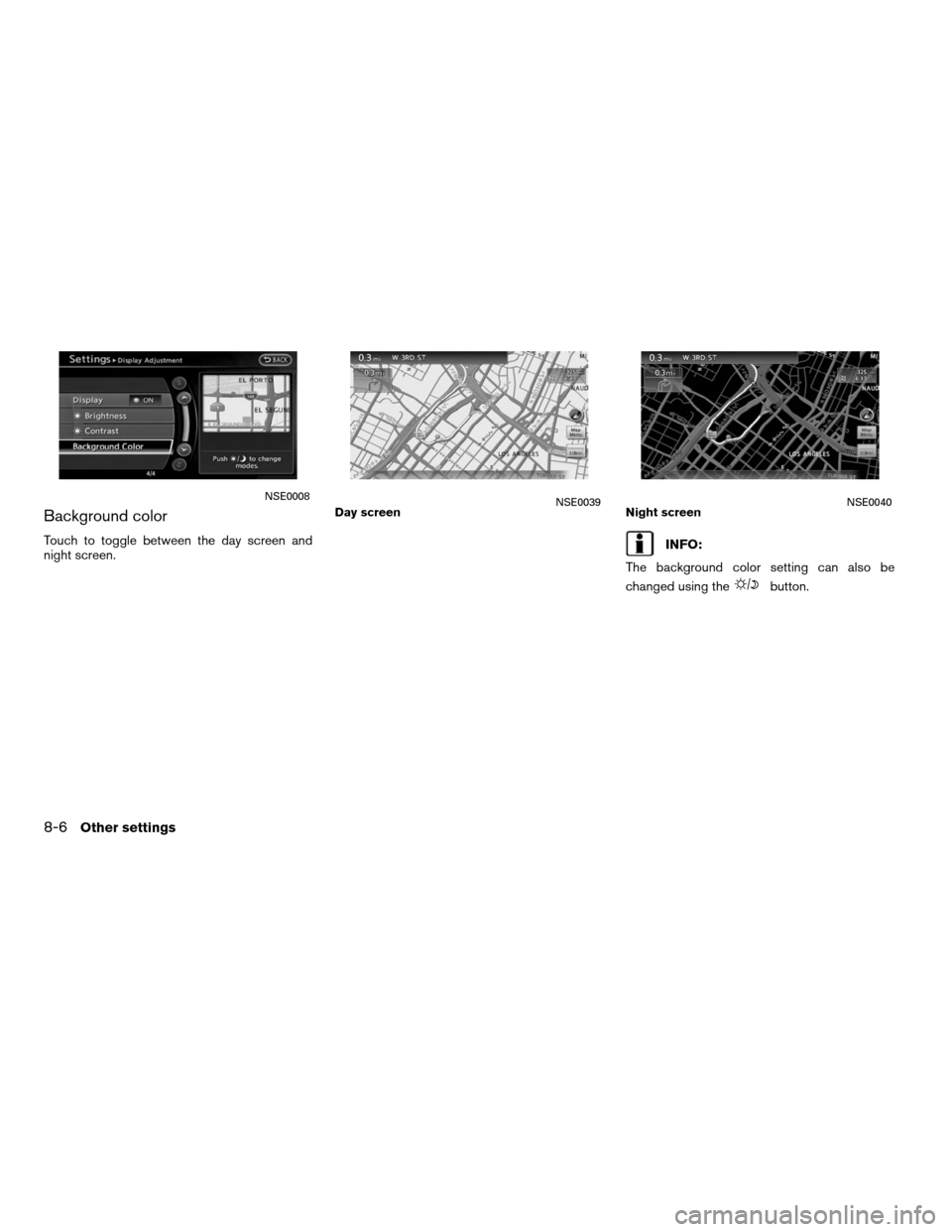

Background color
Touch to toggle between the day screen and
night screen.INFO:
The background color setting can also be
changed using the
button.
NSE0008
Day screenNSE0039Night screenNSE0040
8-6Other settings

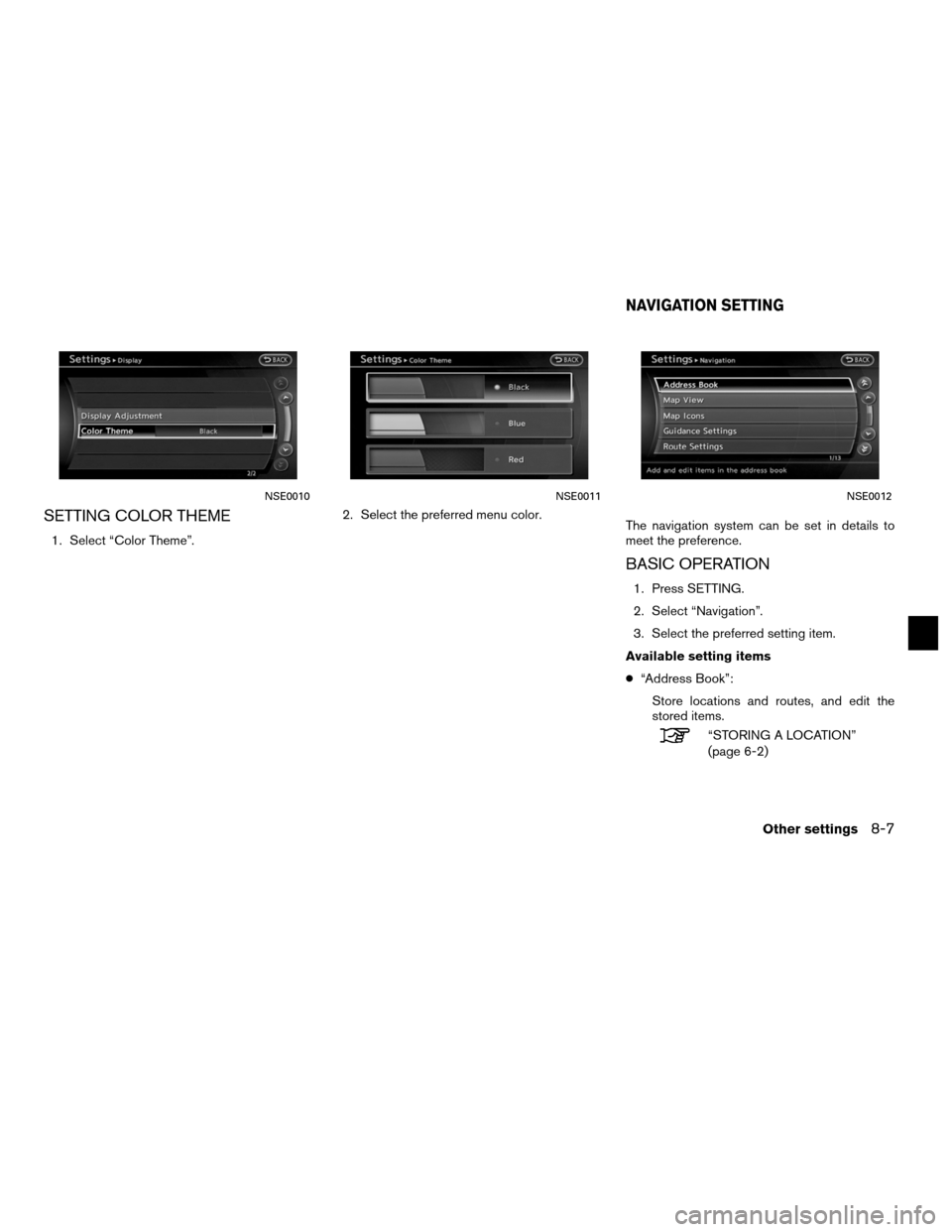

SETTING COLOR THEME
1. Select “Color Theme”.2. Select the preferred menu color.
The navigation system can be set in details to
meet the preference.
BASIC OPERATION
1. Press SETTING.
2. Select “Navigation”.
3. Select the preferred setting item.
Available setting items
● “Address Book”:
Store locations and routes, and edit the
stored items.
“STORING A LOCATION”
(page 6-2)
NSE0010NSE0011NSE0012
NAVIGATION SETTING
Other settings8-7

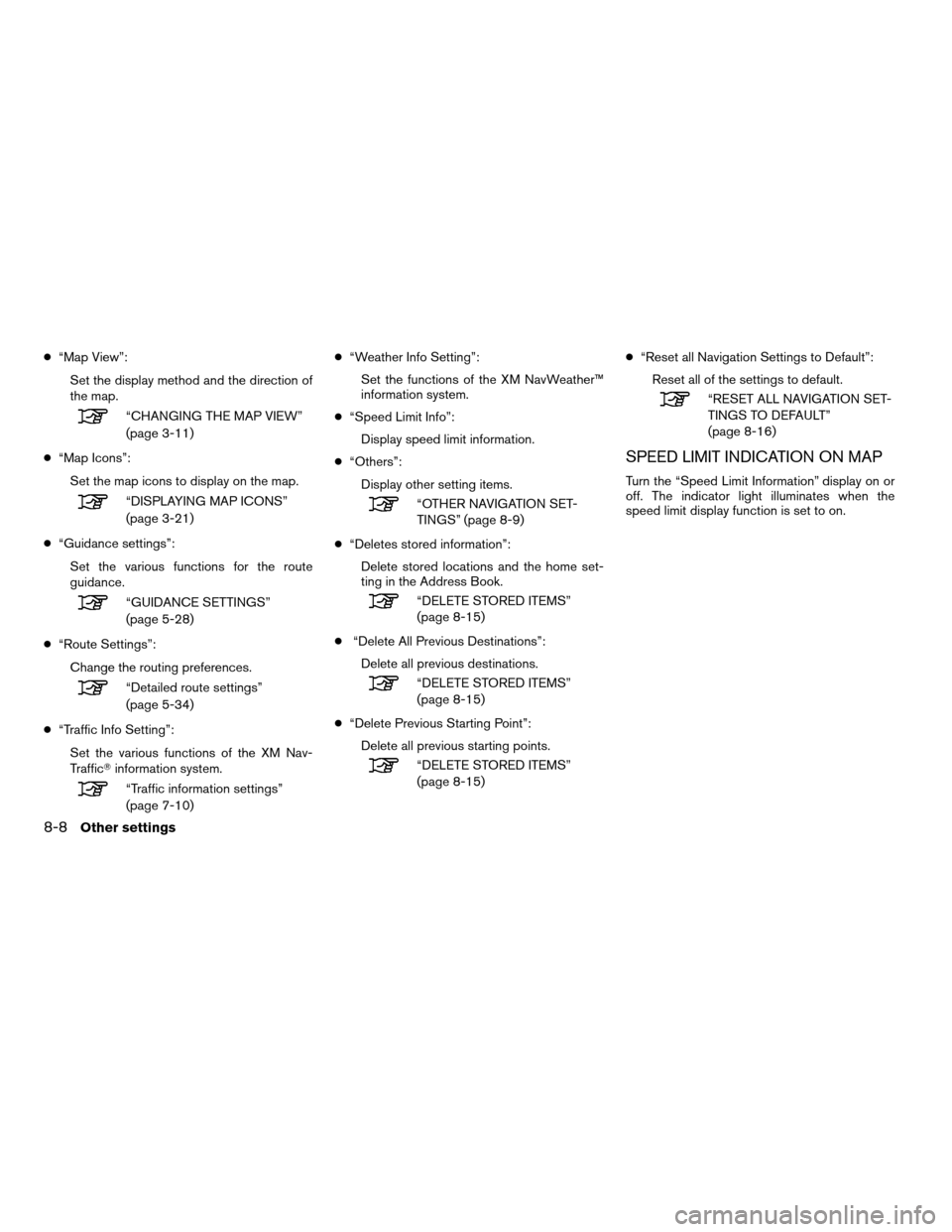

●“Map View”:
Set the display method and the direction of
the map.
“CHANGING THE MAP VIEW”
(page 3-11)
● “Map Icons”:
Set the map icons to display on the map.
“DISPLAYING MAP ICONS”
(page 3-21)
● “Guidance settings”:
Set the various functions for the route
guidance.
“GUIDANCE SETTINGS”
(page 5-28)
● “Route Settings”:
Change the routing preferences.
“Detailed route settings”
(page 5-34)
● “Traffic Info Setting”:
Set the various functions of the XM Nav-
Traffic information system.
“Traffic information settings”
(page 7-10) ●
“Weather Info Setting”:
Set the functions of the XM NavWeather™
information system.
● “Speed Limit Info”:
Display speed limit information.
● “Others”:
Display other setting items.
“OTHER NAVIGATION SET-
TINGS” (page 8-9)
● “Deletes stored information”:
Delete stored locations and the home set-
ting in the Address Book.
“DELETE STORED ITEMS”
(page 8-15)
● “Delete All Previous Destinations”:
Delete all previous destinations.
“DELETE STORED ITEMS”
(page 8-15)
● “Delete Previous Starting Point”:
Delete all previous starting points.
“DELETE STORED ITEMS”
(page 8-15) ●
“Reset all Navigation Settings to Default”:
Reset all of the settings to default.
“RESET ALL NAVIGATION SET-
TINGS TO DEFAULT”
(page 8-16)
SPEED LIMIT INDICATION ON MAP
Turn the “Speed Limit Information” display on or
off. The indicator light illuminates when the
speed limit display function is set to on.
8-8Other settings

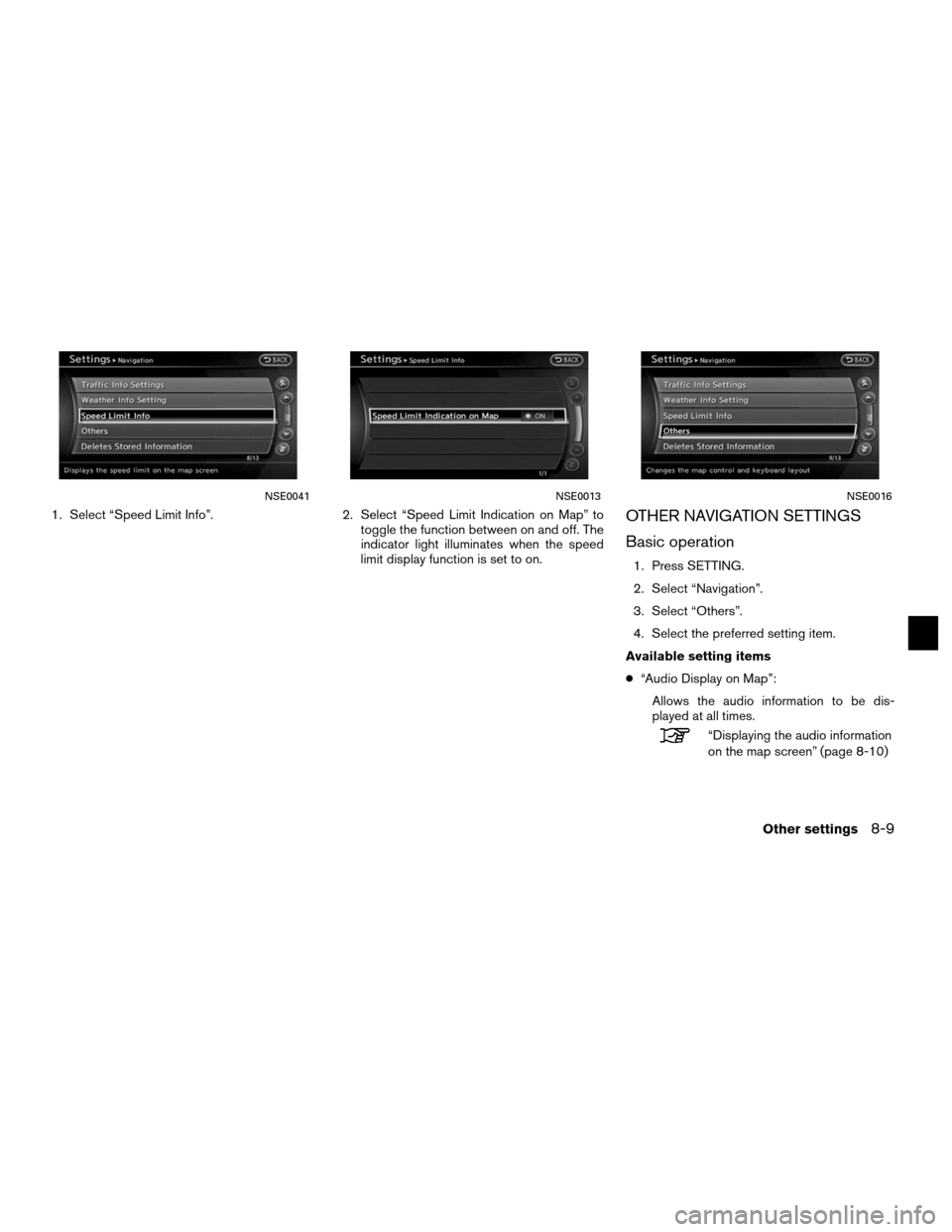

1. Select “Speed Limit Info”.2. Select “Speed Limit Indication on Map” to
toggle the function between on and off. The
indicator light illuminates when the speed
limit display function is set to on.OTHER NAVIGATION SETTINGS
Basic operation
1. Press SETTING.
2. Select “Navigation”.
3. Select “Others”.
4. Select the preferred setting item.
Available setting items
● “Audio Display on Map”:
Allows the audio information to be dis-
played at all times.
“Displaying the audio information
on the map screen” (page 8-10)
NSE0041NSE0013NSE0016
Other settings8-9

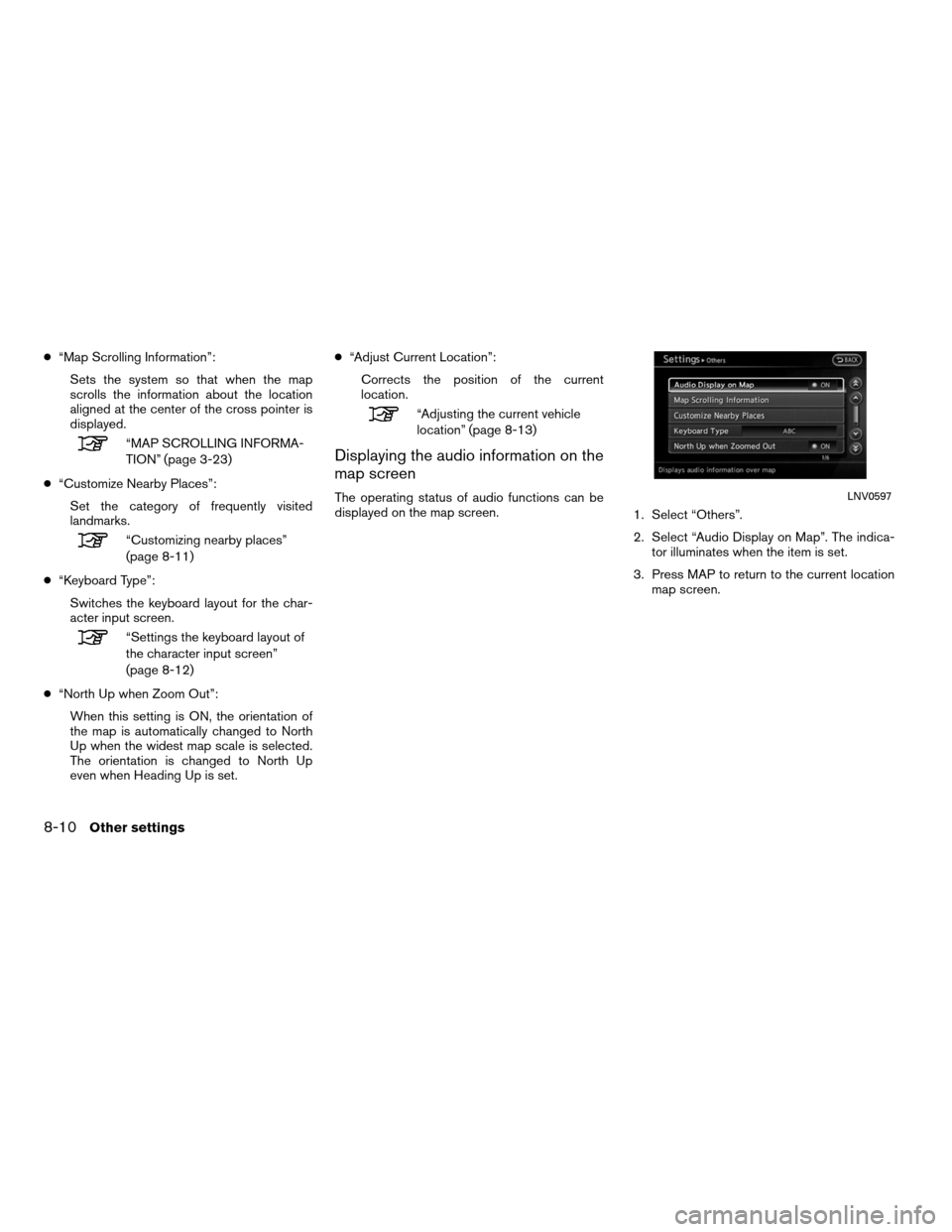

●“Map Scrolling Information”:
Sets the system so that when the map
scrolls the information about the location
aligned at the center of the cross pointer is
displayed.
“MAP SCROLLING INFORMA-
TION” (page 3-23)
● “Customize Nearby Places”:
Set the category of frequently visited
landmarks.
“Customizing nearby places”
(page 8-11)
● “Keyboard Type”:
Switches the keyboard layout for the char-
acter input screen.
“Settings the keyboard layout of
the character input screen”
(page 8-12)
● “North Up when Zoom Out”:
When this setting is ON, the orientation of
the map is automatically changed to North
Up when the widest map scale is selected.
The orientation is changed to North Up
even when Heading Up is set. ●
“Adjust Current Location”:
Corrects the position of the current
location.
“Adjusting the current vehicle
location” (page 8-13)
Displaying the audio information on the
map screen
The operating status of audio functions can be
displayed on the map screen. 1. Select “Others”.
2. Select “Audio Display on Map”. The indica-
tor illuminates when the item is set.
3. Press MAP to return to the current location map screen.LNV0597
8-10Other settings
