2011 MITSUBISHI OUTLANDER Rear Entertainment

Supported disc types
18
Supported disc types
Supported MP3 le speci cations are listed below.
Item Contents
StandardMPEG1 AUDIO LAYER3 MPEG2.5 AUDIO
LAYER3
MPEG2 AUDIO LAYER3
Sampling
frequency [Hz]MPEG1 32k/44.1k/48k
MPEG2 16k/22.05k/24k
Bit rate [kbps]MPEG132/40/48/56/64/80/96/112/128/160/192/2
24/256/320
MPEG2, 2.58/16/24/32/40/48/56/64/80/96/112/128/14
4/160
Variable bit rate (VBR) Supported
Channel mode
Stereo/joint stereo/dual channel/monaural
ID3-TagVer. 1.0, Ver 1.1, title, artist name, album
name
Maximum number of
displayed characters in
folder name, le name,
album name, title name,
artist nameFull size: 17 characters
Half size: 34 characters
Compatible CD-R/RW formats are listed below.
Name Standard Description
CD-R/RW
format
speci cationsISO9660 Level 1
Has le names with a maximum of
8 characters and extensions with 3
characters.
(Capital roman characters and the
underscore “_” can be used.)
ISO 9660
expansionJolietA maximum of 64 characters
can be used as le names.
Multisession Supported
Maximum
number of trees8 trees (including roots)
Maximum
number of
folders255 folders
Maximum
number of les400 les (Total number on the disc, not including les
other than MP3 and WMA)
Supported MP3/WMA standards





Supported disc types
19
Supported disc types
Supported WMA le speci cations are listed below.
Item Contents
Standard Windows Media Audio Version7.0
Sampling frequency [Hz] 22.05k/32k/44.1k/48k
Bit rate [kbps]Sampling
frequency
[Hz]22.05k ................ 32 32k ............... 48, 64
44.1k ..
48, 64, 80, 96, 128, 160, 192,
256, 32048k ............................64, 96, 128, 160, 192
VBR (Variable bit rate) Supported
Channel mode Stereo/monaural
WMA-Tag Title, artist name, album name
Maximum number of
displayed characters in
folder name, le name,
album name, title name,
artist nameFull size: 17 characters
Half size: 34 characters
Supported MP3/WMA standards





Supported disc types
20
Supported disc types
Folder arrangement
In the following arrangement, tracks (song les) are numbered as:
(1), (2), (3)... and folders are numbered as 1, 2, 3....

MP3/WMA fi les
· In MP3 and WMA les, data such as song names, artist names,
album names, and genre names are recorded as an “ID3-Tag” or
a “WMA-Tag”, and this information can be indicated on screens
such as the system display.
· Any player that supports MP3/WMA will recognize folder trees in
the same way that a computer does: [genre]
→ [artist]
→ [album]
→ [song (MP3/WMA le)], and songs are searchable in this way.





Supported disc types
21
Supported disc types
tion, or rental of discs without expressed
written permission is prohibited by law.
· This product incorporates copyrighted
technologies. Macrovision Corporation
and other copyright holders are protect-
ed by US patents and other intellectual
property rights protections.
· Permission to use this copyrighted tech-
nology must be obtained from Macrovi-
sion Corporation. Without special permis-
sion from Macrovision Corporation, use
of this technology is restricted to home
or private use.any burrs using a ballpoint pen or other
implement.
Precautions for storage
· When not using discs, always put them
in their cases and keep them out of direct
sunlight.
· Always remove discs from the system
when not using them for an extended
period.
Disc playing environment
· Extreme changes in temperature may
cause moisture to form on the discs or
inside of the system, preventing normal
operation. Such cases include turning
on the heater in the vehicle during the
extreme cold of midwinter.
In such cases, eject the disc and wait a
while before using the system.
· Do not use cracked or warped discs.
· Do not use heart shaped or other special
shaped discs, or partially transparent
discs.
· Do not use 8 cm CD adapters. Doing so
could cause a malfunction.

Copyright information
· The copying, broadcast, public exhibi-
Handling of discs
Proper handling of discs
Precautions for handling
· Dirt or ngerprints on the disc surface
could make the disc unreadable. Do not
touch the disc surface when handling the
disc. Always hold the disc at the outer
edges, or at the center hole and the
outer edge.
· Do not apply labels or stickers to the disc
and do not scratch the disc.
· Do not force another disc into the disc
loading slot when there is already a disc
inserted. Doing so could damage the
discs and cause malfunctions.
Care and maintenance
· Periodically clean the disc surface. Clean
the disc with a soft cloth. Gently wipe
from the center hole to the outer edge.
Do not wipe in a circle.
· A new disc may still have burrs on its
periphery and center hole, so be sure to
check for such burrs.
Using a disc that has burrs can cause
a malfunction, so be sure to remove





Supported disc types
22
Supported disc types

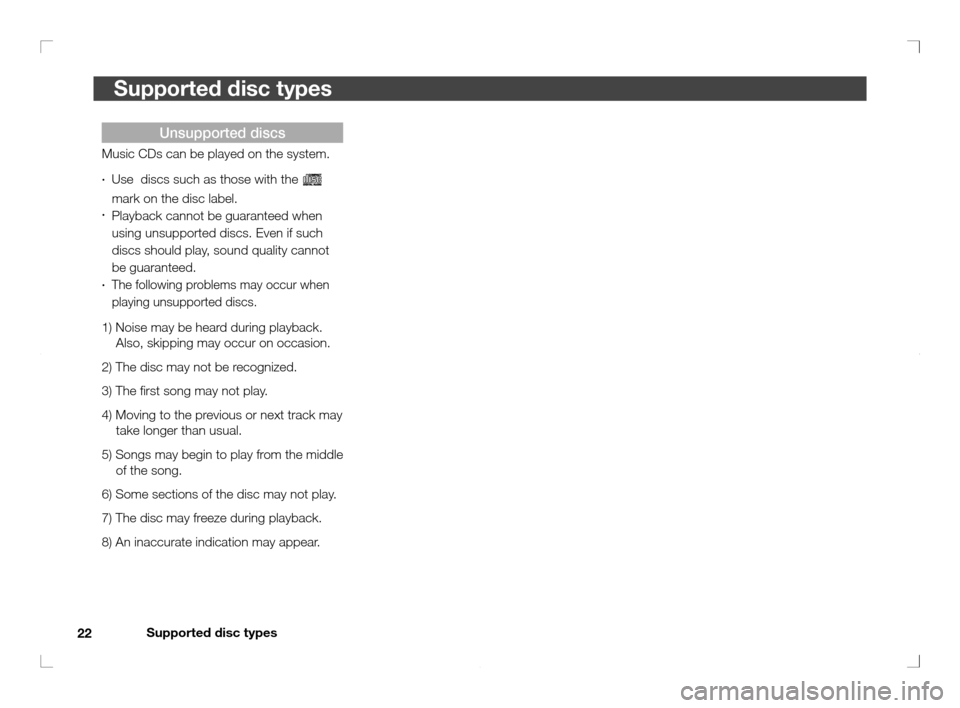

Unsupported discs
Music CDs can be played on the system.
· Use discs such as those with the

mark on the disc label.
·
Playback cannot be guaranteed when
using unsupported discs. Even if such
discs should play, sound quality cannot
be guaranteed.
·
The following problems may occur when
playing unsupported discs.
1) Noise may be heard during playback.
Also, skipping may occur on occasion.
2) The disc may not be recognized.
3) The rst song may not play.
4) Moving to the previous or next track may
take longer than usual.
5) Songs may begin to play from the middle
of the song.
6) Some sections of the disc may not play.
7) The disc may freeze during playback.
8) An inaccurate indication may appear.





23 Basic operations
Basic operations
Turning the power ON and OFF
Press the POWER button
The power comes ON.
· The POWER indicator illuminates.
Press the POWER
button again
The power goes OFF.
NOTE
● If the display screen is left open when the ACC is turned OFF, the next time the
ACC is turned ON, the system power automatically comes on and the last source
displayed on the system is displayed again.
● If the display screen is closed when the ACC is turned OFF, the next time the ACC
is turned ON, the system power does not automatically come on.
Open the display screen to turn on the system power.
● To turn the power ON with the display screen closed, press the POWER
button.
Basic system operations





24Basic operations
Basic operations
To insert/eject the disc
To insert a disc
mb079
Insert the disc into the disc loading slot with the
playing side facing down.
When the disc is inserted, it is loaded and the DISC
indicator illuminates.
To eject the disc
Push the EJECT button to eject the disc.
mb079a
NOTE
● If a disc is inserted when the system power is OFF,
the power will automatically come ON.
● When a disc is ejected and left in the disc loading
slot for 10 seconds, the disc will automatically be
reloaded into the system.
● Discs can be ejected even when the ACC is turned
OFF.
Sample image for vehicles equipped with the MMCS

To select a system source
Press the SOURCE button
Each time the
SOURCE button is pressed, the
system source changes as shown in the gure
below.
DISC
The video screen from the disc (such
as DVD video, DVD audio) in the
system is displayed.

VIDEO
Images from video devices (such as
video cameras, games) connected to
the video input terminals are displayed.

FRONT
If the vehicle is equipped with the
Mitsubishi Multi Communication
System(MMCS),the audio or video
being played on the MMCS is
displayed on the video entertainmant
system display screen.
NOTE
● When the SOURCE
button is pressed, the currently
selected source is displayed in the upper left corner of
the screen.





25 Basic operations
Basic operations
Basic operations for playing a disc
Insert a disc
When a disc is inserted, the screen automatically changes to
DISC and the disc begins to play.
mngj027If a disc is already inserted, press the
SOURCE button, select DISC, and press
the PLAY
button.
NOTE
● When a DVD video and DVD audio is inserted, the main menu is sometimes
displayed.In this case, use the disc menu to operate the DVD.

To pause
Press the PAUSE button
Playback pauses. With a DVD video, DVD audio, or video CD, the paused image
will remain displayed.
Pressing the PAUSE button again while in pause mode resumes playback.

To stop the disc
Press the
STOP button
Playback stops.
To Play a disc
