2011 MERCEDES-BENZ E-CLASS SALOON Owners Manual

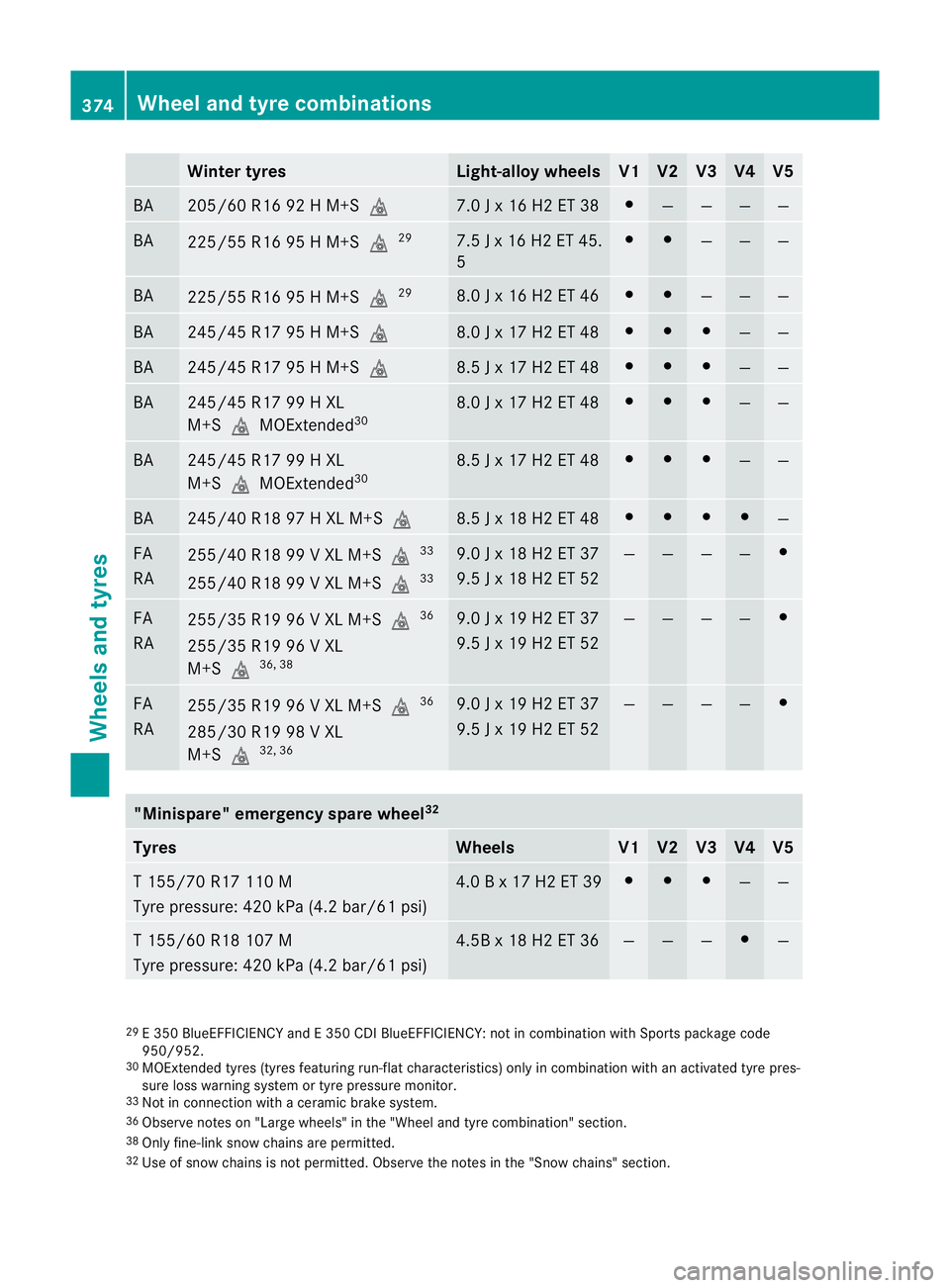

Winter tyres Light-alloy wheels V1 V2 V3 V4 V5
BA 205/60 R16 92 H M+S
i 7.0 J x 16 H2 ET 38 #
— — — —
BA
225/55 R16 95 H M+S
i29 7.5
Jx16 H2 ET 45.
5 # #
— — —
BA
225/55 R16 95 H M+S
i29 8.0 J x 16 H2 ET 46 # #
— — —
BA 245/45 R17 95 H M+S
i 8.0 J x 17 H2 ET 48 # # #
— —
BA 245/45 R17 95 H M+S
i 8.5 J x 17 H2 ET 48 # # #
— —
BA 245/45 R17 99 H XL
M+SiMOExtended
30 8.0 J x 17 H2 ET 48 # # #
— —
BA 245/45 R17 99 H XL
M+SiMOExtended
30 8.5 J x 17 H2 ET 48 # # #
— —
BA 245/40 R18 97 H XL M+S
i 8.5 J x 18 H2 ET 48 # # # #
—
FA
RA
255/40 R18 99 V XL M+S
i33
255/40 R18 99 V XL M+S i33 9.0 J x 18 H2 ET 37
9.5 J x 18 H2 ET 52 — — — — #
FA
RA
255/35 R19 96 V XL M+S
i36
255/35 R19 96 V XL
M+Si 36, 38 9.0 J x 19 H2 ET 37
9.5 J x 19 H2 ET 52 — — — — #
FA
RA
255/35 R19 96 V XL M+S
i36
285/30 R19 98 V XL
M+Si 32, 36 9.0 J x 19 H2 ET 37
9.5 J x 19 H2 ET 52 — — — — #
"Minispare" emergency spare wheel
32Tyres Wheels V1 V2 V3 V4 V5
T 155/70 R17 110 M
Tyre pressure: 420 kPa (4.2 bar/61 psi) 4.0 B x 17 H2 ET 39 # # #
— —
T 155/60 R18 107 M
Tyre pressure: 420 kPa (4.2 bar/61 psi) 4.5B x 18 H2 ET 36 — — — #
—
29
E 350 BlueEFFICIENCY and E 350 CDI BlueEFFICIENCY: not in combination with Sports package code
950/952.
30 MOExtended tyres (tyres featuring run-fla tcharacteristics) only in combination with an activated tyre pres-
sure loss warning system or tyre pressure monitor.
33 Not in connection with a ceramic brake system.
36 Observe notes on "Large wheels" in the "Wheel and tyre combination" section.
38 Only fine-link snow chains are permitted.
32 Use of snow chains is not permitted. Observe the notes in the "Snow chains" section. 374
Wheel and tyre combinationsWheels and tyres

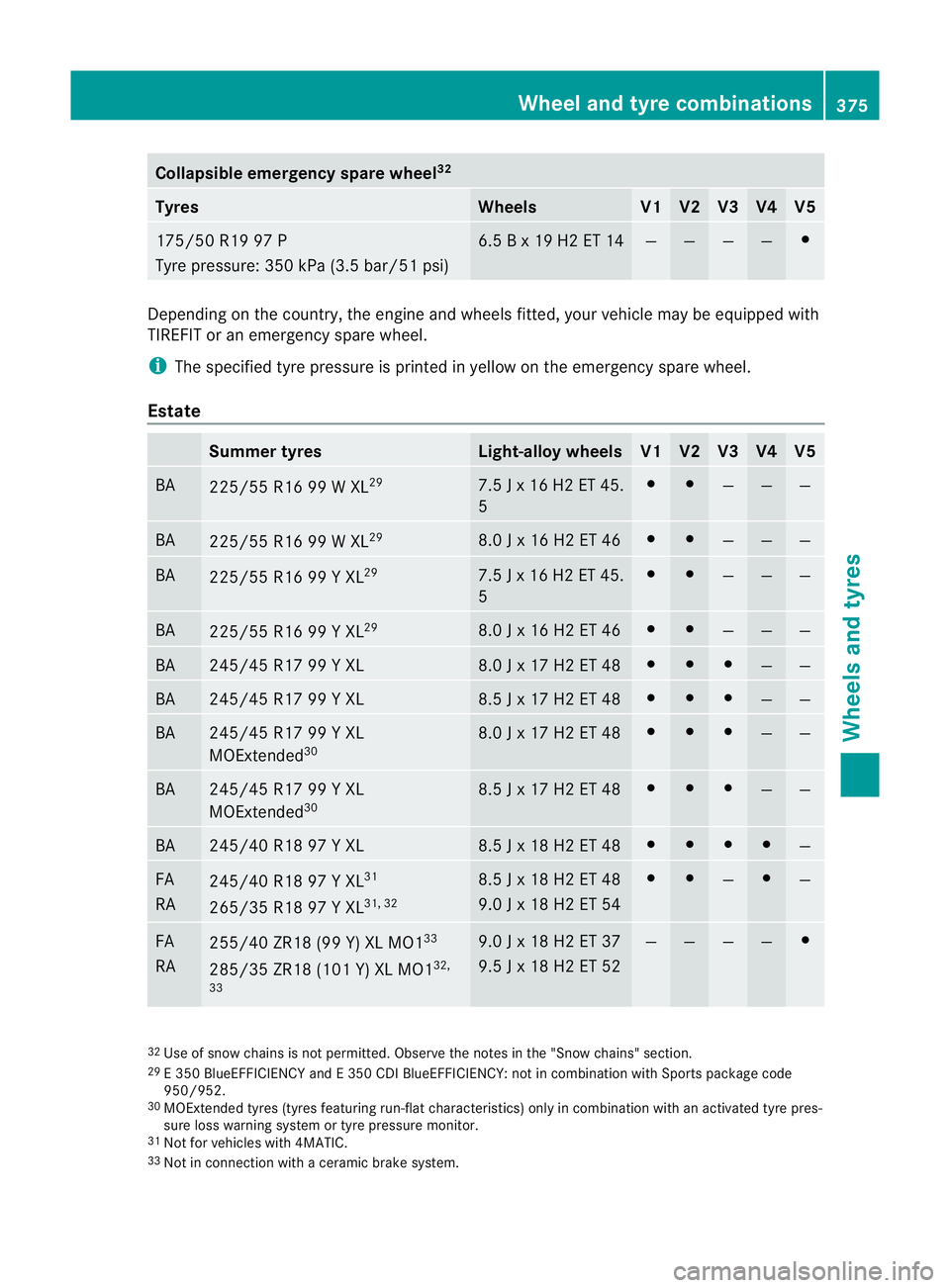

Collapsible emergency spare wheel
32Tyres Wheels V1 V2 V3 V4 V5
175/50 R19 97 P
Tyre pressure: 350 kPa (3.5 bar/51 psi) 6.5 B x 19 H2 ET 14 — — — — #
Depending on the country, the engine and wheels fitted, your vehicle may be equipped with
TIREFIT or an emergency spare wheel.
i The specified tyre pressure is printed in yellow on th eemergency spare wheel.
Estate Summer tyres Light-alloy wheels V1 V2 V3 V4 V5
BA
225/55 R16 99 W XL
29 7.5
Jx16 H2 ET 45.
5 # #
— — —
BA
225/55 R16 99 W XL
29 8.0 J x 16 H2 ET 46 # #
— — —
BA
225/55 R16 99 Y XL
29 7.5
Jx16 H2 ET 45.
5 # #
— — —
BA
225/55 R16 99 Y XL
29 8.0 J x 16 H2 ET 46 # #
— — —
BA 245/45 R17 99 Y XL 8.0 J x 17 H2 ET 48 # # #
— —
BA 245/45 R17 99 Y XL 8.5 J x 17 H2 ET 48 # # #
— —
BA 245/45 R17 99 Y XL
MOExtended
30 8.0 J x 17 H2 ET 48 # # #
— —
BA 245/45 R17 99 Y XL
MOExtended
30 8.5 J x 17 H2 ET 48 # # #
— —
BA 245/40 R18 97 Y XL 8.5 J x 18 H2 ET 48 # # # #
—
FA
RA
245/40 R18 97 Y XL
31
265/35 R18 97 Y XL 31, 32 8.5 J x 18 H2 ET 48
9.0 J x 18 H2 ET 54 # #
— #
—
FA
RA
255/40 ZR18 (99 Y) XL MO1
33
285/35 ZR18 (101 Y) XL MO1 32,
33 9.0 J x 18 H2 ET 37
9.5 J x 18 H2 ET 52 — — — — #
32
Use of snow chains is not permitted. Observe the notes in the "Snow chains" section.
29 E 350 BlueEFFICIENCY and E 350 CDI BlueEFFICIENCY: not in combination with Sports package code
950/952.
30 MOExtended tyres (tyres featuring run-fla tcharacteristics) only in combination with an activated tyre pres-
sure loss warning system or tyre pressure monitor.
31 Not for vehicles with 4MATIC.
33 Not in connection with a ceramic brake system. Wheel and tyre combinations
375Wheels and tyres Z

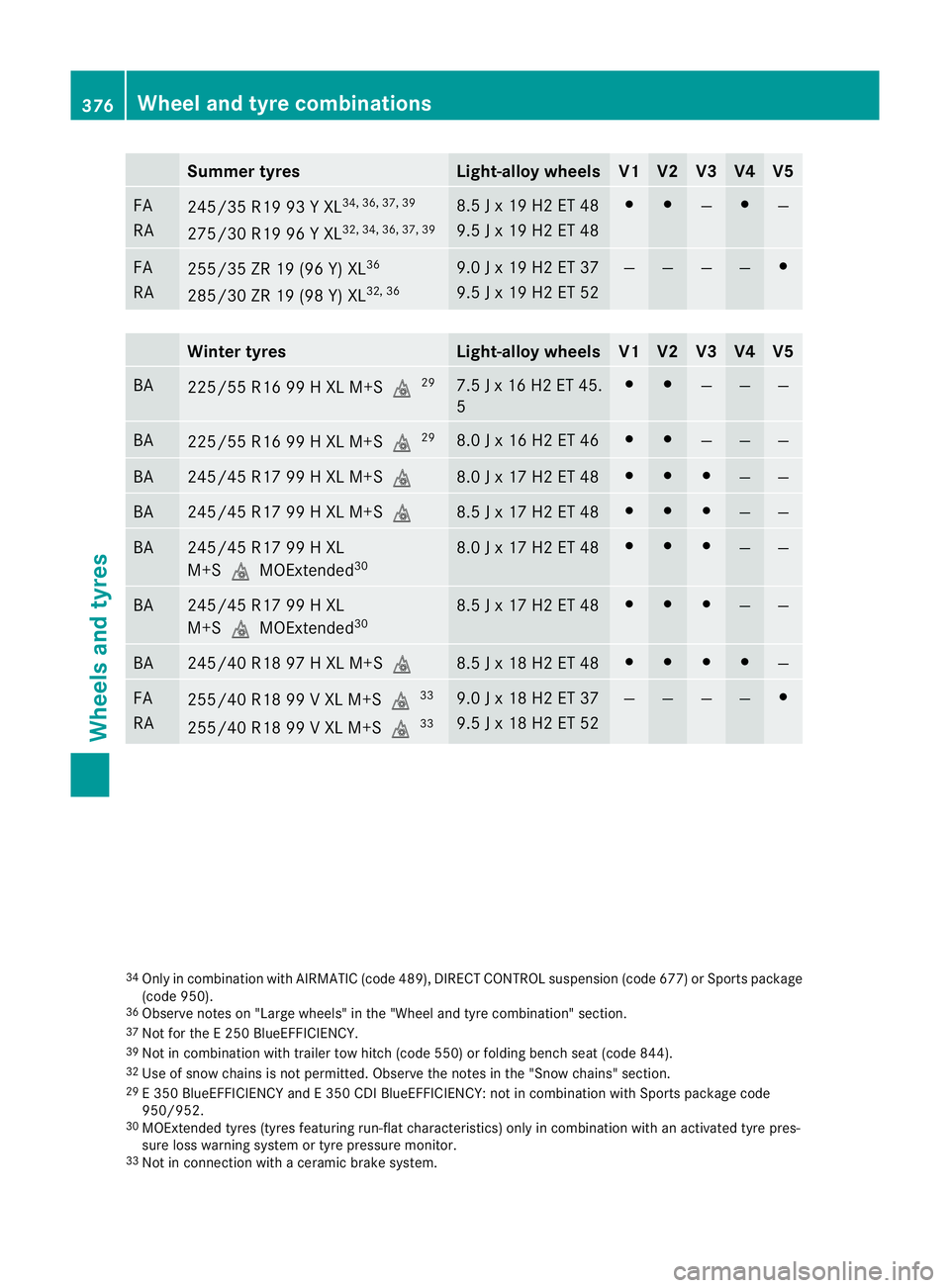

Summer tyres Light-alloy wheels V1 V2 V3 V4 V5
FA
RA
245/35 R19 93 Y XL
34, 36, 37, 39
275/30 R19 96 Y XL 32, 34, 36, 37, 39 8.5 J x 19 H2 ET 48
9.5 J x 19 H2 ET 48 # #
— #
—
FA
RA
255/35 ZR 19 (96 Y) XL
36
285/30 ZR 19 (98 Y) XL 32, 36 9.0 J x 19 H2 ET 37
9.5 J x 19 H2 ET 52 — — — — #
Winter tyres Light-alloy wheels V1 V2 V3 V4 V5
BA
225/55 R16 99 H XL M+Si
29 7.5
Jx16 H2 ET 45.
5 # #
— — —
BA
225/55 R16 99 H XL M+S
i29 8.0 J x 16 H2 ET 46 # #
— — —
BA 245/45 R17 99 H XL M+S
i 8.0 J x 17 H2 ET 48 # # #
— —
BA 245/45 R17 99 H XL M+S
i 8.5 J x 17 H2 ET 48 # # #
— —
BA 245/45 R17 99 H XL
M+SiMOExtended
30 8.0 J x 17 H2 ET 48 # # #
— —
BA 245/45 R17 99 H XL
M+SiMOExtended
30 8.5 J x 17 H2 ET 48 # # #
— —
BA 245/40 R18 97 H XL M+S
i 8.5 J x 18 H2 ET 48 # # # #
—
FA
RA
255/40 R18 99 V XL M+S
i33
255/40 R18 99 V XL M+S i33 9.0 J x 18 H2 ET 37
9.5 J x 18 H2 ET 52 — — — — #
34
Only in combination with AIRMATIC (code 489), DIRECT CONTROL suspensio n(code 677) or Sports package
(code 950).
36 Observe notes on "Large wheels" in the "Wheel and tyre combination" section.
37 Not for the E 250 BlueEFFICIENCY.
39 Not in combination with trailer tow hitch (code 550) or folding bench seat (cod e844).
32 Use of snow chains is not permitted. Observe the notes in the "Snow chains" section.
29 E 350 BlueEFFICIENCY and E 350 CDI BlueEFFICIENCY: not in combination with Sports package code
950/952.
30 MOExtended tyres (tyres featuring run-fla tcharacteristics) only in combination with an activated tyre pres-
sure loss warning system or tyre pressure monitor.
33 Not in connection with a ceramic brake system. 376
Wheel and tyre combinationsWheels and tyres

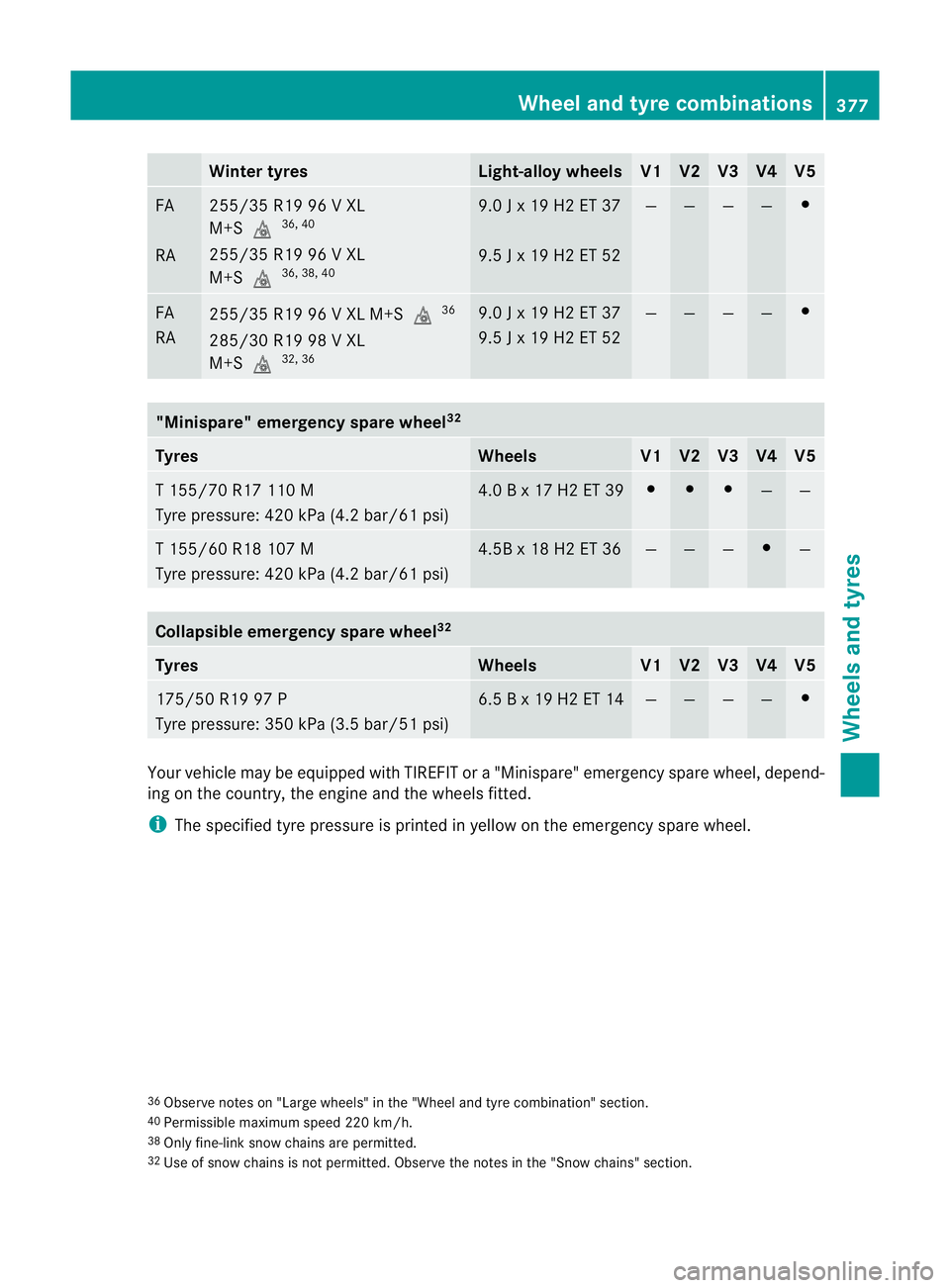

Winter tyres Light-alloy wheels V1 V2 V3 V4 V5
FA
RA 255/35 R19 96 V XL
M+Si
36, 40
255/35 R19 96 V XL
M+Si 36, 38, 40 9.0 J x 19 H2 ET 37
9.5 J x 19 H2 ET 52 — — — — #
FA
RA
255/35 R19 96 V XL M+S
i36
285/30 R19 98 V XL
M+Si 32, 36 9.0 J x 19 H2 ET 37
9.5 J x 19 H2 ET 52 — — — — #
"Minispare" emergency spare wheel
32Tyres Wheels V1 V2 V3 V4 V5
T 155/70 R17 110 M
Tyre pressure: 420 kPa (4.2 bar/61 psi) 4.0 B x 17 H2 ET 39 # # #
— —
T 155/60 R18 107 M
Tyre pressure: 420 kPa (4.2 bar/61 psi) 4.5B x 18 H2 ET 36 — — — #
—
Collapsible emergency spare wheel
32Tyres Wheels V1 V2 V3 V4 V5
175/50 R19 97 P
Tyre pressure: 350 kPa (3.5 bar/51 psi) 6.5 B x 19 H2 ET 14 — — — — #
Yourv
ehicle may be equipped with TIREFIT or a "Minispare" emergency spare wheel, depend-
ing on the country, the engine and the wheels fitted.
i The specified tyre pressure is printed in yellow on the emergency spare wheel.
36 Observe notes on "Large wheels" in the "Wheel and tyre combination" section.
40 Permissible maximum speed 220 km/h.
38 Only fine-link snow chains are permitted.
32 Use of snow chains is not permitted. Observe the notes in the "Snow chains" section. Wheel and tyre combinations
377Wheels and tyres Z

378

Useful information
............................380
Notes on the technical data .............380
Genuine Mercedes-Benz parts .........380
Vehicle electronics ...........................381
Vehicle identification plates ............382
Service products and capacities .....383
Vehicle data ...................................... 392
Boot lid and tailgate opening
dimensions ........................................ 394
Trailer tow hitch ................................ 395
24 GHz radar sensor system (coun-
tryo verview) ..................................... 398 379Technical data

Useful information
i This Owner's Manual describes all models
and all standard and optional equipment
available to your vehicle at the time of pub-
lication of the Owner's Manual. Country-
specific deviations are possible. Please
note that your vehicle may not be equipped
with all features described. This also
applies to safety-relevan tsystems and
functions.
i Please read the information on qualified
specialist workshops (Y page 25).Notes on the technical data
You can find technical data on the Internet at:
http://www.mercedes-benz.com
i The technical data was determined in
accordance with EC Directives. All data
applies to the vehicle's standard equip-
ment. It may therefore differ for vehicles
with optional equipment. You can obtain
further information from a Mercedes-Benz
Service Centre. Genuine Mercedes-Benz parts
Mercedes-Ben ztests genuine parts and con-
version parts and accessories which have
been specifically approved for your vehicle for
their reliability, safety and suitability. Despite
ongoing market research, Mercedes-Benzis
unable to evaluate other parts. Mercedes-
Ben ztherefore accepts no responsibility for
the use of such parts in Mercedes-Ben zvehi-
cles, even if they have been independently or
officially approved.
In Germany and some other countries, certain
parts are only officially approved for installa-
tion or modification if they comply with legal
requirements. All genuine Mercedes-Benz
parts meet this requirement .The use of non- approved parts may invalidate the vehicle's
general operating permit. This is the case if:
R
they cause a change of the vehicle type
from that for which the vehicle's general
operating permit was granted.
R other road users could be endangered.
R the emission or noise levels are adversely
affected. G
WARNING
Driving safety may be impaired if non-
approved parts, tyres and wheels or safety-
relevant accessories are used.
This could lead to malfunctions in safety-rel-
evant systems, e.g. the brake system. This
could cause you to lose control of your vehicle
and cause an accident.
For this reason, Mercedes-Ben zrecommends
that you use genuine Mercedes-Benz parts or
parts of equal quality. Only use tyres, wheels
and accessories that have been specifically
approved for your vehicle.
! Airbags and seat belt tensioners, as well
as control units and sensors for these
restraint systems may be installed in the
following areas of your vehicle:
R doors
R door pillars
R door sills
R seats
R dashboard
R instrument cluster
R centre console
Do not install accessories such as audio
systems in these areas. Do not carry out
repairs or welding. You could impair the
operating efficiency of the restraint sys-
tems.
Have aftermarket accessories installed at
a qualified specialist workshop. Mercedes-
Benz recommends that you use a
Mercedes-Benz Service Centre for this pur-
pose. 380
Genuine Mercedes-Benz partsTechnical data

H
Environmental note
Daimler AG also supplies reconditioned
assemblies and parts which are of the same
quality as new parts. For these, the same war-
ranty applies as for new parts.
Always specify the vehicle identification num-
ber (VIN) (Y page 382) and the engine num-
ber (Y page 383) when ordering genuine
Mercedes-Ben zparts. Vehicle electronics
Tampering with the engine electron-
ics
G
WARNING
Always have work on the engine electronics
and related components carried out at a quali-
fied specialist workshop. Otherwise, the vehi-
cle's operating safety could be affected.
! Only have work carried out on the engine
electronics and its associated parts, such
as control units, sensors and connector
leads, at a qualified specialist workshop.
Vehicle components may otherwise wear
more quickly and the vehicle's operating
permit may be invalidated. Retrofitting of two-way radios and
mobile phones (RF transmitters)
Use the Technical Specification
ISO/TS 21609 41
implementation regulation
when retrofitting RF (radio frequency) trans-
mitters.
If your vehicle has fittings for two-way radio
equipment, use the power supply or aerial
connections intended for use with the basic
wiring. Be sure to observe the manufacturer's
additional instructions when installing. !
Have aftermarket radio frequency trans-
mitting equipmen tinstalled at a qualified
specialist workshop.
The transmission outpu tatthe aerial base
must not exceed the maximum values below. Waveband Maximum
transmission
output (PEAK) Short wave (f < 54 MHz) 100 W
4 m waveband 30 W
2 m waveband 50 W
trunked radio/Tetra 35 W
70 cm waveband 35 W
GSM/DCS/PCS
850/900/1800/1900 10 W
UMTS/LTE 10 W
The following aerial positions may be used if
RF transmitters have been properly installed:
Saloon
:
Front roof area 42, 43
; Rear roof area 43
= Rear wing 44
? Boot lid
41 ISO/TS 21609 –Technical Specification for Road Vehicles (EMC) guidelines for installation of aftermarket
radio frequency transmitting equipment.
42 Vehicles with a sliding sunroof: observe the roof's sweep.
43 Vehicles with a panorama sliding sunroof: this area is not permitted.
44 Recommended installation position: on the side which faces the centre of the road. Vehicle electronics
381Technical data Z
