2011 MERCEDES-BENZ E-Class COUPE Owner's Manual

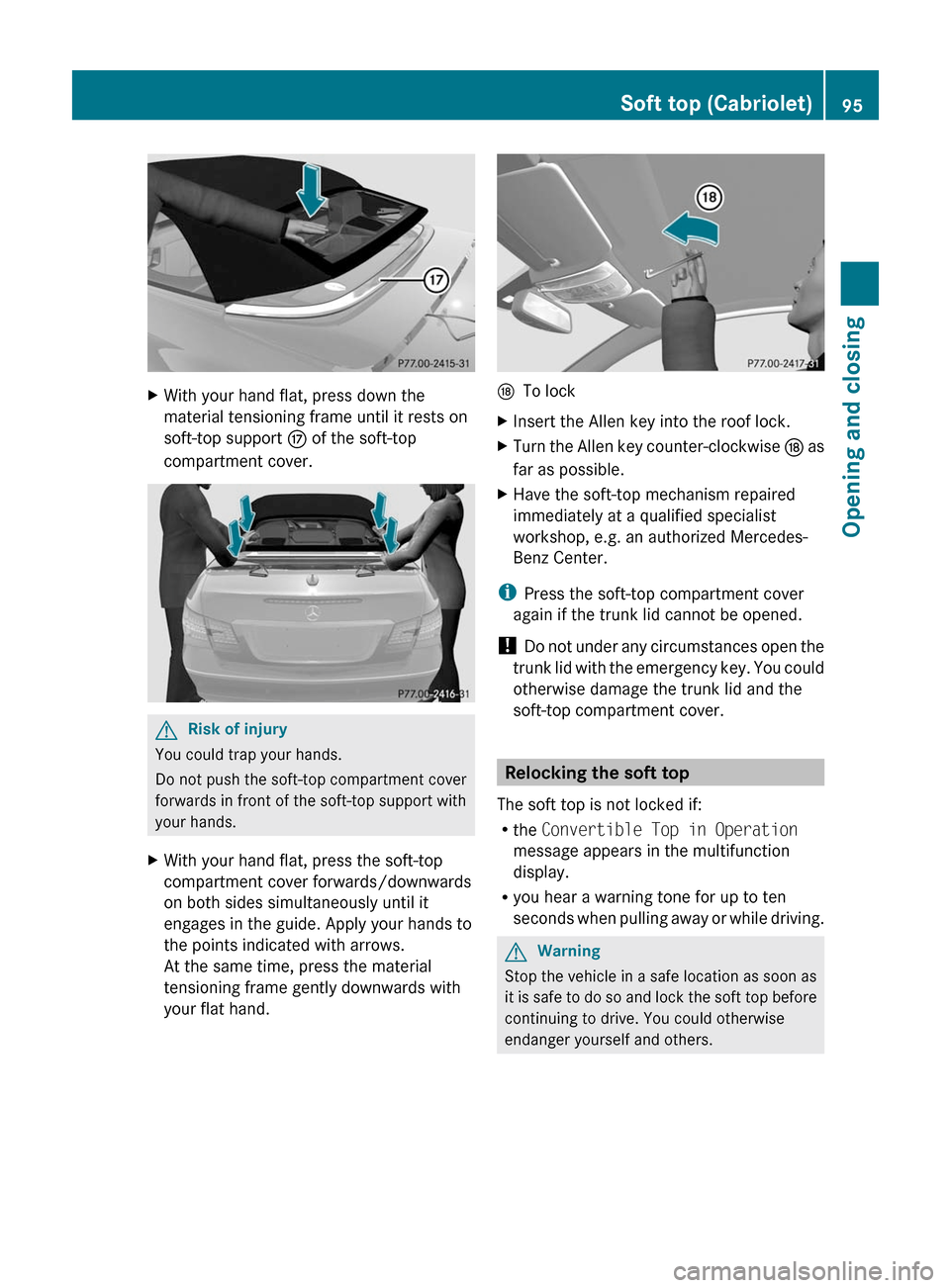

XWith your hand flat, press down the
material tensioning frame until it rests on
soft-top support M of the soft-top
compartment cover.GRisk of injury
You could trap your hands.
Do not push the soft-top compartment cover
forwards in front of the soft-top support with
your hands.
XWith your hand flat, press the soft-top
compartment cover forwards/downwards
on both sides simultaneously until it
engages in the guide. Apply your hands to
the points indicated with arrows.
At the same time, press the material
tensioning frame gently downwards with
your flat hand.NTo lockXInsert the Allen key into the roof lock.XTurn the Allen key counter-clockwise N as
far as possible.XHave the soft-top mechanism repaired
immediately at a qualified specialist
workshop, e.g. an authorized Mercedes-
Benz Center.
i Press the soft-top compartment cover
again if the trunk lid cannot be opened.
! Do not under any circumstances open the
trunk lid with the emergency key. You could
otherwise damage the trunk lid and the
soft-top compartment cover.
Relocking the soft top
The soft top is not locked if:
R the Convertible Top in Operation
message appears in the multifunction
display.
R you hear a warning tone for up to ten
seconds when pulling away or while driving.
GWarning
Stop the vehicle in a safe location as soon as
it is safe to do so and lock the soft top before
continuing to drive. You could otherwise
endanger yourself and others.
Soft top (Cabriolet)95Opening and closingBA 207 USA, CA Edition B 2011; 1; 3, en-USd2sboikeVersion: 3.0.3.62010-05-20T10:38:09+02:00 - Seite 95Z

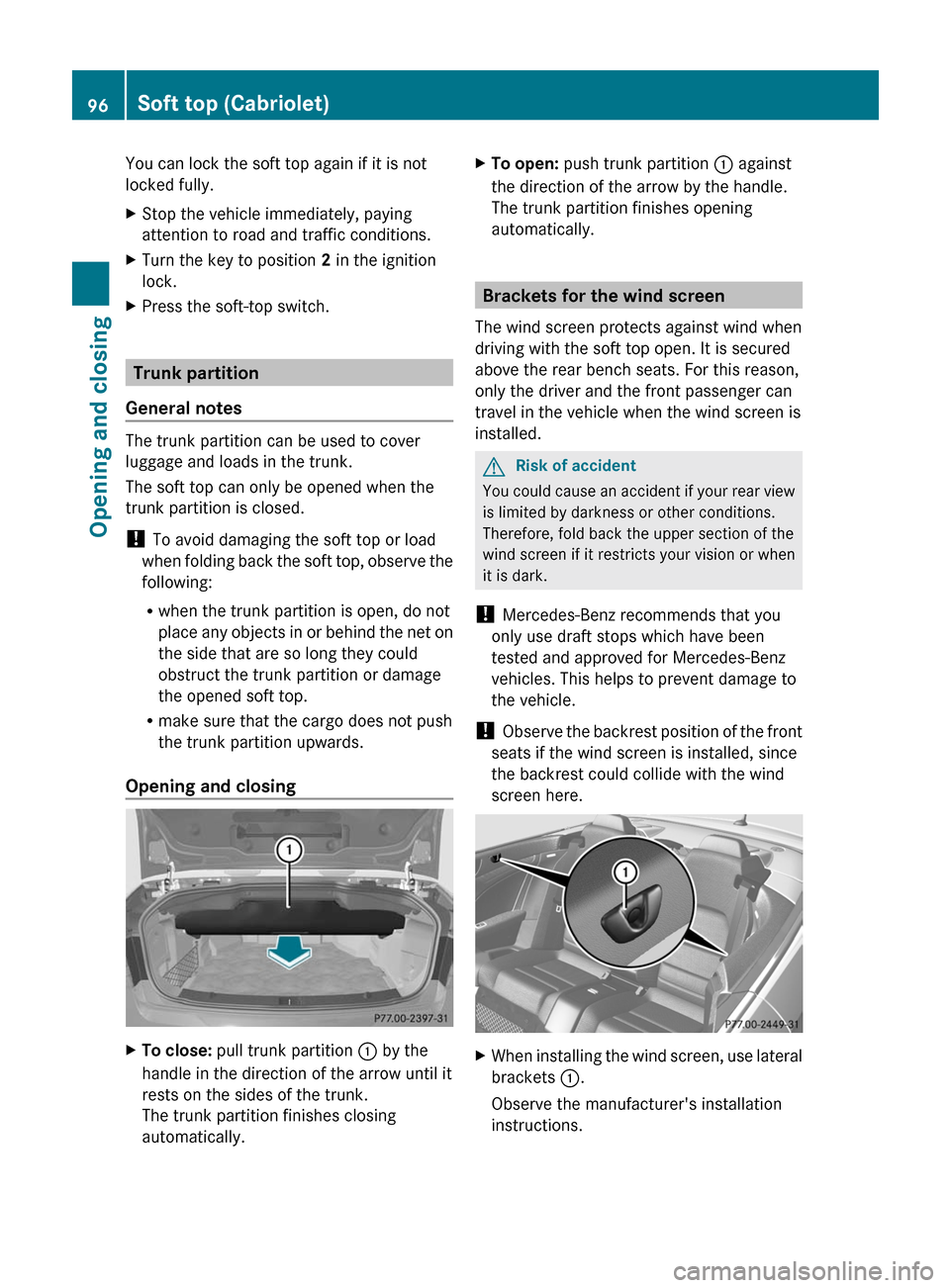

You can lock the soft top again if it is not
locked fully.XStop the vehicle immediately, paying
attention to road and traffic conditions.XTurn the key to position 2 in the ignition
lock.XPress the soft-top switch.
Trunk partition
General notes
The trunk partition can be used to cover
luggage and loads in the trunk.
The soft top can only be opened when the
trunk partition is closed.
! To avoid damaging the soft top or load
when folding back the soft top, observe the
following:
R when the trunk partition is open, do not
place any objects in or behind the net on
the side that are so long they could
obstruct the trunk partition or damage
the opened soft top.
R make sure that the cargo does not push
the trunk partition upwards.
Opening and closing
XTo close: pull trunk partition : by the
handle in the direction of the arrow until it
rests on the sides of the trunk.
The trunk partition finishes closing
automatically.XTo open: push trunk partition : against
the direction of the arrow by the handle.
The trunk partition finishes opening
automatically.
Brackets for the wind screen
The wind screen protects against wind when
driving with the soft top open. It is secured
above the rear bench seats. For this reason,
only the driver and the front passenger can
travel in the vehicle when the wind screen is
installed.
GRisk of accident
You could cause an accident if your rear view
is limited by darkness or other conditions.
Therefore, fold back the upper section of the
wind screen if it restricts your vision or when
it is dark.
! Mercedes-Benz recommends that you
only use draft stops which have been
tested and approved for Mercedes-Benz
vehicles. This helps to prevent damage to
the vehicle.
! Observe the backrest position of the front
seats if the wind screen is installed, since
the backrest could collide with the wind
screen here.
XWhen installing the wind screen, use lateral
brackets :.
Observe the manufacturer's installation
instructions.96Soft top (Cabriolet)Opening and closing
BA 207 USA, CA Edition B 2011; 1; 3, en-USd2sboikeVersion: 3.0.3.62010-05-20T10:38:09+02:00 - Seite 96

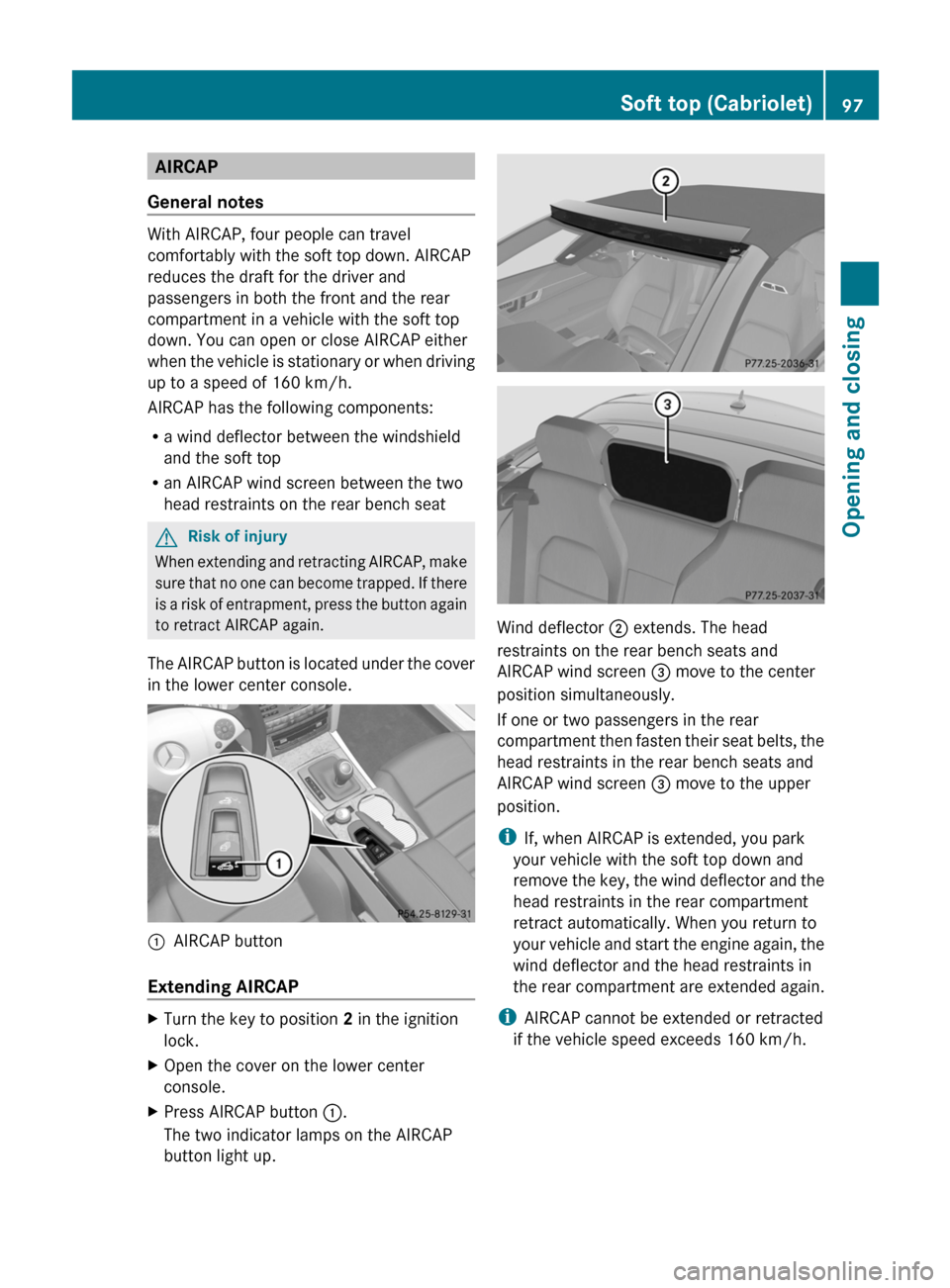

AIRCAP
General notes
With AIRCAP, four people can travel
comfortably with the soft top down. AIRCAP
reduces the draft for the driver and
passengers in both the front and the rear
compartment in a vehicle with the soft top
down. You can open or close AIRCAP either
when the vehicle is stationary or when driving
up to a speed of 160 km/h.
AIRCAP has the following components:
Ra wind deflector between the windshield
and the soft top
Ran AIRCAP wind screen between the two
head restraints on the rear bench seat
GRisk of injury
When extending and retracting AIRCAP, make
sure that no one can become trapped. If there
is a risk of entrapment, press the button again
to retract AIRCAP again.
The AIRCAP button is located under the cover
in the lower center console.
:AIRCAP button
Extending AIRCAP
XTurn the key to position 2 in the ignition
lock.
XOpen the cover on the lower center
console.
XPress AIRCAP button :.
The two indicator lamps on the AIRCAP
button light up.
Wind deflector ; extends. The head
restraints on the rear bench seats and
AIRCAP wind screen = move to the center
position simultaneously.
If one or two passengers in the rear
compartment then fasten their seat belts, the
head restraints in the rear bench seats and
AIRCAP wind screen = move to the upper
position.
iIf, when AIRCAP is extended, you park
your vehicle with the soft top down and
remove the key, the wind deflector and the
head restraints in the rear compartment
retract automatically. When you return to
your vehicle and start the engine again, the
wind deflector and the head restraints in
the rear compartment are extended again.
iAIRCAP cannot be extended or retracted
if the vehicle speed exceeds 160 km/h.
Soft top (Cabriolet)97Opening and closingBA 207 USA, CA Edition B 2011; 1; 3, en-USd2sboikeVersion: 3.0.3.62010-05-20T10:38:09+02:00 - Seite 97Z

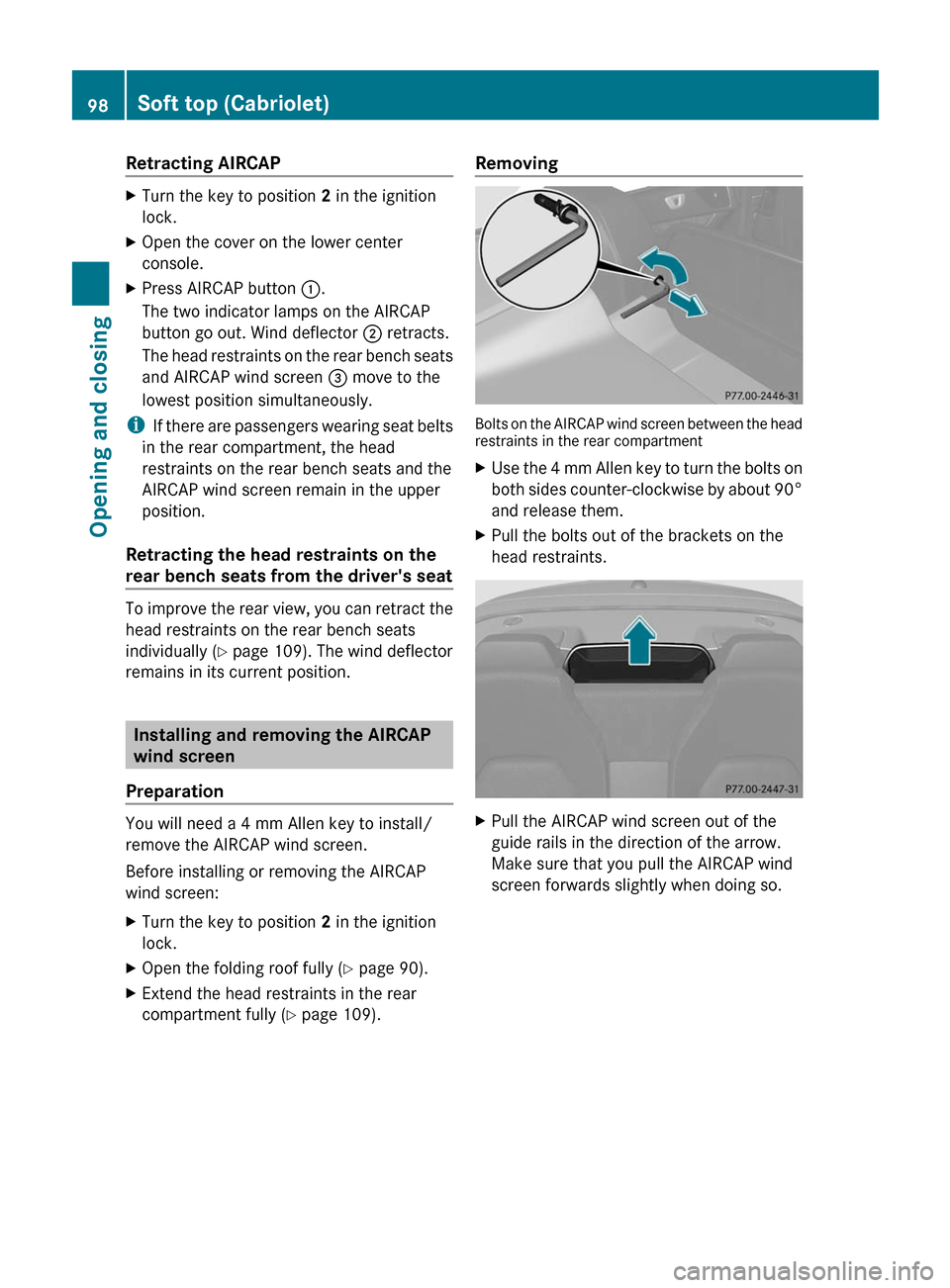

Retracting AIRCAPXTurn the key to position 2 in the ignition
lock.XOpen the cover on the lower center
console.XPress AIRCAP button :.
The two indicator lamps on the AIRCAP
button go out. Wind deflector ; retracts.
The head restraints on the rear bench seats
and AIRCAP wind screen = move to the
lowest position simultaneously.
i If there are passengers wearing seat belts
in the rear compartment, the head
restraints on the rear bench seats and the
AIRCAP wind screen remain in the upper
position.
Retracting the head restraints on the
rear bench seats from the driver's seat
To improve the rear view, you can retract the
head restraints on the rear bench seats
individually ( Y page 109). The wind deflector
remains in its current position.
Installing and removing the AIRCAP
wind screen
Preparation
You will need a 4 mm Allen key to install/
remove the AIRCAP wind screen.
Before installing or removing the AIRCAP
wind screen:
XTurn the key to position 2 in the ignition
lock.XOpen the folding roof fully ( Y page 90).XExtend the head restraints in the rear
compartment fully ( Y page 109).Removing
Bolts on the AIRCAP wind screen between the head
restraints in the rear compartment
XUse the 4 mm Allen key to turn the bolts on
both sides counter-clockwise by about 90°
and release them.XPull the bolts out of the brackets on the
head restraints.XPull the AIRCAP wind screen out of the
guide rails in the direction of the arrow.
Make sure that you pull the AIRCAP wind
screen forwards slightly when doing so.98Soft top (Cabriolet)Opening and closing
BA 207 USA, CA Edition B 2011; 1; 3, en-USd2sboikeVersion: 3.0.3.62010-05-20T10:38:09+02:00 - Seite 98

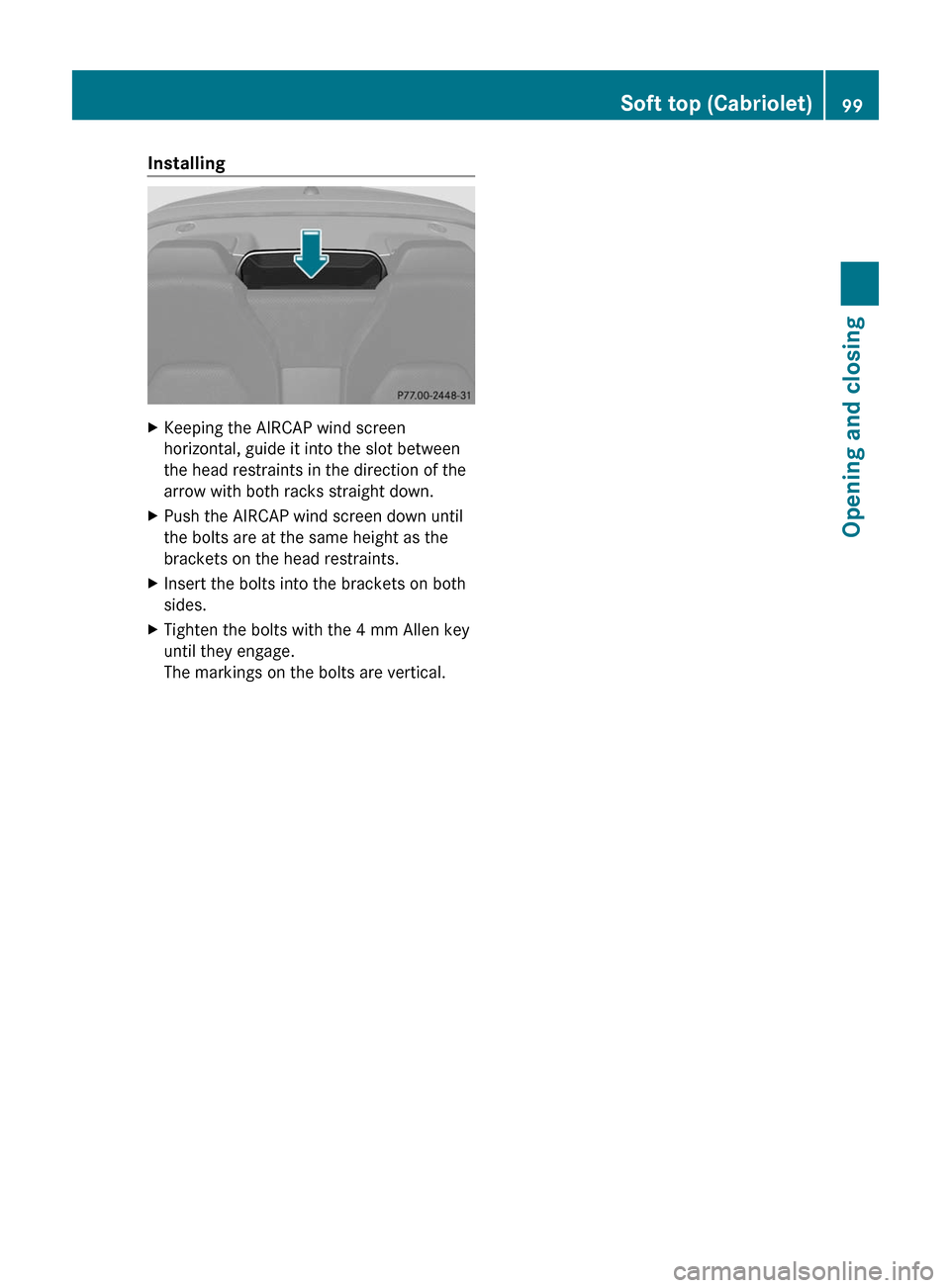

InstallingXKeeping the AIRCAP wind screen
horizontal, guide it into the slot between
the head restraints in the direction of the
arrow with both racks straight down.XPush the AIRCAP wind screen down until
the bolts are at the same height as the
brackets on the head restraints.XInsert the bolts into the brackets on both
sides.XTighten the bolts with the 4 mm Allen key
until they engage.
The markings on the bolts are vertical.Soft top (Cabriolet)99Opening and closingBA 207 USA, CA Edition B 2011; 1; 3, en-USd2sboikeVersion: 3.0.3.62010-05-20T10:38:09+02:00 - Seite 99Z

Problems with the soft topProblemPossible causes/consequences and M SolutionsThe soft top will not
open or close.The ignition is not switched on.XMake sure that the key is in position 2 in the ignition lock.The trunk lid is open.XClose the trunk lid ( Y page 96).The trunk partition is not closed.XClose the trunk partition ( Y page 96).The roll bars have been deployed.XVisit a qualified specialist workshop.The head restraints in the rear compartment do not retract
automatically.XLower the head restraints in the rear compartment manually
( Y page 109).The soft-top mechanism or control system is defective.XClose the soft top manually if necessary ( Y page 91).XVisit a qualified specialist workshop.The soft top was opened and closed several times in succession.
The soft-top drive has been deactivated automatically for safety
reasons.
You can open or close the soft top again after approximately ten
minutes.XSwitch the ignition off and then on again.XRepeat the opening or closing procedure.100Soft top (Cabriolet)Opening and closing
BA 207 USA, CA Edition B 2011; 1; 3, en-USd2sboikeVersion: 3.0.3.62010-05-20T10:38:09+02:00 - Seite 100

Sliding sunroof3
Important safety notes
GWarning!
When leaving the vehicle, always remove the
SmartKey from the starter switch. Always
take the SmartKey with you and lock the
vehicle. Do not leave children unattended in
the vehicle, even if they are secured in a child
restraint system, or with access to an
unlocked vehicle. A child's unsupervised
access to a vehicle could result in an accident
and/or serious personal injury. The children
could
R injure themselves on parts of the vehicle
R be seriously or fatally injured through
excessive exposure to extreme heat or cold
R injure themselves or cause an accident with
vehicle equipment that can be operated
even if the SmartKey is removed from the
starter switch or removed from the vehicle,
such as seat adjustment, steering wheel
adjustment, or the memory function
If children open a door, they could injure other
persons or get out of the vehicle and injure
themselves or be injured by following traffic.
Do not expose the child restraint system to
direct sunlight. The child restraint system's
metal parts, for example, could become very
hot, and the child could be burned by these
parts.
GWarning!
Do not carry heavy or hard objects in the
passenger compartment or trunk unless they
are firmly secured in place.
Unsecured or improperly positioned cargo
increases a child's risk of injury in the event
of
R strong braking maneuvers
R sudden changes of direction
R an accident
GWarning!
When opening or closing the tilt/sliding panel,
make sure there is no danger of anyone being
harmed by the opening/closing procedure.
The tilt/sliding panel is equipped with the
automatic operation and anti-entrapment
features. If the movement of the tilt/sliding
panel is blocked during the closing procedure,
the tilt/sliding panel will stop and open
slightly.
The tilt/sliding panel operates differently
when the roof panel switch is pressed and
held. See the relevant section in this chapter
for details.
The opening/closing procedure of the tilt/
sliding panel can be immediately halted by
releasing the roof panel switch or, if the roof
panel switch was moved past the resistance
point and released, by moving the roof panel
switch in any direction.
GWarning!
The panorama roof with tilt/sliding panel is
made out of glass. In the event of an accident,
the glass may shatter. This may result in an
opening in the roof.
In a vehicle rollover, occupants not wearing
their seat belts or not wearing them properly
may be thrown out of the opening. Such an
opening also presents a potential for injury for
occupants wearing their seat belts properly as
entire body parts or portions of them may
protrude from the passenger compartment.
! Only open the sliding sunroof if it is free
of snow and ice. Otherwise, malfunctions
may occur.
Do not allow anything to protrude from the
sliding sunroof. Otherwise, the seals could
be damaged.
! Do not forget that the weather can
change abruptly. Make certain that the
sliding sunroof is closed when you leave the
vehicle. The vehicle electronics can be
3 Coupe onlySliding sunroof101Opening and closingBA 207 USA, CA Edition B 2011; 1; 3, en-USd2sboikeVersion: 3.0.3.62010-05-20T10:38:09+02:00 - Seite 101Z

damaged if water enters the vehicle
interior.
i Resonance noises can occur in addition
to the usual airflow noises when the sliding
sunroof is open. They are caused by minor
pressure fluctuations in the vehicle interior.
Change the position of the sliding sunroof
or open a side window slightly to reduce or
eliminate these noises.

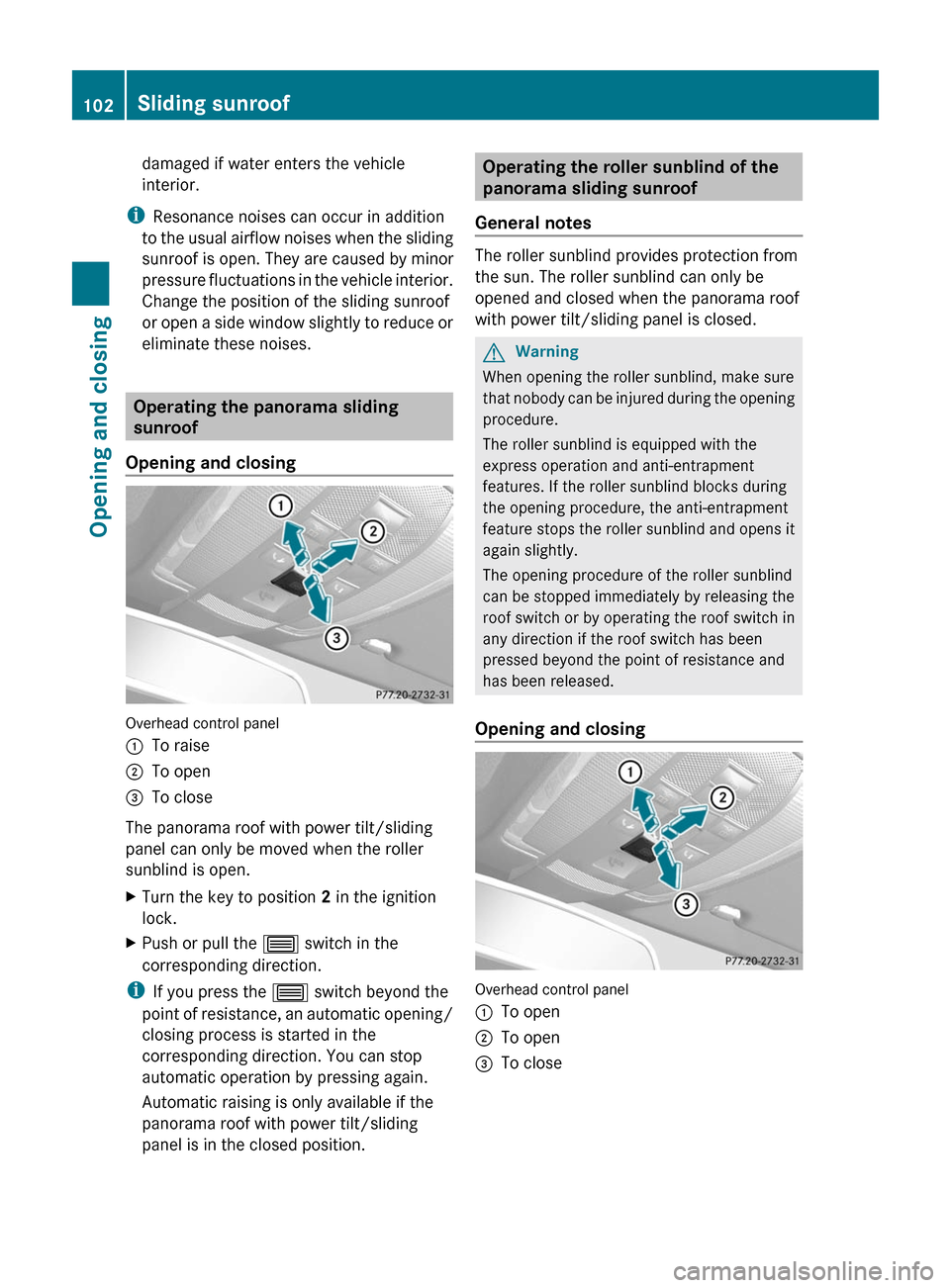

Operating the panorama sliding
sunroof
Opening and closing
Overhead control panel
:To raise;To open=To close
The panorama roof with power tilt/sliding
panel can only be moved when the roller
sunblind is open.
XTurn the key to position 2 in the ignition
lock.XPush or pull the 3 switch in the
corresponding direction.
i If you press the 3 switch beyond the
point of resistance, an automatic opening/
closing process is started in the
corresponding direction. You can stop
automatic operation by pressing again.
Automatic raising is only available if the
panorama roof with power tilt/sliding
panel is in the closed position.
Operating the roller sunblind of the
panorama sliding sunroof
General notes
The roller sunblind provides protection from
the sun. The roller sunblind can only be
opened and closed when the panorama roof
with power tilt/sliding panel is closed.
GWarning
When opening the roller sunblind, make sure
that nobody can be injured during the opening
procedure.
The roller sunblind is equipped with the
express operation and anti-entrapment
features. If the roller sunblind blocks during
the opening procedure, the anti-entrapment
feature stops the roller sunblind and opens it
again slightly.
The opening procedure of the roller sunblind
can be stopped immediately by releasing the
roof switch or by operating the roof switch in
any direction if the roof switch has been
pressed beyond the point of resistance and
has been released.
Opening and closing
Overhead control panel
:To open;To open=To close102Sliding sunroofOpening and closing
BA 207 USA, CA Edition B 2011; 1; 3, en-USd2sboikeVersion: 3.0.3.62010-05-20T10:38:09+02:00 - Seite 102
