2011 MERCEDES-BENZ E-Class COUPE Owner's Manual

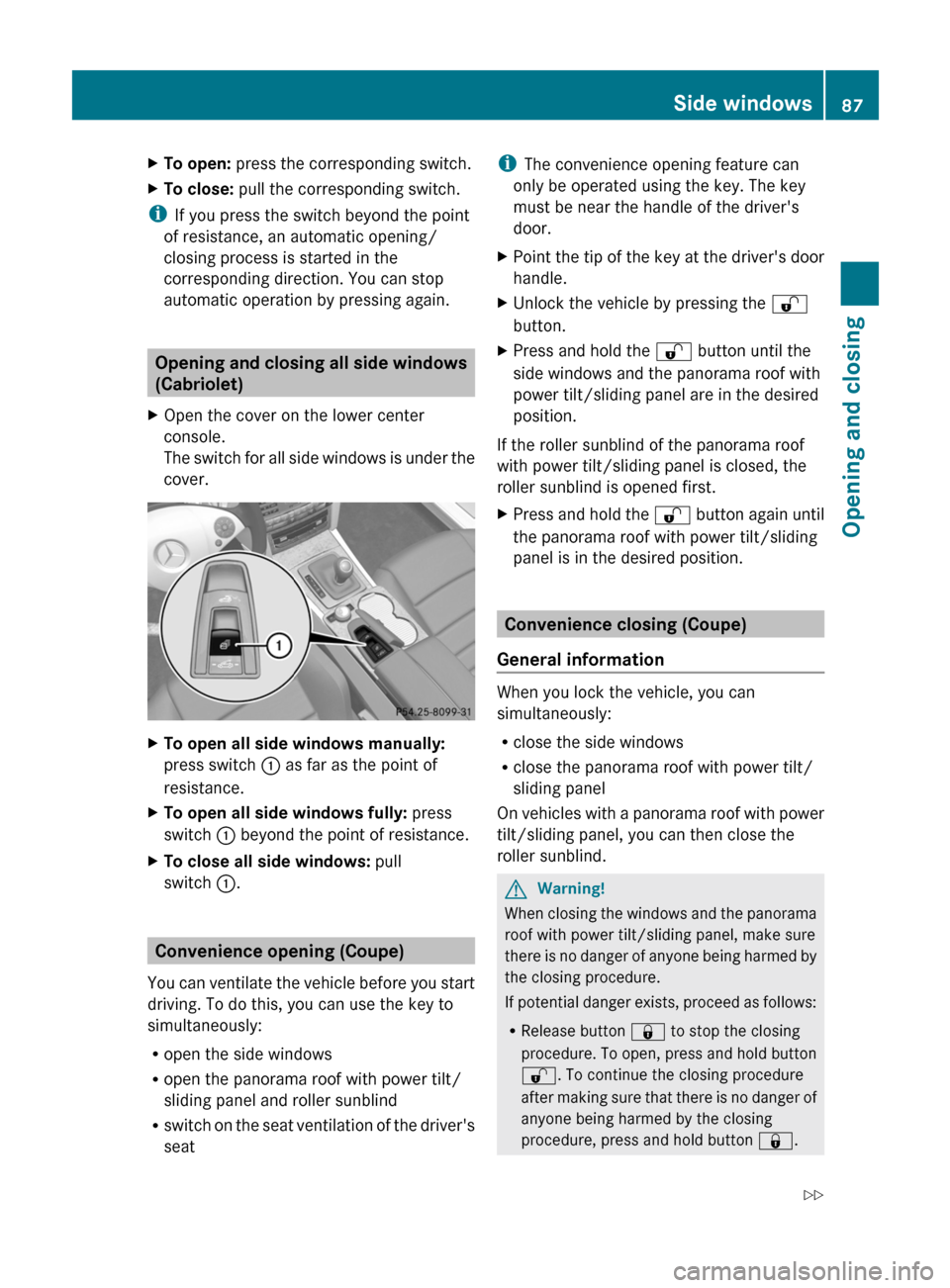

XTo open: press the corresponding switch.XTo close: pull the corresponding switch.
i
If you press the switch beyond the point
of resistance, an automatic opening/
closing process is started in the
corresponding direction. You can stop
automatic operation by pressing again.
Opening and closing all side windows
(Cabriolet)
XOpen the cover on the lower center
console.
The switch for all side windows is under the
cover.XTo open all side windows manually:
press switch : as far as the point of
resistance.XTo open all side windows fully: press
switch : beyond the point of resistance.XTo close all side windows: pull
switch :.
Convenience opening (Coupe)
You can ventilate the vehicle before you start
driving. To do this, you can use the key to
simultaneously:
R open the side windows
R open the panorama roof with power tilt/
sliding panel and roller sunblind
R switch on the seat ventilation of the driver's
seat
i The convenience opening feature can
only be operated using the key. The key
must be near the handle of the driver's
door.XPoint the tip of the key at the driver's door
handle.XUnlock the vehicle by pressing the %
button.XPress and hold the % button until the
side windows and the panorama roof with
power tilt/sliding panel are in the desired
position.
If the roller sunblind of the panorama roof
with power tilt/sliding panel is closed, the
roller sunblind is opened first.
XPress and hold the % button again until
the panorama roof with power tilt/sliding
panel is in the desired position.
Convenience closing (Coupe)
General information
When you lock the vehicle, you can
simultaneously:
R close the side windows
R close the panorama roof with power tilt/
sliding panel
On vehicles with a panorama roof with power
tilt/sliding panel, you can then close the
roller sunblind.
GWarning!
When closing the windows and the panorama
roof with power tilt/sliding panel, make sure
there is no danger of anyone being harmed by
the closing procedure.
If potential danger exists, proceed as follows:
R Release button & to stop the closing
procedure. To open, press and hold button
% . To continue the closing procedure
after making sure that there is no danger of
anyone being harmed by the closing
procedure, press and hold button &.
Side windows87Opening and closingBA 207 USA, CA Edition B 2011; 1; 3, en-USd2sboikeVersion: 3.0.3.62010-05-20T10:38:09+02:00 - Seite 87Z

Vehicles with KEYLESS-GO:
RRelease the sensor surface on the outside
door handle to stop the closing procedure.
RImmediately pull on the same outside door
handle and hold firmly. The windows and
the panorama roof with power tilt/sliding
panel will open for as long as the door
handle is held but the door not opened.
Using the SmartKey
iThe key must be near the handle of the
driver's door.
XPoint the tip of the key at the driver's door
handle.
XPress and hold the & button until the
side windows and the panorama roof with
power tilt/sliding panel are fully closed.
XMake sure that all the side windows and the
panorama roof with power tilt/sliding
panel are closed.
On vehicles with a panorama roof with power
tilt/sliding panel:
XPress and hold the & button again until
the roller sunblind of the panorama roof
with power tilt/sliding panel closes.
XTo interrupt the convenience closing
procedure: release the & button.
Using KEYLESS-GO
The SmartKey with KEYLESS-GO must be
outside the vehicle but no more than 3 ft (1 m)
away from a door.
XClose all the doors.XTouch the sensor surface on door
handle : until the side windows and the
panorama roof with power tilt/sliding
panel are fully closed.
iMake sure you only touch sensor
surface :.
XMake sure that all the side windows and the
panorama roof with power tilt/sliding
panel are closed.
On vehicles with a panorama roof with power
tilt/sliding panel:
XTouch sensor surface : on the door
handle again until the roller sunblind of the
panorama roof with power tilt/sliding
panel closes.
XTo interrupt convenience closing:
release sensor surface : on the door
handle.
Resetting the side windows
You must reset all the side windows if the side
window cannot be closed fully.
XClose all the doors.XTurn the key to position 2 in the ignition
lock.
XPull on the corresponding switch on the
door control panel until the side window is
completely closed (Y page 86).
XHold the switch for an additional second.88Side windowsOpening and closing
BA 207 USA, CA Edition B 2011; 1; 3, en-USd2sboikeVersion: 3.0.3.62010-05-20T10:38:09+02:00 - Seite 88

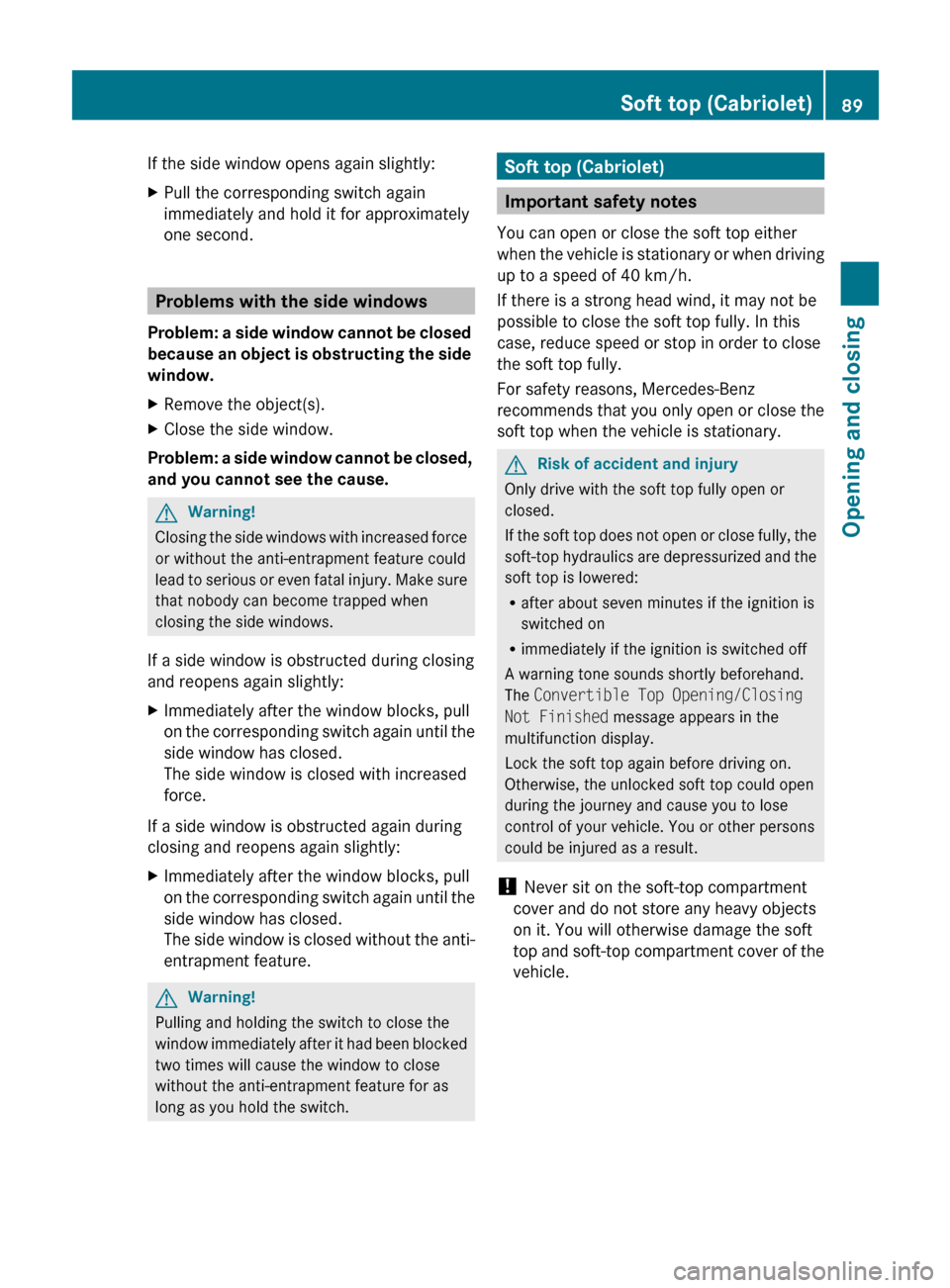

If the side window opens again slightly:XPull the corresponding switch again
immediately and hold it for approximately
one second.
Problems with the side windows
Problem: a side window cannot be closed
because an object is obstructing the side
window.
XRemove the object(s).XClose the side window.
Problem: a side window cannot be closed,
and you cannot see the cause.
GWarning!
Closing the side windows with increased force
or without the anti-entrapment feature could
lead to serious or even fatal injury. Make sure
that nobody can become trapped when
closing the side windows.
If a side window is obstructed during closing
and reopens again slightly:
XImmediately after the window blocks, pull
on the corresponding switch again until the
side window has closed.
The side window is closed with increased
force.
If a side window is obstructed again during
closing and reopens again slightly:
XImmediately after the window blocks, pull
on the corresponding switch again until the
side window has closed.
The side window is closed without the anti-
entrapment feature.GWarning!
Pulling and holding the switch to close the
window immediately after it had been blocked
two times will cause the window to close
without the anti-entrapment feature for as
long as you hold the switch.
Soft top (Cabriolet)
Important safety notes
You can open or close the soft top either
when the vehicle is stationary or when driving
up to a speed of 40 km/h.
If there is a strong head wind, it may not be
possible to close the soft top fully. In this
case, reduce speed or stop in order to close
the soft top fully.
For safety reasons, Mercedes-Benz
recommends that you only open or close the
soft top when the vehicle is stationary.
GRisk of accident and injury
Only drive with the soft top fully open or
closed.
If the soft top does not open or close fully, the
soft-top hydraulics are depressurized and the
soft top is lowered:
R after about seven minutes if the ignition is
switched on
R immediately if the ignition is switched off
A warning tone sounds shortly beforehand.
The Convertible Top Opening/Closing
Not Finished message appears in the
multifunction display.
Lock the soft top again before driving on.
Otherwise, the unlocked soft top could open
during the journey and cause you to lose
control of your vehicle. You or other persons
could be injured as a result.
! Never sit on the soft-top compartment
cover and do not store any heavy objects
on it. You will otherwise damage the soft
top and soft-top compartment cover of the
vehicle.
Soft top (Cabriolet)89Opening and closingBA 207 USA, CA Edition B 2011; 1; 3, en-USd2sboikeVersion: 3.0.3.62010-05-20T10:38:09+02:00 - Seite 89Z

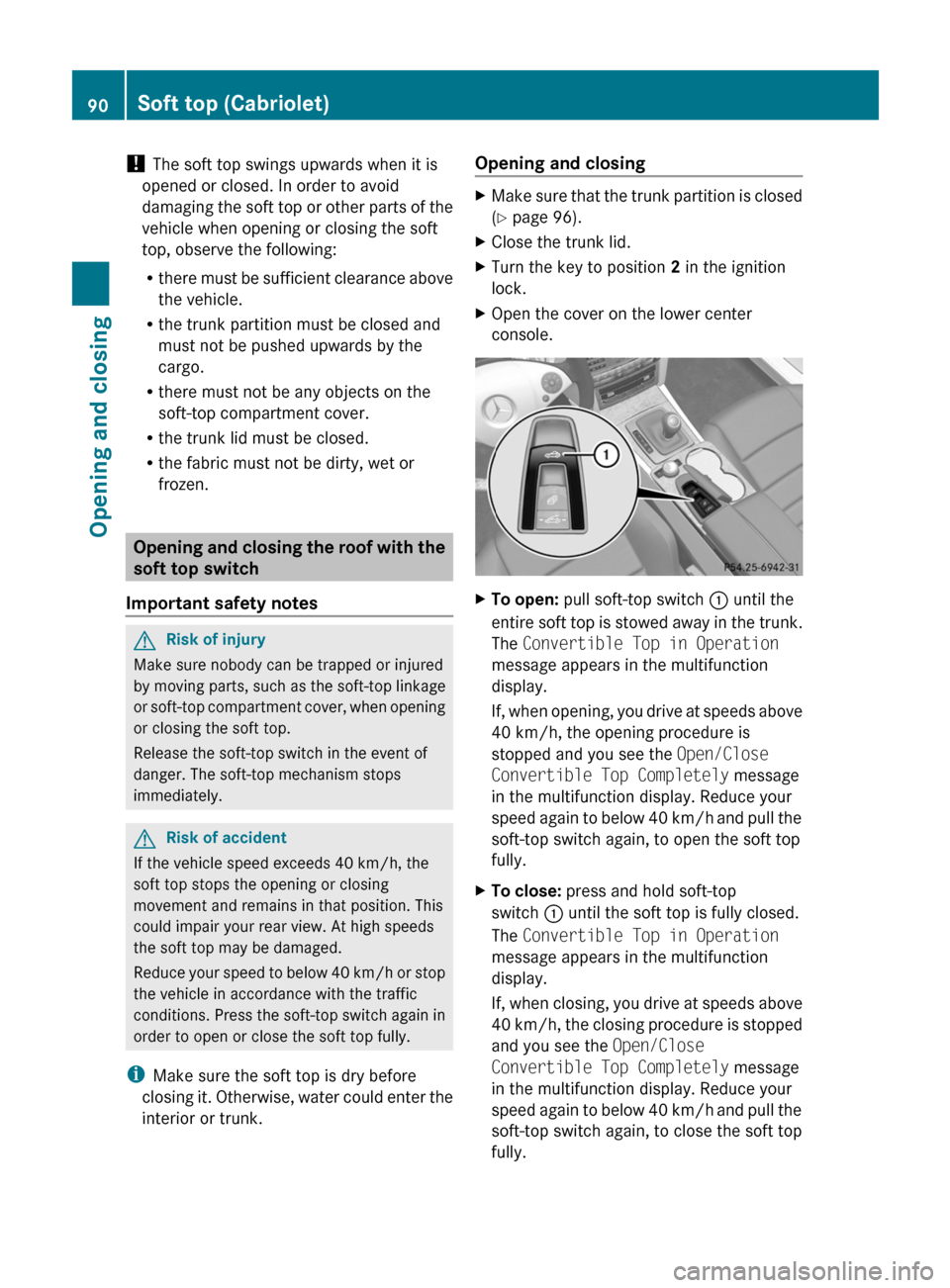

! The soft top swings upwards when it is
opened or closed. In order to avoid
damaging the soft top or other parts of the
vehicle when opening or closing the soft
top, observe the following:
R there must be sufficient clearance above
the vehicle.
R the trunk partition must be closed and
must not be pushed upwards by the
cargo.
R there must not be any objects on the
soft-top compartment cover.
R the trunk lid must be closed.
R the fabric must not be dirty, wet or
frozen.
Opening and closing the roof with the
soft top switch
Important safety notes
GRisk of injury
Make sure nobody can be trapped or injured
by moving parts, such as the soft-top linkage
or soft-top compartment cover, when opening
or closing the soft top.
Release the soft-top switch in the event of
danger. The soft-top mechanism stops
immediately.
GRisk of accident
If the vehicle speed exceeds 40 km/h, the
soft top stops the opening or closing
movement and remains in that position. This
could impair your rear view. At high speeds
the soft top may be damaged.
Reduce your speed to below 40 km/h or stop
the vehicle in accordance with the traffic
conditions. Press the soft-top switch again in
order to open or close the soft top fully.
i Make sure the soft top is dry before
closing it. Otherwise, water could enter the
interior or trunk.
Opening and closingXMake sure that the trunk partition is closed
( Y page 96).XClose the trunk lid.XTurn the key to position 2 in the ignition
lock.XOpen the cover on the lower center
console.XTo open: pull soft-top switch : until the
entire soft top is stowed away in the trunk.
The Convertible Top in Operation
message appears in the multifunction
display.
If, when opening, you drive at speeds above
40 km/h, the opening procedure is
stopped and you see the Open/Close
Convertible Top Completely message
in the multifunction display. Reduce your
speed again to below 40 km/h and pull the
soft-top switch again, to open the soft top
fully.XTo close: press and hold soft-top
switch : until the soft top is fully closed.
The Convertible Top in Operation
message appears in the multifunction
display.
If, when closing, you drive at speeds above
40 km/h, the closing procedure is stopped
and you see the Open/Close
Convertible Top Completely message
in the multifunction display. Reduce your
speed again to below 40 km/h and pull the
soft-top switch again, to close the soft top
fully.90Soft top (Cabriolet)Opening and closing
BA 207 USA, CA Edition B 2011; 1; 3, en-USd2sboikeVersion: 3.0.3.62010-05-20T10:38:09+02:00 - Seite 90

Opening and closing with the key
Important safety notes
GRisk of injury
Make sure nobody can be trapped or injured
by moving parts such as the soft-top linkage
or soft-top compartment cover when opening
or closing the soft top.
If there is a risk of entrapment, immediately
release the % or & button on the
SmartKey. The soft-top mechanism stops
immediately.
Opening and closing
iThe key must be near the handle of the
driver's door.
XPoint the tip of the SmartKey at the driver's
door handle.
XTo open: press and hold the % button
on the key until the soft top is fully opened.
The Convertible Top in Operation
message appears in the multifunction
display. The seat ventilation is switched on.
The rear side windows open.
XTo close: press and hold the & button
on the key until the soft top is fully closed.
The Convertible Top in Operation
message appears in the multifunction
display. The soft top and the side windows
close.
Closing the soft top manually
If the soft top cannot be closed automatically,
check the following points:
Ris the trunk partition engaged
(Y page 96)?
Rare the head restraints on the rear bench
seats extended?
Ris the trunk lid closed?
Ris the on-board voltage sufficient?
Start the engine if necessary.
If automatic operation still does not work, the
soft top can be closed manually.
This work must be performed by two persons.
iClosing the soft top manually is a
complex, technically demanding process
which requires a great deal of force. Only
close the soft top manually in extreme
emergencies. In these situations, it is
better to get in touch with a qualified
specialist workshop, e.g. an authorized
Mercedes-Benz Center.
GRisk of injury
Remove wristwatches and any jewelry such
as rings or bracelets. You could otherwise get
caught, be injured and damage the vehicle.
Always grip the soft top at the indicated
gripping points when closing the soft top
manually. You could otherwise be injured.
XDepress the parking brake.XOpen the side windows.XLower the head restraints (automatically
(Y page 109) or manually (Y page 109)).
XRemove the key from the ignition lock.XOpen the trunk.XTake the two straps out of the vehicle tool
kit (Y page 287).
XTake the Allen key out of the Operator's
Manual wallet and keep it with you.
XTo open the cover on the left hand side
in the trunk: turn rotary catch : counter-
clockwise and fold down cover ;.
Soft top (Cabriolet)91Opening and closingBA 207 USA, CA Edition B 2011; 1; 3, en-USd2sboikeVersion: 3.0.3.62010-05-20T10:38:09+02:00 - Seite 91Z

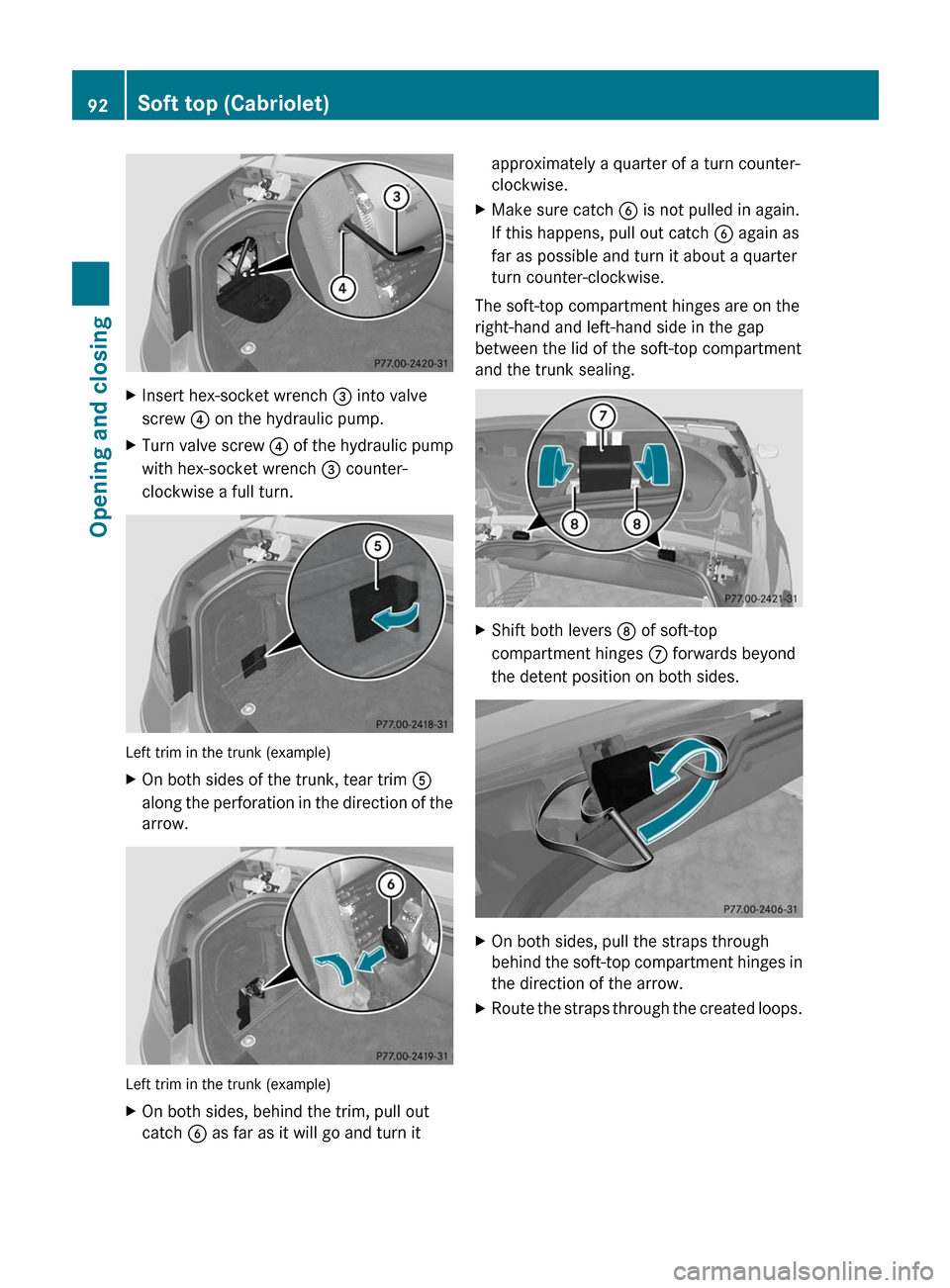

XInsert hex-socket wrench = into valve
screw ? on the hydraulic pump.
XTurn valve screw ? of the hydraulic pump
with hex-socket wrench = counter-
clockwise a full turn.
Left trim in the trunk (example)
XOn both sides of the trunk, tear trim A
along the perforation in the direction of the
arrow.
Left trim in the trunk (example)
XOn both sides, behind the trim, pull out
catch B as far as it will go and turn it
approximately a quarter of a turn counter-
clockwise.
XMake sure catch B is not pulled in again.
If this happens, pull out catch B again as
far as possible and turn it about a quarter
turn counter-clockwise.
The soft-top compartment hinges are on the
right-hand and left-hand side in the gap
between the lid of the soft-top compartment
and the trunk sealing.
XShift both levers D of soft-top
compartment hinges C forwards beyond
the detent position on both sides.
XOn both sides, pull the straps through
behind the soft-top compartment hinges in
the direction of the arrow.
XRoute the straps through the created loops.92Soft top (Cabriolet)Opening and closing
BA 207 USA, CA Edition B 2011; 1; 3, en-USd2sboikeVersion: 3.0.3.62010-05-20T10:38:09+02:00 - Seite 92

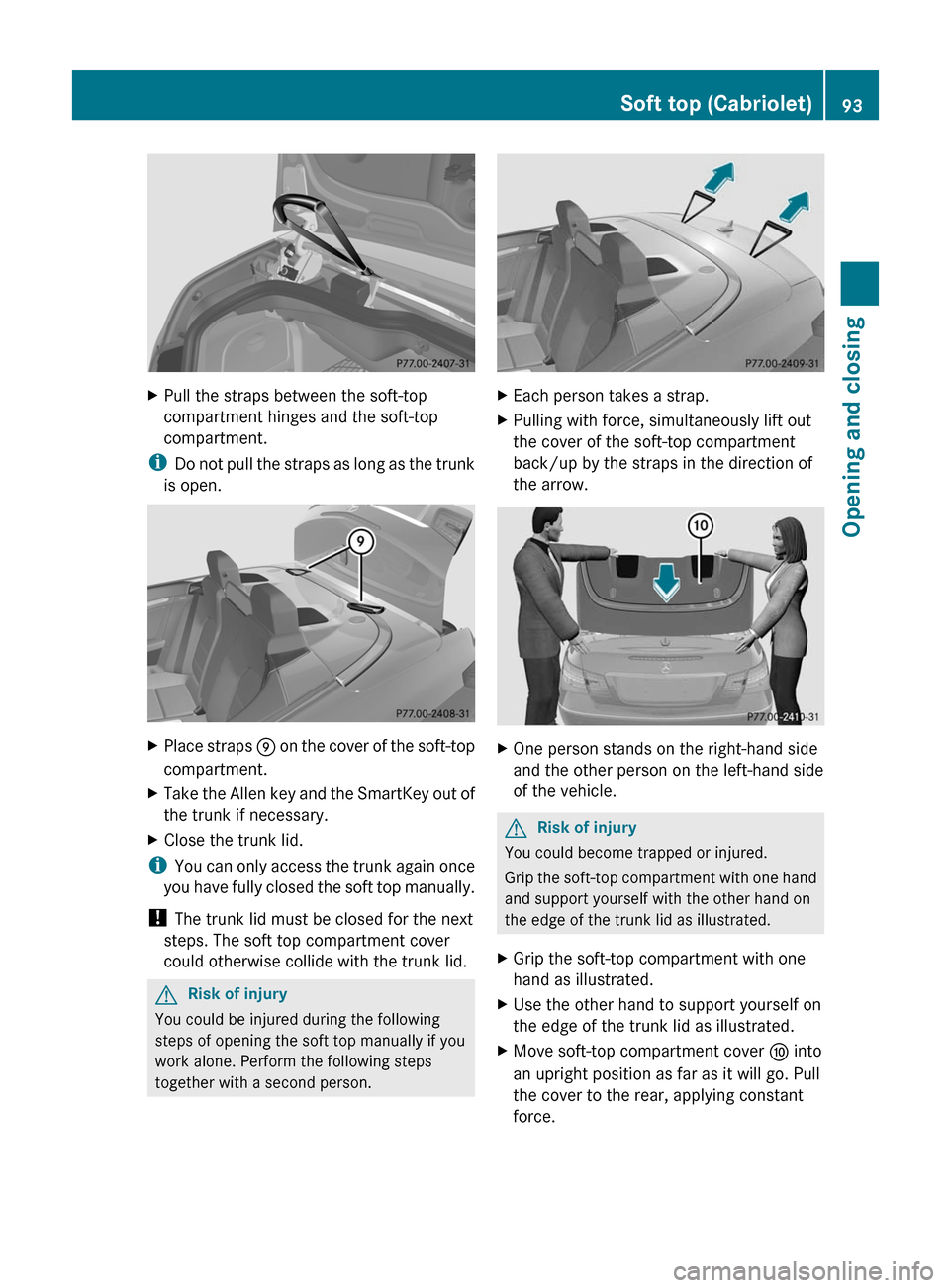

XPull the straps between the soft-top
compartment hinges and the soft-top
compartment.
iDo not pull the straps as long as the trunk
is open.
XPlace straps E on the cover of the soft-top
compartment.
XTake the Allen key and the SmartKey out of
the trunk if necessary.
XClose the trunk lid.
iYou can only access the trunk again once
you have fully closed the soft top manually.
! The trunk lid must be closed for the next
steps. The soft top compartment cover
could otherwise collide with the trunk lid.
GRisk of injury
You could be injured during the following
steps of opening the soft top manually if you
work alone. Perform the following steps
together with a second person.
XEach person takes a strap.XPulling with force, simultaneously lift out
the cover of the soft-top compartment
back/up by the straps in the direction of
the arrow.
XOne person stands on the right-hand side
and the other person on the left-hand side
of the vehicle.
GRisk of injury
You could become trapped or injured.
Grip the soft-top compartment with one hand
and support yourself with the other hand on
the edge of the trunk lid as illustrated.
XGrip the soft-top compartment with one
hand as illustrated.
XUse the other hand to support yourself on
the edge of the trunk lid as illustrated.
XMove soft-top compartment cover F into
an upright position as far as it will go. Pull
the cover to the rear, applying constant
force.
Soft top (Cabriolet)93Opening and closingBA 207 USA, CA Edition B 2011; 1; 3, en-USd2sboikeVersion: 3.0.3.62010-05-20T10:38:09+02:00 - Seite 93Z

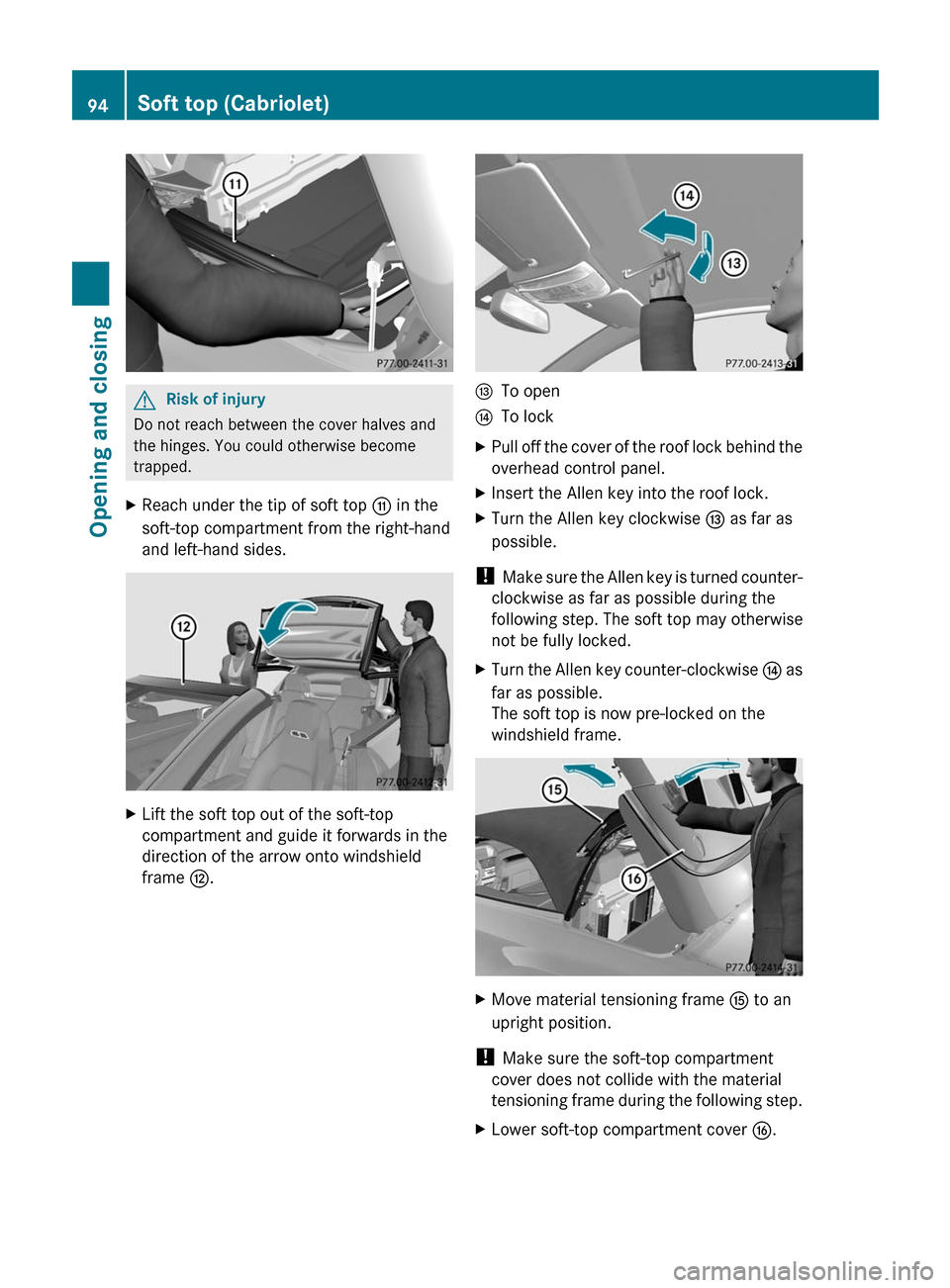

GRisk of injury
Do not reach between the cover halves and
the hinges. You could otherwise become
trapped.
XReach under the tip of soft top G in the
soft-top compartment from the right-hand
and left-hand sides.XLift the soft top out of the soft-top
compartment and guide it forwards in the
direction of the arrow onto windshield
frame H.ITo openJTo lockXPull off the cover of the roof lock behind the
overhead control panel.XInsert the Allen key into the roof lock.XTurn the Allen key clockwise I as far as
possible.
! Make sure the Allen key is turned counter-
clockwise as far as possible during the
following step. The soft top may otherwise
not be fully locked.
XTurn the Allen key counter-clockwise J as
far as possible.
The soft top is now pre-locked on the
windshield frame.XMove material tensioning frame K to an
upright position.
! Make sure the soft-top compartment
cover does not collide with the material
tensioning frame during the following step.
XLower soft-top compartment cover L.94Soft top (Cabriolet)Opening and closing
BA 207 USA, CA Edition B 2011; 1; 3, en-USd2sboikeVersion: 3.0.3.62010-05-20T10:38:09+02:00 - Seite 94
