2011 MERCEDES-BENZ C-CLASS COUPE Owners Manual

X
If the Tyre press. now OK? message
appears, use 9or: to select Can‐ cel .
X Press the abutton.
The tyre pressure values stored at the last
restart will continue to be monitored. Tyre pressure monitor
Important safety notes If a tyre pressure monitor system is fitted, the
vehicle's wheels have sensors fitted that
monitor the tyre pressures in all four tyres.
The tyre pressure monitor warns you when
the pressure drops in one or more of the
tyres. The tyre pressure monitor only func-
tions if the correct sensors are fitted to all
wheels.
G
WARNING
The tyre pressure monitor does not warn you
of an incorrectly set tyre pressure. The table
on the inside of the fuel fillerf lap will help you
decide whether the tyre pressures should be
corrected.
The tyre pressure monitor is not able to warn
you of a sudden loss of pressure, e.g. if the
tyre is penetrated by a foreign object. In the
even tofa sudden loss of pressure, bring the
vehicle to a halt by braking carefully.D o not
make any sudden steering movements when
doing so.
Information on tyre pressures is displayed in
the multifunction display .After a few minutes
of driving, the current tyre pressure of each
tyre is show ninthe multifunction display.
i The tyre pressure values indicated by the
on-board computer may differ from those
measured at a filling station with a pressure
gauge. The tyre pressures shown by the on-
board computer refer to those measured at
sea level. At high altitudes, the tyre pres-
sure values indicated by a pressure gauge
are higher than those shown by the on- board computer. In this case, do not reduce
the tyre pressures.
i The operation of the tyre pressure moni-
tor can be affected by interference from
radio transmitting equipment (e.g. radio
headphones, two-way radios) that may be
being operated in or near the vehicle.
Checking tyre pressure electronically X
Make sure that the key is in position 2
(Y page 137) in the ignition lock.
X Press the =or; button on the steer-
ing wheel to select the Service menu.
X Press the 9or: button to select
Tyre pressure .
X Press the abutton.
The current tyre pressure for each wheel
will be displayed in the multifunction dis-
play.
If the vehicle has been parked for longer than
20 minutes, the Tyre pressures will be
displayed after a few minutes of
driving message appears.
After a teach-in period, the tyre pressure
monitor automatically recognises new
wheels or new sensors. As long as a clear
allocation of the tyre pressure values to the
individual wheels is not possible, the Tyre pressure monitor active display mes-
sage is shown instead of the tyre pressure
display. The tyre pressures are already being
monitored.
i If a spare wheel/emergency spare wheel
is fitted, the system may continue to show
the tyre pressure of the wheel that has
been removed for a few minutes. If this
occurs, note that the value displayed for
the position where the spare wheel/emer-
gency spare wheel is fitted is not the same
as the spare wheel/emergency spare
wheel's current tyre pressure. 342
Tyre pressureWheels and tyres

Tyre pressure monitor warning mes-
sages If the tyre pressure monitor detects a signifi-
cant pressure loss on one or more tyres, a
warning message is shown in the multifunc-
tio nd isplay. Awarning tone also sounds and
the tyre pressure warning lamp lights up in
the instrument cluster.
Each tyre that is affected by a significant loss
of pressure is highlighted in the pressure dis-
play.
If the Please correct tyre pressure message appears in the multifunction dis-
play:
X Chec kthe tyre pressure on all four wheels
and correct it if necessary.
i If the wheel positions on the vehicle are
interchanged, the tyre pressures may be
displayed for the wrong positions for a
short time. This is rectified after a few
minutes of driving, and the tyre pressures
are displayed for the correct positions.
Restarting the tyre pressure monitor When you restart the tyre pressure monitor,
all existing warning messages are deleted and
the warning lamps go out. The monitor uses
the currently set tyre pressures as the refer-
ence values for monitoring. In most cases, the
tyre pressure monitor will automatically
detect the new referencev alues after you
have changed the tyre pressure.
i For an overview of th emenus, see
(Y page 214).
If you wish to define the new reference values
manually:
X Use the table on the inside of the fuel filler
flap to ensure that the tyre pressure is set
correctly in all four tyres for the current
operating conditions. Also observe the notes in the section on
tyre pressures (Y
page 339).
X Make sure that the key is in position 2in
the ignition lock.
X Press the =or; button on the steer-
ing wheel to select the Service menu.
X Press the 9or: button to select
Tyre pressure .
X Press the abutton.
The multifunction display shows the cur-
rent tyre pressure of the individual tyres or
the Tyre pressures will be dis‐ played after a few minutes of driv‐
ing message.
X Press the :button.
The Use current pressures as new reference values message appears in
the multifunction display.
If you wish to confirm the restart:
X Press the abutton.
The Tyre press. monitor restarted message appears in the multifunction dis-
play.
After you have driven for a few minutes, the
system checks whether the current tyre
pressures are within the specified range.
The new tyre pressures are then accepted
as reference values and monitored.
If you wish to cancel the restart:
X Press the %button.
The tyre pressure values stored at the last
restart will continue to be monitored.
Radio type approval for the tyre pres-
sure monitor In certain countries, a radio type approval for
the tyre pressure monitor may be required.
The radio type approval number for the tyre
pressure monitor can be found online at:
http://www.mercedes-benz.de/
betriebsanleitung. Tyre pressure
343Wheels and tyres Z

Changing
awheel Flat tyre
The "Breakdown assistance" section
(Y page 316) contains information and notes
on how to deal with a fla ttyre. It also provides
instructions on changing a wheel or fitting the
spare wheel or emergency spare wheel. Interchanging the wheels
G
WARNING
Interchange the front and rear wheels only if
they have the same dimensions, fo rexample
size, offset, etc.
After every wheel interchange/change, have
the tightening torque checked at a qualified
specialist workshop tha thas the necessary
specialist knowledge and tools to carry out
the work required. Mercedes-Benz recom-
mends that you use a Mercedes-Ben zService
Centre for this purpose. In particular, work
relevant to safety or on safety-related sys-
tems must be carried out at a qualified spe-
cialist workshop.
The wheels could work loose if they are not
tightened to a torque of 130 Nm.
For safety reasons, Mercedes-Benz recom-
mends that you only use wheel bolts of the
correct size which have been approved for
Mercedes-Benz vehicles.
The wear patterns on the fron tand rea rtyres
differ, depending on the operating conditions.
Interchange the wheels befor eaclear wear
pattern has formed on the tyres. Front tyres
typically wear more on the shoulders and the
rear tyres in the centre.
On vehicles that have the same size front and
rea rwheels, you can interchange the wheels
every 5000 km to 10,000 km depending on
the degree of tyre wear. Do not reverse the
direction of tyre rotation.
Cleant he contact surfaces of the wheel and
the brake disc thoroughly every time a wheel
is interchanged. Check the tyre pressure and, if necessary, restart the tyre pressure loss
warning system or the tyre pressure monitor.
!
On vehicles fitted with a tyre pressure
monitor, electronic components are loca-
ted in the wheel.
Tyre-fitting tools should not be applied in
the area of the valve, as this could damage
the electronic components.
Always have the tyres changed at a quali-
fied specialist workshop, e.g. a Mercedes-
Benz Service Centre. Direction of rotation
Tyres with a specified direction of rotation
have additional benefits, e.g. if there is a risk
of aquaplaning. You will only gain these ben-
efits if the correct direction of rotation is
observed.
An arrow on the sidewall of the tyre indicates
its correct direction of rotation.
You may fit an emergency spare wheel/spare
wheel against the direction of rotation.
Observe the time restriction on use as well as
the speed limitation specified on the emer-
gency spare wheel/spare wheel. Storing wheels
Store wheels that are not being used in a cool,
dry and preferably dark place. Protect the
tyres against oil, grease, petrol and diesel. Cleaning the wheels
G
WARNING
Do not use high-pressure cleaners with circu-
lar-jet nozzles (dirt grinders) to clean your
vehicle, in particular the tyres. You could oth-
erwise damage the tyres and cause an acci-
dent. 344
Changing
awheelWheels and tyres

Wheel and tyre combinations
Please bear the following in mind
! For safety reasons, Mercedes-Benz rec-
ommends that you only use tyres and
wheels which have been approved by
Mercedes-Benz specifically for you rvehi-
cle.
These tyres have been specially adapted
for use with the control systems, such as
ABS or ESP ®
, and are marked as follows:
R MO =Mercedes-BenzO riginal
R MOE =Mercedes-BenzO riginal Extended
(tyres with run-flat characteristics)
R MO1 =Mercedes-BenzO riginal (only cer-
tain AMG tyres)
Mercedes-Benz Original Extended tyres
may only be used on wheels that have been
specifically approved by Mercedes-Benz.
Only use tyres, wheels or accessories tes-
ted and approved by Mercedes-Benz. Cer-
tain characteristics, e.g. handling, vehicle
noise emissions or fuel consumption, may
otherwise be adversely affected. In addi-
tion, when driving with aload, tyre dimen-
sion variations could cause the tyres to
come into contact with the bodywork and
axle components.T his could result in dam-
age to the tyres or the vehicle.
Mercedes-Ben zaccepts no liability for
damage resulting from the use of tyres,
wheels or accessories othe rthan those tes-
ted and approved.
Further information about tyres, wheels
and approved combinations can be
obtained from any Mercedes-Benz Service
Centre.
! Retreaded tyres are neither tested nor
recommended by Mercedes-Benz, since
previous damage cannot always be detec-
ted on retreaded tyres. As a result,
Mercedes-Ben zcannot guarantee vehicle
safety if retreaded tyres are fitted. Do not fit used tyres if you have no information
about their previous usage.
! Large wheels :the lower the section width
for a certain wheel size, the lower the ride
comfort is on poor road surfaces. Roll com-
fort and suspension comfort are reduced
and the risk of damage to the wheels and
tyres as a result of driving over obstacles
increases.
i You will find a table of tyre pressures on
the inside of your vehicle's fuel filler flap.
For further information on tyre pressure,
see (Y page 339).
i Notes on the vehicle equipment –always
fit the vehicle:
R with tyres of the same size on a given axle
(left/right)
R with the same type of tyres at a given
time (summer tyres, winter tyres,
MOExtended tyres)
i Overview of abbreviations used in the fol-
lowing tyre tables:
R BA: both axles
R FA: front axle
R RA: rear axle
In the following table, the wheel/tyre combi-
nations are allocated to the vehicle models
through variants, e.g. V1, V2 etc.: V1
C 180
15 V2
C 220 CDI
15 V3
C 250
15
, C 250 CDI 15 V4
C 350
15 V5 C 63 AMG
15
BlueEFFICIENCY Wheel and tyre combinations
345Wheels and tyres Z

Tyres
Summer tyres Light-alloy
wheels V1 V2 V3 V4 V5
BA
195/6
0 R16 89 V 16 6.0
Jx16 H2 ET 39 #
— — — —
BA
205/55 R16 91 V
16 7.0
Jx16 H2 ET 43 # #
— — —
BA
205/55 R16 91 W
16 7.0
Jx16 H2 ET 43 # # #
— —
BA
225/50 R16 92 V
16, 17 7.5
Jx16 H2 ET 53 # #
— — —
BA
225/50 R16 92 W
16 7.5
Jx16 H2 ET 53 # # #
— —
BA
225/45 R17 91 W
16 7.5
Jx17 H2 ET 47 # # # #
—
BA 225/45 R17 91 W
MOExtended
16, 18 7.5
Jx17 H2 ET 47 # # # #
—
FA
RA 225/45 R17 91 W
245/40 R17 91 W
19 7.5
Jx17 H2 ET 47
8.5 Jx17 H2 ET 58 # # # #
—
FA
RA 225/45 R17 91 W
MOExtended
18
245/40 R17 91 W
MOExtended 18, 19 7.5
Jx17 H2 ET 47
8.5 Jx17 H2 ET 58 # # # #
—
BA
225/40 R18 92 Y XL
16, 20 7.5
Jx18 H2 ET 47 # # # #
—
FA
RA
225/40 R18 92 Y XL
20
245/35 R18 92 Y XL 19, 20 7.5
Jx18 H2 ET 47
8.5 Jx18 H2 ET 58 # # # #
—
FA
RA
225/40 R18 92 Y XL
20
255/35 R18 94 Y XL 19, 20, 21 7.5
Jx18 H2 ET 47
8.5 Jx18 H2 ET 54 # # # #
—
FA
RA
225/40 R18 92 Y XL
20
255/35 R18 94 Y XL 19, 20, 21 8.0
Jx18 H2 ET 50
8.5 Jx18 H2 ET 54 # # # #
—
FA
RA
225/40 ZR18 92
YXL20
255/35 ZR18 94 YXL19, 20, 21 8.0
Jx18 H2 ET 50
8.5 Jx18 H2 ET 54 # # # #
—
16
Not in combination with sports suspensio ncode 486 or dynamic handling package code 483.
17 Not available from the factory.
18 MOExtended tyres (tyres featuring run-flat characteristics) only in combination with an activated tyre pres-
sure loss warning system or tyre pressure monitor.
19 Use of snow chains is not permitted. Observe the notes in the "Snow chains" section.
20 Observe notes on "large wheels" in the "Wheel/tyre combinations" section.
21 Additional measures necessary (hub caps on rear axle, code 776). 346
Wheel and tyre combinationsWheels and tyres

Summer tyres Light-alloy
wheels V1 V2 V3 V4 V5
FA
RA 235/40 ZR18 95
YXL
255/35 ZR18 94 YXL19, 20 8.0
Jx18 H2 ET 45
9.0 Jx18 H2 ET 54 — — — — #
FA
RA
235/35 ZR19 XL
20
255/30 ZR19 XL 19, 20 8.0
Jx19 H2 ET 45
9.0 Jx19 H2 ET 54 — — — — #
Winter tyres Light-alloy
wheels V1 V2 V3 V4 V5
BA 195/60 R16 89 H M+S
i 6.0
Jx16 H2 ET 39 #
— — — —
BA 205/55 R1 6 91 H M+S
i 7.0
Jx16 H2 ET 43 # #
— — —
BA
225/50 R16 92 H M+S
i17 7.5
Jx16 H2 ET 53 # # #
— —
BA 225/45 R17 91 H M+S
i 7.5
Jx17 H2 ET 47 # # # #
—
BA 225/45 R17 91 H
M+SiMOExtended
17, 18 7.5
Jx17 H2 ET 47 # # # #
—
BA 225/40 R18 92 H XL
M+Si
20 7.5
Jx18 H2 ET 47 # # # #
—
BA 225/40 R18 92 V XL
M+Si
20 8.0
Jx18 H2 ET 45 — — — — #
BA 225/40 R18 92 H XL
M+Si
20 8.0
Jx18 H2 ET 50 # # # #
—
BA 235/40 R18 95 V XL
M+Si
19 8.0
Jx18 H2 ET 45 — — — — #
FA
RA 235/40 R18 95 V XL M+S
i
255/35 R18 94 V XL
M+Si 19, 20 8.0
Jx18 H2 ET 45
9.0 Jx18 H2 ET 54 — — — — #
19
Use of snow chains is not permitted. Observe the notes in the "Snow chains" section.
20 Observe notes on "large wheels" in the "Wheel/tyre combinations" section.
17 Not available from the factory.
18 MOExtended tyres (tyres featuring run-fla tcharacteristics) only in combination with an activated tyre pres-
sure loss warning system or tyre pressure monitor. Wheel and tyre combinations
347Wheels and tyres Z

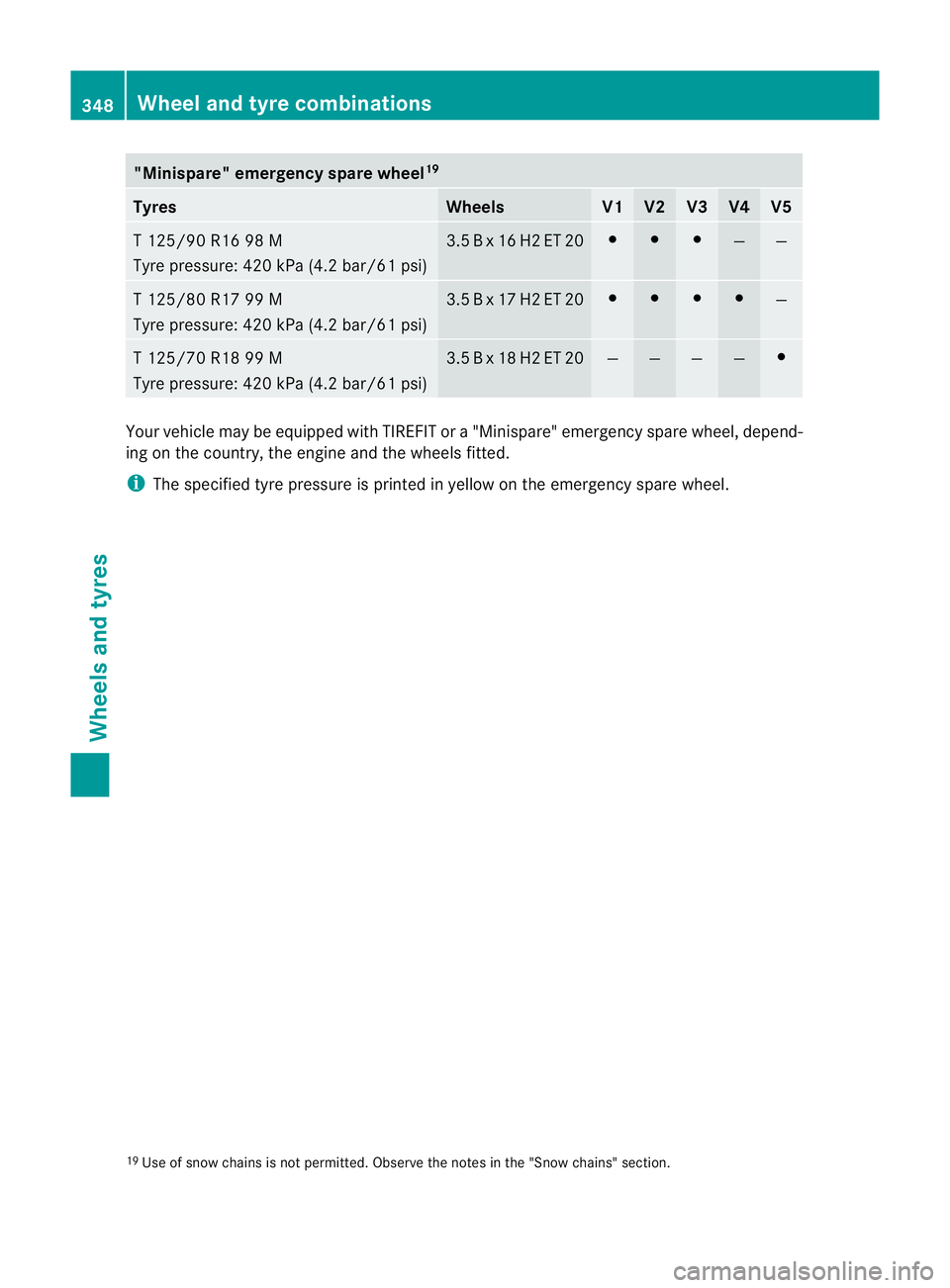

"Minispare" emergency spare wheel
19Tyres Wheels V1 V2 V3 V4 V5
T 125/90 R16 98 M
Tyre pressure: 420 kPa (4.2 bar/61 psi) 3.5 B x 16 H2 ET 20 # # #
— —
T 125/80 R17 99 M
Tyre pressure: 420 kPa (4.2 bar/61 psi) 3.5 B x 17 H2 ET 20 # # # #
—
T 125/70 R18 99 M
Tyre pressure: 420 kPa (4.2 bar/61 psi) 3.5 B x 18 H2 ET 20 — — — — #
Your vehicle may be equipped with TIREFIT or a "Minispare" emergency spare wheel, depend-
ing on the country, the engine and the wheels fitted.
i The specified tyre pressure is printed in yellow on the emergency spare wheel.
19 Use of snow chains is not permitted. Observe the notes in the "Snow chains" section. 348
Wheel and tyre combinationsWheels and tyres

Useful information
............................350
Notes on the technical data .............350
Genuine Mercedes-Benz parts .........350
Vehicle electronics ...........................351
Vehicle identification plates ............352
Service products and capacities .....353
Vehicle data ...................................... 357
Boot lid opening dimensions ...........360
Trailer tow hitch ................................ 361
24-GHz radar sensor system (coun-
tryo verview) ..................................... 363 349Technical data
