2011 MAZDA MODEL RX 8 Owners Manual (in English)

Black plate (369,1)

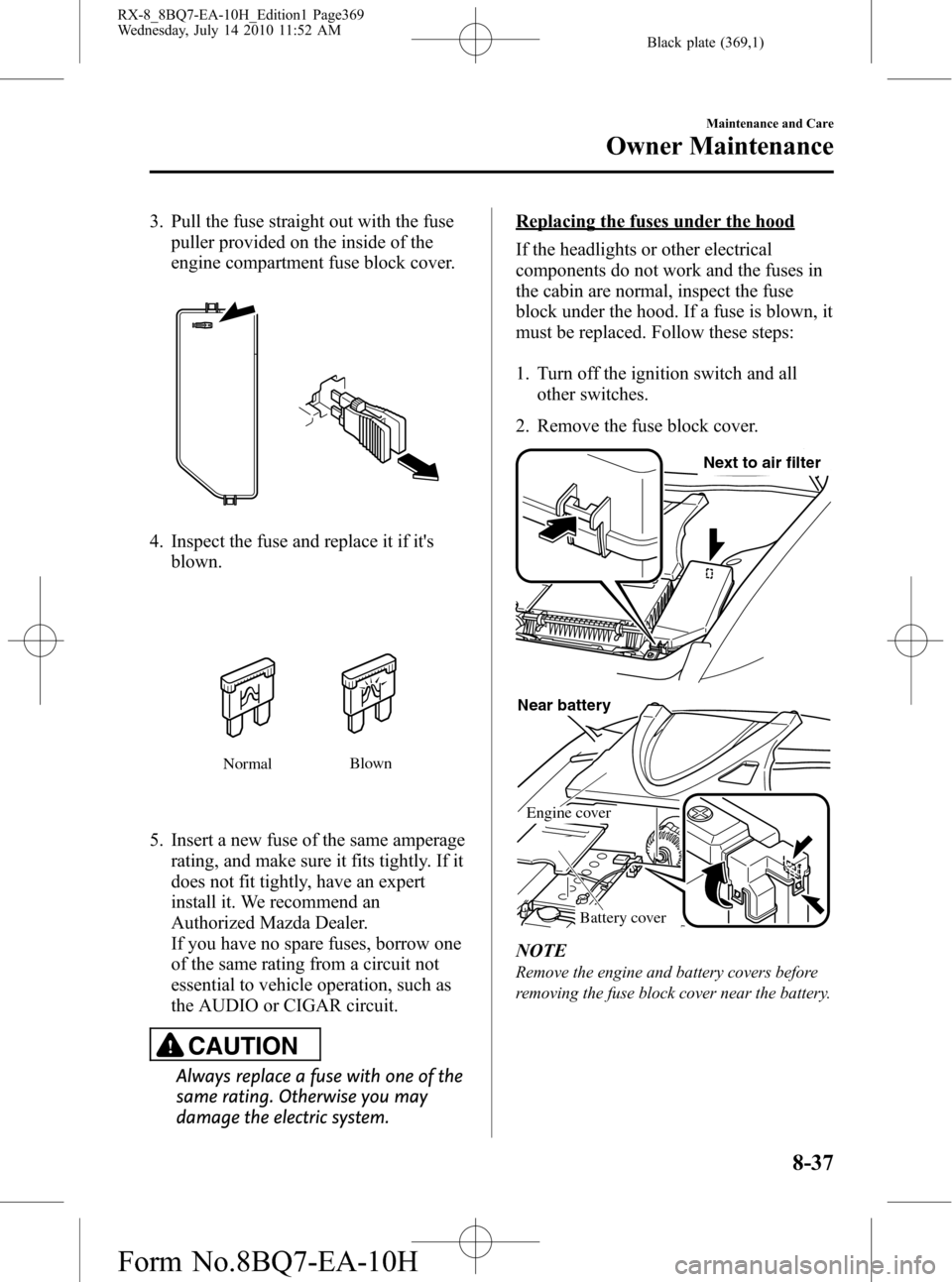

3. Pull the fuse straight out with the fuse
puller provided on the inside of the
engine compartment fuse block cover.
4. Inspect the fuse and replace it if it's
blown.
NormalBlown
5. Insert a new fuse of the same amperage
rating, and make sure it fits tightly. If it
does not fit tightly, have an expert
install it. We recommend an
Authorized Mazda Dealer.
If you have no spare fuses, borrow one
of the same rating from a circuit not
essential to vehicle operation, such as
the AUDIO or CIGAR circuit.
CAUTION
Always replace a fuse with one of the
same rating. Otherwise you may
damage the electric system.
Replacing the fuses under the hood
If the headlights or other electrical
components do not work and the fuses in
the cabin are normal, inspect the fuse
block under the hood. If a fuse is blown, it
must be replaced. Follow these steps:
1. Turn off the ignition switch and all
other switches.
2. Remove the fuse block cover.
Next to air filter
Engine cover
Battery cover
Near battery
NOTE
Remove the engine and battery covers before
removing the fuse block cover near the battery.
Maintenance and Care
Owner Maintenance
8-37
RX-8_8BQ7-EA-10H_Edition1 Page369
Wednesday, July 14 2010 11:52 AM
Form No.8BQ7-EA-10H

Black plate (370,1)
3. If any fuse but the MAIN fuse is
blown, replace it with a new oneof the
same amperage rating.
Normal
Blown
WARNING
Do not replace the main fuse by
yourself. Have an Authorized Mazda
Dealer perform the replacement:
Replacing the fuse by yourself is
dangerous because the MAIN fuse is
a high current fuse. Incorrect
replacement could cause an electrical
shock or a short circuit resulting in a
fire.
NOTE
Verify that the engine cover is securely
installed.
8-38
Maintenance and Care
Owner Maintenance
RX-8_8BQ7-EA-10H_Edition1 Page370
Wednesday, July 14 2010 11:52 AM
Form No.8BQ7-EA-10H

Black plate (371,1)
qFuse Panel Description
Fuse block (Engine compartment)
1
2
3
4
5
1013
14
15
16
17
18
19 11
12620
21
2229
30
31
32
33
34
35
3637
38
28
23
24
25
26
27
7
8
9
(Next to air filter)
(Next to battery)
DESCRIPTIONFUSE
RATINGPROTECTED COMPONENT
1 MAIN 120A For protection of all circuits
2 HEATER 40A Heater
3 AIR PUMP 60A Air pump
4 BTN 30A Power door locks, Illumination, Moonroof
í
5 DEFOG 50A Rear window defroster
6 FAN 1 30A Electric fan 1
7 ABS/DSC 40A ABS, DSC
í
8 ACC 30A Lighter, Power control mirror, Accessory socket, Audio system
9 FAN 2 30A Electric fan 2
10 HEAD 15A Headlight high beams
í, Headlight cleanerí
11 HEAD LOW R 15A Headlight low beam (RH)
12 HEAD LOW L 15A Headlight low beam (LH)
13 DRL 15A DRL
í(Headlight high beams)
14 DSC 30A DSCí
15 SEAT WARM 20A Seat warmerí
16 H/CLEAN 20A Headlight cleanerí
17 R.FOG――
Maintenance and Care
Owner Maintenance
8-39íSome models. RX-8_8BQ7-EA-10H_Edition1 Page371
Wednesday, July 14 2010 11:52 AM
Form No.8BQ7-EA-10H

Black plate (372,1)
DESCRIPTIONFUSE
RATINGPROTECTED COMPONENT
18 FOG 15A Fog lights
í
19 A/C 10A Air conditioner
20 IG 40A For protection of various circuits
21 P.WIND 1 30A Power window
22 IG KEY 15A For protection of various circuits
23 STOP 10A Brake lights
24 FUEL PUMP 20A Fuel pump
25 HORN 15A Horn
26 HAZARD 15A Hazard warning flashers, Turn signal lights
27 ETV 15A Electric throttle valve
28 ST 10A Starter
29 WIPER 20A Windshield wiper and washer
30 TCM 15A TCM
í
31 ENGINE 15AEngine control system, Supplemental restraint system, ABS,
Power steering
32 TAIL 10ATaillights, License plate light, Parking lights, Front side-maker
lights, Rear side-marker lights
33 ILLUMI 7.5A Illumination
34 EGI COMP1 15A Engine control system
35 EGI COMP2 10A Engine control system
36 EGI INJ 15A Fuel injector
37 P.WIND 2 20A Power window
38 EPS 60A Power steering
8-40
Maintenance and Care
íSome models.
Owner Maintenance
RX-8_8BQ7-EA-10H_Edition1 Page372
Wednesday, July 14 2010 11:52 AM
Form No.8BQ7-EA-10H

Black plate (373,1)
Fuse panel (Driver's side)
DESCRIPTIONFUSE
RATINGPROTECTED COMPONENT
1 CIGAR 15A Lighter
2 ACC 7.5A Audio system, Power control mirror
3 OUTLET――
4 A/C 7.5A Air conditioner
5 METER 10A Instrument cluster
6―― ―
7 SPARE――
8 SPARE――
9 M.DEF 10A Mirror defroster
í
10 DSC 7.5A DSCí
11 AUDIO 25A Audio system (Bose®Sound System-equipped model)í
12 D.LOCK 30A Power door locks, Moonroofí
13 OUTLET 15A Accessory socket
14 ROOM 15A Interior lights
15 SPARE――
16 SPARE――
Maintenance and Care
Owner Maintenance
8-41íSome models. RX-8_8BQ7-EA-10H_Edition1 Page373
Wednesday, July 14 2010 11:53 AM
Form No.8BQ7-EA-10H

Black plate (374,1)
How to Minimize
Environmental Paint Damage
The paintwork on your Mazda represents
the latest technical developments in
composition and methods of application.
Environmental hazards, however, can
harm the paint's protective properties, if
proper care is not taken.
Here are some examples of possible
damage, with tips on how to prevent
them.
qEtching Caused by Acid Rain or
Industrial Fallout
Occurrence
Industrial pollutants and vehicle emissions
drift into the air and mix with rain or dew
to form acids. These acids can settle on a
vehicle's finish. As the water evaporates,
the acid becomes concentrated and can
damage the finish.
And the longer the acid remains on the
surface, the greater the chance is for
damage.
Prevention
It is necessary to wash and wax your
vehicle to preserve its finish according to
the instructions in this section. These
steps should be taken immediately after
you suspect that acid rain has settled on
your vehicle's finish.
qDamage Caused by Bird
Dropping, Insects, or Tree Sap
Occurrence
Bird droppings contain acids. If these
aren't removed they can eat away the clear
and color base coat of the vehicle's
paintwork.
When insects stick to the paint surface
and decompose, corrosive compounds
form. These can erode the clear and color
base coat of the vehicle's paintwork if
they are not removed.
Tree sap will harden and adhere
permanently to the paint finish. If you
scratch the sap off while it is hard, some
vehicle paint could come off with it.
Prevention
It is necessary to have your Mazda
washed and waxed to preserve its finish
according to the instructions in this
section. This should be done as soon as
possible.
Bird droppings can be removed with a
soft sponge and water. If you are traveling
and these are not available, a moistened
tissue may also take care of the problem.
The cleaned area should be waxed
according to the instructions in this
section.
Insects and tree sap are best removed with
a soft sponge and water or a commercially
available chemical cleaner.
Another method is to cover the affected
area with dampened newspaper for one to
two hours. After removing the newspaper,
rinse off the loosened debris with water.
8-42
Maintenance and Care
Appearance Care
RX-8_8BQ7-EA-10H_Edition1 Page374
Wednesday, July 14 2010 11:53 AM
Form No.8BQ7-EA-10H

Black plate (375,1)
qWater Marks
Occurrence
Rain, fog, dew, and even tap water can
contain harmful minerals such as salt and
lime. If moisture containing these
minerals settles on the vehicle and
evaporates, the minerals will concentrate
and harden to form white rings. The rings
can damage your vehicle's finish.
Prevention
It is necessary to wash and wax your
vehicle to preserve its finish according to
the instructions in this section. These
steps should be taken immediately after
you find water marks on your vehicle's
finish.
qPaint Chipping
Occurrence
Paint chipping occurs when gravel thrown
in the air by another vehicle's tires hits
your vehicle.
How to avoid paint chipping
Keeping a safe distance between you and
the vehicle ahead reduces the chances of
having your paint chipped by flying
gravel.NOTE
lThe paint chipping zone varies with the
speed of the vehicle. For example, when
traveling at 90 km/h (56 mph), the paint
chipping zone is 50 m (164 ft).
lIn low temperatures a vehicle's finish
hardens. This increases the chance of paint
chipping.
lChipped paint can lead to rust forming on
your Mazda. Before this happens, repair the
damage by using Mazda touch-up paint
according to the instructions in this section.
Failure to repair the affected area could
lead to serious rusting and expensive
repairs.
Maintenance and Care
Appearance Care
8-43
RX-8_8BQ7-EA-10H_Edition1 Page375
Wednesday, July 14 2010 11:53 AM
Form No.8BQ7-EA-10H

Black plate (376,1)
Exterior Care
Followalllabel and container directions
when using a chemical cleaner or polish.
Read all warnings and cautions.
qMaintaining the Finish
Washing
CAUTION
When the wiper lever is in the AUTO
position and the ignition switch is in
the ON position, the wipers may
move automatically in the following
cases:
ØIf the windshield above the rain
sensor is touched.
ØIf the windshield above the rain
sensor is wiped with a cloth.
ØIf the windshield is struck with a
hand or other object.
ØIf the rain sensor is struck with a
hand or other object from inside
the vehicle.
Be careful not to pinch hands or
fingers as it may cause injury, or
damage the wipers. When washing
or servicing your Mazda, make sure
the wiper lever is in the OFF position.
To help protect the finish from rust and
deterioration, wash your Mazda
thoroughly and frequently, at least once a
month, with lukewarm or cold water.
If the vehicle is washed improperly, the
paint surface could be scratched. Here are
some examples of how scratching could
occur.Scratches occur on the paint surface
when:
lThe vehicle is washed without first
rinsing off dirt and other foreign
matter.
lThe vehicle is washed with a rough,
dry, or dirty cloth.
lThe vehicle is washed at a car wash
that uses brushes that are dirty or too
stiff.
lCleansers or wax containing abrasives
are used.
NOTE
lMazda is not responsible for scratches
caused by automatic car washes or
improper washing.
lScratches are more noticeable on vehicles
with darker paint finishes.
To minimize scratches on the vehicle's
paint finish:
lRinse off any dirt or other foreign
matter using lukewarm or cold water
before washing.
lUse plenty of lukewarm or cold water
and a soft cloth when washing the
vehicle. Do not use a nylon cloth.
lRub gently when washing or drying the
vehicle.
lTake your vehicle only to a car wash
that keeps its brushes well maintained.
lDo not use abrasive cleansers or wax
that contain abrasives.
CAUTION
Do not use steel wool, abrasive
cleaners, or strong detergents
containing highly alkaline or caustic
agents on chrome-plated or anodized
aluminum parts. This may damage
the protective coating; also, cleaners
and detergents may discolor or
deteriorate the paint.
8-44
Maintenance and Care
Appearance Care
RX-8_8BQ7-EA-10H_Edition1 Page376
Wednesday, July 14 2010 11:53 AM
Form No.8BQ7-EA-10H
