NOTE
Each tire pressure sensor has a unique ID
signal code. The signal code must be
registered with the TPMS before it can work.
The easiest way to do it is to have an
Authorized Mazda Dealer change your tire and
complete ID signal code registration.
When having tires changed at an
Authorized Mazda Dealer
When an Authorized Mazda Dealer
changes your vehicle's tires, they will
complete the tire pressure sensor ID signal
code registration.
When changing tires yourself
If you or someone else changes tires, you
or someone else can also undertake the
steps for the TPMS to complete the ID
signal code registration.
1. After tires have been changed, switch
the ignition ON, then back to ACC or
OFF.
2. Wait for about 15 minutes.
3. After about 15 minutes, drive the
vehicle at a speed of at least 25 km/h
(16 mph) for 10 minutes and the tire
pressure sensor ID signal code will be
registered automatically.
NOTE
If the vehicle is driven within about 15 minutes
of changing tires, the tire pressure monitoring
system warning light will flash because the
sensor ID signal code would not have been
registered. If this happens, park the vehicle for
about 15 minutes, after which the sensor ID
signal code will register upon driving the
vehicle for 10 minutes.
Replacing tires and wheels
CAUTION
ØWhen replacing/repairing the tires
or wheels or both, have the work
done by an Authorized Mazda
Dealer, or the tire pressure sensors
may be damaged.
ØThe wheels equipped on your
Mazda are specially designed for
installation of the tire pressure
sensors. Do not use non-genuine
wheels, otherwise it may not be
possible to install the tire pressure
sensors.
Be sure to have the tire pressure sensors
installed whenever tires or wheels are
replaced.
When having a tire or wheel or both
replaced, the following types of tire
pressure sensor installations are possible.
lThe tire pressure sensor is removed
from the old wheel and installed to the
new one.
lThe same tire pressure sensor is used
with the same wheel. Only the tire is
replaced.
lA new tire pressure sensor is installed
to a new wheel.
NOTE
lThe tire pressure sensor ID signal code
must be registered when a new tire pressure
sensor is purchased. For purchase of a tire
pressure sensor and registration of the tire
pressure sensor ID signal code, consult an
Authorized Mazda Dealer.
lWhen reinstalling a previously removed tire
pressure sensor to a wheel, replace the
grommet (seal between valve body/sensor
and wheel) for the tire pressure sensor.
Driving Your Mazda
Starting and Driving
5-35
RX-8_8BQ7-EA-10H_Edition1 Page177
Wednesday, July 14 2010 11:50 AM
Form No.8BQ7-EA-10H

Black plate (178,1)
Meters and Gauges
Speedometer ...................................................................................................... page 5-37
Speed Unit Selector ........................................................................................... page 5-37
Odometer, Trip Meter and Trip Meter Selector .................................................. page 5-37
Tachometer ........................................................................................................ page 5-38
Engine Coolant Temperature Gauge .................................................................. page 5-39
Fuel Gauge ........................................................................................................ page 5-39
NOTE
When the ignition is switched ON, the dashboard gauges illuminate.
5-36
Driving Your Mazda
Instrument Cluster and Indicators
RX-8_8BQ7-EA-10H_Edition1 Page178
Wednesday, July 14 2010 11:50 AM
Form No.8BQ7-EA-10H

Black plate (179,1)
qSpeedometer
The speedometer indicates the speed of
the vehicle.
qSpeed Unit Selector
In some countries, you may have to
change the speed units between km/h and
mph.
Press the speed unit selector for 2 second
or more.
The speed units for the speedometer will
change between km/h and mph.
Speedometer
Speed unit selector
NOTE
Odometer and trip meter distance units will
change between kilometers and miles in
accordance with the speed unit.
qOdometer, Trip Meter and Trip
Meter Selector
The display mode can be changed
between trip meter A and trip meter B by
pressing the selector while one of them is
displayed. The selected mode will be
displayed.
Odometer
Trip meter Trip meter selector
Odometer
OdometerTrip meter A
Press the selector
Press the selector Trip meter B
Driving Your Mazda
Instrument Cluster and Indicators
5-37
RX-8_8BQ7-EA-10H_Edition1 Page179
Wednesday, July 14 2010 11:50 AM
Form No.8BQ7-EA-10H

Black plate (180,1)
NOTE
When the ignition is switched to ACC or the
ignition is switched off, the odometer or trip
meters cannot be displayed, however, pressing
the selector button can inadvertently switch the
trip meters or reset them during an
approximate ten-minute period in the following
cases:
lAfter the ignition is switched to ACC or the
ignition is switched off from ON.
lAfter the driver's door is opened.
Odometer
The odometer records the total distance
the vehicle has been driven.
Trip meter
The trip meter can record the total
distance of two trips. One is recorded in
trip meter A, and the other is recorded in
trip meter B.
For instance, trip meter A can record the
distance from the point of origin, and trip
meter B can record the distance from
where the fuel tank is filled.
When trip meter A is selected, pressing
the selector again within one second will
change to trip meter B mode.
When trip meter A is selected, TRIP A
will be displayed. When trip meter B is
selected, TRIP B will be displayed.
The trip meter records the total distance
the vehicle is driven until the meter is
again reset. Return it to“0.0”by holding
the selector depressed for 1 second or
more. Use this meter to measure trip
distances and to compute fuel
consumption.NOTE
lOnly the trip meters record tenths of
kilometers (miles).
lThe trip record will be erased when:lThe power supply is interrupted (blown
fuse or the battery is disconnected).
lThe vehicle is driven over 999.9 km
(mile).

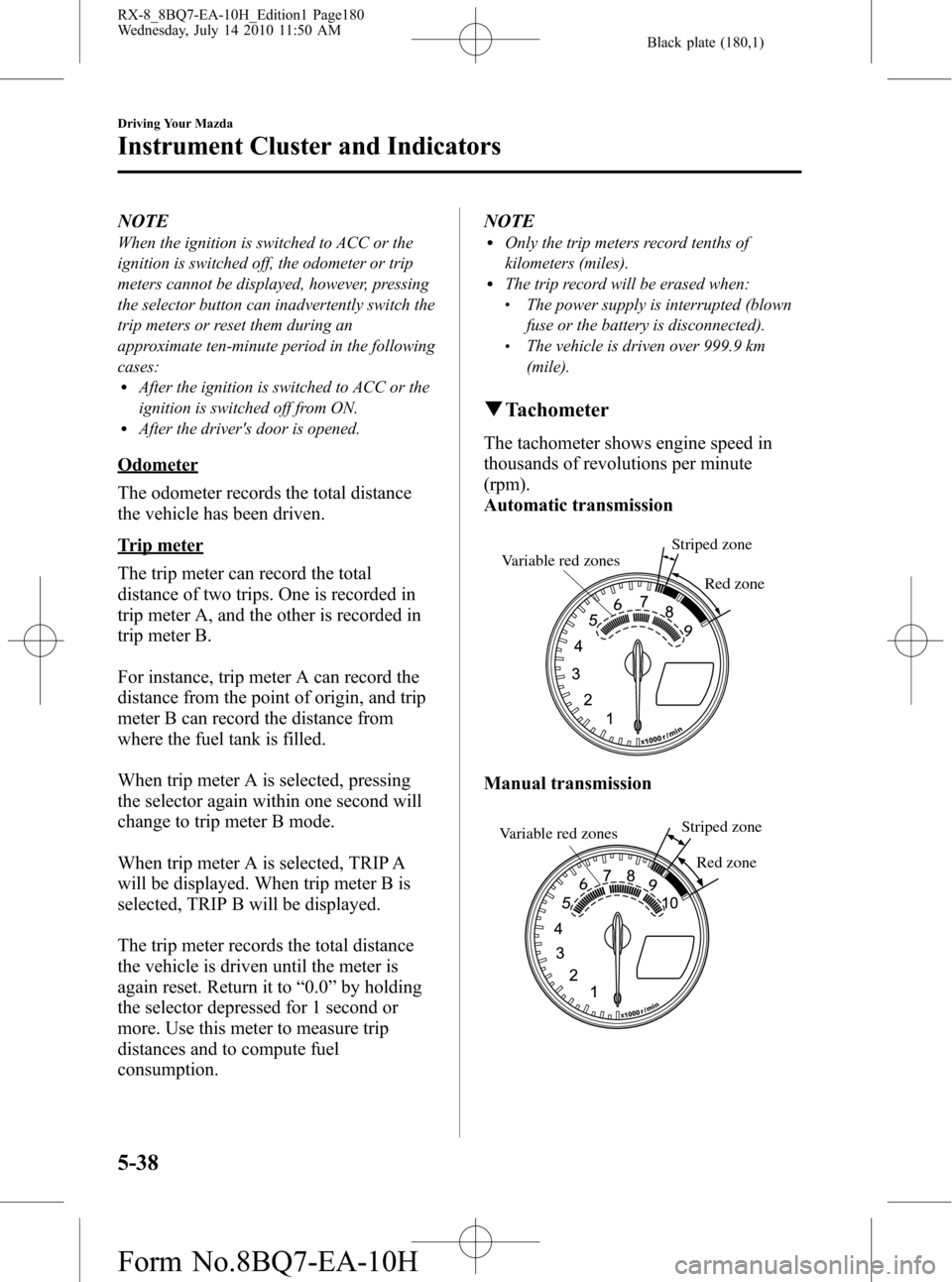

qTachometer
The tachometer shows engine speed in
thousands of revolutions per minute
(rpm).
Automatic transmission
Variable red zonesStriped zone
Red zone
Manual transmission
Variable red zonesStriped zone
Red zone
5-38
Driving Your Mazda
Instrument Cluster and Indicators
RX-8_8BQ7-EA-10H_Edition1 Page180
Wednesday, July 14 2010 11:50 AM
Form No.8BQ7-EA-10H

Black plate (181,1)
CAUTION
Do not run the engine with the
tachometer needle in the RED ZONE.
This may cause severe engine
damage.
NOTE
lThe beep sounds to indicate engine overrev
when the tachometer needle enters the
striped zone.
lThe display of the variable red zone in the
tachometer changes according to the
temperature of the engine coolant. To
protect the engine, when the engine coolant
temperature is low, the engine does not run
at high speeds. The fuel supply will be cut
at an rpm lower than the red zone.
qEngine Coolant Temperature Gauge
The engine coolant temperature gauge
shows the temperature of the engine
coolant.
If the needle is near H, it indicates
overheating.
CAUTION
Driving with an overheated engine
can cause serious engine damage
(page 7-17).
qFuel Gauge
The fuel gauge shows approximately how
much fuel is remaining in the tank when
the ignition is switched ON.
We recommend keeping the tank over 1/4
full. When the low fuel warning light
illuminates or when the needle is near E,
refuel as soon as possible.
Low fuel warning light
NOTElAfter refueling, it may require some time for
the needle to stabilize. In addition, the
needle may deviate while driving on a slope
or curve since the fuel moves in the tank.
lThe direction of the arrow () indicates
that the fuel-filler lid is on the left side of
the vehicle.
qDashboard Illumination
Rotate the thumb wheel to adjust the
brightness of the instrument cluster and
other illuminations in the dashboard.
NOTE
lThe brightness of dashboard illuminations
(except instrument cluster) can be adjusted
when the headlight switch is in the
or
position.lThe brightness of the instrument cluster
illumination can be adjusted when the
headlight switch is in any position.
Driving Your Mazda
Instrument Cluster and Indicators
5-39
RX-8_8BQ7-EA-10H_Edition1 Page181
Wednesday, July 14 2010 11:50 AM
Form No.8BQ7-EA-10H

Black plate (182,1)
Bright
Dim
Canceling the illumination dimmer
When the headlight switch is in the
orposition, the illumination of the
instrument cluster and the information
display dims.
When driving on snowy or foggy roads,
or in other situations when the instrument
cluster or information display's visibility
is reduced due to glare from surrounding
brightness, cancel the illumination
dimmer and increase the illumination
intensity.
To cancel the illumination dimmer, rotate
the thumb wheel upward fully. You may
hear a click sound and the illumination
dimmer will be canceled.
NOTE
lThis symbol () indicates the thumb wheel
to adjust the brightness of the dashboard
illumination.
lIf the dashboard illumination switch is kept
at the illumination dimmer cancel position,
the instrument cluster and the information
display will not dim when the headlight
switch is turned to the
orposition
again. Rotate the dashboard illumination
knob to activate the illumination dimmer.
5-40
