2011 MAZDA MODEL RX 8 Owners Manual (in English)

Black plate (25,1)
Seat Warmerí
The front seats are electrically heated. The
ignition must be switched ON.
Press the switch to turn the seat warmer
on or off. When the switch is in the ON
position, the indicator light will come on.
WARNING
ØBe careful when using the seat
warmer. The heat from the seat
warmer may be too hot for some
people, as indicated below, and
could cause a low-temperature
burn.
ØInfants, small babies, elderly
people, and physically
challenged people
ØPeople with delicate skin
ØPeople who are excessively
fatigued
ØPeople who are intoxicated
ØPeople who have taken sleep-
inducing medicine such as
sleeping pills or cold medicine
ØDo not use the seat warmer with
anything having high moisture-
retention ability such as a blanket
or cushion on the seat. The seat
may be heated excessively and
cause a low-temperature burn.
ØDo not use the seat warmer even
when taking a short nap in the
vehicle. The seat may be heated
excessively and cause a low-
temperature burn.
ØDo not place heavy objects with
sharp projections on the seat, or
insert needles or pins into it. This
could cause the seat to become
excessively heated and result in
injury from a minor burn.
CAUTION
Do not use organic solvents to clean
the seat. It may damage the seat
surface and the heater.
Essential Safety Equipment
Seats
2-13íSome models. RX-8_8BQ7-EA-10H_Edition1 Page25
Wednesday, July 14 2010 11:49 AM
Form No.8BQ7-EA-10H

Black plate (26,1)
NOTElUse the seat warmer when the engine is
running, and do not continue to use it for a
long period of time.
lThe temperature of the seat warmer cannot
be adjusted because the seat warmer is
controlled by a thermostat.
2-14
Essential Safety Equipment
Seats
RX-8_8BQ7-EA-10H_Edition1 Page26
Wednesday, July 14 2010 11:49 AM
Form No.8BQ7-EA-10H

Black plate (27,1)
Seat Belt Precautions
Seat belts help to decrease the possibility of severe injury during accidents and sudden
stops. Mazda recommends that the driver and all passengers always wear seat belts.
All of the seat belt retractors are designed to keep the lap/shoulder belts out of the way
when not in use.
The driver's seat belt has no provisions for child-restraint systems and has only an
emergency locking mode. The driver may wear it comfortably, and it will lock during a
collision.
However, the front passenger's seat and all rear lap/shoulder belt retractors operate in two
modes: emergency locking mode, and for child-restraint systems, automatic locking mode.
While we recommend you put all children in the rear seats, if you must use the front
passenger seat for a child, slide the front passenger seat as far back as possible and make
sure any child-restraint system is secured properly.
WARNING
Always wear your seat belt and make sure all occupants are properly restrained:
Not wearing a seat belt is extremely dangerous. During a collision, occupants not
wearing seat belts could hit someone or things inside the vehicle or even be thrown
out of the vehicle. They could be seriously injured or even killed. In the same
collision, occupants wearing seat belts would be much safer.
Do not wear twisted seat belts:
Twisted seat belts are dangerous. In a collision, the full width of the belt is not
available to absorb the impact. This puts more force on the bones beneath the belt,
which could cause serious injury or death. So, if your seat belt is twisted, you must
straighten the seat belt to remove any twists and to allow the full width of the belt to
be used.
Never use one seat belt on more than one person at a time:
Using one seat belt for more than one person at a time is dangerous. A seat belt
used in this way cannot spread the impact forces properly and the two passengers
could be crushed together and seriously injured or even killed. Never use one belt for
more than one person at a time and always operate the vehicle with each occupant
properly restrained.
Do not operate a vehicle with a damaged seat belt:
Using a damaged seat belt is dangerous. An accident could damage the belt
webbing of the seat belt in use. A damaged seat belt cannot provide adequate
protection in a collision. Have an Authorized Mazda Dealer inspect all seat belt
systems in use during an accident before they are used again.
Essential Safety Equipment
Seat Belt Systems
2-15
RX-8_8BQ7-EA-10H_Edition1 Page27
Wednesday, July 14 2010 11:49 AM
Form No.8BQ7-EA-10H

Black plate (28,1)
Have your seat belts changed immediately if the pretensioner or load limiter has
been expended:
Always have an Authorized Mazda Dealer immediately inspect the front seat belt
pretensioners and air bags after any collision. Like the air bags, the front seat belt
pretensioners and load limiters will only function once and must be replaced after
any collision that caused them to deploy. A seat belt with an expended pretensioner
or load limiter is still better than wearing no seat belt at all; however, if the front
seat belt pretensioners and load limiters are not replaced, the risk of injury in a
collision will increase.
Make sure the seat belt is not caught or pinched in the door:
Wearing a seat belt that is caught or pinched in the door is dangerous. The seat belt
could become loose and not provide adequate protection in a sudden stop or
collision.
Make sure nothing is placed on the seat belt slide bar:
Placing your foot or other objects such as an umbrella on the seat belt slide bar is
dangerous. The front seat belt is built into the rear door, and the lower part of the
seat belt slides forward or backward along the seat belt slide bar as the rear door
opens or closes. If the seat belt slider is blocked, the seat belt could be improperly
positioned and would provide little or no protection in a collision.
CAUTION
Belt retraction may become difficult if the belts and rings are soiled, so try to keep
them clean. For more details about cleaning the seat belts, refer to“Cleaning the
Lap/Shoulder Belt Webbing”(page 8-49).
2-16
Essential Safety Equipment
Seat Belt Systems
RX-8_8BQ7-EA-10H_Edition1 Page28
Wednesday, July 14 2010 11:49 AM
Form No.8BQ7-EA-10H

Black plate (29,1)
qPregnant Women and Persons with Serious Medical Conditions
Pregnant women should always wear seat belts. Ask your doctor for specific
recommendations.
The lap belt should be worn SNUGLY AND AS LOW AS POSSIBLE OVER THE HIPS.
The shoulder belt should be worn across your shoulder properly, but never across the
stomach area.
Persons with serious medical conditions also should wear seat belts. Check with your
doctor for any special instructions regarding specific medical conditions.
qEmergency Locking Mode
In the emergency locking mode, the belt remains comfortable on the occupant and the
retractor will lock in position during a collision. When the seat belt is fastened, it will
always be in the emergency locking mode until it is switched to automatic locking mode by
pulling it all the way out to its full length. If the belt feels tight and hinders comfortable
movement while the vehicle is stopped or in motion, it may be in the automatic locking
mode because the belt has been pulled too far out. To return the belt to the more
comfortable emergency locking mode, wait until the vehicle has stopped in a safe, level
area, retract the belt fully to convert it back to emergency locking mode and then extend it
around you again.
If the belt is locked and cannot be pulled out, retract the belt once, and then try pulling it
out slowly. If this fails, pull the belt strongly one time and loosen, then pull it out again
slowly.
qAutomatic Locking Mode
Always use the automatic locking mode to keep the child-restraint system from shifting to
an unsafe position in the event of an accident. To enable seat belt automatic locking mode,
pull it all the way out and connect it as instructed on the child-restraint system. It will
retract down to the child-restraint system and stay locked on it. See the section on child
restraint (page 2-26).
Essential Safety Equipment
Seat Belt Systems
2-17
RX-8_8BQ7-EA-10H_Edition1 Page29
Wednesday, July 14 2010 11:49 AM
Form No.8BQ7-EA-10H

Black plate (30,1)

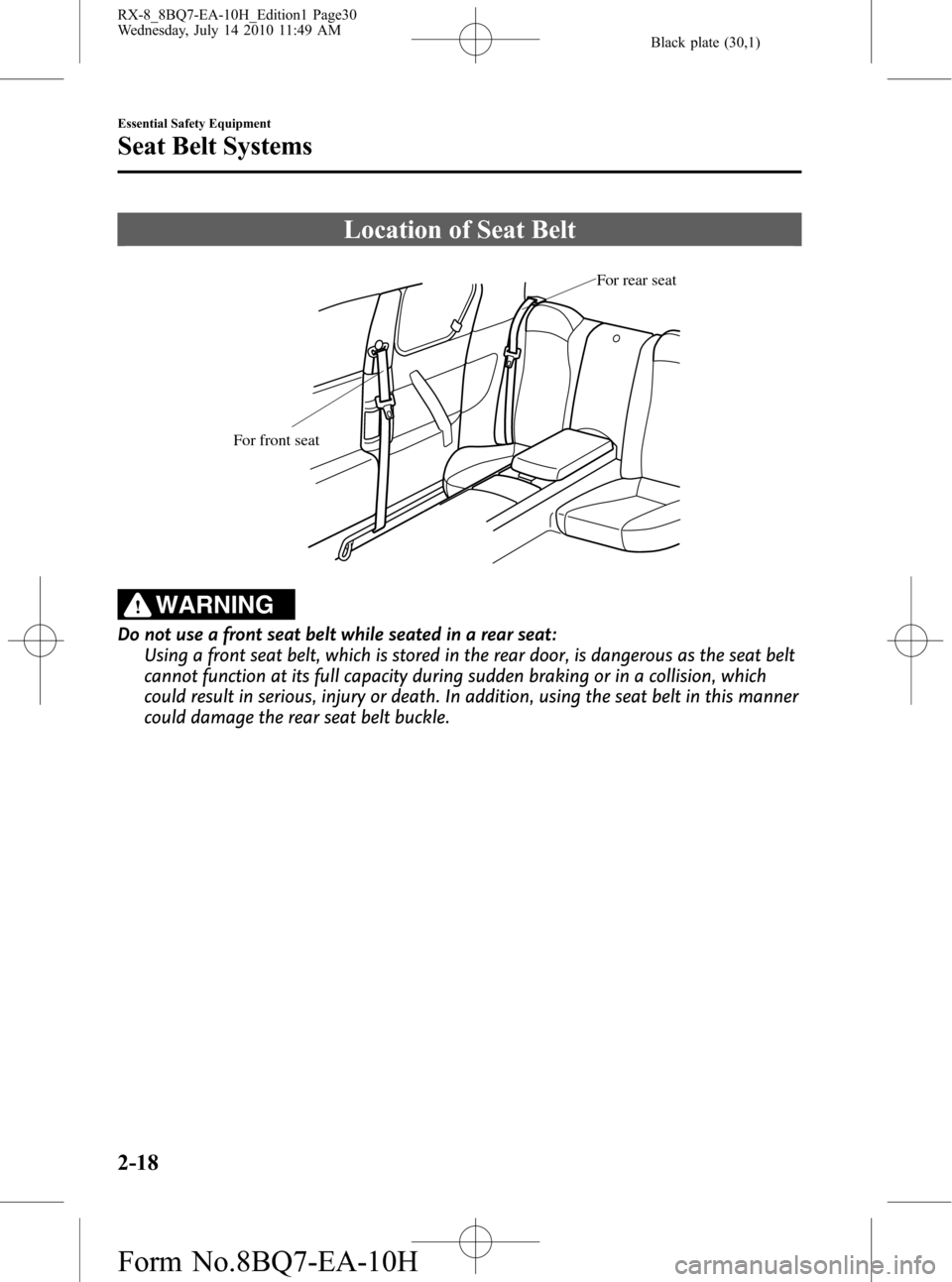

Location of Seat Belt
For rear seat
For front seat
WARNING
Do not use a front seat belt while seated in a rear seat:
Using a front seat belt, which is stored in the rear door, is dangerous as the seat belt
cannot function at its full capacity during sudden braking or in a collision, which
could result in serious, injury or death. In addition, using the seat belt in this manner
could damage the rear seat belt buckle.
2-18
Essential Safety Equipment
Seat Belt Systems
RX-8_8BQ7-EA-10H_Edition1 Page30
Wednesday, July 14 2010 11:49 AM
Form No.8BQ7-EA-10H

Black plate (31,1)
Seat Belt
qFastening the Seat Belt
1. Grasp the seat belt tongue.
2. Slowly pull out the lap/shoulder belt.
Lap/shoulder belt
Seat belt tongue
3. Insert the seat belt tongue into the seat
belt buckle until you hear a click
sound.
Seat belt tongue
Seat belt buckle
WARNING
Positioning the Shoulder Portion of the
Seat Belt:
Improper positioning of the shoulder
portion of the seat belt is dangerous.
Always make sure the shoulder
portion of the seat belt is positioned
across your shoulder and near your
neck, but never under your arm, on
your neck, or on your upper arm.
4. Position the lap belt as low as possible,
not on the abdominal area, then adjust
the shoulder belt so that it fits snugly
against your body.
Too high Take up slack
Keep low on
hip bone
WARNING
Positioning the Lap Portion of the Seat
Belt:
The lap portion of the seat belt worn
too high is dangerous. In a collision,
this would concentrate the impact
force directly on the abdominal area,
causing serious injury. Wear the lap
portion of the belt snugly and as low
as possible.
Essential Safety Equipment
Seat Belt Systems
2-19
RX-8_8BQ7-EA-10H_Edition1 Page31
Wednesday, July 14 2010 11:49 AM
Form No.8BQ7-EA-10H

Black plate (32,1)
qUnfastening the Seat Belt
Depress the button on the seat belt buckle.
If the belt does not fully retract, pull it out
and check for kinks or twists. Then make
sure it remains untwisted as it retracts.
Button
NOTE
If a belt does not fully retract, inspect it for
kinks and twists. If it is still not retracting
properly, have it inspected at an Authorized
Mazda Dealer.
Front Seat Belt Pretensioner
and Load Limiting Systems
For optimum protection, the driver and
front passenger seat belts are equipped
with pretensioner and load limiting
systems. For both these systems to work
properly you must wear the seat belt
properly.
Pretensioners:
In moderate or severe frontal or near-
frontal accidents, the front air bag and
pretensioner systems deploy
simultaneously. The front seat belt
retractors remove slack quickly as the air
bags are expanding. Any time the air bags
and front seat belt pretensioners have fired
they must be replaced.
In addition, the pretensioner system for
the front passenger, like the front
passenger air bag, is designed to only
deploy in accordance with the total seated
weight on the front passenger seat.
For details, refer to the front passenger
seat weight sensors (page 2-46).
Load limiter:
The load limiting system releases belt
webbing in a controlled manner to reduce
belt force on the occupant's chest. While
the most severe load on a seat belt occurs
in frontal collisions, the load limiter has
an automatic mechanical function and can
activate in any accident mode with
sufficient occupant movement.
Even if the pretensioners have not fired,
the load limiting function must be
checked by an Authorized Mazda Dealer
after any collision.
2-20
Essential Safety Equipment
Seat Belt Systems
RX-8_8BQ7-EA-10H_Edition1 Page32
Wednesday, July 14 2010 11:49 AM
Form No.8BQ7-EA-10H
