2011 MAZDA MODEL RX 8 Owners Manual (in English)

Black plate (17,1)
qFolding the Seat (Passenger's seat
only)
WARNING
Do not drive with the seatback
unlocked:
All of the seatbacks play an
important role in your protection in a
vehicle. Leaving the seatback
unlocked is dangerous as it can allow
passengers to be ejected or thrown
around and baggage to strike
occupants in a sudden stop or
collision, resulting in severe injury.
After adjusting the seatback at any
time, even when there are no other
passengers, rock the seatback to
make sure it is locked in place.
Never lower a front seatback while an
occupant is seated in the seat, even if
the vehicle is stopped:
Lowering a front seatback while an
occupant is seated in the seat is
dangerous because the seatback
folds down suddenly when operated
which could cause an injury.
Never lower a front seatback while the
vehicle is moving:
Lowering a front seatback while the
vehicle is moving is dangerous
because the seatback folds down
suddenly when operated which could
result in an accident or injury.
CAUTION
ØWhen operating the seatback,
support the seatback firmly with
one hand while it folds down.
When lowering the seatback, be
careful not to pinch or injure your
hand or fingers.
ØDo not step on the lever as it could
damage it.
Because your vehicle has free-style doors
(page 3-29), the rear door cannot be
opened while the front door is closed. To
exit the rear seating area, fold the front
seatback forward using the following
procedure and open the front door first.
NOTE
The seatback folding feature is not equipped
on the manually operated driver's seat. The
feature is only available on the power seat.
Seatback folding
(Standard)
Pull the lever upward to fold the seatback
forward.
Essential Safety Equipment
Seats
2-5
RX-8_8BQ7-EA-10H_Edition1 Page17
Wednesday, July 14 2010 11:49 AM
Form No.8BQ7-EA-10H

Black plate (18,1)
(Recaro manufactured bucket seats)í
Pull the lever upward to fold the seatback
forward.
To return the seatback to its on-road
position
To return the seatback to its on-road
position, press the seatback rearward until
is locks in place.
After returning the seatback to its on-road
position, make sure it is secured by
attempting to lightly move it forward and
back.
Driver's Seat (Electrically
Operated Seat)
The power operated seat is available only
on the driver's seat. The front passenger
seat is manually operated.
Refer to Front Seats (Manually Operated
Seats) (page 2-2) for adjustment
instructions.
2-6
Essential Safety Equipment
íSome models.
Seats
RX-8_8BQ7-EA-10H_Edition1 Page18
Wednesday, July 14 2010 11:49 AM
Form No.8BQ7-EA-10H

Black plate (19,1)
WARNING
Do not modify or replace the front
seats:
Modifying or replacing the front seats
such as replacing the upholstery or
loosening any bolts is dangerous. The
front seats contain air bag
components essential to the
supplemental restraint system. Such
modifications could damage the
supplemental restraint system and
result in serious injury. Consult an
Authorized Mazda Dealer if there is
any need to remove or reinstall the
front seats.
Do not drive with damaged front seats:
Driving with damaged front seats is
dangerous. A collision, even one not
strong enough to inflate the air bags,
could damage the front seats which
contain essential air bag
components. If there was a
subsequent collision, an air bag may
not deploy which could lead to
injuries. Always have an Authorized
Mazda Dealer inspect the front seats,
front seat belt pretensioners and air
bags after a collision.
Adjust the driver's seat only when the
vehicle is stopped:
Adjusting the driver's seat while the
vehicle is moving is dangerous. The
driver could lose control of the vehicle
and have an accident.
CAUTION
ØThe seat-bottom power
adjustment is operated by motors.
Avoid extended operation because
excessive use can damage the
motors.
ØTo prevent the battery from
running down, avoid using the
power adjustment when the
engine is stopped. The adjuster
uses a large amount of electrical
power.
ØDo not use the switch to make
more than one adjustment at a
time.
ØBe careful not to place your hands
and fingers around moving parts
of the front seat when adjusting
the seat positions to prevent
injury.
qSeat Slide
To slide the seat, move the slide lifter
switch on the outside of the seat to the
front or back and hold it. Release the
switch at the desired position.
Essential Safety Equipment
Seats
2-7
RX-8_8BQ7-EA-10H_Edition1 Page19
Wednesday, July 14 2010 11:49 AM
Form No.8BQ7-EA-10H

Black plate (20,1)
NOTE
The seat can be slid rearward by continuously
pressing the switch. In addition, the seatback
also lowers rearward.
Refer to Folding the Seat on page 2-10.
qSeat Recline
WARNING
Do not drive with either front seat
reclined:
Sitting in a reclined position while the
vehicle is moving is dangerous
because you do not get the full
protection from seat belts. During
sudden braking or a collision, you
can slide under the lap belt and
suffer serious internal injuries. For
maximum protection, sit well back
and upright.
Always sit in the front passenger seat
properly with the seatback upright and
feet on the floor:
Your front passenger seat has weight
sensors, sitting in the front passenger
seat improperly out of position or
with the seatback reclined too far
while the vehicle is moving is
dangerous as it can take off weight
from the seat bottom and affect the
weight determination of the front
passenger sensing system. As a result
the front passenger will not have the
supplementary protection of the air
bag and seat belt pretensioner, which
could result in serious injury. Always
sit upright against the seatback with
your feet on the floor.
2-8
Essential Safety Equipment
Seats
RX-8_8BQ7-EA-10H_Edition1 Page20
Wednesday, July 14 2010 11:49 AM
Form No.8BQ7-EA-10H

Black plate (21,1)
To change the seatback angle, press the
front or rear side of the reclining switch.
Release the switch at the desired position.
qHeight Adjustment
To adjust the seat height, move the switch
up or down.
qSeat Position Memory
One-touch seat position programming and
a activation function are available on the
driver's seat.
CAUTION
When activating the seat position, do
not place your hands or fingers
around the seat bottom. The seat
moves to the desired position
automatically, and if your hands or
fingers are placed around the seat
bottom, it could cause injury.
SET button
Programming of the driver's seat positions
is possible using the following function:
lProgramming buttons 1, 2, or 3 and the
SET button.
Essential Safety Equipment
Seats
2-9
RX-8_8BQ7-EA-10H_Edition1 Page21
Wednesday, July 14 2010 11:49 AM
Form No.8BQ7-EA-10H

Black plate (22,1)
Programmed seat positions can be
activated using the following function:
lProgramming buttons 1, 2, or 3.
Operation using the seat-side buttons
Programming
Park the vehicle in a safe location before
performing the seat position
programming. (Vehicle must be stopped)
1. Adjust the seat to the desired position.
For each seat position adjustment
method refer to the following pages:
Seat Slide (page 2-7)
Seat Recline (page 2-8)
Height Adjustment (page 2-9)
2. While holding the SET button in, press
the desired programming button 1, 2,
or 3 until a beep sound is heard.
The button is programmed after a beep
sound is heard. Other buttons can be
programmed using the same procedure.
NOTE
Vehicle maintenance or other reasons
requiring the vehicle battery to be
disconnected will result in the seat position
memory being erased.
In this case, re-program the seat positions.
Seat position activation
While the vehicle is parked safely, press
and hold a programming button 1, 2, or 3
for the desired seat position.
When the seat is in the programmed
position, a beep sound is heard.NOTE
If any of the following occurs, the seat position
activation function cancels:
lA seat adjustment switch other than a
lumbar support switch is operated.
lThe vehicle moves or starts to move.lThe selected programming button 1, 2, or 3
or the SET button is pressed again.
lThe SET button is operated.
qLumbar Support Adjustment
The amount of lumbar support can be
adjusted by pressing the switch.
To increase the seat firmness, press and
hold the front part of the switch to the
desired position, then release it.
Press the rear part of the switch to
decrease firmness.
qFolding the Seat
WARNING
Never lower a front seatback while an
occupant is seated in the seat, even if
the vehicle is parked safely:
Lowering a front seatback while an
occupant is seated in the seat is
dangerous because the seatback
folds down suddenly when operated
which could cause an injury.
2-10
Essential Safety Equipment
Seats
RX-8_8BQ7-EA-10H_Edition1 Page22
Wednesday, July 14 2010 11:49 AM
Form No.8BQ7-EA-10H

Black plate (23,1)

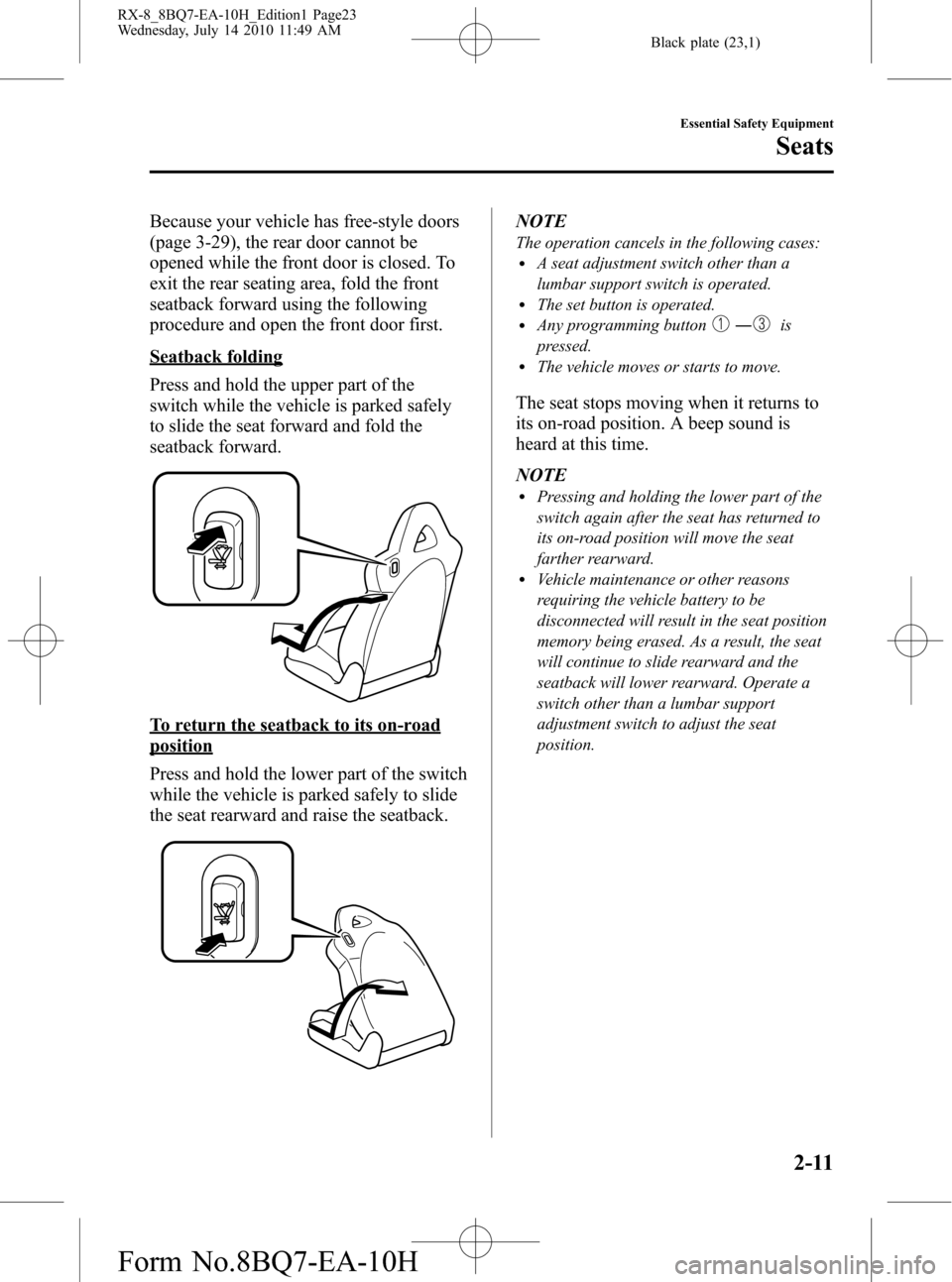

Because your vehicle has free-style doors
(page 3-29), the rear door cannot be
opened while the front door is closed. To
exit the rear seating area, fold the front
seatback forward using the following
procedure and open the front door first.
Seatback folding
Press and hold the upper part of the
switch while the vehicle is parked safely
to slide the seat forward and fold the
seatback forward.
To return the seatback to its on-road
position
Press and hold the lower part of the switch
while the vehicle is parked safely to slide
the seat rearward and raise the seatback.
NOTE
The operation cancels in the following cases:lA seat adjustment switch other than a
lumbar support switch is operated.
lThe set button is operated.lAny programming button―is
pressed.
lThe vehicle moves or starts to move.
The seat stops moving when it returns to
its on-road position. A beep sound is
heard at this time.
NOTE
lPressing and holding the lower part of the
switch again after the seat has returned to
its on-road position will move the seat
farther rearward.
lVehicle maintenance or other reasons
requiring the vehicle battery to be
disconnected will result in the seat position
memory being erased. As a result, the seat
will continue to slide rearward and the
seatback will lower rearward. Operate a
switch other than a lumbar support
adjustment switch to adjust the seat
position.
Essential Safety Equipment
Seats
2-11
RX-8_8BQ7-EA-10H_Edition1 Page23
Wednesday, July 14 2010 11:49 AM
Form No.8BQ7-EA-10H

Black plate (24,1)
Rear Seat
WARNING
Make sure luggage and cargo are
secured before driving:
Not securing cargo while driving is
dangerous as it could move or be
crushed during sudden braking or a
collision and cause injury.
Do not allow anyone to sit on the
center console between the rear seats:
Allowing someone to sit on the rear
center console between the rear seats
is dangerous. The rear center console
is not designed for occupant seating.
During a collision, occupants not
wearing a seat belt could be thrown
from the vehicle and seriously injured
or even killed.
Non-Adjustable Head
Restraints
Your vehicle is equipped with non-
adjustable head restraints on the driver's
and front passenger's seatbacks. The non-
adjustable head restraints consist of a
trimmed foam covering over the upper
structure of the seatbacks and are intended
to help protect you and the front
passenger from neck injury. Adjust the
seatbacks to their upright, on-road
positions so that the head restraint is
positioned as close as possible to the back
of your head.
WARNING
Make sure the seatbacks are properly
adjusted to their upright, on-road
positions before the vehicle is driven:
Driving with the seatbacks not
adjusted properly is dangerous. With
no support behind your head, your
neck could be seriously injured in a
collision.
2-12
Essential Safety Equipment
Seats
RX-8_8BQ7-EA-10H_Edition1 Page24
Wednesday, July 14 2010 11:49 AM
Form No.8BQ7-EA-10H
