KNOWING YOUR CAR79
Never travel with the glove box open: it could
injure the passenger in the event of a crash.
GLOVE COMPARTMENT
To open the glove compartment, operate handle A-fig.
43.
When the compartment is opened a courtesy light comes
on inside which remains on for about 15 minutes with the
ignition in the STOP position.
If, during this period, a door or the tailgate is opened, the
15 minute timing is reset.
fig. 43L0E0037m
CUP/BOTTLE HOLDERS fig. 45
The centre tunnel has two cup/can holders.
fig. 45L0E0038m

fig. 46L0E0039mfig. 47L0E0040m
Only accessories with a maximum power of
180 W (maximum absorption 15 A) can be
connected to the socket.
POWER SOCKET (12 V)
(for versions/markets where provided)
Power socket A-fig. 46 is located on the centre tunnel and
is only operational when the ignition key is turned to
MAR. If a smokers kit is requested, the socket is replaced
by a cigar lighter.
On some versions an additional power socket B-fig. 46
is provided in the luggage compartment.CIGAR LIGHTER
(for versions/markets where provided)
This is located on the central tunnel.
To turn the cigar lighter on, press button A-fig.47 with
the ignition in the MAR position.
After a few seconds the button goes back to its initial po-
sition and the cigar lighter is ready for use.
IMPORTANT Always make sure the cigar lighter is
switched off.
IMPORTANT The cigar lighter gets very hot. Handle it
carefully and make sure children don’t touch it: risk of fire
and/or burning.
80KNOWING YOUR CAR

1
KNOWING YOUR CAR81
ASHTRAY
This is a plastic container fig. 48 that can be extracted
with a spring action and placed in the cup/can holder in
the centre tunnel.
IMPORTANT Do not use the ashtray as a waste paper
basket: it might catch fire in contact with cigarette stubs.
fig. 48L0E0041m
SUNROOF
(for versions/markets where available)
The large electric sun roof comprises two glass panels; the
front one is mobile and the rear one fixed. These are
equipped with two sun blinds (front and rear) that can be
moved manually. With the sun roof closed, the blinds can
be placed in any position. To open the blinds: grip han-
dle C-fig. 49, and move the blind to the required position
by following the direction of movement shown by the ar-
row. To close them, carry out the procedure in reverse. The
sun roof can be operated only with the ignition key turned
to MAR. The controls A-B fig. 49 on the front courtesy
light trim operate the roof opening/closing functions.
Opening
Press and hold down button B-fig. 49. The front glass
panel will move into the spoiler position; press button B
once again and hold down for more than half a second
to automatically move the sun roof to an intermediate po-
sition (“Comfort” position). If the opening control is
pressed again for more than half a second, the roof will
automatically continue until it reaches the end of travel
position; the roof glass can be stopped in an intermediate
position by operating the button again.
IMPORTANT During the sun roof opening operation, the
blind will follow the movement of the sun roof.

1
KNOWING YOUR CAR91
BOOT
OPENING THE TAILGATE
When unlocked, the luggage compartment can be opened
from the outside using the handle fig. 55.
The tailgate can be opened at any time, if the doors are
unlocked.
The key with remote control should be used to open the
tailgate.
fig. 55L0E0046m
If the luggage compartment is not closed correctly, this
is indicated by the warning light
´coming on in the in-
strument panel or the icon
Rappearing in the display
together with a dedicated message (see “Instrument panel
warning lights” paragraph in this chapter).
Opening the tailgate will switch the boot light on: the
light will go off automatically when closing the tailgate.
The light will stay on for about 15 minutes after turning
the key to STOP: if during this time, a door or the tailgate
is opened, the light will switch on again for 15 minutes.
Opening the tailgate using the key
with remote control
To release the tailgate lock press R. Luggage com-
partment opening is indicated by the double flashing of
the direction indicators; tailgate closing is indicated by
single flashing (only with the alarm switched on, where
provided).

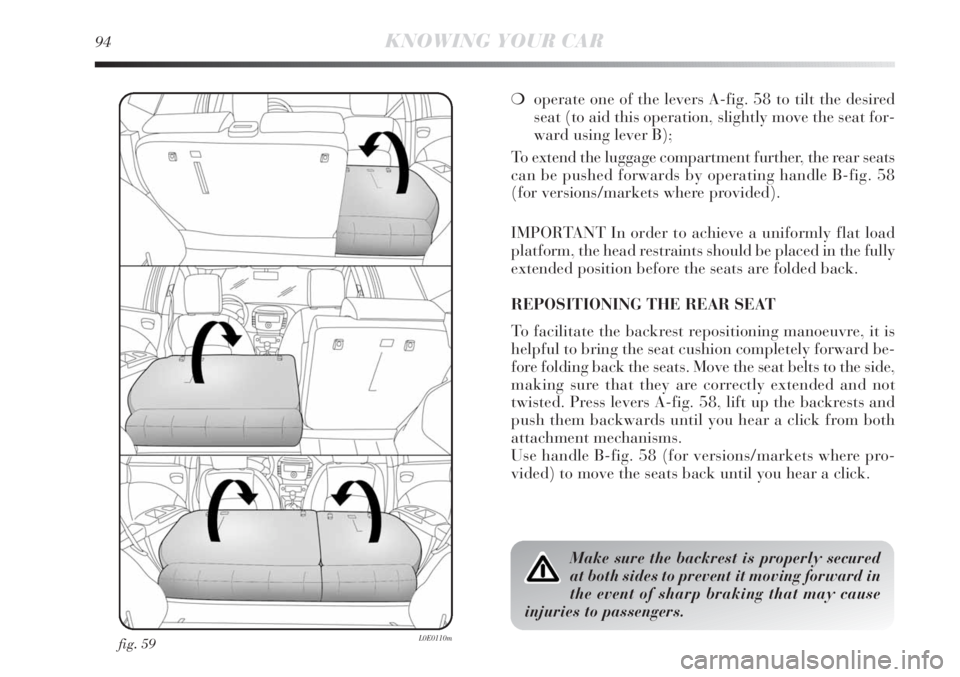

94KNOWING YOUR CAR
fig. 59L0E0110m
❍operate one of the levers A-fig. 58 to tilt the desired
seat (to aid this operation, slightly move the seat for-
ward using lever B);
To extend the luggage compartment further, the rear seats
can be pushed forwards by operating handle B-fig. 58
(for versions/markets where provided).
IMPORTANT In order to achieve a uniformly flat load
platform, the head restraints should be placed in the fully
extended position before the seats are folded back.
REPOSITIONING THE REAR SEAT
To facilitate the backrest repositioning manoeuvre, it is
helpful to bring the seat cushion completely forward be-
fore folding back the seats. Move the seat belts to the side,
making sure that they are correctly extended and not
twisted. Press levers A-fig. 58, lift up the backrests and
push them backwards until you hear a click from both
attachment mechanisms.
Use handle B-fig. 58 (for versions/markets where pro-
vided) to move the seats back until you hear a click.
Make sure the backrest is properly secured
at both sides to prevent it moving forward in
the event of sharp braking that may cause
injuries to passengers.

102KNOWING YOUR CAR
HEADLIGHTS
HEADLIGHT BEAM AIMING
The correct aiming of the headlights is important for the
comfort and safety of not only the driver but all other
road users. This is also covered by a specific rule of the
highway code.
The headlights must be correctly aimed to guarantee the
best visibility conditions for all drivers while travelling
with headlights on.
Contact a Lancia Dealership to have the headlights prop-
erly adjusted.
Check beam alignment every time the load or its distri-
bution changes.
ANGLE COMPENSATION fig. 67
The car is fitted with an electric headlight alignment sys-
tem. This system is operational with the ignition key
turned to MAR and the dipped beam headlights on.
When the car is loaded, it slopes backwards. This means
the headlight beam rises.
In this case, it is necessary to adjust the beams using but-
tons A and B.
The display provides a visual indication of the positions
during adjustment.Correct positions depending on the load
Position 0 – one or two people in the front seats.
Position 1 – five passengers.
Position 2 – five people + load in the boot.
Position 3 – driver + maximum permitted load stowed
in the luggage compartment.
FRONT FOG LIGHTS ALIGNMENT
(for versions/markets where provided)
Contact a Lancia Dealership to have the lights properly
adjusted.
fig. 67L0E0054m

1
KNOWING YOUR CAR103
ADJUSTING THE HEADLIGHTS WHEN ABROAD
Dipped headlights are adjusted to drive in the country
where the vehicle was originally purchased. When trav-
elling in countries with opposite driving direction, to
avoid blinding the drivers on the other side of the road,
you need to cover the headlight areas depending on the
Highway code of the country you are travelling in.
ADAPTIVE LIGHTS (AFS – Adaptive Xenon Light)
This is a system combined with Xenon headlamps which
directs the main light beam and continuously and auto-
matically adapts it to the driving conditions round
bends/when cornering. The system directs the light beam
to light up the road in the best way, taking into account
the speed of the vehicle, the bend/corner angle and the
speed of steering.Activating/deactivating the system fig. 68
The adaptive lights are automatically activated when the
vehicle is started. In this situation the LED (amber) on
button A will remain off.
Press button A to deactivate the adaptive lights (if acti-
vated); they will be deactivated and the LED on button
A will come on constantly. Press AFS button again to turn
the adaptive lights on (LED off on the button).
In the event of a system failure, an indication is provided
on the instrument panel by the flashing of warning light
f
or the symbol
fappearing on the display along with a ded-
icated message (for versions/markets where provided).
fig. 68L0E0055m

104KNOWING YOUR CAR
DST SYSTEM
(Dynamic Steering Torque)
This system is incorporated with the ESP control unit
and suggests steering corrections whilst driving via the
electric power steering. The system applies a torque to
the steering wheel which increases the safety perception
of the vehicle, maintaining control of the steering and
making the intervention of the Advanced ESP system
less intrusive.
Fault signalling
In the event of any operating fault, the system switches
off automatically and the èwarning light is lit up on the
display together with a dedicated message. In this case,
go to a Lancia Dealership
SPORT FUNCTION
(for versions/markets where provided)
The vehicle may be equipped with a system that allows
a choice between two styles of driving, normal and sports.
Pressing the SPORT button fig. 69 produces sporty dri-
ving featuring higher acceleration response and more ef-
fort required on the steering wheel to produce this effect.
When the function is active, “S” is lit up in the instru-
ment panel. Press the button again to turn the function
off and restore the normal driving setting.
fig. 69L0E0058m
