2011 INFINITI QX check engine

●TIRE
Select this submenu to set or reset the
distance for replacing tires.
● OTHER
Select this submenu and set or reset the
distance for replacing items other than the
engine oil, oil filter and tires.
OPTIONS :
There are 4 submenus under the display menu.
● BACK
Select this submenu to return to the top
page of the setting mode.
● LANGUAGE
Select this submenu to choose English,
French or Spanish for display.
● UNIT
Select this submenu to choose the unit.
● EFFECTS
Select this submenu to turn on and off the
meter/ring illumination and needle sweep
function when starting the engine.7. Warning check
SKIP :
Push the
switchAto move to the
warning check mode.
Push the
switchBto select other
menus.
DETAIL :
This item is available only when a warning is
displayed.
Select this menu to see the details of warnings.
Your vehicle has two types of security systems,
as follows:
●Vehicle security system
● INFINITI Vehicle Immobilizer System
The security condition will be shown by the
security indicator light.
VEHICLE SECURITY SYSTEM
The vehicle security system provides visual and
audio alarm signals if someone opens the
doors, hood, or lift gate when the system is
armed. It is not, however, a motion detection
type system that activates when a vehicle is
moved or when a vibration occurs.
SIC2133
SECURITY SYSTEMS
Instruments and controls2-29

The alarm is activated by:
●Unlocking the door or opening the lift gate
without using the button on the Intelligent
Key, the door handle request switch or the
mechanical key. (Even if the door is opened
by releasing the door inside lock knob, the
alarm will activate.)
● Opening the hood.
How to stop an activated alarm
The alarm will stop when a door is unlocked by
pushing the unlock button on the Intelligent
Key, the door handle request switch or using
the mechanical key, or when the ignition switch
is pushed to the ACC or ON position.
If the system does not operate as described
above, have it checked by an INFINITI retailer.
INFINITI VEHICLE IMMOBILIZER
SYSTEM
The INFINITI Vehicle Immobilizer System will not
allow the engine to start without the use of the
registered Intelligent Key. Never leave these
keys in the vehicle.
This device complies with Part 15 of FCC Rules
and RSS-Gen of IC Rules. Operation is subject to
the following two conditions:
(1) this device may not cause interference, and
(2) this device must accept any interference, in-
cluding interference that may cause undesired
operation of this device.
Security indicator light
The security indicator light is located on the
meter panel. It indicates the status of the
INFINITI Vehicle Immobilizer System.
The light blinks after the ignition switch was in
the ACC, OFF and LOCK position. This function
indicates the security systems equipped on the
vehicle are operational.
If the INFINITI Vehicle Immobilizer System is
malfunctioning, this light will remain on while
the ignition switch is in the ON position.
SIC2045
Instruments and controls2-31

WARNING
When the daytime running light system is ac-
tive, tail lights on your vehicle are not on. It is
necessary at dusk to turn on your headlights.
Failure to do so could cause an accident injur-
ing yourself and others.

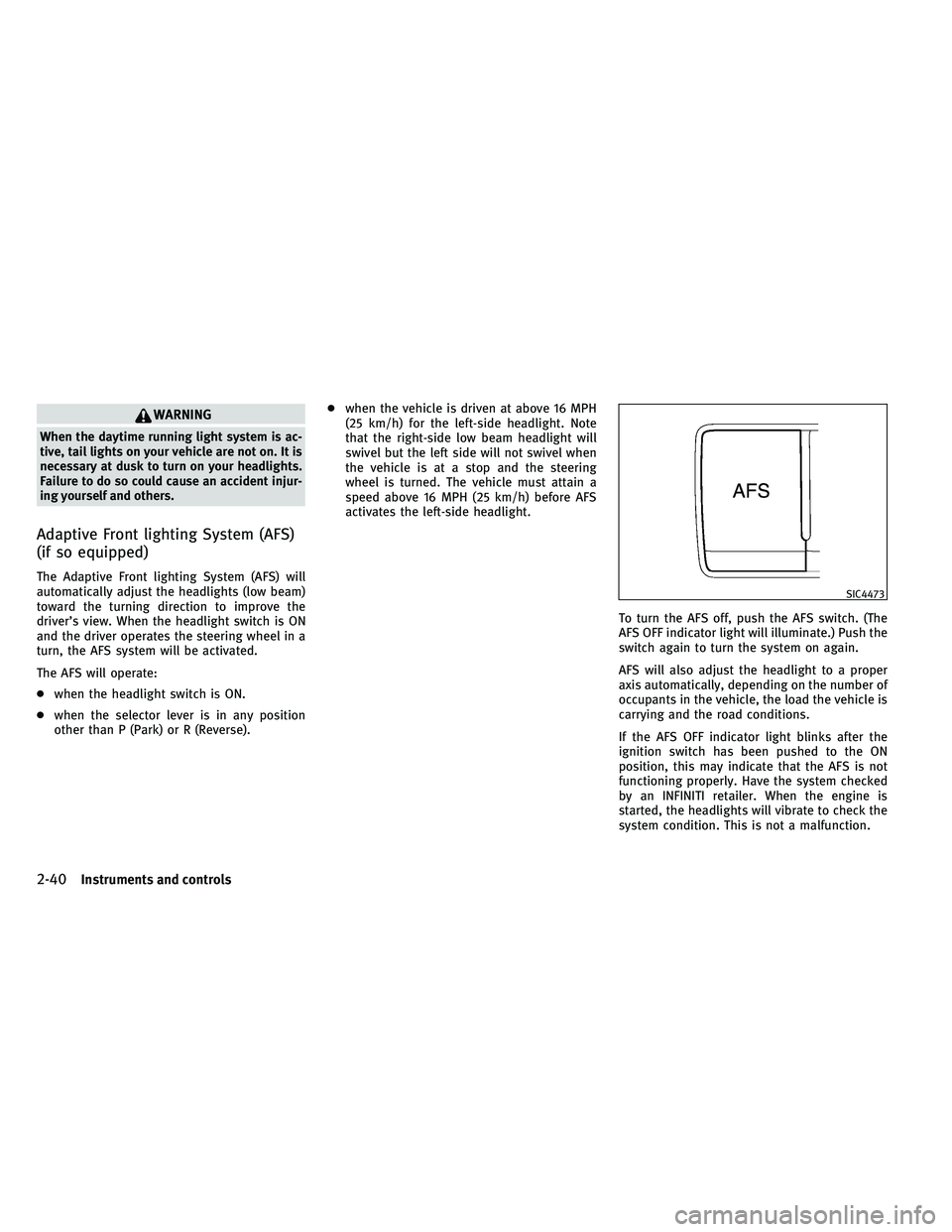

Adaptive Front lighting System (AFS)
(if so equipped)
The Adaptive Front lighting System (AFS) will
automatically adjust the headlights (low beam)
toward the turning direction to improve the
driver’s view. When the headlight switch is ON
and the driver operates the steering wheel in a
turn, the AFS system will be activated.
The AFS will operate:
●when the headlight switch is ON.
● when the selector lever is in any position
other than P (Park) or R (Reverse). ●
when the vehicle is driven at above 16 MPH
(25 km/h) for the left-side headlight. Note
that the right-side low beam headlight will
swivel but the left side will not swivel when
the vehicle is at a stop and the steering
wheel is turned. The vehicle must attain a
speed above 16 MPH (25 km/h) before AFS
activates the left-side headlight.
To turn the AFS off, push the AFS switch. (The
AFS OFF indicator light will illuminate.) Push the
switch again to turn the system on again.
AFS will also adjust the headlight to a proper
axis automatically, depending on the number of
occupants in the vehicle, the load the vehicle is
carrying and the road conditions.
If the AFS OFF indicator light blinks after the
ignition switch has been pushed to the ON
position, this may indicate that the AFS is not
functioning properly. Have the system checked
by an INFINITI retailer. When the engine is
started, the headlights will vibrate to check the
system condition. This is not a malfunction.
SIC4473
2-40Instruments and controls

●If any abnormalities are found or the heated
seat does not operate, turn the switch off
and have the system checked by an INFINITI
retailer.
FRONT
The front seats can be warmed by built-in
heaters. The switches located on the instrument
panel can be operated independently of each
other.
1. Start the engine.
2. Select heat range.
● For high heat, push the HI (High) side of
the switch
1.
● For low heat, push the LO (Low) side of
the switch
2.
● The indicator light
3will illuminate when
the heater is on.
3. To turn off the heater, push the “HI” or “LO” side (whichever is selected) of the
switch. Make sure the indicator light turns
off.
SIC2770
Instruments and controls2-45

4. When the vehicle’s interior is warmed orcooled, and/or before you leave the ve-
hicle, be sure to turn the control knob to
the OFF position (center). The indicator
light
Bon the control knob goes off at
the OFF position.
To check the air filter for the climate con-
trolled seat, contact an INFINITI retailer.
WARNING
Do not use or allow occupants to use the seat
heater if you or the occupants cannot monitor
elevated seat temperatures or have an inability
to feel pain in body parts that contact the seat.
Use of the seat heater by such people could
result in serious injury.
CAUTION
● The battery could run down if the climate
controlled seat is operated while the engine
is not running.
● Do not use the climate controlled seat for
extended periods or when no one is using
the seat. ●
Do not put anything on the seat which insu-
lates heat, such as a blanket, cushion, seat
cover, etc. Otherwise, the seat may become
overheated.
● Do not place anything hard or heavy on the
seat or pierce it with a pin or similar object.
This may result in damage to the climate
controlled seat.
● Any liquid spilled on the seat should be re-
moved immediately with a dry cloth.
● The climate controlled seat has an air filter.
Do not operate climate controlled seat with-
out an air filter. This may result in damage to
the system.
● When cleaning the seat, never use gasoline,
thinner, or any similar materials.
● If any malfunctions are found or the climate
controlled seat does not operate, turn the
switch off and have the system checked by
an INFINITI retailer. The warning systems switch will turn on and off
the Lane Departure Warning (LDW) system, the
Blind Spot Warning (BSW) system and the For-
ward Collision Warning (FCW) system at the
same time.
The LDW system will sound a warning chime
and blink the lane departure warning light
(orange) to alert the driver if the vehicle is
traveling close to either the left or the right of a
traveling lane with detectable lane markers.
(See “LANE DEPARTURE WARNING (LDW)/ PRE-
VENTION (LDP) SYSTEM” in the “5. Starting and
driving” section.)
SSD0956
WARNING SYSTEMS SWITCH (Type A) (if so
equipped)
Instruments and controls2-47

TROUBLESHOOTING GUIDE
SymptomPossible causeAction to take
When pushing the ignition switch to
stop the engine The SHIFT P warning appears on the
display and the inside warning chime
sounds continuously or for a few
seconds. The selector lever is not in the P
(Park) position.
Shift the selector lever to the P
(Park) position.
When shifting the selector lever to
the P (Park) position. The inside warning chime sounds
continuously. The ignition switch is in the ACC or
ON position.Push the ignition switch to the OFF
position.
When opening the driver’s door to
get out of the vehicle The inside warning chime sounds
continuously. The ignition switch is in the ACC
position.Push the ignition switch to the OFF
position.
When closing the door after getting
out of the vehicle The NO KEY warning appears on the
display, the outside chime sounds 3
times and the inside warning chime
sounds for a few seconds.
The ignition switch is in the ACC or
ON position.
Push the ignition switch to the OFF
position.
The SHIFT P warning appears on the
display and the outside chime
sounds continuously. The ignition switch is in the ACC or
OFF position and the selector lever is
not in the P (Park) position.Move the selector lever to the P
(Park) position and push the ignition
switch to the OFF position.
When closing the door with the in-
side lock knob turned to LOCK The outside chime sounds for a few
seconds and all the doors unlock. The Intelligent Key is inside the ve-
hicle or luggage room.Carry the Intelligent Key with you.
When pushing the request switch or
the LOCK
button on the Intel-
ligent Key to lock the door The outside chime sounds for a few
seconds. The Intelligent Key is inside the
vehicle.
Carry the Intelligent Key with you.
A door is not closed securely. Close the door securely.
Pre-driving checks and adjustments3-13

SymptomPossible causeAction to take
When pushing the door handle re-
quest switch to lock the door The outside chime sounds for a few
seconds. The Intelligent Key is inside the ve-
hicle or luggage room.Carry the Intelligent Key with you.
A door is not closed securely. Close the door securely.
The door handle request switch is
pushed before the door is closed. Push the door handle request switch
after the door is closed.
When pushing the ignition switch to
start the engine The Intelligent Key battery indicator
appears on the display. The battery charge is low.
Replace the battery with a new one.
(See “BATTERY” in the “8. Mainte-
nance and do-it-yourself” section.)
The NO KEY warning appears on the
display and the inside warning chime
sounds for a few seconds. The Intelligent Key is not in the
vehicle.
Carry the Intelligent Key with you.
When pushing the ignition switch The Intelligent Key system warning light in the meter illuminates in
yellow. It warns of a malfunction with the
electrical steering lock system or the
Intelligent Key system.Contact an INFINITI retailer.
3-14Pre-driving checks and adjustments

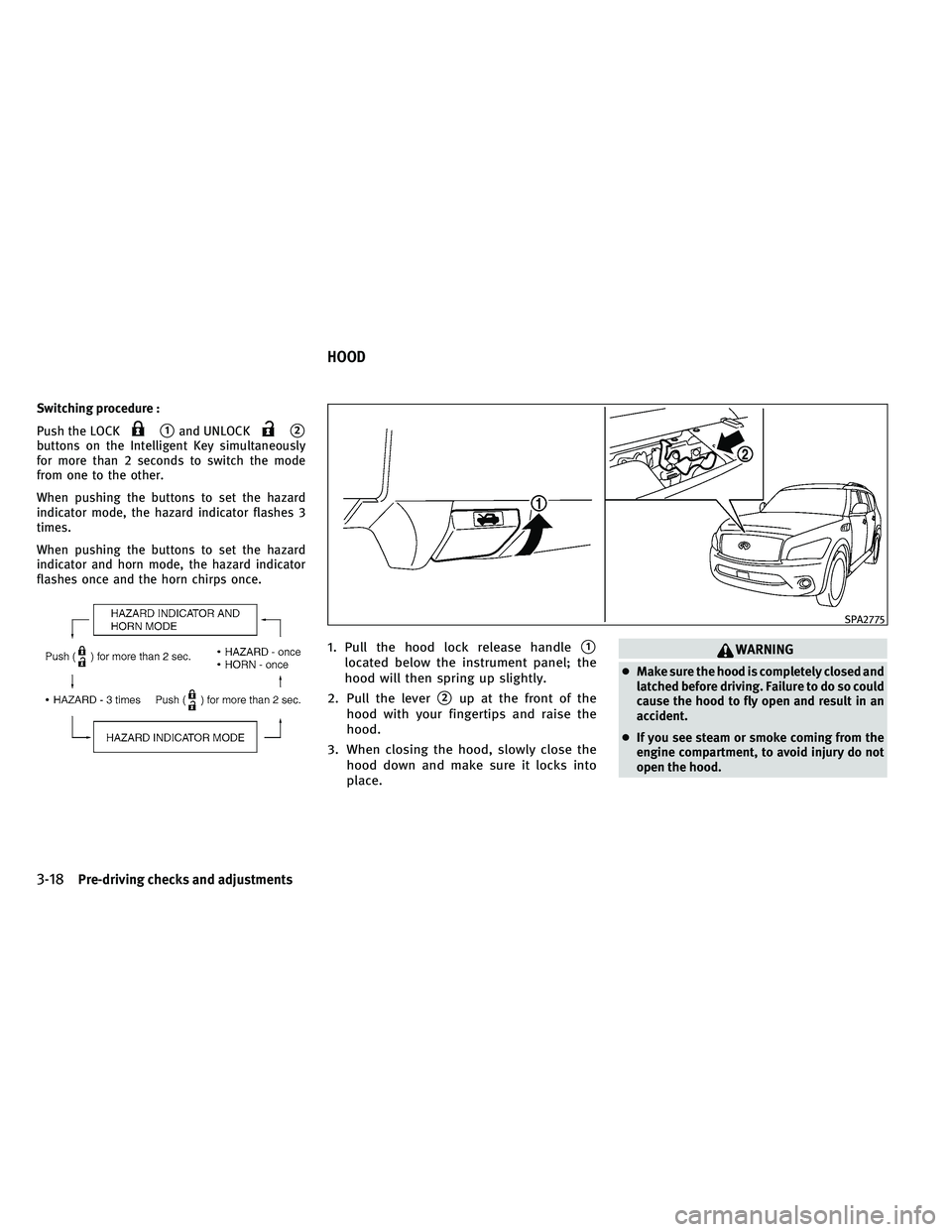

Switching procedure :
Push the LOCK
1and UNLOCK2
buttons on the Intelligent Key simultaneously
for more than 2 seconds to switch the mode
from one to the other.
When pushing the buttons to set the hazard
indicator mode, the hazard indicator flashes 3
times.
When pushing the buttons to set the hazard
indicator and horn mode, the hazard indicator
flashes once and the horn chirps once.
1. Pull the hood lock release handle1
located below the instrument panel; the
hood will then spring up slightly.
2. Pull the lever
2up at the front of the
hood with your fingertips and raise the
hood.
3. When closing the hood, slowly close the hood down and make sure it locks into
place.
WARNING
●Make sure the hood is completely closed and
latched before driving. Failure to do so could
cause the hood to fly open and result in an
accident.
● If you see steam or smoke coming from the
engine compartment, to avoid injury do not
open the hood.
SPA2775
HOOD
3-18Pre-driving checks and adjustments
